Rick Hightower edited this page Aug 3, 2026 · 1 revision

Login

Source: src/routes/login.tsx (215 lines) Reach: /login — the only screen besides / with a real URL States: 4 — sign-in, sign-up, loopback note, auth-disabled. Errors overlay any of them.

Spec

A single centred card, max-w-sm, on a full-height bg-background canvas. Three stacked regions with no chrome around them: brand block, credential form, guest escape hatch.

Two authentication paths, and only one of them works locally. Email + password posts to this app's own Better Auth. Continue with Google / Continue with X federate through a shared Grok broker whose preview OAuth client only accepts *.grok-sandbox.com callbacks — so on localhost, 127.0.0.1, or inside the Tauri window the social buttons cannot succeed. They are still rendered, deliberately: hiding them would make the desktop build look like a different product. The loopback note above the form is what explains the dead end.

Modes. mode toggles between signin and signup. Sign-up adds a Name field at the top of the form and relabels the submit button; nothing else moves. The toggle is the small underlined text button directly beneath submit.

Redirect-away. useCurrentUserState() returns { user, isPending }, and the route renders <Navigate to="/" /> when !isPending && user. The isPending guard is load-bearing: user === null means loading or signed out, so redirecting on null alone bounces signed-in users on every hard reload. A capture that lands on / instead of the login form means a session cookie survived — clear it, do not "fix" the guard.

Auth disabled. When VITE_AUTH_ENABLED === "false" the whole form is replaced by one muted paragraph. Local data still works through the PGlite fallback.

Busy. Every control takes disabled={busy} during submit and the button reads Working…. There is no spinner anywhere on this screen, which is why it needs no freeze handling beyond the caret.

Two fixed bugs worth remembering

Both shipped green in PR #1 and were found by capturing this screen, not by reading it.

  1. Dark mode was unreachable. The effect applying .dark to <html> lived inside AppShell, which /login never renders. Now hoisted to useTheme() in src/routes/__root.tsx. A light login page under a dark theme is a regression of exactly that fix.
  2. Hydration mismatch. isLocalAuthOrigin() reads window.location, so it was false during SSR and true on the client while the loopback note rendered straight off it. It is now useState(false) plus a mount effect (lines 31–32) — which means the note is absent in the server-rendered markup and appears one frame later. Wait for it; do not screenshot the first paint.

Addressability

Best-labelled screen in the repo — all three inputs carry id + htmlFor, so getByLabel works and no testids are needed.

What Selector
Email role=textbox[name="Email"] / #email
Password #password (type=password — not an ARIA textbox)
Name (sign-up only) role=textbox[name="Name"] / #name
Submit role=button[name="Sign in with email"] | [name="Create account"] | [name="Working…"]
Mode toggle `role=button[name=/Need an account
Social role=button[name="Continue with Google"], [name="Continue with X"]
Guest escape role=link[name="Continue as guest"] → /
Error .text-destructive paragraph, last child before the guest link

The submit button's accessible name changes with state (Sign in with email → Working… → back). Match on a stable anchor — form button[type=submit] — when asserting across a submit.

Capture recipe

The only screen that needs no click path to reach.

1. seed localStorage["forgenotes-ui-freeze"] = "1"
   (+ localStorage["workspace-v1"] = {"state":{"theme":"dark"},"version":0} for dark)
2. load /login, viewport 1280x800
3. wait for role=button[name="Sign in with email"]   ← not just DOMContentLoaded
4. webview_screenshot

Per state:

State Extra step
Sign-in none — this is the default
Sign-up click the mode toggle, wait for #name
Loopback note open on 127.0.0.1 or localhost, wait for the amber note — it mounts one frame after hydration
Auth disabled run the dev server with VITE_AUTH_ENABLED=false
Error submit an unregistered email with any 8-char password

Do not capture on a *.grok-sandbox.com origin when you want the loopback note: that is the one origin where it is correctly absent.

Wireframes

State Wireframe
1 · Sign in
2 · Sign up

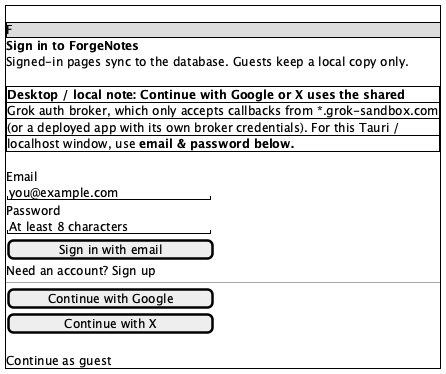

3 · Loopback note
4 · Auth disabled

Rubric

Tokens and the always-acceptable list live in tokens.md.

Must Match

  • Square F mark, centred, above the heading
  • Heading reads "Sign in to ForgeNotes"
  • Sub-line: pages sync when signed in, guests keep a local copy
  • Email and Password fields, in that order, each with a visible label above it
  • Full-width primary submit button directly under the form
  • Mode-toggle text button beneath submit
  • An or divider, then two outline buttons — Google, then X
  • "Continue as guest" link at the bottom
  • Whole card centred both axes, roughly 384 px wide

Acceptable Differences

  • Card vertical position at viewport heights other than 800 px
  • Password dots rendering
  • Native autofill styling on a browser with saved credentials
  • The order of sign-in vs sign-up text on the toggle — it reflects mode

Must NOT Appear

  • A spinner (there isn't one — busy only relabels the button)
  • A visible password value
  • The loopback note on a public origin, or its absence on 127.0.0.1 after hydration
  • Social buttons in the auth-disabled state

Failure Criteria

  • Light card surfaces while .dark is on <html> — this is the regression the __root.tsx theme fix exists to prevent
  • Name field present in sign-in mode, or absent in sign-up mode
  • Error text rendered anywhere but the destructive-bordered box
  • Any control still enabled while the button reads Working…

Out of scope

The OAuth popup itself (/auth/popup, served by authPopupPlugin in vite.config.ts — not a React route, and must never become one), and the post-sign-in redirect target.
