Map Cartography

Auto-map cartography

Each screen is a 16×16 auto-map render using map.dat page 0 (visual tiles) and the cartography rules from Cartography.h / asm @0x2182. Outdoor/surface screens use outb.32; interiors use townb.32.

North is at the top (disk row 15); row 0 on disk is south — same as MM2ED and the in-game Location spell map. Raw bytes: map.dat grids

Overview by area type

All 60 map screens (map.dat indices 0–59), grouped like the game world.

Towns (0–4)

Town caverns (17–21)

Caves (22–32)

Outdoor overland — 5×4 sectors (A1–E4)

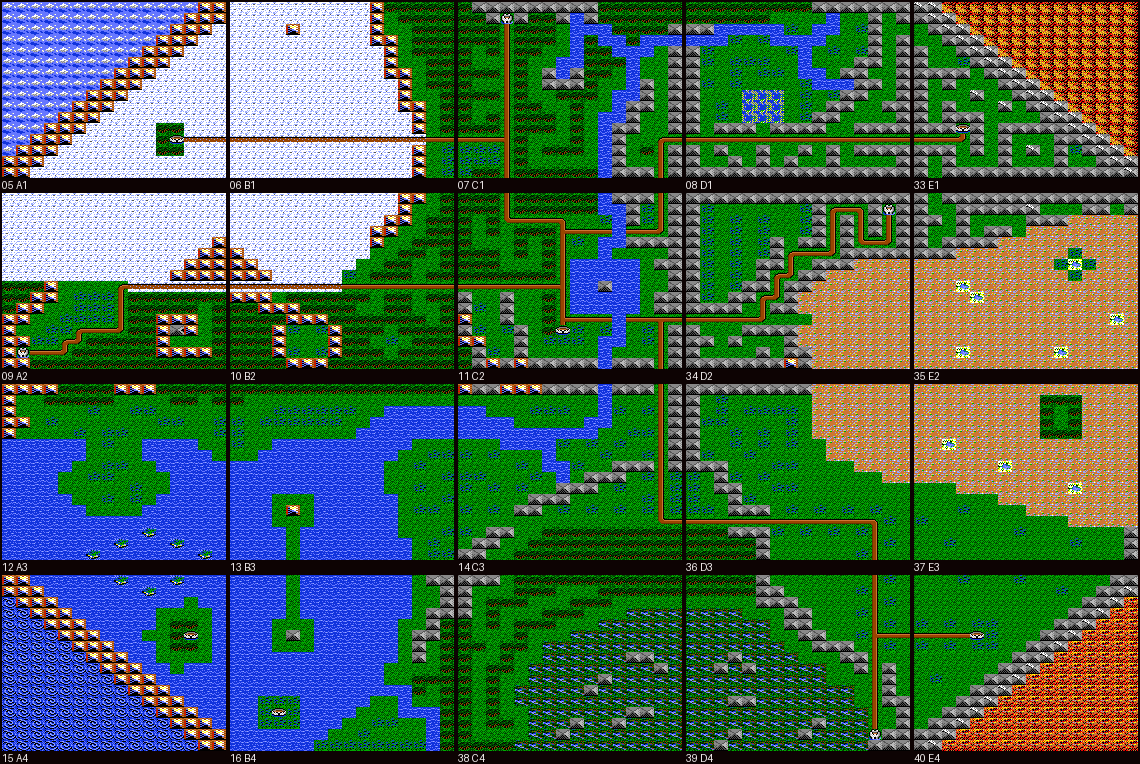

Twenty surface maps in column A–E, row 1–4 order (north at top), named by world sector (A1 … E4 from attrib.dat +0x15). C2 is Middlegate overland; town maps are separate interior screens 0–4.

World overland map (1:1)

Full 7×6 stitch at native auto-map resolution (14×11 px per carto tile): center 5×4 surface sectors (A1–E4) plus elemental planes in the corners — Air NW, Fire NE, Water SW, Earth SE (1568×1056 px, 112×96 cells). Town interiors (screens 0–4) appear as terrain icons on the center block.

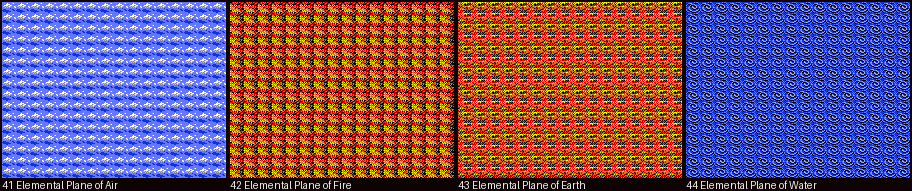

Elemental planes (41–44)

Castle dungeons (45–52)

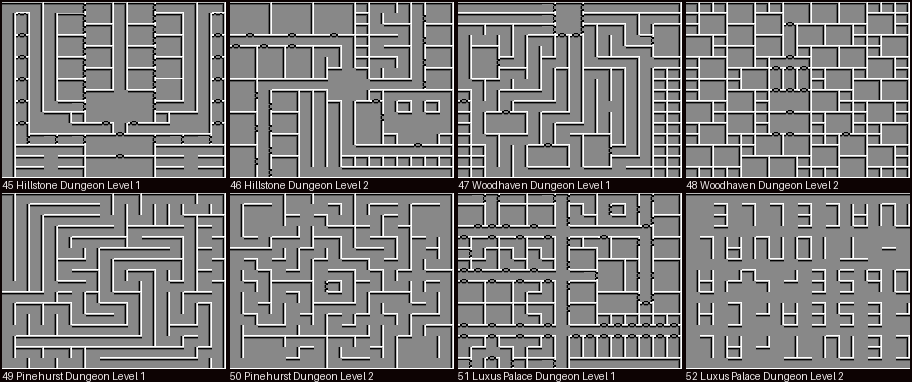

Two basement levels per castle: Hillstone, Woodhaven, Pinehurst, Luxus Palace.

Castles (55–59)

Ancients (53–54)

Carto tilesets

townb.32 (interior dungeon auto-map, 36 frames)

outb.32 (outdoor surface auto-map, 36 frames)

Per-screen maps

00 — Middlegate

01 — Atlantium

02 — Tundara

03 — Vulcania

04 — Sandsobar

05 — A1

06 — B1

07 — C1

08 — D1

09 — A2

10 — B2

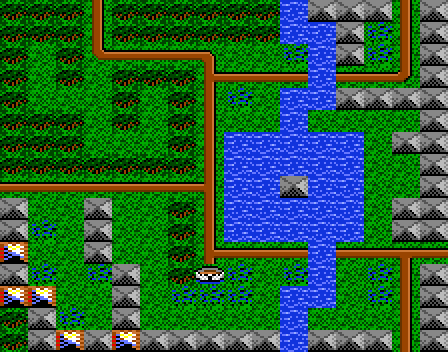

11 — C2

12 — A3

13 — B3

14 — C3

15 — A4

16 — B4

17 — Middlegate Cavern

18 — Atlantium Cavern

19 — Tundara Cavern

20 — Vulcania Cavern

21 — Sandsobar Cavern

22 — Corak's Cave

23 — Square Lake Cave

24 — Ice Cavern

25 — Sarakin's Mine

26 — Murray's Cave

27 — Druid's Cave

28 — Forbidden Forest Cavern

29 — Dragon's Dominion

30 — Dawn's Mist Bog

31 — Gemmaker's Cave

32 — Nomadic Rift

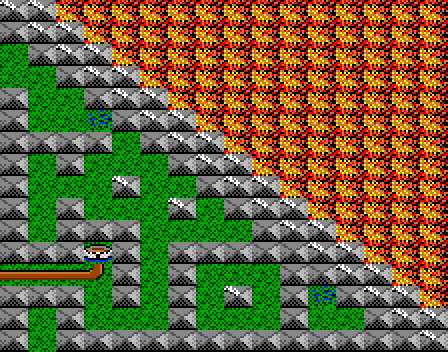

33 — E1

34 — D2

35 — E2

36 — D3

37 — E3

38 — C4

39 — D4

40 — E4

41 — Elemental Plane of Air

42 — Elemental Plane of Fire

43 — Elemental Plane of Earth

44 — Elemental Plane of Water

45 — Hillstone Dungeon Level 1

46 — Hillstone Dungeon Level 2

47 — Woodhaven Dungeon Level 1

48 — Woodhaven Dungeon Level 2

49 — Pinehurst Dungeon Level 1

50 — Pinehurst Dungeon Level 2

51 — Luxus Palace Dungeon Level 1

52 — Luxus Palace Dungeon Level 2

53 — Ancients (Evil)

54 — Ancients (Good)

55 — Hillstone

56 — Woodhaven

57 — Pinehurst

58 — Luxus Palace Royale

59 — Castle Xabran
