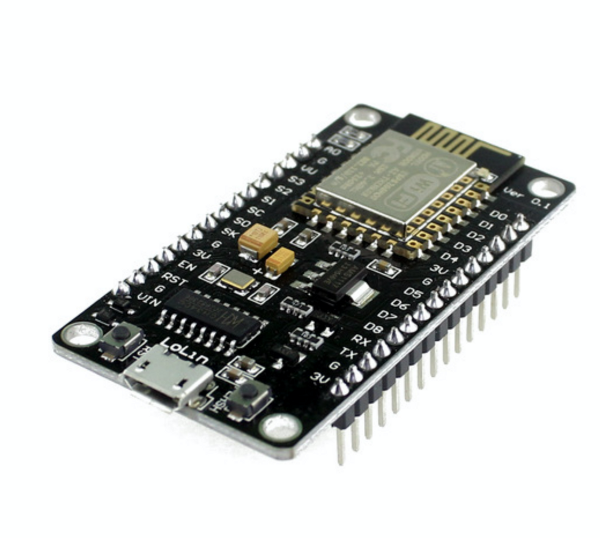

NodeMCU (ESP8266)

ArduinoIDE Board: NodeMCU 0.9 (ESP-12 Module)

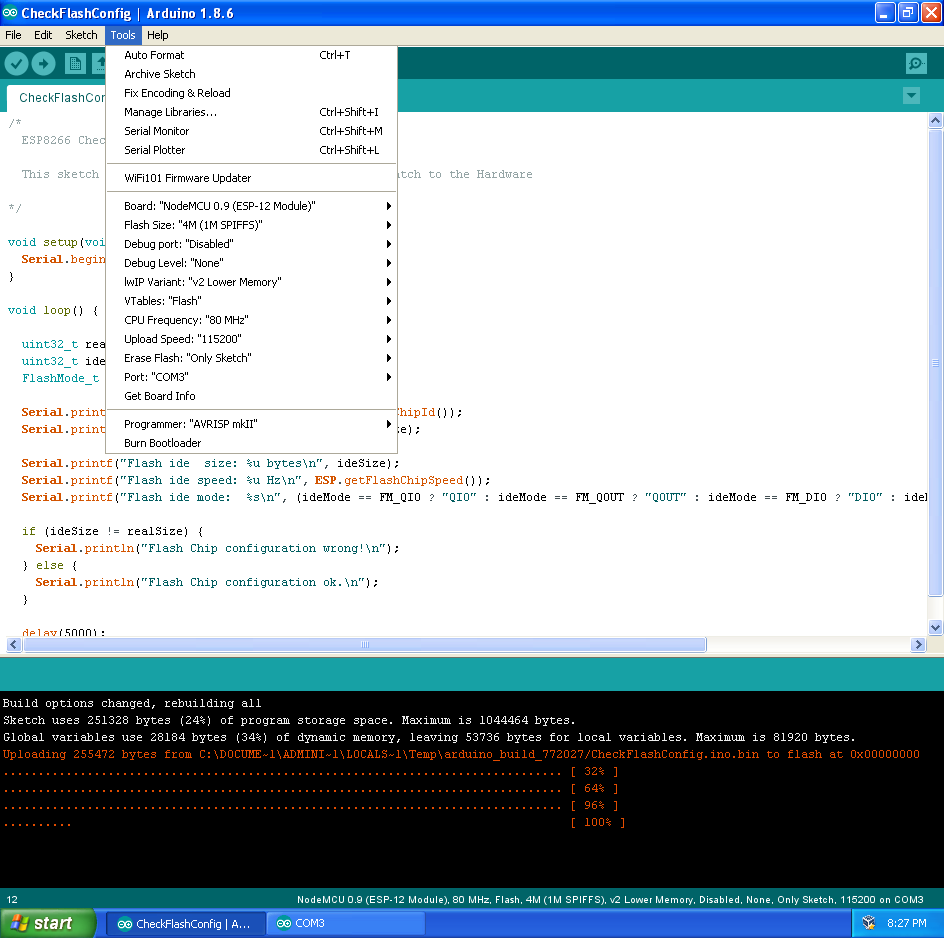

arduinoide1

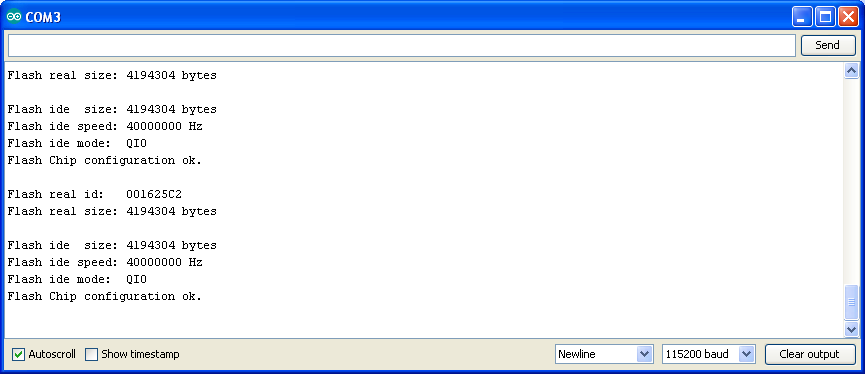

arduinoide2

CH340 drivers
http://www.wch.cn/download/CH341SER_ZIP.html arba CH341SER.ZIP
jungiames i COM3 per putty su 115200 bitrate, paspaudziam reset ir turi matytis tekstas

=Firmware irasymas =========

instaliujam i virtualbox ubuntu mini pagal
http://www.esp8266.com/wiki/doku.php?id=toolchain#how_to_setup_a_vm_to_host_your_toolchain

port forwarding rules:
protocol:tcp
hostip:127.0.0.1
hostport:2222
guestip:10.0.2.15
guestport:22

ip patikrinimui(vietoj ipconfig): # ip a

po visko juntis su putty i localhost:2222 per ssh

rs@ubuntu:~/nodemcu-firmware$ dmesg | grep tty
rs@ubuntu:~/nodemcu-firmware$ sudo /home/rs/esp-open-sdk/xtensa-lx106-elf/bin/esptool.py —port /dev/ttyUSB0 flash_id
esptool.py v1.2
Connecting…
Manufacturer: c2
Device: 2516

2516 tikriausiai yra MX25L3235E – Macronix
https://code.coreboot.org/p/flashrom/source/tree/HEAD/trunk/flashchips.h

http://esp8266.net/
