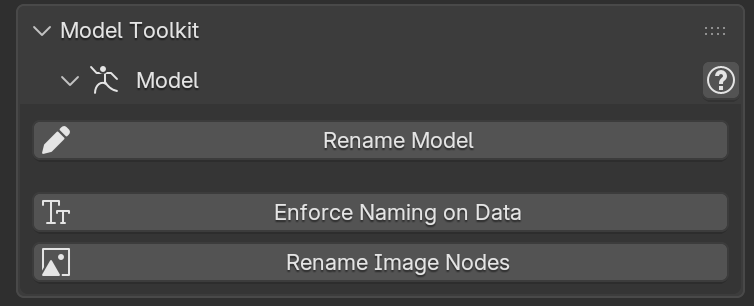

Model Toolkit Model

Tools to rename the model and its data. This section is shown only for a MustardUI model in Configuration mode.

Rename Model

Renames the model, together with the Objects, Collections and Physics Items associated with it.

Note

The renaming tool only works if the MustardUI Naming Convention is active.

Enforce Naming on Data

Applies the naming based on the model name to its Objects and their data. Enable Attempt to Fix Paths to also fix the paths of the custom properties pointing to the renamed data.

Rename Image Nodes

Lists the Image nodes of the model materials, and renames them with a consistent name built from the model name, the material zone and the texture type.

• Smart Rename fills in the suggested names, and Remove Extensions strips the file extensions from the names in the list.
• Choose whether to rename the Image datablocks, the files on disk, or both.

Note

When renaming files on disk, existing files are never overwritten: a number is added to the file name when it is already taken.
