PrismML llama.cpp

Handle: prismml
URL: http://localhost:35090

PrismML's fork of llama.cpp is the runtime behind the Bonsai family of ternary models. Ternary Bonsai 2 ships as PTQ1_0 (1.76 bpw, ~6 GB for 27B) and PQ2_0 (2.16 bpw, ~7.3 GB) GGUFs that use a rotated weight basis with a runtime Walsh-Hadamard transform. Stock llama.cpp either rejects those tensor types or loads them and emits garbage, so Harbor runs the fork as a separate service that otherwise behaves exactly like llamacpp: same caches, same OpenAI-compatible API, same cross-service integrations.

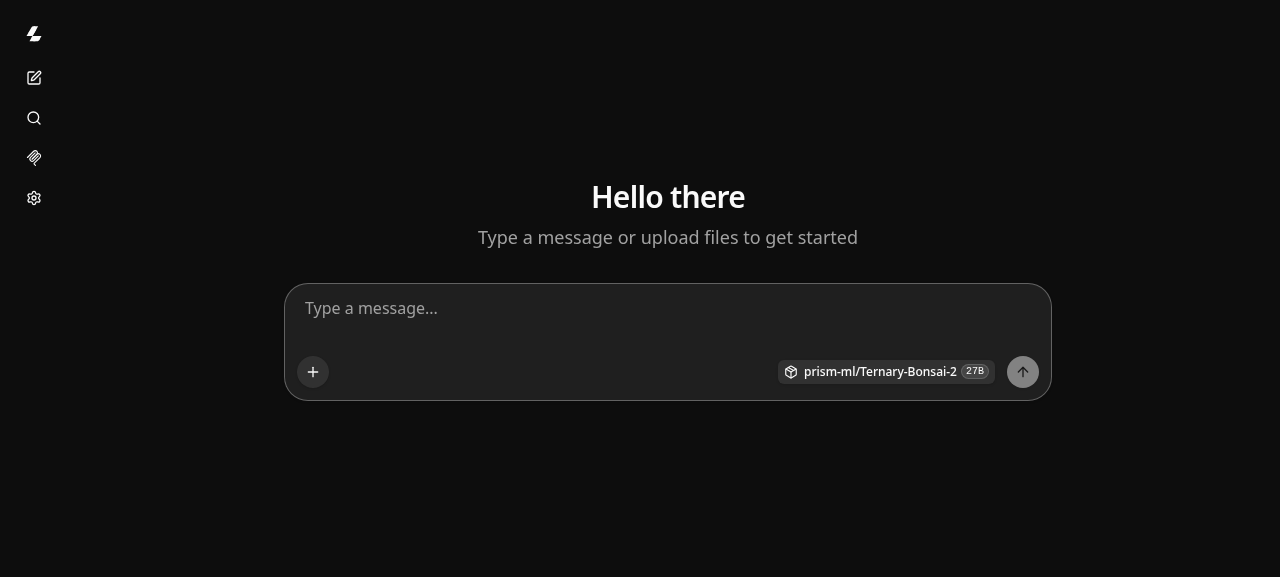

PrismML llama.cpp server UI

Starting

PrismML publishes release tarballs rather than container images. Harbor assembles a small image from the prebuilt binaries for your hardware on first start; no compiler run is involved.

# Build the image for the active capability (CPU, NVIDIA or ROCm)
harbor build prismml

# Start the server; downloads the default model on first run
harbor up prismml

# Open the built-in server UI
harbor open prismml

By default the service serves prism-ml/Ternary-Bonsai-2-27B-gguf:PTQ1_0 via -hf, which downloads the model (and its vision projector) into the shared Hugging Face cache the first time. Expect a 6-7 GB download.

Hardware selection follows Harbor's normal capability detection:

  • NVIDIA - nvidia capability picks a nvidia/cuda runtime base and the linux-cuda-12.8-x64 release asset.
  • ROCm - rocm capability picks a rocm/dev-ubuntu-24.04 base and the ubuntu-rocm-7.2-x64 asset, and passes /dev/kfd and /dev/dri.
  • CPU - everything else uses ubuntu:24.04 and the ubuntu-x64 asset.

Each flavor is tagged separately (harbor-prismml:<tag>-cpu|cuda|rocm), so enabling a GPU capability later rebuilds instead of reusing the CPU image.

Models

# Switch to the faster-prefill 2-bit variant
harbor prismml model prism-ml/Ternary-Bonsai-2-27B-gguf:PQ2_0

# Any HF blob URL also works
harbor prismml model https://huggingface.co/prism-ml/Ternary-Bonsai-8B-gguf/blob/main/Ternary-Bonsai-8B-PQ2_0.gguf

# Or a local file; ./services/prismml/data is mounted at /app/data
harbor prismml gguf /app/data/model.gguf

# Clear the model to run in router mode (auto-discovers GGUFs in the HF cache)
harbor prismml model ""

# Pre-download a Bonsai GGUF through the fork instead of stock llama.cpp
harbor models pull --source prismml prism-ml/Ternary-Bonsai-2-27B-gguf:PQ2_0

Restart prismml after changing the model or arguments.

Default server arguments enable flash attention, cap the context at 16K (the model advertises 262K; the KV cache alone is roughly 270 KB per token for this 27B, so 16K uses about 4.3 GB next to the 6 GB of weights and fits a 16 GB card) and apply PrismML's suggested sampling:

harbor prismml args
# -fa on -c 16384 --temp 1.0 --top-p 0.95 --top-k 20

The default Bonsai 2 model is a thinking model. Give chat requests a generous max_tokens or the reasoning budget eats the whole reply, and prefer temp 1.0 / top-p 0.95 / top-k 20 as above; other samplers make it loop more.

Choosing a quant

Bonsai 2 exists only at 27B, in two GGUF quants plus a -dev repo. Harbor defaults to PTQ1_0 because the smallest footprint is the point of this backend, but PQ2_0 is the faster one and is what PrismML's own demo downloads.

Measured on the same machine (Radeon 8060S / gfx1151, ROCm, one slot, 20 matched GSM8K prompts, temp 1.0):

PTQ1_0 PQ2_0
File size 5.95 GB 7.21 GB
Correct 19 / 20 19 / 20
Prompt processing 200 tok/s 213 tok/s
Generation 17.1 tok/s 21.4 tok/s
Wall clock for the 20 prompts 748 s 510 s

Neither quant won a prompt the other lost. PQ2_0 generates about 25% faster despite being the larger file, because PTQ1_0 trades compute for size. Pick PTQ1_0 when VRAM is the binding constraint, PQ2_0 when you have 1.3 GB to spare and want the speed:

harbor prismml model prism-ml/Ternary-Bonsai-2-27B-gguf:PQ2_0
harbor up prismml

The third variant, prism-ml/Ternary-Bonsai-2-27B-gguf-dev, ships a Q2_0 file that PrismML keeps separate until upstream support lands. It works here too, and is useful for seeing the stock-versus-fork difference described under Troubleshooting.

Measured against a Q3 Qwen3.8-27B

Same prompts, same grader, each model at its recommended sampler, 6000-token budget, two slots of 8K context, on an RTX 4090 Laptop (16 GB). Qwen3.8-27B is the FP16 parent of Bonsai 2, here as Unsloth UD-Q3_K_XL on stock llama.cpp, which is the largest quant of it that fits the same card.

Qwen3.8-27B UD-Q3_K_XL Ternary Bonsai 2 27B PTQ1_0
GSM8K (100) 96% 97%
HumanEval (164, executed) 92% 90%
MATH-500 (first 50) 86% 78%
Hit the token budget 14 / 314 19 / 314
Generation per slot 31 tok/s 39 tok/s
VRAM 14.4 GB 8.3 GB

The gap is in hard math, where Bonsai 2 runs out of budget more often, not in everyday tasks. It answers with roughly the same number of tokens as the parent, so its speed advantage is real wall-clock time.

API

# List served models
harbor prismml models

# Chat completion
curl http://localhost:35090/v1/chat/completions \
  -H "Content-Type: application/json" \
  -d '{"messages":[{"role":"user","content":"Say hello"}],"max_tokens":512}'

Integrations

prismml has the same cross-service files as llamacpp. Start it next to any Harbor frontend or satellite and it is wired in automatically, for example:

harbor up prismml webui --open
harbor up prismml boost litellm
harbor launch opencode --backend prismml

Satellites that need a fixed model id read it from HARBOR_<SERVICE>_PRISMML_MODEL (for example HARBOR_HERMES_PRISMML_MODEL, HARBOR_LIGHTRAG_PRISMML_MODEL), all defaulting to the Bonsai 2 27B spec.

Configuration

Following options are available via harbor config:

# The port on the host machine where the server is available
HARBOR_PRISMML_HOST_PORT          35090

# PrismML release tag to run; see https://github.com/PrismML-Eng/llama.cpp/releases
# (managed by harbor prismml version)
HARBOR_PRISMML_VERSION            prism-b10685-7dffb15

# Runtime base image and release asset flavor per capability
HARBOR_PRISMML_BASE_IMAGE_CPU     ubuntu:24.04
HARBOR_PRISMML_ASSET_CPU          ubuntu-x64
HARBOR_PRISMML_BASE_IMAGE_NVIDIA  nvidia/cuda:12.8.1-runtime-ubuntu24.04
HARBOR_PRISMML_ASSET_NVIDIA       linux-cuda-12.8-x64
HARBOR_PRISMML_BASE_IMAGE_ROCM    rocm/dev-ubuntu-24.04:7.2
HARBOR_PRISMML_ASSET_ROCM         ubuntu-rocm-7.2-x64
# ROCm runtime libs installed on top of the base image; the release binary
# links against them and the rocm/dev-ubuntu image ships without them
HARBOR_PRISMML_ROCM_PACKAGES      hipblas rocblas

# Model selection; managed by harbor prismml model/gguf
HARBOR_PRISMML_MODEL              prism-ml/Ternary-Bonsai-2-27B-gguf:PTQ1_0
HARBOR_PRISMML_GGUF
HARBOR_PRISMML_MODEL_SPECIFIER    -hf prism-ml/Ternary-Bonsai-2-27B-gguf:PTQ1_0

# Additional llama-server arguments
HARBOR_PRISMML_EXTRA_ARGS         -fa on -c 16384 --temp 1.0 --top-p 0.95 --top-k 20

# Source build controls (build capability)
HARBOR_PRISMML_BUILD_REF          prism
HARBOR_PRISMML_BUILD_CUDA_ARCH    default
HARBOR_PRISMML_BUILD_ROCM_ARCH    gfx908;gfx90a;gfx942;gfx1030;gfx1100;gfx1101;gfx1102;gfx1151;gfx1150;gfx1200;gfx1201

Older NVIDIA drivers that cannot run CUDA 12.8 can switch to the 12.4 asset:

harbor config set prismml.base.image.nvidia nvidia/cuda:12.4.1-runtime-ubuntu22.04
harbor config set prismml.asset.nvidia linux-cuda-12.4-x64
harbor build prismml

Building from Source

The release binaries cover the common GPU targets. If yours is missing, or you need an unreleased commit, build the fork itself with its own Dockerfiles. This is a full llama.cpp compile and takes a while, especially for CUDA and ROCm.

harbor prismml build on
harbor prismml build ref prism      # branch, tag or commit
harbor config set prismml.build.rocm.arch gfx1151   # optional: trim ROCm targets
harbor build prismml
harbor up prismml
harbor prismml build off            # back to release binaries

Volumes

  • HARBOR_HF_CACHE is mounted at /root/.cache/huggingface; models pulled via -hf land here and are shared with llamacpp, ollama, and the rest of Harbor.
  • HARBOR_LLAMACPP_CACHE is mounted at /root/.cache/llama.cpp.
  • The Hugging Face cache is additionally mounted read-only at the same absolute path as on the host, so GGUFs in the llama.cpp cache that are symlinks to host HF-cache blobs resolve inside the container.
  • ./services/prismml/data is mounted at /app/data for local GGUF files.

Troubleshooting

harbor logs prismml
  • Wrong answers when you raise -np - keep the server at one slot. With -np 4 on ROCm the same 20 GSM8K prompts dropped from 19/20 to 7/20 correct, and 12 prompts that were right at one slot came back wrong; some requests also ran the full token budget in reasoning and returned empty content. Harbor's default is a single slot, so this only bites if you add -np yourself via harbor prismml args. Validate accuracy, not just throughput, before raising it.
  • Garbage output, or a refusal to load, on stock llama.cpp - only prismml understands these files; point your frontend at port 35090, not at llamacpp. What stock llama.cpp does depends on its build: a current one rejects the file outright (tensor 'output.weight' has invalid ggml type 42), while PrismML warns that builds which happen to define that type number will load the -dev Q2_0 file and emit gibberish with no warning. The fork loads the same file and answers normally.
  • Build fails downloading the tarball - the pinned HARBOR_PRISMML_VERSION may have been published without Linux assets (the newest tag sometimes only carries Windows files for a while). Pick an earlier tag with harbor prismml version <tag>.
  • Out of memory on load, or single-digit tokens/s on NVIDIA - the GPU is shared with something else (another llama-server, a desktop session). llama-server then spills layers to the CPU or fails cudaMalloc. Free the VRAM, lower the context (harbor prismml args '-fa on -c 8192 --temp 1.0 --top-p 0.95 --top-k 20'), or quantize the KV cache with -ctk q8_0 -ctv q8_0.
  • Slow generation on ROCm (single-digit tokens/s) - the HIP backend failed to load, usually because libhipblas/librocblas are missing from the image. Check with harbor exec prismml ldd /app/libggml-hip.so | grep 'not found' and make sure HARBOR_PRISMML_ROCM_PACKAGES matches your ROCm base image, then harbor build prismml. On a Strix Halo (gfx1151) the 27B PTQ1_0 model generates around 19 tokens/s once the GPU is in use.
  • GPU not used on ROCm - the release binary targets the gfx list above. For other chips enable the source build and set HARBOR_PRISMML_BUILD_ROCM_ARCH. Strix Halo (gfx1151) hosts may also need HSA_OVERRIDE_GFX_VERSION=11.5.1 via harbor env prismml.
  • Endless reasoning loops - a known trait of Bonsai 2; keep the default sampler settings and cap max_tokens per request.
