Accurate heliostat tracking mechanisms

Jump to bottom
kmilidonis edited this page Mar 28, 2022 · 1 revision

Within Tonatiuh++, the most employed heliostat tracking mechanisms can be implemented with high accuracy by filling the actual geometric characteristics of each geometry. Figures below shows the implementation of an Azimuth-Elevation, Tilt-Roll and a Target-Aligned tracking mechanisms.

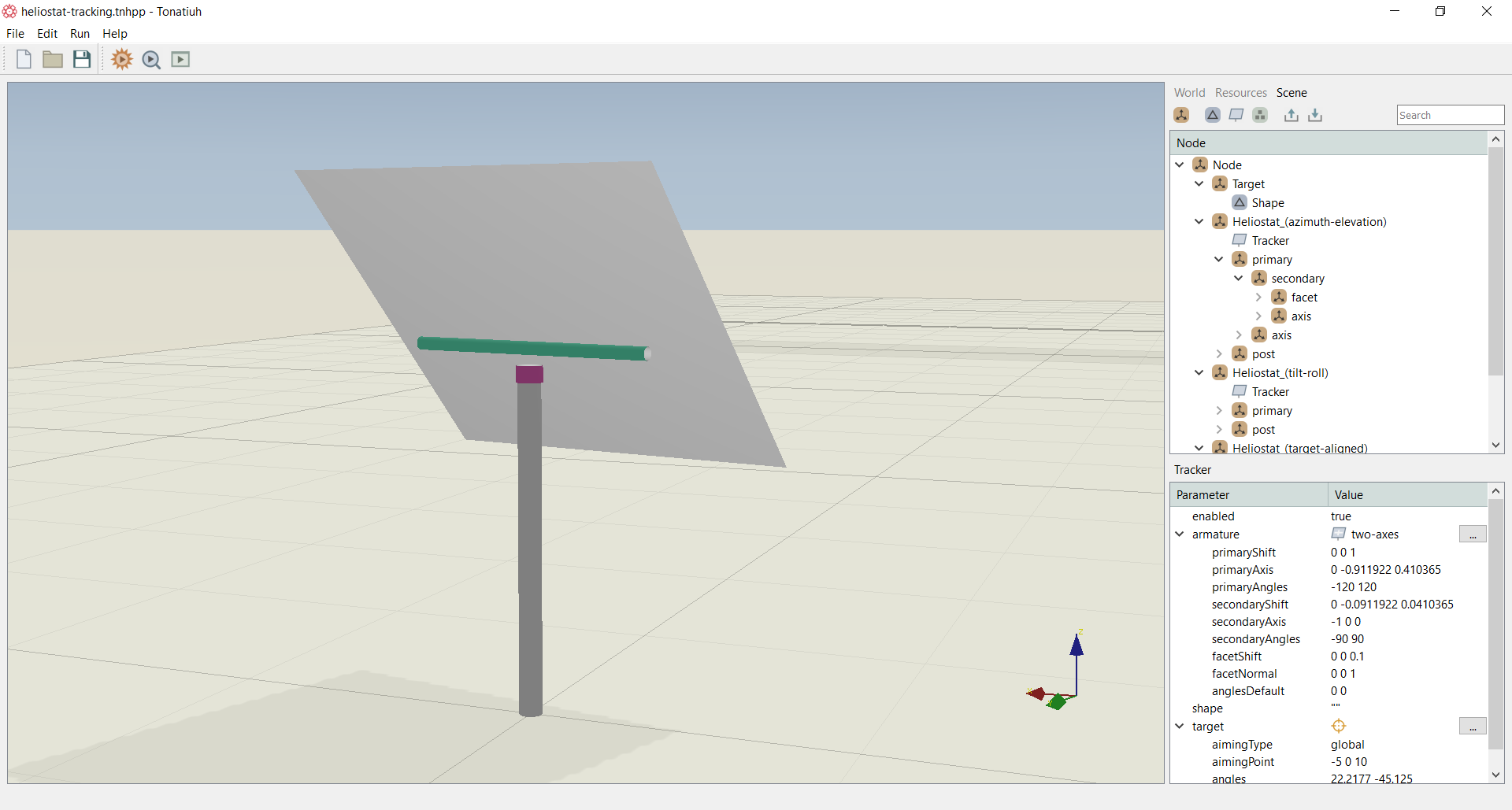

Azimuth-Elevation image

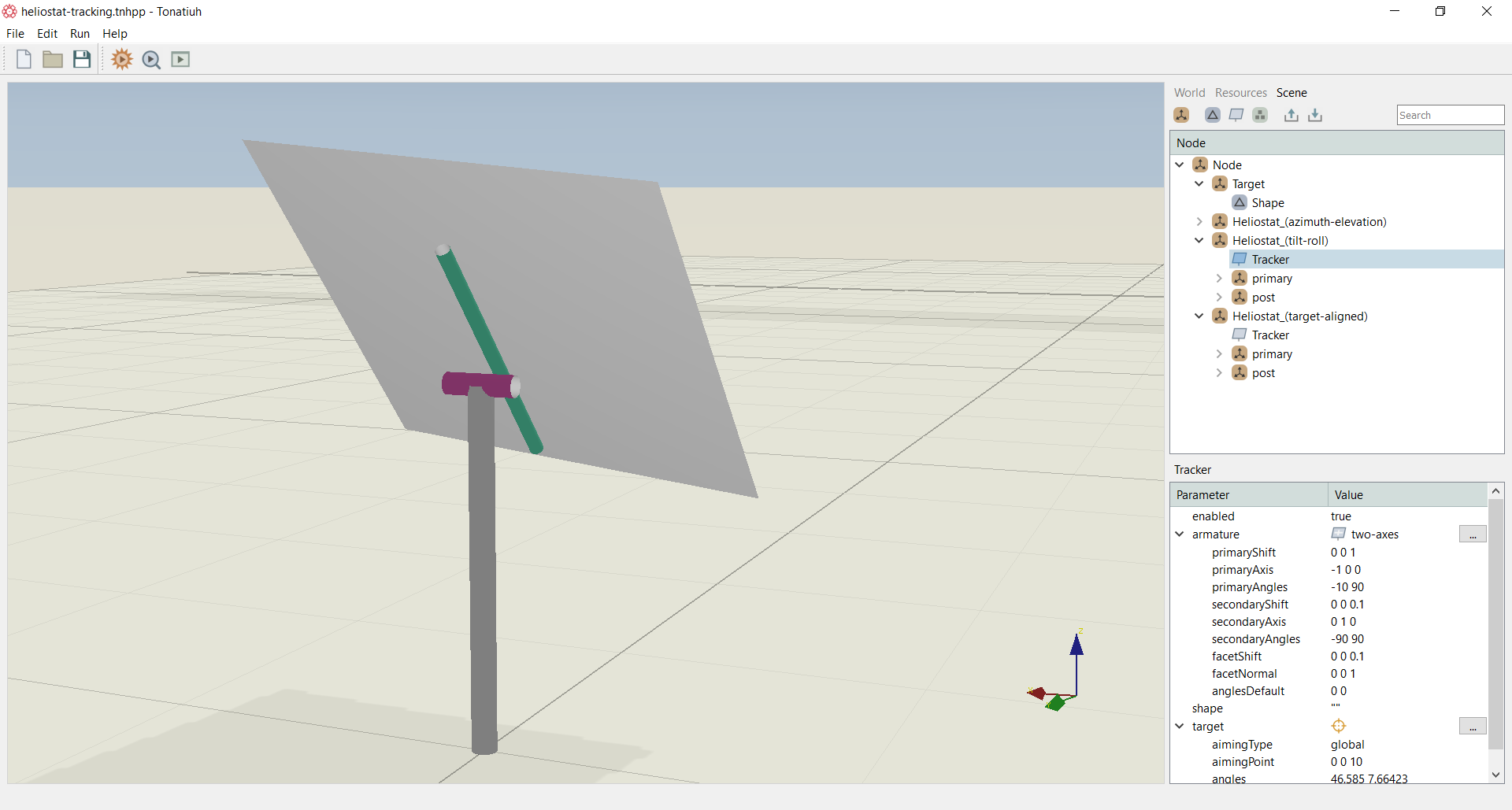

Tilt-Roll image

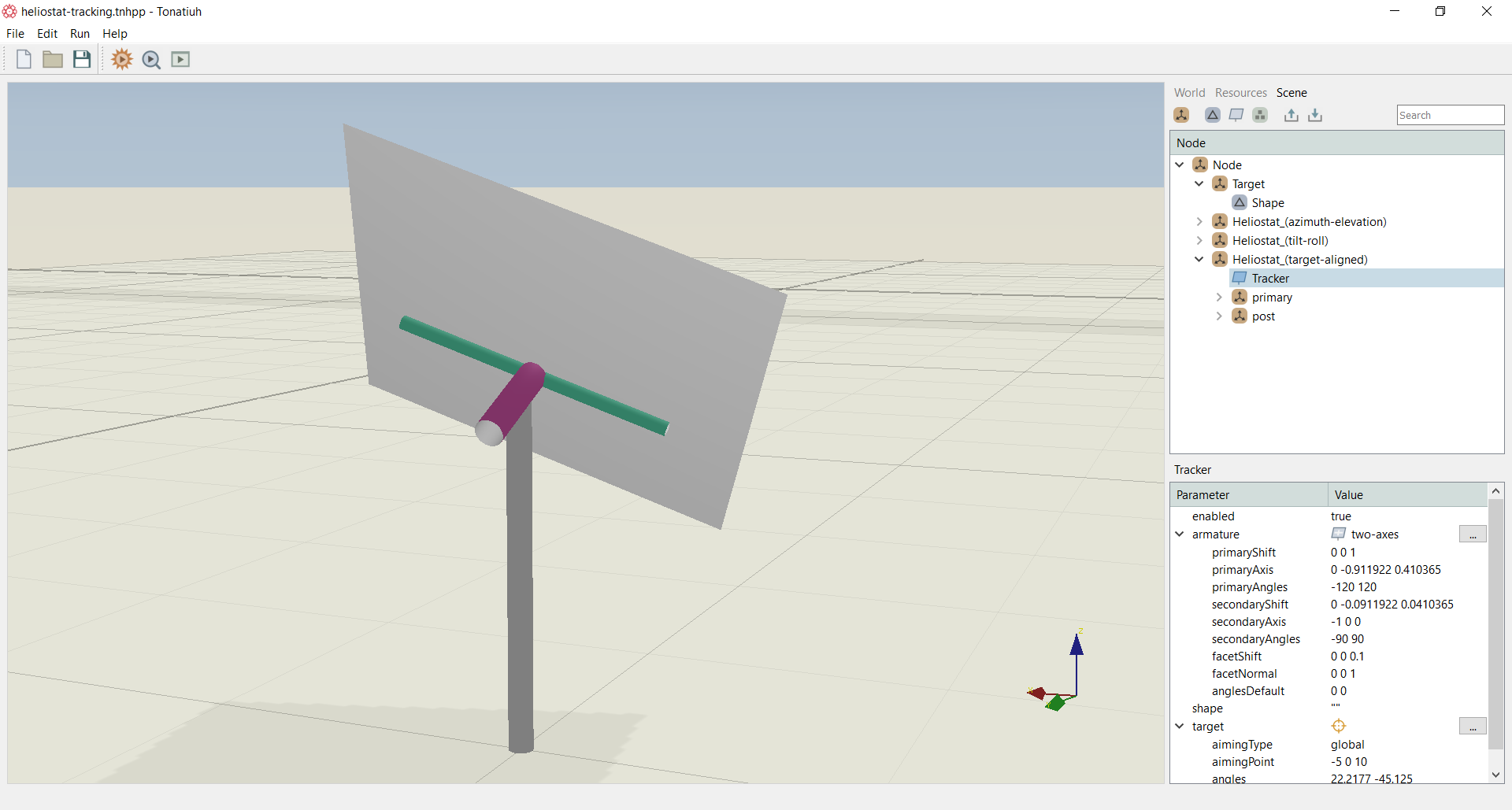

Target-Aligned image

The examples above are included in the examples folder of the Tonatiuh++ installation directory. A how to video in shown below on how to recreate all the above heliostat designs. heliostat_tracking_mechanisms
