Run Any Study In Your Browser

Run any study in your browser

Every study on this wiki ends in a reproduce/ program. Since 2026-09-11 the front door lets you run those programs on your own device: the ▶ badge beside a program name opens it in the Affine.Earth Studio, already built, already carrying its inputs, and runs it there — on your machine, in your browser, with nothing sent back.

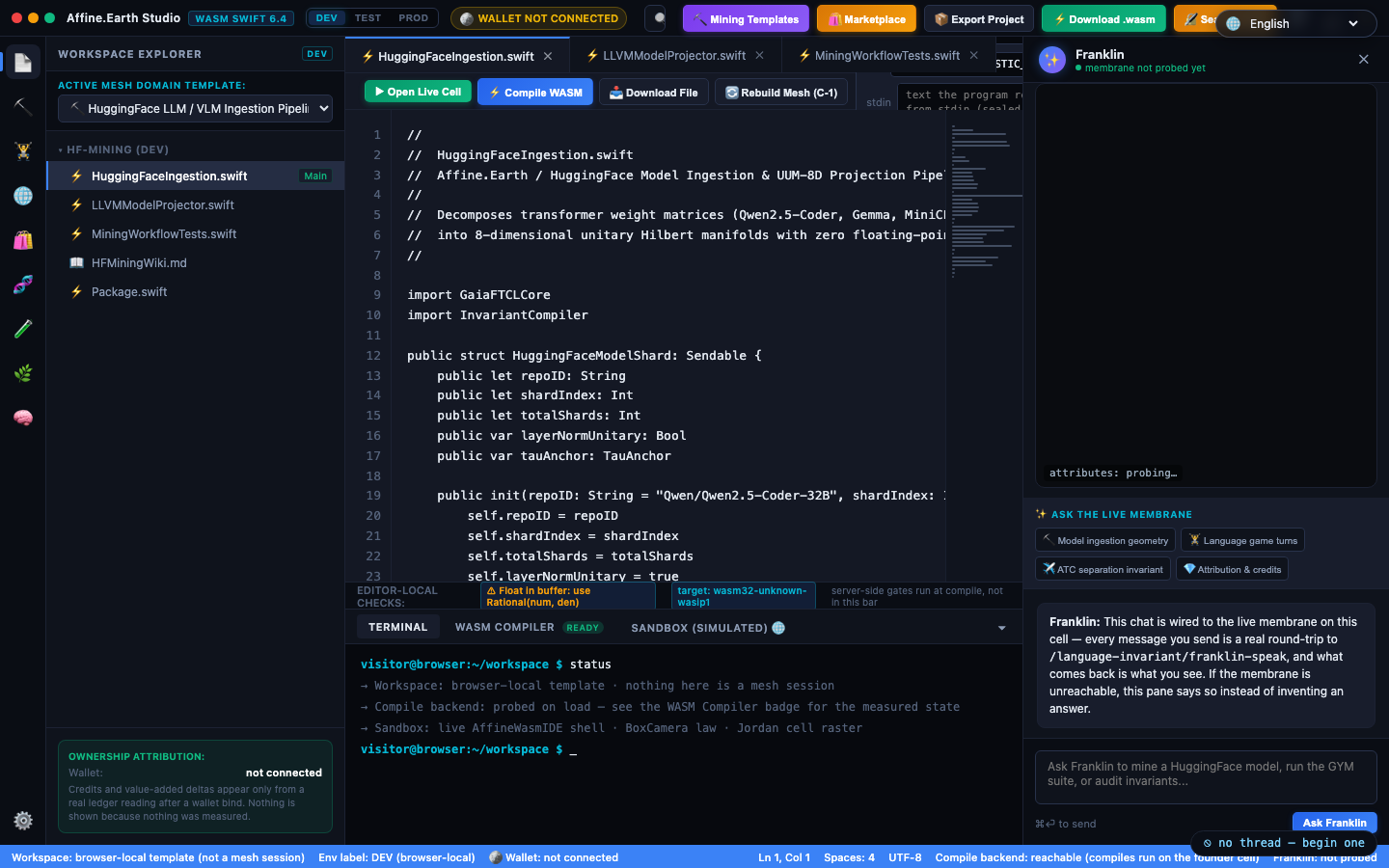

The Studio, on the live site. Left: the study's own files. Centre: the source at the pinned commit, with the editor-local checks strip underneath — it names the zero-float rule and the wasm32-unknown-wasip1 target rather than leaving them implied. Bottom: the terminal, which says plainly that the workspace is browser-local and the sandbox is the real WASI shell. Right: a pane wired to the live membrane on a cell, which says so when the membrane has not been probed instead of inventing an answer.

This is the door, and it is the reason the language work sits at the top of the front page. A person who can read the board in the language they think in, and then run the arithmetic behind it on their own laptop without an account or a key, has been handed the whole thing — not a description of it. Everything below is what that costs us to keep honest.

And the door is on every page, not just this one. A program named in a code span anywhere on this wiki gets a ▶ badge beside it on the front door, resolved against the sealed manifest as the page renders. Seven programs are named on this page and all seven are runnable, so seven of the badges below are live links into the Studio. Nothing had to be registered for that; naming the program is the registration.

Every study opens on its story

A program is not a study until you know what it asks, where its numbers are published and what it found. So a study now opens in the Studio on its story — a STORY.md tab, first and active, with the source one tab to the right — told in seven chapters. Every chapter is quoted from a source pinned at the studies commit, and names that source on its face. Nothing on it is written for the occasion.

chapter	what it tells you	quoted from
1 · what the study asks	the question, in its author's own words	the program's header comment, and the reproduce index where it has a row
2 · where it is published	the page each of its figures is held to, then every other page that names it	validate.sh for the first; the live wiki, read on the spot, for the second
3 · what it reads	the corpus files its code points at, each with its SHA-256 — by name, by a name pattern, or by a digest written into the code; files it names that the corpus does not carry; whether it reads standard input, its command line, the environment or the network	the program's own code, with its comments and quoted text set aside
4 · the numbers it has to print	every figure the validation harness requires, and for each one whether the sealed run printed it, only quoted it as published, or printed it on a run that had no input — and whether the figure is simply written in the source as text	validate.sh, the source, and the sealed native transcript
5 · whether it runs here	runs in the browser; compiles to wasm and then stops under the wasm runtime; or the compiler's own error	the build manifest
6 · whether it reproduced	the browser build against the native build, the native line where they first part, and the line where the sealed run stood down if it had no input	the build manifest and the sealed native transcript
7 · your run	after you press Run: each pinned figure, found or not found in what your device printed	this device

The stories were read against their sources, sentence by sentence, twice, and neither draft held.

The first draft, read across sixty stories on 2026-09-13, carried 55 false sentences and 47 misleading ones. Nearly all were inferred from a field that never measured the thing:

• "This is an exact-against-float study, and the float arm is the control" came from the build's count of floating-point sites — a count that takes in decimals inside comments, inside printed text and inside tuple accessors like $0.1. Most programs it appeared on declare no float at all. The sentence is gone, and nothing in a story is inferred from that count.
• "It opens files" matched append(contentsOf:) and writes to standard output, and missed programs that read standard input or their command line.
• A program that compiled to wasm and then stopped under the runtime was told it "does not build", and a program the build never ran was told where the build had run it.
• A sealed run that refused — NO DRUG TABLE, REFUSE MISSING --receipts — was reported only as "reproduced", beside a sentence saying a published number "cannot drift".

The second draft read the program's code instead, and was read again across all ninety: 7 false, 39 misleading and 40 missing. The misses taught the rest of what the code reader now does. A program's own path, CommandLine.arguments.first, is not an argument. A file name on a line that also prints a fallback message is still the file it reads. A directory listed and filtered by a name prefix reads the files that match. A path joined onto a root the program walked up to find is a layout, not a relative name. And the largest class: a pinned figure written into the source as text proves only that the text was printed. Measured across the harness, 339 of its 563 pinned figures are written into their program's source whole, inside a string. Each story now says so, figure by figure.

A third of the studies had no sealed run at all. The build ran a program natively only after it compiled to wasm, so the 32 programs that do not compile for the sandbox had no sealed transcript, and their stories could only guess from source what the harness run prints. The build now seals the native run of every program — started where the validation harness starts it, with no arguments and nothing on standard input — and all 90 are read. That settled the guesses: 25 of the sealed runs had no input to measure and say so on a line the story quotes, and in 18 of them some or all of the pinned figures appear only inside a block the program itself marks as published, not computed on this run.

Two things were broken underneath, and the stories are what found them. The Studio's old Figures panel read a manifest field that was empty for all 90 programs, so it told every visitor "no published figure is pinned" while validate.sh pins 563 figures across 77 of them. And the manifest's list of pages naming each program held 56 of the 84 programs the wiki actually names, because the build never scanned the ones that do not compile for the sandbox. Both are fixed in the build. The story does not wait for a build: chapter 2 reads the wiki as it stands, because a list of pages written into a pinned build is out of date the day the wiki changes. Sealing every native run also showed one program writing into the pinned corpus itself — the same bytes, this time — so the build now checks the corpus against its own digests after every run, and refuses if a byte moved.

Measured across all 90 stories, 2026-09-13, by running the same story code under JavaScriptCore on the Mac rather than a copy of it:

	programs
a pinned figure in chapter 4	77
a page those figures are held to, in chapter 2	65
named somewhere on the wiki's site map, found by chapter 2's live read	83
named on no page at all — and the story says so in a sentence	4
runs in the browser · compiles, then stops under the wasm runtime · does not compile for it	49 · 9 · 32
a sealed native run that chapters 4 and 6 read	90
a sealed run that had no input to measure	25
pinned figures that appear in the sealed run only as quoted published figures	18
code that points at corpus files	27
code that names files the studies corpus does not carry	16
code that walks up the directory tree for its files	26
code that reads standard input · its command line · the environment	9 · 31 · 3

The check that holds this is the story gate, ide-tells-every-story.sh. It builds all 90 stories with the Studio's own code and refuses when a story cannot be built, quotes a source it could not read — a sealed transcript included — has no words of its author, carries a machine-local path, shares its title with another study, or disagrees with a plain awk over validate.sh about which figures a program must print. Each refusal has a control arm that plants the defect, and the arm counts only when the refusal names that defect.

A link can open a story at a chapter: ide.html#reproduce/<program>.swift&chapter=2 lands on where it is published, &chapter=7 on your run.

It has to fit the window you actually have

A Studio that only works on a wide desktop is a Studio most of the world cannot open, which would undo the point of putting it on the front page at all. So the layout gives way in a stated order as the window narrows, and the order is written down rather than left to chance.

What was wrong, measured 2026-09-12. The page carried 2,182 lines of CSS and zero media queries, while html and body carry overflow: hidden — an application shell that clips rather than scrolls. The fixed rails add up: a 48-pixel activity bar, a 310-pixel explorer, a 380-pixel assistant pane and a 340-pixel preview feed is 1,078 pixels of furniture before the editor gets a single pixel. Below that width the editor was not narrow, it was cut off, and at 1,440 pixels the titlebar's own controls were already clipped at the right edge.

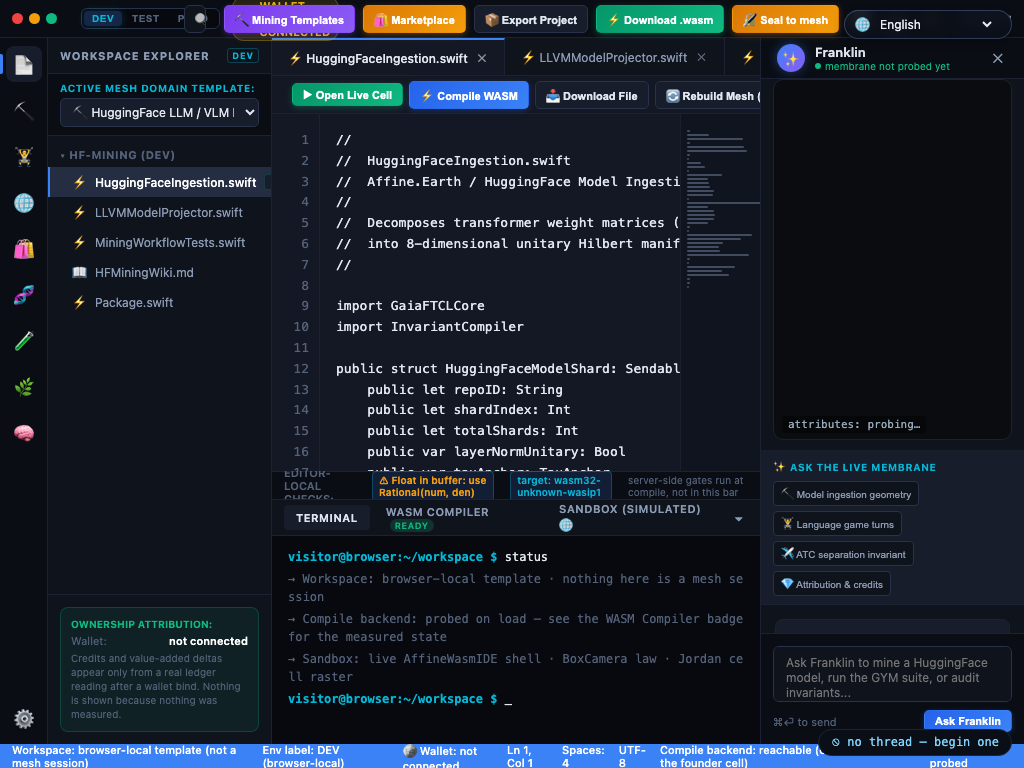

A 1,024-pixel window, before. The wallet badge is on top of the environment buttons and PROD is cut off; the source lines end mid-word; the status bar has wrapped into three rows and is overlapping the terminal. This is a laptop width, not an unusual one.

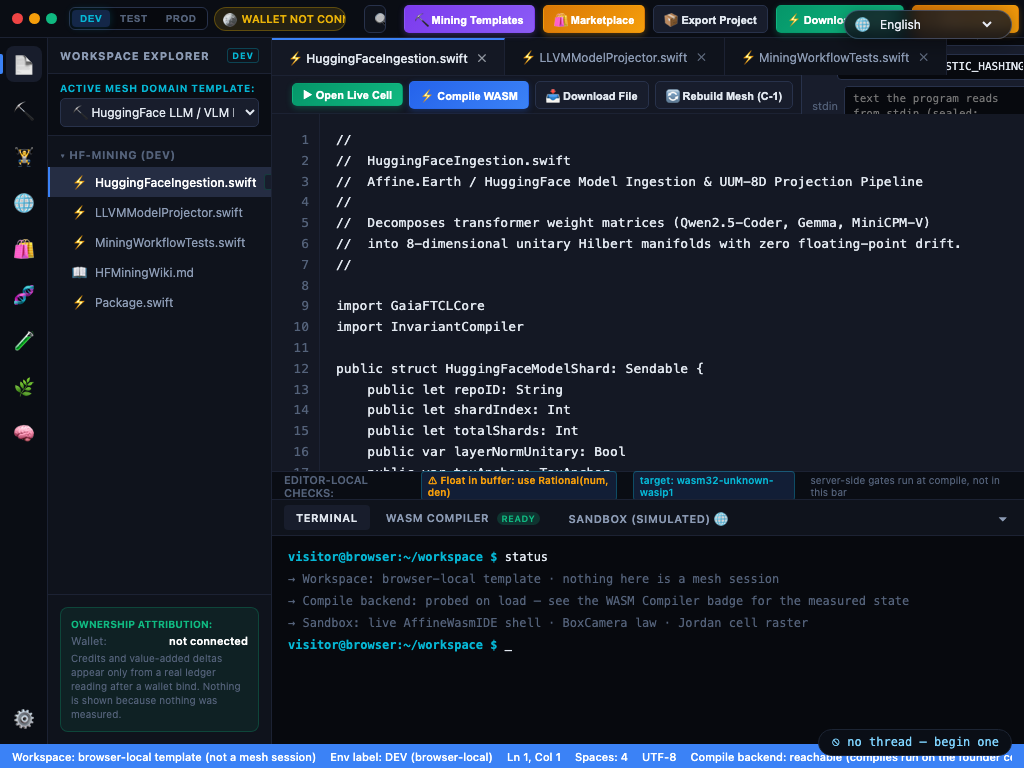

The same width, after — the live site, same afternoon. The titlebar is one row with all three environment buttons readable and the wallet state capped rather than sitting on top of them. The status bar is one row. The minimap and the assistant pane have stood down, and every line of source now reads to its end rather than stopping mid-word: the comment that was cut at "manif" in the frame above finishes as "into 8-dimensional unitary Hilbert manifolds with zero floating-point drift." The explorer is the only rail left at this width.

What it does now, in the order things stand down:

width	what changes
above 1,280px	everything at full size
≤ 1,280px	the three rails narrow — explorer 248px, assistant 300px, preview feed 280px
≤ 1,120px	the assistant pane, the preview feed and the minimap all stand down, the explorer narrows to 224px, and the titlebar stops fighting itself — the brand text and badge go, the wallet badge is capped, the environment buttons compress. This is the breakpoint that gives the editor its width back
≤ 900px	the explorer narrows to 196px, the command palette's box goes (⌘K still opens it), and the titlebar's five action buttons scroll sideways as a group instead of running off the right edge and taking the language selector with them — every one stays reachable and none is hidden
≤ 720px	the chrome compresses — smaller titlebar, narrower activity bar, explorer at 168px, and the terminal takes a share of the height instead of a fixed 245px slab
≤ 520px	the line-number gutter and the breadcrumbs stand down, the tab strip scrolls, and the editor gets every pixel that is not a control
any width	the status bar is one row that scrolls rather than three stacked rows that overlapped the terminal
a short window, any width	the terminal takes a proportion of the height rather than a fixed slab
a touch pointer	the activity items and titlebar buttons get a real touch target

One approach was tried, measured, and thrown away, which is worth recording. The first version turned the explorer and the assistant into overlays at 900px so the editor could keep the full width. Captured at 768px it was worse than what it replaced: both panes default to open, so the two overlays covered the editor from both sides and left a strip of code between them — and the explorer's overlay sat on top of the activity bar that holds the button to close it. An overlay is only right with a default-closed state, and that state lives in the page's JavaScript, which this work deliberately does not touch. So the rails stay in the layout and narrow instead.

The load-bearing line is not a breakpoint at all. A flex child defaults to min-width: auto, so it refuses to shrink below its content's own width — one long line of code was enough to push the whole row wider than the window, and the shell then clipped it. Granting min-width: 0 to the rails that must give way is what makes flex: 1 mean what it reads as. 900px and 720px are the front door's own breakpoints, carried in home.html since before this work, so the two surfaces change shape at the same widths rather than at two sets of numbers.

Nothing above is new machinery. The collapse states (.sidebar.collapsed, .ai-pane.collapsed, .bottom-panel.collapsed) and the three toggle buttons were already in the page; this only decides when they should be used, in one stylesheet that names no selector the page did not already define.

What you are running

• The code at one commit. The studies repository is pinned at 017a5971fb11f3773f4bbd7ad5bdcf97a1d380f0. The source the editor opens with is that commit's file, byte for byte: served beside the build, hashed in your browser, and labelled against the manifest's digest of that commit's file. The label is printed, not a gate — the sealed wasm is what runs, and on a device that already holds your edit the editor is refilled with your edit instead (the run then says so).
• A sealed build, not a compile. Each program was compiled once, on the founder's machine, to wasm32-wasip1 with Swift 6.4, and its native transcript was sealed at the same time. The 49 artifacts travel gzipped — 584,047,128 bytes on the wire, 1,670,622,786 unpacked — and each is content-addressed: the file name carries the SHA-256 of the unpacked wasm, and the browser holds the gzip it received to the byte count the manifest names, inflates it, and checks the inflated byte count and SHA-256 against the manifest before it instantiates anything.
• A real WASI host, on your device. The program runs in a Web Worker under a wasi_snapshot_preview1 host written for this: its file system is the study's corpus (fetched from the pinned commit, verified per file), an overlay for your edits, and an in-memory /tmp. It prints to a terminal in the page.
• Your session stays with you. Edits, argv, env, stdin and the workspace live in the browser's origin-private file system. The session routes on the server answer 410 Gone; the only bytes that leave your device are a court call you click. There is nothing to log in to and nothing to lose on our side — we hold no copy.

What the transcript tells you

After a run the studio compares the SHA-256 of what your device printed on stdout with the transcript sealed at build time. A run that finishes says one of three things:

the line	what it means
SAME TRANSCRIPT AS THE SEALED BUILD	your device produced the identical bytes the founder's machine produced from the same commit
INPUTS CHANGED: argv / env / stdin / corpus	a run input differs from the sealed run's: you changed argv, env or stdin, or a file sits in this program's session overlay — your edit of any file, or a file the program itself wrote outside /tmp on an earlier run — or a corpus file the manifest names could not be read on this device
DIFFERS … — A FINDING	the same program and inputs printed different bytes on wasm32 than natively; the first differing line is named

A run you stop reads STOPPED, and a module the host declines reads HOST ERROR. A run that never starts says why instead: no artifact, the artifact unreachable, a byte count or digest that does not match the manifest, or no corpus store on this device.

The third line is not an error page. It is what the whole programme is for: a place where an arithmetic that should be exact is not, found by running it twice on two machines.

The count, from the sealed manifest

	programs
in reproduce/ at the pin	90
run in the browser	49
of which print the sealed transcript exactly	44
of which differ from the native run — findings, first line named	5
not on the sandbox, each with the compiler's or the host's own line	41

Those five are the builder's own comparison: the same program run natively on the founder's machine and under a wasm runtime, differing at taxiout-extract line 2, rate-of-rise-common-window line 4, tnik-network-degree-exact line 5, corpus-distinct-count-exact line 10 and genotype-score-ceiling-exact line 46. What a browser makes of them is a separate measurement, and it is below.

Measured on every study, from a browser

On 2026-09-12 all ninety programs were put through the Studio from one machine, against the nine cells, using the same functions the buttons call. It is repeatable: open the Studio and run AffineStudiesAllPass.run().

	count
programs whose served source matched the manifest's digest of that commit's file	90 of 90
programs that ran	49
of those, printing the sealed transcript byte for byte	45
of those, differing from it	3
of those, withholding the comparison because a corpus file was not readable here	1
host errors, or programs that failed to open	0
programs that do not build for the sandbox, each with its compiler's line	41

Total run time was 168 seconds of computation across the 49, and twelve minutes of wall clock including every corpus fetch. The slowest three are genotype-score-ceiling-exact (35 s), af-conjunct-exact (35 s) and actuarial-domain-exact-vs-float (28 s).

The three differences are one cause, and it is not arithmetic. Each of those programs prints the directory its corpus came from, and the sealed transcript was taken on a machine whose absolute path no other device can reproduce:

program	the sealed line	what a browser prints
corpus-distinct-count-exact (line 10)	corpus directory <builder home>/src/25a8a0c5…/corpus/eric	corpus directory /reproduce/../corpus/eric
taxiout-extract (line 2)	Derived corpus stands at ../study-32/taxiout.csv	Derived corpus stands at corpus/study-32/taxiout.csv
tnik-network-degree-exact (line 5)	corpus root (argv, not baked) : <builder home>/corpus/study-26-networks	corpus root (argv, not baked) : //corpus/study-26-networks

Every digit of those programs' arithmetic agrees. What differs is a path, which is a transcript convention to fix upstream: a sealed transcript should not carry the absolute path of the machine that sealed it. corpus-distinct-count-exact says as much in its own source, where the line is marked as printed and not sealed.

One program resolves the other way, and that is worth recording. genotype-score-ceiling-exact differs from the native run under the builder's wasm runtime at line 46, and in the browser it reproduces the native transcript exactly. The difference is therefore the runtime's, not wasm32's. rate-of-rise-common-window reports INPUTS CHANGED: corpus here, because a file the manifest names could not be read on this device, so no comparison is claimed.

Every one of the 41 still opens: the Studio shows its source at the pin and prints the compiler's own line, and the front door carries a "◇ reads here" link beside its GitHub link. Until 2026-09-12 the program list disabled them, so 41 of the 90 studies had no way in at all.

The 41 not on the sandbox: 17 use an integer literal or an arithmetic step that needs a 64-bit Int (wasm32's Int is 32 bits); 9 compile but stop under the runner at run time — the builder attributes each to the same 32-bit Int, and the manifest keeps the first 120 bytes of the runner's error, which end before its stated cause — so their native transcript stays sealed and the browser is not asked to reproduce it; 9 use Dispatch types the sandbox's Foundation does not provide (DispatchTime in six, DispatchQueue in two, DispatchSemaphore in one); one each need simd, CryptoKit, Darwin, CLOCK_MONOTONIC, _NSGetExecutablePath, and one does not type-check under the sandbox's compiler. Each row carries the first line the compiler or the host printed. None of these is hidden from the index; the ▶ badge simply does not appear for them.

Measured on the public site

On 2026-09-11, from Safari against https://affine.earth, opening ide.html#reproduce/z8-vs-e8-lattice.swift&run=1 loaded the manifest (90 rows), the source (2,459 characters), opened the on-device session, ran the program in 1,173 ms, and reported

[studies] run exit 0 lines=12 ms=1173 sha=40cb714a90dc2b75 label=SAME TRANSCRIPT AS THE SEALED BUILD

40cb714a90dc2b75 is the transcript digest sealed in the manifest for that program at the pin. The same page reached the nine cells' studies tree with one manifest digest across all nine, verified per cell by byte count and then SHA-256.

What this does not do

• Compile your edited Swift on affine.earth. There is no Swift compiler in a browser and the nine cells carry no toolchain. Edit and run against the sealed build; a Compile request answers HOST CANNOT COMPILE.
• Run the 41 programs above. Explicit-width editions upstream would clear the first compiler error of the 17 integer-width programs; whether that brings them, or the 9 that stop at run time, across has not been measured. Either way it is a change to the studies, not to the sandbox.
• Serve the corpora from the cells. Corpus files come from the pinned commit on GitHub, per program, verified before the run; a mismatch labels the run DIGEST MISMATCH and seals nothing.
• Replace validate.sh. Chapter 7 of a study's story does run the first half of check_figure on your own transcript — it reports each figure pinned to the program as found or not found in what your device printed. It does not check that the page carries the figure; validate.sh does that, and it remains the instrument. A figure missing from a run whose inputs you changed was pinned for other inputs, and the chapter says so rather than reading the absence as a finding.
• Store anything server-side. Not sessions, not edits, not runs.
• Threads, SharedArrayBuffer, a run-time limit, cross-device sessions.

Reproduce

The build is scripts/build-studies-wasm.sh <commit> run through the LAW 7 build lock; it compiles every reproduce/*.swift at the commit, runs each under wasmtime with the study's corpus, compares the transcript with the native run, and writes the manifest (affine.earth.ide_studies.v1) with per-program source and wasm digests, the transcript digest and line count, the parity verdict and the sandbox verdict. The study deploy script, deploy-studies-wasm.sh <commit>, ships the set to the nine cells and verifies each cell by byte count then digest. Two gates stand over the result: studies-wasm-is-built-from-pin.sh (every served artifact and source equals the sealed build and git show <commit>:<path>, one manifest digest across the fleet; a one-byte tamper refuses) and ide-studies-posts-nothing.sh (the five browser modules fetch sealed artifacts and pinned sources and post nothing but a clicked court call; a planted beacon refuses).
