Effects

Effects

OSD/OS has five kinds of effect, each with a row in Settings and a key in a theme: what the text does, what goes on behind the menus, what goes on round the selected line, a tube's or a tape's look over the whole screen, and how one window gives way to the next. This page describes every effect and the numbers behind it, how to set each in Settings, in a theme and in config.json, how a window change runs, when the effects rest (never over a video), what each needs (a GPU, Qt Shader Tools), and what they cost.

At a glance

Kind	Settings row	Choices	Drawn by	Theme key	Config key
Text	Text Effect	Rainbow, Shimmer, Glow, Flicker	the GPU, in the screen's shader	effects.text	app.text_effect
Background	Background Effect	Matrix, Fire, Stars, Snow, Checkered Flag, Plasma	the GPU, a shader of its own	effects.background	app.background_effect
Selector	Selector Effect	Sparkles, Welding, Lightning, Rainbow, Snow	the CPU	effects.selector	app.selector_effect
Screen	Screen Effect	Scanlines, CRT, VHS	the GPU, in the screen's shader	effects.screen	app.screen_effect
Transition	Transition	Fade, Cube, Ripple, Wave, Drop	Qt Quick; Ripple, Wave and Drop the GPU	effects.transition	app.transition

Every row also offers Off, and THEME while there is a theme. What the GPU draws is offered only where there is one, and where OSD/OS was built with Qt Shader Tools (below).

Setting an effect

In Settings

Select the row and change it with ◄ ►. THEME (saved as "") is the theme's effect, Off none, and a name that effect, whatever the theme says. Choosing a theme sets every row back to THEME. Without a theme, THEME isn't offered and "" shows as Off (Themes).

Setting	Values	Default	What it does	Config key
Text Effect	THEME, Off, Rainbow, Shimmer, Glow, Flicker	THEME; without a theme, Off	What the text, the lines and the bars do	app.text_effect
Background Effect	THEME, Off, Matrix, Fire, Stars, Snow, Checkered Flag, Plasma	THEME; without a theme, Off	What goes on behind the menus	app.background_effect
Selector Effect	THEME, Off, Sparkles, Welding, Lightning, Rainbow, Snow	THEME; without a theme, Off	What goes on round the selected line	app.selector_effect
Screen Effect	THEME, Off, Scanlines, CRT, VHS	THEME; without a theme, Off	A tube's or a tape's look over the whole screen	app.screen_effect
Transition	THEME, Off, Fade, Cube, Ripple, Wave, Drop	THEME; without a theme, Off	How one window gives way to the next	app.transition

In a theme

A theme's effects takes each effect's name, "Off", or, for the text, the background and the screen, an object of its own: numbers for the text and the screen, a shader for the background or the screen.

{
    "effects": {
        "text":       "Shimmer",
        "background": "Snow",
        "selector":   "Sparkles",
        "screen":     { "scanlines": 0.4, "curvature": 0.5, "vignette": 0.6 },
        "transition": "Drop"
    }
}

Names are matched exactly, capitals included ("CRT", not "crt"); a name that isn't one is drawn as none. Numbers go from 0 (none) to 1. Every key is in the theme.json reference, and a shader of your own in Shaders.

In config.json

Settings saves each row under app in config.json (Configuration files): "" for THEME, "Off", or the name.

{
    "app": {
        "text_effect": "Glow",
        "background_effect": "Off",
        "selector_effect": "Sparkles",
        "screen_effect": "CRT",
        "transition": "Drop"
    }
}

The rows take names only. Numbers of your own (a screen effect with more curve, a weaker glow) are a theme's to give.

Text effects

What the text, the lines and the bars do: everything drawn in the scheme's two colours, or between them (a letter's soft edge). A picture of another colour, a flame or a spark is left as it is. The text effect is drawn by the screen's shader, in the same pass as the screen effect.

Name	What it looks like	Its number
Rainbow	The ink runs through the colours of the rainbow: bands slanting across the screen on art pixels, drifting to the right and down, a full turn of the colours every 6.7 seconds, a touch pale (15% white)	rainbow 1.0
Shimmer	Every three and a half seconds a glint, a slanted white band, sweeps across the screen from left to right, lighting the ink it passes	shimmer 1.0
Glow	A halo of the ink round the text and the lines: where there is more ink an art pixel and a half away than here, its light spills over	glow 0.8
Flicker	The ink fails now and then like a neon sign: twelve times a second it may dip towards the background (at 0.8, to 40% of the ink, or less deeply to 70%), and a faint buzz runs through it all the time	flicker 0.8

In a theme, the four are numbers you can mix:

In theme.json	In a shader	What it does at 1
rainbow	rainbow	The ink entirely the rainbow's colours; at 0.5 halfway between them and the ink
shimmer	shimmer	The glint at its brightest, 85% white
glow	inkGlow	The fullest halo
flicker	flicker	Dips to a quarter of the ink, and the strongest buzz

{ "text": { "glow": 0.5, "flicker": 0.15 } }

A theme with a screen shader of its own replaces the shader that draws the text effects, so its text effect shows only if that shader draws it (Shaders).

Background effects

What goes on behind the menus: over the window's ground and under what a view shows.

Name	What it looks like	Where
Matrix	A rain of glyphs, 5 × 7 art pixels each, falling in columns, each column at its own speed (5 to 14 glyphs a second), its newest glyph bright and a trail of 7 to 22 fading behind it. The glyphs change now and then. Dimmer than the menus' lines, in the scheme's colour	The window
Fire	Pixel flames burning up from the window's foot, about a third of the way up, in six shades of a fire's colours, from dark red to pale yellow, dithered where one shade meets the next	The window
Stars	A starfield drifting from right to left in three layers, far, middle and near, at 1.5, 5 and 8.5 art pixels a second, the nearer brighter, every star twinkling. In the scheme's colour, a little lighter	The window
Snow	Snow falling in three layers, at 4 to 15 art pixels a second, the nearer faster, swaying as it falls: far flakes a dot, near ones a small cross. In the scheme's colour, lighter	The window
Checkered Flag	The window a racing flag of 16-art-pixel squares, waving: its waves run along it from the left, where a pole would hold it, a long one and a shorter one across it, each fold lit as it rises and shaded as it falls away, in four shades dithered where they meet. Faint behind the menus: the light squares the scheme's colour, paled, the dark ones the window's ground	The window
Plasma	The old demos' plasma, as the template theme draws it: four waves, across, down, slanted and in rings round a wandering point, drifting slowly, the brighter its swirls the more of their art pixels lit, in a 4×4 ordered dither. Faint behind the menus, in the scheme's colour	The window

Where it is drawn. Each background effect has an area:

• The window (all six): with OSD Background: Window, inside the window's frame (the skin's border, or the one-art-pixel line, or the window's edge with Window Frame Off). With Full or Off, the whole screen.
• The foot ("area": "foot", for a theme's own shader): from the window's top down to the screen's foot, the window's width (the whole screen with Full or Off), so it rises from the bottom of the screen into the window.

On art pixels. It is drawn at one pixel per art pixel, a pixel of a 240-line picture, and scaled up without smoothing, so it is as blocky as the menus. Every dialog that lays its own ground over the screen (a question, the on-screen keyboard, an info screen) draws the same picture in the same place, so it carries on under the dialog as if the window were still there.

A theme can bring a background shader of its own, and draw it in the window or along the foot (Shaders).

Selector effects

What goes on round the selected line: the line in front, which is the answer of a question or dialog while one is open, not the line under it. It follows the line as it moves, and plays out across the whole screen, so nothing of it is cut off at a list's edge.

Name	What it looks like
Sparkles	Sparks streaming off the line's four corners, out to the left from the left corners and to the right from the right ones, at 25 to 75 art pixels a second, slowing as they go, a little up from the top corners and down from the bottom ones. Each lives for 0.45 to 1.1 seconds, fading. About a third twinkle as small crosses. White, with a streak of the scheme's colour lightened
Welding	A welder's sparks: every 0.05 to 0.2 seconds a burst of 6 to 15 from one corner at random, thrown outward (within about 57° of the corner's diagonal) at 45 to 165 art pixels a second, falling as they fly, white hot, then yellow, orange and red as they cool, gone in 0.3 to 0.85 seconds. The weld flares white for a moment at each burst
Lightning	A bolt every 0.08 to 0.35 seconds: from a corner outward, 16 to 46 art pixels long and jagged, more often than not with a branch; now and then (about one in five) along the line's top or bottom edge from corner to corner. Each lights for two to four frames, brightest as it strikes, its core the scheme's colour almost white, with a faint glow either side
Rainbow	A pixel rainbow running down from under the line: six bands, red, orange, yellow, green, blue and violet, two art pixels each, flowing downwards, every column its own length (about 6 to 20 art pixels), swelling and ebbing, never solid, breaking into specks at its end. It runs under the lines below, which stay readable over it; in a dialog, in front
Snow	Flakes falling from the line's top edge, about one a second for every seven art pixels of its width, at 7 to 15 art pixels a second, swaying a little as they drift, and melting away over the last third of their 1.6 to 2.8 seconds, a line or two below it. One in four, nearer, is a small cross falling at 14 to 22. They fall where they are, whatever the line does: moving down leaves them above it, moving up below it, and new ones fall from where it has gone. In the scheme's colour, lighter, as the Snow behind the menus is; over the line's box, the box's other colour, as its label is

The selector effects are drawn by the CPU, about thirty times a second, into a picture of art pixels shown without smoothing. Snow as a selector effect is its own: the Background Effect Snow, behind the menus, stays as it is, and the two can be used together. They need no GPU, and Settings offers them everywhere. An effect rests once its last spark is out with no selected line to play round.

Screen effects

A picture tube's or a tape's look over the whole screen. It covers everything OSD/OS draws but a video: the menus and their effects, the boot screen, the screen saver and the pointer. A video is never under it (below).

Name	What it looks like	Its numbers
Scanlines	Dark lines between the picture's lines	scanlines 0.5
CRT	A tube's curved face: the picture bulging, its corners rounded off into black and darker, scanlines, and a glow round light parts	scanlines 0.35, curvature 0.6, glow 0.35, vignette 0.5
VHS	A tape's colour bleeding sideways off the picture, moving grain, a little glow and faint scanlines	bleed 0.6, noise 0.5, glow 0.25, scanlines 0.15

Green Screen, one of the themes, gives numbers of its own instead of a name: scanlines 0.6, glow 0.6, curvature 0.3, vignette 0.5.

The six numbers, each from 0 (none) to 1:

Number	What it does at 1
scanlines	The lower part of every line of art pixels darkened by up to 70%: every second screen line at 480 lines. It follows the screen's own lines, not the curved picture's, which would beat against them into bands
curvature	The picture bulges like a tube's face, up to 15% at the corners, which round off into black; the edge is softened over a pixel and a half
glow	Light parts glow into the dark round them, an art pixel and a half out
bleed	Colour smeared sideways, as a tape's: red taken from up to an art pixel and a half to the left, blue from as far to the right
noise	Grain on every art pixel, up to 15% lighter or darker, new at every frame
vignette	The corners darker: black at the very corners and half as bright at the middle of each edge

They are applied in this order: the curve, the bleed, the text effect, the glow, the scanlines, the curve's edge, the vignette, the noise.

{ "screen": { "scanlines": 0.5, "curvature": 0.8, "glow": 0.2, "noise": 0.1, "vignette": 0.7 } }

A theme's screen can also be a shader of its own, which then takes the place of OSD/OS's, with these numbers given to it (Shaders).

Transitions

How one window gives way to the next, as you open a module, a screen inside it, or go back.

Name	What happens	Time	Pace
Fade	The old window fades away over the new	0.48 s	slow at both ends
Cube	The window turns over like a cube's face, the next window on the face coming in from a side at random each time: right, left, below or above. (Cube Left, Right, Up and Down, which once fixed the side, are read as Cube.) The cube's edge is the screen's width (its height turning up or down), seen from two and a half edges in front; black behind	0.65 s	slow at both ends
Ripple	The old window ripples out as the new ripples in: its lines pushed sideways in waves of whole art pixels, strongest halfway, the two windows crossing over in the middle; black behind	0.48 s	slow at both ends
Wave	A wave runs out from a corner at random across the screen, the old window swelling up and settling into the new as it passes, lit on its near slope and shaded on its far one, lower the further it runs, dying away at the far side	0.9 s	even
Drop	A drop falls in a corner at random, and its ring spreads across the screen, slowing as it goes, the new window inside it and the old outside. Ripples run on behind the ring and settle; its rim and their crests catch the light in the scheme's colour	1 s	slowing

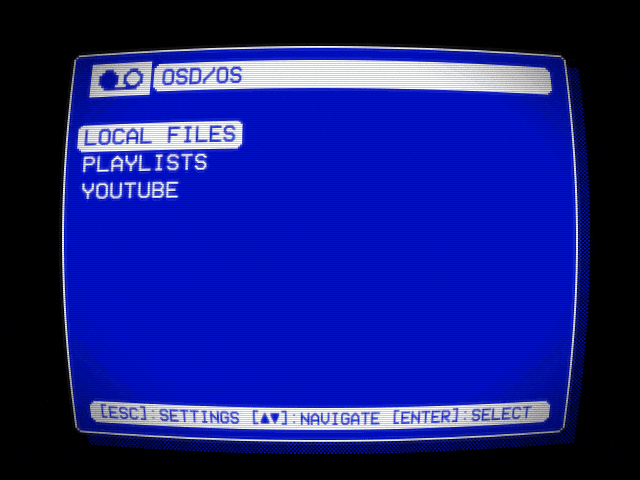

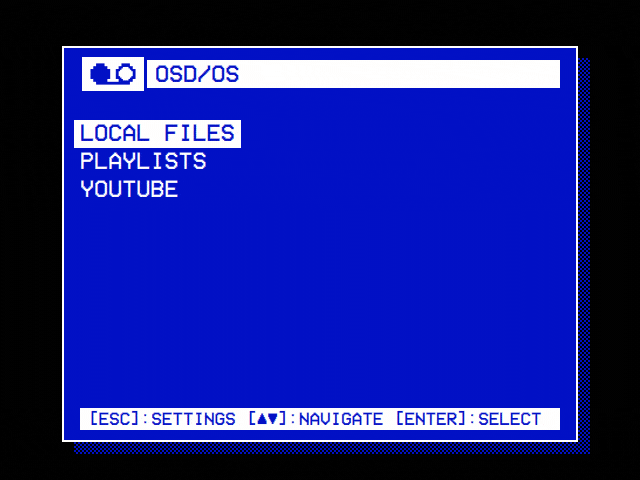

Cube	Drop
Local Files on the main menu: the window turns over, Local Files on the next face.	A drop falls in a corner, and its ring spreads the next window across the screen.

Ripple, Wave and Drop are shaders on the GPU. Where they can't run, Settings doesn't offer them, and a theme's is played as a Fade.

When a window changes without one

The next window is shown at once, with no transition:

• when Transition is Off, or the theme has none, or names one that isn't;
• while the effects rest: a video playing, loading or with its menu open, or a player's screen up (below);
• into or out of a video's screen: a player's, a card's, Netflix's and Prime Video's launch screen, a script's console or takeover, YouTube's sign-in;
• for the first screen there is: there is nothing to turn away from;
• while the boot screen is up, or the window asking to keep a new display output;
• for a screen opened by the change itself: a module's first screen comes in with the module, in the main menu's transition, not in one of its own;
• when the old window can't be caught as a picture within a quarter of a second (nothing is being drawn).

A change asked for while another plays finishes that one at once, and starts its own.

How a window change runs

flowchart TD
    A["A screen opens another, or goes back:<br/>root.changeWindow(loader, source, properties)"] --> B{"Transition Off? Effects resting?<br/>Boot screen up? Display Output asking?<br/>No screen yet? Into or out of a video's screen?<br/>A change being made already?"}
    B -- yes --> S["showView(): the new screen at once,<br/>no transition"]
    B -- no --> C["A transition still playing is finished at once.<br/>lastFace, a picture of the window,<br/>is asked to catch it as it is now"]
    C --> D{"Caught within 250 ms?"}
    D -- "no" --> S
    D -- yes --> E["windowCaught(): showView() puts<br/>the new screen in place"]
    E --> F{"Which transition?"}
    F -- "Cube" --> H["Cube, a way at random"]
    F -- "Ripple, Wave or Drop<br/>without a shader or a GPU" --> I["Fade"]
    F -- "Wave or Drop, with a GPU" --> J["a corner at random"]
    F -- "Fade, or Ripple with a GPU" --> K["as it is"]
    H --> L["windowChange.progress runs from 0 to 1:<br/>Fade and Ripple 480 ms, Cube 650 ms,<br/>Wave 900 ms, Drop 1000 ms"]
    I --> L
    J --> L
    K --> L
    L --> M["Fade: the old picture over the new, fading out<br/>Cube: both windows turned, each by a matrix<br/>Ripple, Wave, Drop: a shader draws both pictures"]

Loading

Every screen change in OSD/OS goes through changeWindow() in Main.qml: the main menu's, Settings', and each module's own, from its Root.qml. The new window is live from the start: during a transition it is the old one that is a still picture.

Never over a video

A video is always shown as it is. The effects and the menu music rest while:

What	When
A video plays inside OSD/OS's window	With Settings → TV / Movie → Transparent Background, full screen or behind the menus
Another program has the screen	On a Pi without a desktop: mpv playing a video, a takeover script, an Arcade game in MAME, a web player
A video is loading	The loading screen, the tape winding in
A video's menu is open	The menu that back opens over a Local Files, YouTube or Playlists video with Transparent Background (Using OSD/OS)
A module shows a video's screen	A player's (also while mpv plays in a window of its own, over OSD/OS's), a card's, Netflix's and Prime Video's launch screen, a script's console or takeover, YouTube's sign-in

While they rest:

• the screen and text effects are off: the screen is drawn as it is, through no shader;
• the background effect is hidden;
• the selector effect stops, its sparks gone;
• the clock that moves the effects stands still;
• the menu music stops, and starts again from the beginning afterwards (Menu music);
• a window changes without its transition.

A video played inside the window is drawn outside the layer the screen effect draws, so not even a frame of it passes through a shader.

What needs a GPU and Qt Shader Tools

Effect	Drawn by	Needs Qt Shader Tools in the build	Needs a GPU
Text: Rainbow, Shimmer, Glow, Flicker	OSD/OS's screen shader	yes	yes
Background: Matrix, Fire, Stars, Snow, Checkered Flag, Plasma	OSD/OS's background shaders	yes	yes
Screen: Scanlines, CRT, VHS	OSD/OS's screen shader	yes	yes
A theme's own background or screen shader	its .qsb	no: it comes compiled	yes
Selector: Sparkles, Welding, Lightning, Rainbow, Snow	the CPU	no	no
Transition: Fade, Cube	Qt Quick, without a shader	no	no
Transition: Ripple, Wave, Drop	OSD/OS's transition shaders	yes	yes

• Qt Shader Tools compiles OSD/OS's shaders (shaders) into the app when it is built. The releases and the OSD/OS image have them. A build from source needs qt6-shadertools-dev on Debian and Raspberry Pi OS, or Qt Shader Tools from Qt's installer; without it, CMake says Qt Shader Tools not found — the shader effects will be unavailable and the app builds without them (Building from source).
• A GPU is Qt Quick drawing with OpenGL, OpenGL ES, Metal or Vulkan: everything OSD/OS runs on, unless Qt falls back to its software renderer, which draws no shaders.
• Without either, Settings has no Text Effect, Background Effect and Screen Effect rows, and Transition leaves out Ripple, Wave and Drop. A theme is drawn without those effects, its Ripple, Wave or Drop played as a Fade; its colours, skin, selector effect, other transitions and music are as ever. A theme's own shader still runs where there is a GPU.

What they cost

Where the work goes, and what keeps it small:

• Menus at rest aren't drawn again. With nothing moving (Off, or a still effect: Scanlines, CRT, Glow), the screen is drawn only when something on it changes.
• The effects' clock ticks about thirty times a second (every 33 ms) only while something moves: a background effect, VHS's noise, Rainbow, Shimmer or Flicker, or a theme's screen shader with "animate": true. Then the screen is drawn that often. The clock starts over every hour.
• A screen or text effect has the GPU draw the screen twice: into a picture, then that picture through the shader. The picture exists only while one is in force and the effects aren't resting.
• The shader runs for every pixel of the screen each time it is drawn: about 2 million at 1080p, 307,200 at 640 × 480, a sixth or a seventh of that.
• A background effect runs on art pixels, then is scaled up: a quarter of the screen's pixels at 480 lines, a sixteenth at 1080.
• The selector effect draws a small picture of art pixels on the CPU about thirty times a second, only while a selected line is shown or its last sparks fly.
• A transition catches one picture of the old window per change, and plays for half a second to a second.
