Local Files

Local Files

Local Files plays the films, videos, photos and playlists you keep yourself: in a folder on the device, on the OSD/OS image's own film partition, or on a USB drive plugged in. You browse them as a horizontal tree, the way a deck's menu would show a shelf of tapes, and the tree opens on what you played last. This page covers what it plays, where it looks, every screen and option, how playback behaves, every setting with its config key, the files it keeps, and what to do when something doesn't show up.

Local Files is on by default. Its code is in modules/local_files (views and manifest) and src/modules/local_files (the backend).

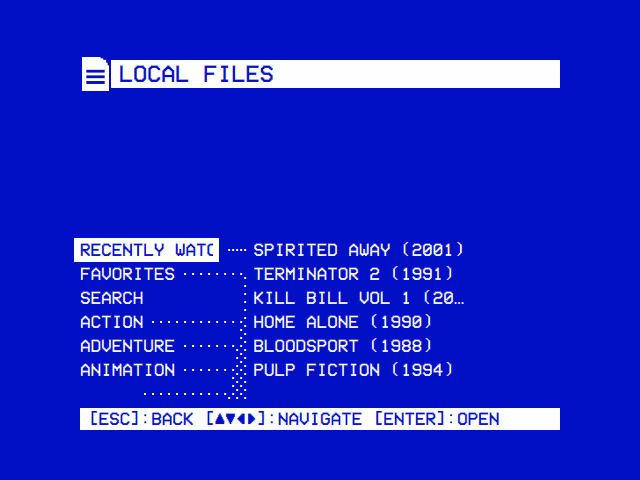

Recently Watched	Favorites
The tree opens on what you played last, then Favorites, Search and your folders. The entry under the cursor branches out to its contents in full; the other folders' branches are faint.	Files and playlists you marked from their options.

What it plays

Kind	File types	Notes
Video	mp4 mkv avi mov m4v webm wmv flv f4v mpg mpeg vob	Played by mpv, so any codec your mpv decodes
Still image	jpg jpeg png gif webp bmp tif tiff	Shown for Image Duration, see Still images
Playlist	m3u m3u8	Played in order or shuffled, see Playlists (m3u)

• The extension decides, in any case (FILM.MKV counts). A file with any other extension (.ts, .m2ts, .iso, an audio file) is not listed. mpv plays what an m3u names whatever its extension, so a .ts recording plays when an m3u lists it.
• Hidden files and folders (names starting with a dot) are left out, and so are the file systems' own folders: lost+found, System Volume Information and $RECYCLE.BIN.
• Folders come first, then files, each sorted by name.

Where it looks

flowchart TD
    A{"Settings → TV / Movie → Local Files<br>Media Directory set?"} -- yes --> B["That folder"]
    A -- "no (Default)" --> C{"OSDOS_MEDIA_DIR set<br>in the environment?"}
    C -- yes --> D["Movies in that folder<br>(on the OSD/OS image: /media/OSD-OS/Movies,<br>on the card's film partition)"]
    C -- no --> E["Movies in media<br>in the data folder"]
    B --> F["The tree's top level:<br>its folders and files,<br>after the USB drives plugged in"]
    D --> F
    E --> F

Loading

The media folder

Settings → TV / Movie → Local Files → Media Directory names the folder Local Files shows. Until you pick one it reads Default, which is:

Where OSD/OS runs	Default media folder
The OSD/OS image	/media/OSD-OS/Movies, the Movies folder on the card's own OSD-OS partition (see below)
Raspberry Pi OS, Linux, SteamOS	~/.local/share/OSD-OS/media/Movies
macOS	~/Library/Application Support/OSD-OS/media/Movies
Any of them, with DATA_ROOT set	media/Movies in that folder

The image sets the environment variable OSDOS_MEDIA_DIR=/media/OSD-OS for the app's service (/etc/systemd/system/osdos.service.d/osdos-media.conf); OSD/OS takes the Movies folder in it as the default whenever it is set (and in MP240_MEDIA_DIR, 240-MP's name for it, when it isn't). The Movies folder is created if it isn't there. Films go in Movies, and the Arcade module's games in Games/Arcade beside it, so the games never show among the films.

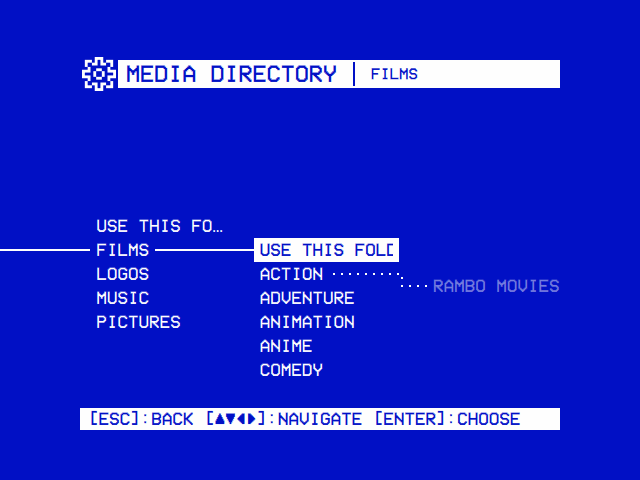

Selecting Media Directory opens the folder picker: the same tree you browse Local Files with, starting from the places there are on the system.

Place	Folder	There on
Default Folder	(saves the default above)	everywhere
Home	your home folder	everywhere
Media	/media (the image's OSD-OS partition and USB drives, udisks' drives on a desktop)	Linux
Drives	/run/media/<user>	Linux desktops that mount there
Volumes	/Volumes	macOS
Root	/	everywhere

Each folder's first entry is Use This Folder, which picks the folder it is in. Back at the top leaves the setting as it was. The new folder is used at once: the tree, the search and the USB drive list all follow it.

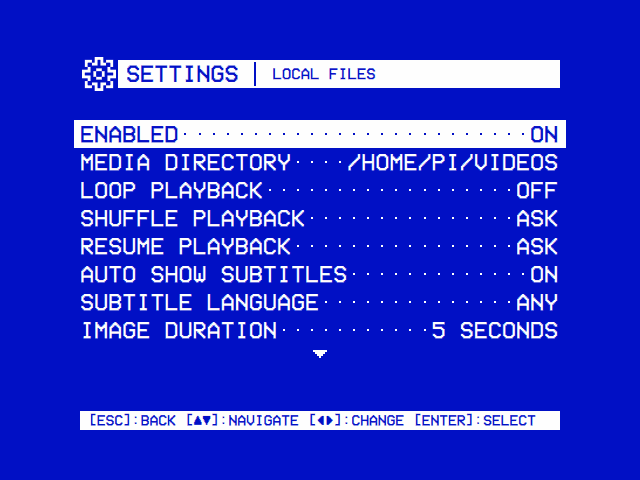

A module's settings	Picking a folder
Local Files: its folder, looping, shuffle, resume, subtitles, and its own Scaling.	Folders are picked on the same tree Local Files is browsed with, from home, the drives and the root down: USE THIS FOLDER picks the one open, Default Folder the module's own.

The film partition on the OSD/OS image

On its first boot the OSD/OS image keeps 8 GiB of the card for the system and turns the rest into a partition of its own, in exFAT, labelled OSD-OS. Windows and macOS read exFAT, so films go onto the card from any computer:

1. Quit OSD/OS (Settings → Quit; on the image, Power Off) and take the card out.
2. Put it in the computer's card reader. It shows up as two drives, bootfs and OSD-OS. Copy your films into the Movies folder on OSD-OS, in folders if you like.
3. Windows also offers to format the system's partition, which it can't read. Always answer Cancel: formatting it erases the system.
4. Put the card back in the Pi. Local Files opens the Movies folder on OSD-OS until Media Directory names another folder.

How it is mounted (/etc/fstab): at /media/OSD-OS, read-write (the Playlists module downloads offline videos into it), noexec,nosuid,nodev (nothing on it can run), owned by the user the app runs as, and checked with fsck.exfat at every boot before it is mounted, in case the Pi was switched off at the wall mid-download. A card with less than 2 GiB to spare past the system gets no film partition; /media/OSD-OS is then an ordinary folder on the system's partition. The image's os/README.md has the details.

USB drives

A USB stick, disk or card reader plugged in shows up at the top of the tree, after Recently Watched, Favorites and Search, as a folder named after its label: USB: KINGSTON. Pulled out, its row goes, and any folders open on it close back to the top. The cursor stays on the entry it was on while rows come and go above it.

What counts as a drive (RemovableDrives):

• Linux: a block device (/dev/…) mounted under /media/ or /run/media/, read from the kernel's mount table (/proc/self/mountinfo), which OSD/OS watches, so a drive appears the moment it is mounted. That covers the image's /media/usb/<label> and a desktop's /media/<user>/<label> or /run/media/<user>/<label>.
• macOS: a volume mounted under /Volumes/.
• Never: a mount that /etc/fstab makes (the image's own OSD-OS partition), the drive that holds the media folder, or one mounted inside it: the tree shows those already. A drive mounted twice is listed once.

On the OSD/OS image a drive is mounted by itself as it is plugged in, read-only, under /media/usb/<label>, so it can be pulled out at any moment, mid-film included, with nothing half written. It reads FAT32, exFAT, NTFS, ext2/3/4, HFS+, XFS, btrfs, F2FS, ISO 9660 and UDF. Two drives with one label: the second is named after its device too (KINGSTON (sdb1)). A drive without a label is named after its UUID. To see what a drive was mounted as, or why it wasn't:

journalctl -u 'osdos-usb-mount@*'

A manual install on Raspberry Pi OS Lite mounts nothing by itself; a drive you mount under /media some other way is still listed. On a desktop or a Mac, whatever the system mounts is there.

A video playing from a drive that is pulled out ends the way a video that fails does (mpv gets read errors). A drive's files drop out of Recently Watched and Favorites while it is out, and come back when it is plugged in again.

The tree

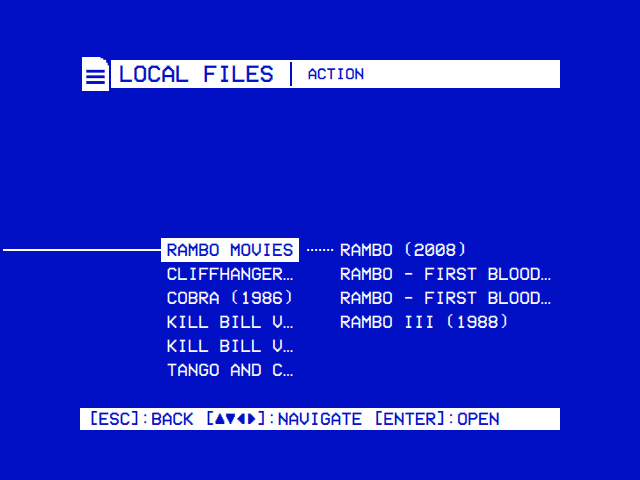

Folders	Back to the menus
The open folders run along the line through the middle. The folder under the cursor branches out once more: Action › Rambo Movies › its films.	With Transparent Background the tree lies over a video playing on behind it.

The folders you have opened run left to right along a line through the middle of the screen. Every folder in the one you are in branches off to the right on a dotted line to all of its entries, and the folder under the cursor branches once more, from each folder in it. Only the branches of the folder under the cursor are drawn in full; the others are faint, so whole folders side by side don't run together. An empty folder has no branch, but the folder under the cursor says (empty). The title bar names the open folder.

Action	Keyboard	Gamepad	What it does
Move	▲ ▼	D-pad up, down	The entry above or below; the list wraps round
Open	► or Enter	D-pad right, or the bottom face button (A on an Xbox pad)	Opens the folder under the cursor
Close	◄, Esc or Backspace	D-pad left, or the right face button (B on an Xbox pad)	Closes the open folder; at the top, back leaves Local Files
Play	Enter	Bottom face button	Plays the file under the cursor
Options	►	D-pad right	On a file: its options

The hint bar at the foot says what select does on the entry under the cursor: OPEN on a folder, PLAY on a file, SEARCH on Search. A gamepad's own button names replace the keyboard's there as soon as you use it.

What the top level holds

In this order:

1. Recently Watched
2. Favorites
3. Search
4. The USB drives plugged in, USB: <label>, by name
5. The media folder's folders, then its files

The first three are there whenever anything else is (a drive alone is enough). With an empty media folder and no drive, the screen reads No items found — Please add items in the local files media directory.

Recently Watched

What you played, newest first: a file goes to the top of the list as it starts, and the list keeps the last 30. Entries whose file has gone (deleted, or on a drive that is out) are hidden, not forgotten: they come back with the drive. A file played from Search, a USB drive or a playlist folder lands here too, so it is one step away next time.

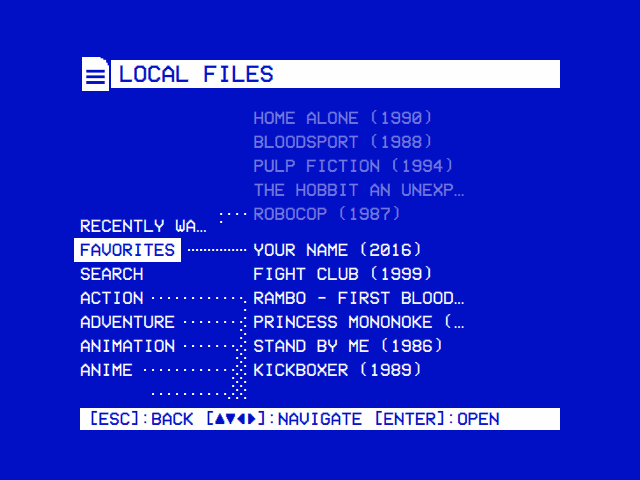

Favorites

The files and playlists you marked, newest first, up to 100. Add or remove one from its options or from the player's menu. Favorites are kept per module, so a YouTube favourite never shows up here. Like Recently Watched, an entry whose file is gone is hidden until it is back.

Search

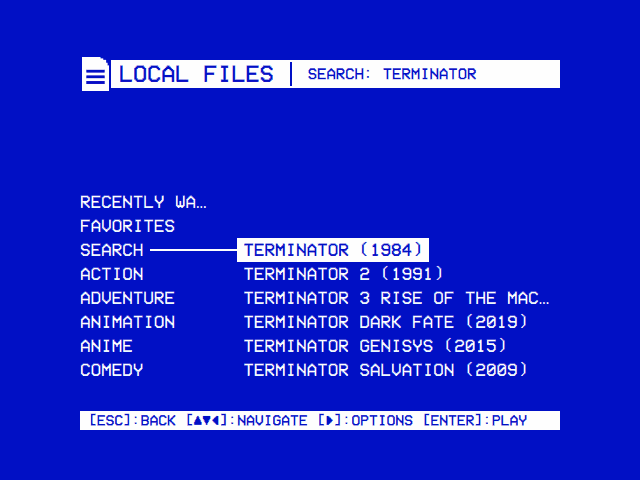

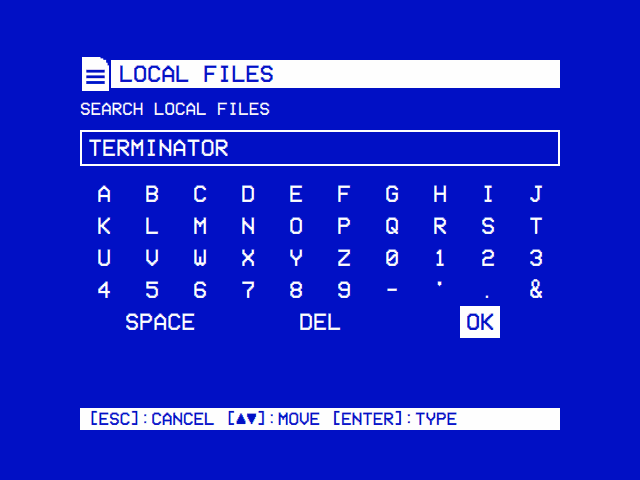

Search	Search results
An on-screen keyboard: the arrows move, select types.	Names that match anywhere under the media folder.

Select on Search opens the on-screen keyboard, titled Search Local Files: the letters A to Z, the digits and - ' . &, with SPACE, DEL and OK on the last row. The arrows move the box, select types the key in it, back cancels. A real keyboard types straight in, and the box then jumps to OK, so Enter finishes; Backspace deletes. Up to 40 characters.

What it searches:

• Names, not paths. Every file and folder name under the media folder, then under each USB drive plugged in, at any depth.
• Every word must match. The words you type are split at spaces; a name matches when it contains every one of them, upper or lower case alike. kill vol finds Kill Bill Vol 1 (2003).mp4 and Kill Bill Vol 2 (2004).mp4.
• Folders and media files. A matching folder is listed (open it to browse it), and so is a matching file of a type Local Files plays. Other files are skipped, and so are hidden ones.
• Not through symbolic links. A symlinked folder inside the media folder can be browsed, but Search doesn't walk into it (a link pointing back up would never end).
• The first 200, by name. It keeps the 200 matches that come first alphabetically. When a search finds more, type more words.

The results open as a folder of their own, Search: <words>, at the end of the open folders, with loading… while the search runs. It runs in the background, so a big library never holds the screen still; a new search, or a new media folder, cancels one under way. Each search starts afresh, so it sees files added since the last one.

Folders

Any folder of the media folder or a drive. Select or ► opens it; ◄ or back closes it again. Coming back from a video lands in the same folders, on the same entry, listed as they were read, without reading them again (a wait each time on a NAS or a disk that sleeps). Folders are read afresh each time Local Files opens, so a file copied in during a video shows the next time you open it.

Playlists (m3u and m3u8)

An .m3u or .m3u8 file is played as one item: mpv plays its entries in turn, in order or shuffled (Shuffle Playback), looping or not (Loop Playback). An entry can be:

• a path relative to the playlist's own folder (mpv resolves it from there), or an absolute path;
• a video, a still image (shown for Image Duration), or any other file mpv plays, whatever its extension.

Lines starting with # (#EXTM3U, #EXTINF:…) are comments to OSD/OS; mpv reads the titles from #EXTINF lines. Local Files passes no YouTube support to mpv (its yt-dlp hook is off here), so YouTube links in an m3u don't play: put YouTube videos on a Playlists list instead.

A playlist folder. A folder whose name ends in .m3u or .m3u8, and that holds a playlist of the same name, shows up as that playlist rather than as a folder: Anime Night.m3u/Anime Night.m3u is listed as Anime Night.m3u, and select plays it. Keep a playlist's videos in that folder beside it and refer to them by name; the whole set then moves as one folder. See the example.

During playback, the deck's menu (▲ or ▼) has < and > buttons for the previous and next entry whenever the playlist holds more than one.

Hide File Extensions

With Hide File Extensions on, as it is unless you turn it off, the tree shows Terminator 2 (1991) rather than Terminator 2 (1991).mp4. Folder names are left whole. The player's menu, the resume question and the main menu's row always leave the extension out.

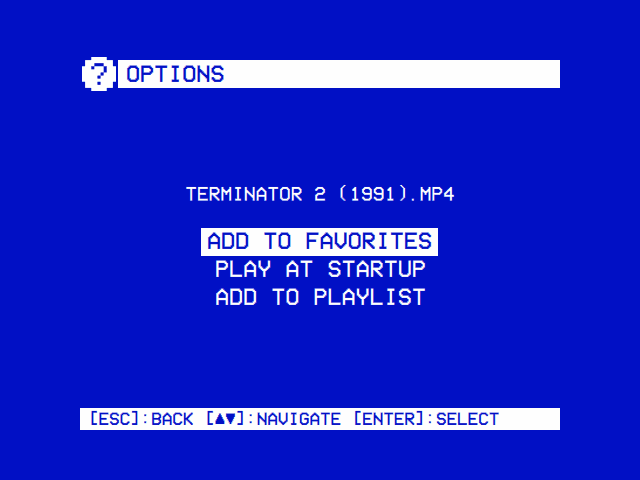

Options

► on a file (or a playlist) offers its options. Folders have none: ► opens them.

Option	What it does
Add to Favorites / Remove from Favorites	Puts the file on Favorites, or takes it off. Taking off the file that plays at startup turns Play at Startup off too
Play at Startup / Don't Play at Startup	Makes the file the one OSD/OS plays straight after the boot screen, ahead of Settings → Start on Module. It goes on Favorites too. There is one for the whole app: choosing another replaces it
Add to Playlist	Puts the file on one of the Playlists module's lists, or on a new one. Offered while the Playlists module is on

The favourite played at startup begins without asking: where it was stopped, or from the beginning, as Settings → Startup From says (Resume or Beginning; the row shows while there is a startup favourite). Settings → Play at Startup shows which file it is and can only turn it off. It plays only while it is still one of Local Files' favourites.

Playing a file

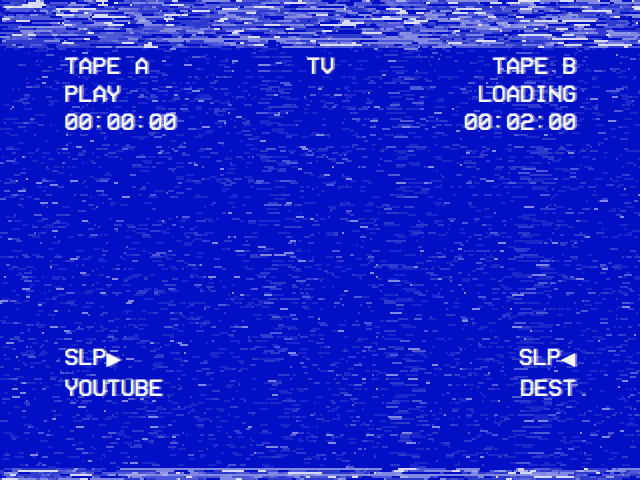

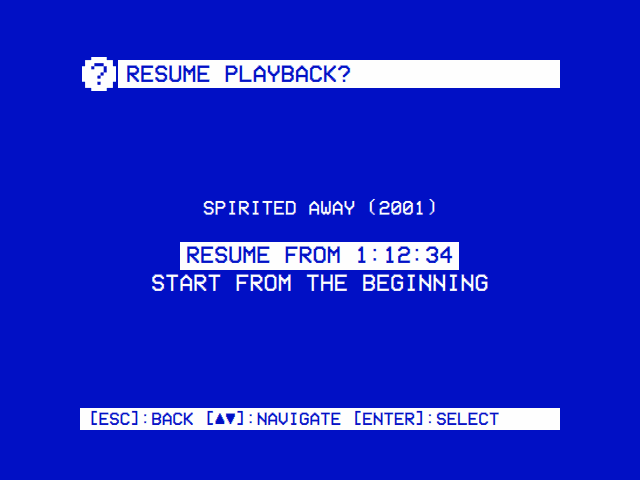

Resume	Loading
Pick up where you left off, or start from the beginning.	While a video starts, a tape loads. Settings → TV / Movie → Loading Effect turns the noise off.

Select on a file puts it at the top of Recently Watched and hands it to mpv, full screen. While mpv starts, the loading screen shows a dubbing deck's display, with LOCAL FILES as the source.

Where it starts

Situation	What happens
The file is already playing behind the menus (Transparent Background)	It comes back full screen where it is, without asking
A playlist, with Shuffle Playback on Always	Shuffled, from the start (a shuffled list has no place to resume)
A single still image	Shown at once
The favourite played at startup	No question: Startup From decides
A saved position, Resume Playback on Ask	Resume playback? Resume from 1:23 / Start from the beginning. For a playlist: Resume video 3 at 1:23, plus Shuffle when Shuffle Playback is Ask (the question then reads Start playback?)
A saved position, Resume Playback on Always	Resumes at once. A playlist with Shuffle Playback on Ask still asks: Resume video 3 at 1:23 / Shuffle
No saved position (or Resume Playback on Never), a playlist with Shuffle Playback on Ask	Start playback? Play in order / Shuffle
Anything else	Plays from the beginning

Back on the question leaves it without playing.

Resume

OSD/OS keeps where each file was stopped, in local_files_history.json in the data folder:

• A single video: stopped after its first 5 seconds, the position is saved; stopped in its last 5% (or played to the end), the saved position is cleared, so it starts from the beginning next time.
• A playlist: the entry it was on and the position in it are saved whenever it stops before its end; played right through, its place is cleared.
• A still image keeps no position.

Resume Playback only decides whether to ask: positions are saved on Never too.

Shuffle and loop

• Shuffle Playback applies to playlists only: Ask (the default) asks each time a playlist starts, Always shuffles without asking, Never plays in order. mpv does the shuffling (--shuffle).
• Loop Playback repeats a single file, or a playlist from its first entry, until you stop it (--loop-playlist=inf). A single still image then stays on screen until you stop it.

Subtitles and audio tracks

Auto Show Subtitles decides which subtitles show as a video starts. Subtitle Language picks the language mpv looks for first.

Auto Show Subtitles	What mpv is told	What you see
Forced Only (default)	--subs-with-matching-audio=forced --subs-fallback-forced=always	Only subtitles for dialogue in another language, where the file marks them forced
On	--subs-with-matching-audio=yes --subs-fallback=yes --sid=auto	A subtitle track always, even when it is in the language spoken
Off	--sid=no	None

Subtitle Language is Any (no preference, the default) or one of 183 languages; the chosen one goes to mpv as --slang=<code> (en for English, tr for Turkish).

mpv also loads a subtitle file that sits beside the video under the same name (Film.srt or Film.en.srt next to Film.mkv): that is mpv's own default (sub-auto=exact), which OSD/OS leaves alone.

The audio track is mpv's choice (the file's default, or an alang= line in your mpv.conf, which an mpv process reads but libmpv with Transparent Background doesn't). During playback, ▲ or ▼ opens the deck's menu, whose AUDIO and SUBTITLE buttons step through the tracks the file has.

The deck's menu has the position bar (◄ ► seek 10 seconds while it is selected), then AUDIO, SUBTITLE (when the file has subtitles), CROP (the four Scalings in turn), < > (in a playlist) and STOP. It hides itself after 5 seconds. Playback and mpv has the rest of what the keys do during a video.

Page Up and Page Down (a TV remote's Channel + and − keys) play the folder's next or previous film, round the folder's end, as a TV's programme keys go round its channels: the film left is saved where it got to, and the next one goes on RECENTLY WATCHED and carries on where it was left, without asking (unless Resume Playback is Never). Under the video's menu the keys do nothing. In a playlist they go to its next or previous video, round the list's end. An image on its own isn't stepped from.

Still images

A still image is shown for Image Duration (5, 10, 30 or 60 seconds; mpv's --image-display-duration), then mpv moves on: to the playlist's next entry, or, for an image chosen on its own, back to the tree. An animated GIF plays as a clip. A playlist of images is a slideshow; Shuffle Playback shuffles it and Loop Playback runs it round for good. For image content OSD/OS also loads scripts/mpv-slideshow-redraw.lua, without which mpv drawing straight to a Pi's screen (--vo=drm) wouldn't redraw between two pictures of the same size. A still image never moves mpv's clock, so the loading screen is taken down as soon as an image is handed to mpv.

Scaling

Scaling sets how a 16:9 picture fills a 4:3 screen in Local Files only. Default follows Settings → TV / Movie → Scaling (Letterbox unless changed); the others are:

Scaling	mpv flag	What you see
Letterbox	(none)	All of the picture, bars above and below
14:9	--panscan=0.43	A little of the sides cut, thinner bars
Pan & Scan	--panscan=1	Fills the screen, the sides cut
Anamorphic	--keepaspect=no	Fills the screen squeezed, for a TV set to 16:9

It applies from the next video, or at once from the player's menu. The deck's CROP button steps through the four during playback without saving anything.

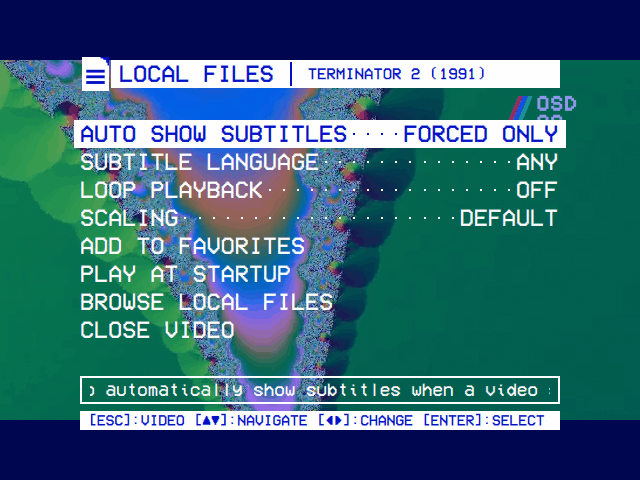

The player's menu

The video's menu	Main menu
With Transparent Background, back during a video opens its menu over the picture, which plays on. ◄ ► change its module's settings for it, at once or as you go back to it. Close Video goes to the main menu; back, to the video.	The main menu leads with the video, the cursor on it: select takes it back to full screen where it is. Play/pause stops it ([SPACE]:STOP).

Back during a video (with the deck's menu closed) opens the video's own menu:

Line	What it does
Auto Show Subtitles	◄ ► change the module setting; the video reloads where it is as you go back to it
Subtitle Language	The same
Loop Playback	◄ ► change it; with Transparent Background the playing video takes it at once
Scaling	◄ ► change it; with Transparent Background the picture takes it at once
Add to Favorites / Remove from Favorites	As in the file's options
Play at Startup / Don't Play at Startup	As in the file's options
Browse Local Files	Back to the tree
Close Video	Stops the video and leaves Local Files for the main menu

Back in the menu returns to the video. Every setting changed here is saved, as if changed in Settings → TV / Movie → Local Files, so it holds for the next file too.

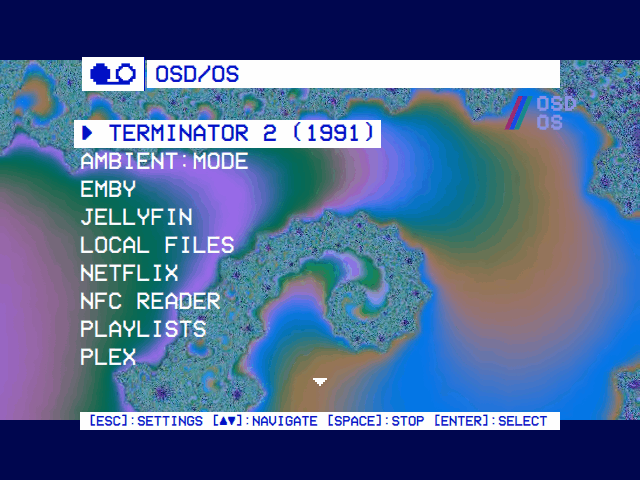

With Transparent Background (Settings → TV / Movie → Transparent Background, which needs libmpv) the menu lies over the picture, which plays on, at the solidity the setting's slider gives. Browse Local Files returns to the tree with the video still playing behind it; the main menu then leads with a row for it, ► <title>, and choosing that row, or the same file in the tree, takes it back to full screen where it is. Play/pause on the main menu stops it.

Without Transparent Background mpv has the whole screen while it plays, so the video stops for the menu: its position is saved, the menu shows on the app's own background, and as you go back to the video it starts again from where it was, with the settings as you left them. Close Video returns to the main menu. Browse Local Files returns to the tree, and the main menu then leads with a row for the file, ► <title>, the cursor on it: choosing that row, or the same file in the tree, starts it again where it was, without asking (a playlist at the video it was on; a shuffled one starts shuffled afresh). The row stays until mpv plays another video.

Settings

Settings → TV / Movie → Local Files.

Setting	Values	Default	What it does	Config key
ENABLED	ON, OFF	ON	Shows Local Files on the main menu	modules.com.osdos.local_files.enabled
Media Directory	a folder, or Default	Default	The folder Local Files shows. Default: the Movies folder on the card's OSD-OS partition on the image, media/Movies in the data folder elsewhere	modules.com.osdos.local_files.media_directory
Loop Playback	ON, OFF	OFF	Repeats a file, or a playlist from its first entry, until stopped	modules.com.osdos.local_files.loop_playback
Shuffle Playback	Ask, Always, Never	Ask	Plays playlists in random order; Ask asks each time a playlist starts	modules.com.osdos.local_files.shuffle_playback
Resume Playback	Ask, Always, Never	Ask	Whether a video carries on where it was stopped: asks, always does, or never does	modules.com.osdos.local_files.resume_playback
Auto Show Subtitles	Forced Only, On, Off	Forced Only	Which subtitles show as a video starts; Forced Only shows them for foreign dialogue only	modules.com.osdos.local_files.auto_subtitles
Subtitle Language	Any, or a language	Any	The subtitle language mpv picks first; Any is no preference	modules.com.osdos.local_files.sub_lang
Image Duration	5, 10, 30, 60 Seconds	5 Seconds	How long a still image is shown before moving on, alone or in a playlist	modules.com.osdos.local_files.image_duration
Hide File Extensions	ON, OFF	ON	Leaves .mkv and the like off the names in the tree	modules.com.osdos.local_files.hide_extensions
Scaling	Default, Letterbox, 14:9, Pan & Scan, Anamorphic	Default	How a 16:9 picture fills the 4:3 screen in this module; Default follows Settings → TV / Movie → Scaling	modules.com.osdos.local_files.video_scaling

How the values are saved

config.json is in the data folder (~/.local/share/OSD-OS/ on Linux and the image, ~/Library/Application Support/OSD-OS/ on a Mac, or $DATA_ROOT). See Configuration Files for the whole file.

Key	Saved as
enabled, loop_playback, hide_extensions	true or false
media_directory	a folder's full path; "" for the default
shuffle_playback	"ask", "yes" (Always) or "no" (Never). An older true or false reads as Always or Never
resume_playback	"ask", "yes" (Always) or "no" (Never)
auto_subtitles	"forced", "on" or "off". An older true reads as On, false as Forced Only
sub_lang	"-" (Any) or a two-letter ISO 639-1 code: "en", "de", "tr"…
image_duration	"5", "10", "30" or "60"
video_scaling	"Default", "Letterbox", "14:9", "Pan & Scan" or "Anamorphic"

Two app settings belong with Local Files too: app.startup_favorite (the file played at startup: { "module", "path", "name" }, or "" for none) and app.startup_from ("Resume", the default, or "Beginning").

Files it keeps

All in the data folder, each written whole (a power cut mid-save leaves the old file, never half of one).

File	What is in it
config.json	The settings above, under modules.com.osdos.local_files
lists.json	Recently Watched (recent) and Favorites (favorites), under com.osdos.local_files, newest first. Netflix and Prime Video keep theirs in the same file, and YouTube its Favorites (its Recently Watched is youtube_history.json)
local_files_history.json	Where each file was stopped: pos (milliseconds) and plPos (the playlist entry, counted from 0; -1 for a single file), by path

lists.json, indented here (the app writes it on one line):

{
    "com.osdos.local_files": {
        "favorites": [
            { "isFolder": false, "name": "Rambo Marathon.m3u", "path": "/media/OSD-OS/Movies/Rambo Marathon.m3u" },
            { "isFolder": false, "name": "Your Name (2016).mp4", "path": "/media/OSD-OS/Movies/Anime/Your Name (2016).mp4" }
        ],
        "recent": [
            { "isFolder": false, "name": "Spirited Away (2001).mp4", "path": "/media/OSD-OS/Movies/Anime/Spirited Away (2001).mp4" },
            { "isFolder": false, "name": "Terminator 2 (1991).mp4", "path": "/media/usb/KINGSTON/Sci-Fi/Terminator 2 (1991).mp4" }
        ]
    }
}

local_files_history.json, indented here too:

{
    "/media/OSD-OS/Movies/Anime/Spirited Away (2001).mp4": { "plPos": -1, "pos": 4354000 },
    "/media/OSD-OS/Movies/Rambo Marathon.m3u": { "plPos": 2, "pos": 61000 }
}

The first resumes 1 hour 12 minutes 34 seconds in (Resume from 1:12:34, as above); the second at 1:01 into its third entry (Resume video 3 at 1:01). Delete a line to forget a position, or the file to forget them all.

Examples

A media folder laid out for the tree

/media/OSD-OS/Movies/
├── Action/
│   ├── Rambo Movies/
│   │   ├── Rambo - First Blood (1982).mp4
│   │   ├── Rambo - First Blood Part II (1985).mp4
│   │   └── Rambo III (1988).mp4
│   ├── Cliffhanger (1993).mp4
│   └── Kill Bill Vol 1 (2003).mp4
├── Anime/
│   ├── Spirited Away (2001).mp4
│   └── Your Name (2016).mp4
├── Photos/
│   └── Station Card.png
├── Rambo Marathon.m3u
└── Sci-Fi/
    ├── RoboCop (1987).mp4
    └── Terminator 2 (1991).mp4

An m3u playlist

/media/OSD-OS/Movies/Rambo Marathon.m3u, mixing relative paths (from the playlist's folder), an absolute path, a still image and a .ts recording Local Files wouldn't list on its own:

#EXTM3U
#EXTINF:-1,Station card
Photos/Station Card.png
#EXTINF:-1,Rambo - First Blood (1982)
Action/Rambo Movies/Rambo - First Blood (1982).mp4
#EXTINF:-1,Rambo - First Blood Part II (1985)
Action/Rambo Movies/Rambo - First Blood Part II (1985).mp4
#EXTINF:-1,Rambo III (1988)
/media/OSD-OS/Movies/Action/Rambo Movies/Rambo III (1988).mp4
#EXTINF:-1,Rambo (2008), recorded off air
/media/usb/KINGSTON/Recordings/Rambo (2008).ts

Save it as UTF-8 (.m3u8 is the usual extension for a UTF-8 playlist). The station card shows for Image Duration, then the list moves on; the last entry plays only while the drive is in.

A playlist folder

/media/OSD-OS/Movies/
└── Anime Night.m3u/                      ← a folder
    ├── Anime Night.m3u                   ← the playlist, of the same name
    ├── 01 My Neighbor Totoro (1988).mp4
    ├── 02 Kiki's Delivery Service (1989).mp4
    └── 03 Spirited Away (2001).mp4

with Anime Night.m3u inside it reading:

#EXTM3U
01 My Neighbor Totoro (1988).mp4
02 Kiki's Delivery Service (1989).mp4
03 Spirited Away (2001).mp4

The tree lists the folder as the playlist Anime Night.m3u; select plays it, ► offers its options.

The module's settings in config.json

{
    "modules": {
        "com.osdos.local_files": {
            "enabled": true,
            "media_directory": "/media/OSD-OS/Cartoons",
            "loop_playback": false,
            "shuffle_playback": "ask",
            "resume_playback": "yes",
            "auto_subtitles": "on",
            "sub_lang": "en",
            "image_duration": "10",
            "hide_extensions": true,
            "video_scaling": "14:9"
        }
    }
}

This is the modules part of config.json; the file also has an app part and the other modules' settings, which stay as they are. The app writes the keys in alphabetical order; any order reads the same. Edit the file with OSD/OS stopped (sudo systemctl stop osdos, then sudo systemctl start osdos, or Settings → Quit → Exit to Terminal): the media folder is read as the app starts, and a file that isn't valid JSON is read as empty, after which the next setting saved writes the defaults over everything. Check it first:

python3 -m json.tool ~/.local/share/OSD-OS/config.json > /dev/null && echo OK

A favourite that plays at startup

The usual way is ► on the file, Play at Startup. By hand, the file must be on Favorites in lists.json as well, and config.json holds:

{
    "app": {
        "startup_favorite": {
            "module": "com.osdos.local_files",
            "name": "Rambo Marathon.m3u",
            "path": "/media/OSD-OS/Movies/Rambo Marathon.m3u"
        },
        "startup_from": "Beginning"
    }
}

Another default folder for a manual install

On Raspberry Pi OS with scripts/install.sh, the default is ~/.local/share/OSD-OS/media/Movies. Setting Media Directory is the simple way to change it. To change the default itself, give the service the same variable the image gives it:

# /etc/systemd/system/osdos.service.d/media.conf
[Service]
Environment=OSDOS_MEDIA_DIR=/mnt/films

sudo systemctl daemon-reload
sudo systemctl restart osdos

The default is then /mnt/films/Movies, and the Arcade module's /mnt/films/Games/Arcade. Media Directory, once set, still wins over it.

Tips

• Name files the way you want to read them. The tree shows names as they are on disk, sorted by name: S01E01 … sorts episodes, Kill Bill Vol 1 (2003) reads better than Kill.Bill.Vol.1.2003.720p.BluRay. Hide File Extensions, on unless you turn it off, drops the .mp4.
• Keep a test pattern in the media folder: it is the quickest way to set up Scaling and Display Output on a CRT (Display Output).
• Use a playlist as a channel. An m3u of cartoons and ads, with Shuffle Playback on Always and Loop Playback on, plays like a station that never ends; make it Play at Startup and the TV turns on into it.
• A network share works when the system mounts it: mount it (fstab or autofs) and point Media Directory at it. Search walks it like any folder, which can take a while on a slow share.
• A symlink inside the media folder brings another folder into the tree without moving it (Search won't walk into it, though).
• Recently Watched as a shelf: a file played from a USB drive or from Search lands in Recently Watched, one step from the top next time.
• The Playlists module can put Local Files' videos on a list with YouTube, Jellyfin and Emby videos: ► on the file, Add to Playlist.

Troubleshooting

Problem	What to check
No items found	The media folder is empty, or isn't the one you think: Settings → TV / Movie → Local Files → Media Directory shows the path (Default: see above). On the image, check the films went into the Movies folder on the OSD-OS drive, not onto bootfs
A file isn't listed	Its extension isn't one of those Local Files plays, or its name starts with a dot. Rename it, or list it in an m3u
A USB drive doesn't show	It must be mounted under /media/ or /run/media/ (Linux) or /Volumes/ (Mac), from a /dev/… device, and not by /etc/fstab. On the image, journalctl -u 'osdos-usb-mount@*' says why it wasn't mounted (an encrypted volume, swap or a RAID member is never mounted). A manual Raspberry Pi OS Lite install mounts nothing by itself: mount it under /media, or set Media Directory to where it is
A drive mounted elsewhere (/mnt/…) isn't a USB: row	Only /media/ and /run/media/ count. Set Media Directory to it instead
Search doesn't find a file	It matches names, not folders on the way (search Season to find a season folder); every word must be in the name; files inside symlinked folders aren't searched; past 200 matches only the first 200 by name are kept
No resume question	The video was stopped in its first 5 seconds or its last 5%, or Resume Playback is Always or Never
No subtitles	Auto Show Subtitles is Forced Only (the default), which shows only forced tracks: set it to On. Subtitle Language picks which language comes first. A sidecar .srt must have the video's name
A playlist entry is skipped	mpv couldn't open it: a relative path is taken from the playlist's own folder; a drive that's out; a YouTube link (not played here)
A video won't play at all	mpv writes its log to /tmp/osdos-mpv.log (the system's temp folder on a Mac); the app's own log is journalctl -u osdos -b with the service. See Troubleshooting
A video from a USB drive stopped	The drive was pulled out, or went to sleep and dropped off; plug it back in and choose the file again (Recently Watched has it)
Settings vanished after editing config.json	The file had a JSON error when OSD/OS read it. Check it with python3 -m json.tool before starting OSD/OS

See also

• Modules: every module at a glance
• Playlists: lists of Local Files, YouTube, Jellyfin and Emby videos, online or offline
• The OSD/OS image: the film partition and USB drives
• Playback and mpv: the deck menu, Transparent Background and mpv's flags
• Settings: Scaling, Transparent Background, Play at Startup and Startup From
• Controls: keys, remotes and gamepads
• Configuration Files: config.json, lists.json and the data folder
• NFC Reader: play a file by tapping a card
• Troubleshooting
