Jellyfin

The Jellyfin module plays your films, series and home videos from a Jellyfin server, the free and open media server. You sign in with Quick Connect: OSD/OS shows a code, you approve it from any device where you are already signed in to Jellyfin, and no password is typed on the TV. This page covers signing in step by step, the libraries and how to browse them, Continue Watching and Next Up, resume, autoplay, audio and subtitle tracks, video quality, intro and credit skipping, putting videos on a playlist, every setting with its config key, how the sign-in is stored, and what to do when it doesn't work.

The module is in modules/jellyfin (views and manifest) and src/modules/jellyfin (JellyfinBackend). The Emby module is its twin; its page lists where the two differ.

Jellyfin	Add to Playlist

Connect to a server with Quick Connect.	► on PLAY puts the video on a playlist.

What you need

A Jellyfin server the device can reach, and its address: http:// or https://, the host or IP address, and the port (Jellyfin's usual ones are 8096 for HTTP and 8920 for HTTPS), such as http://192.168.1.20:8096.
Quick Connect turned on in the server's settings (an administrator can do it in the Jellyfin dashboard).
A phone, tablet or computer where you are signed in to Jellyfin as the user OSD/OS should play as, to approve the code.
Something to type the server's address with, once: a USB keyboard, or one paired in Settings → Bluetooth. The sign-in screen has no on-screen keyboard. Without a keyboard, put the address in config.json first (below), and the remote does the rest.

Turning it on

Jellyfin is off until you turn it on: Settings → TV / Movie → Jellyfin → Enabled. It then appears on the main menu. Its other settings show once you have signed in.

Signing in with Quick Connect

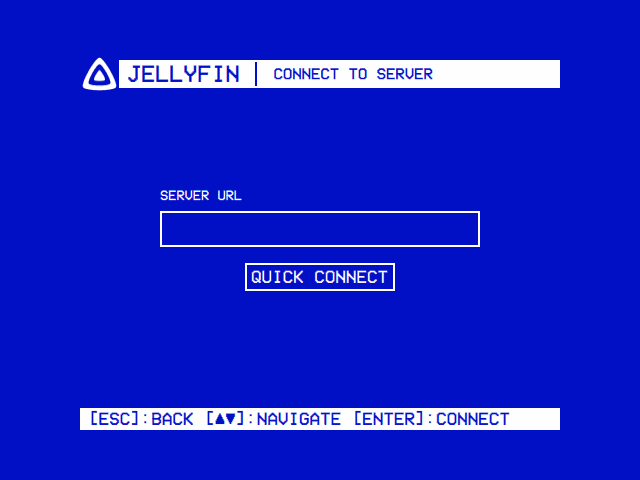

Open Jellyfin from the main menu. The Connect to Server screen has a Server URL field and a Quick Connect button. The field holds the address used last time, if any.
Type the server's address in the field, with its http:// or https:// and its port.
Press Enter (in the field, or with ▼ on Quick Connect). CONNECTING… shows while OSD/OS asks the server for a code.
The code fills the screen, with Enter the above code at: and an address on your server ending /web/#quickconnect, and Waiting… under it.
On your other device, signed in to Jellyfin as the user you want, open Quick Connect (that address, in a browser), enter the code and authorize it.
OSD/OS asks the server every 2 seconds whether the code has been approved. Once it has, the screen reads Approved, OSD/OS signs in, and the libraries open.

Back on the code screen cancels (OSD/OS asks the server to drop the code). After 2 minutes without approval the screen reads CODE EXPIRED; back ([ESC]:RETRY) returns to the first screen to ask for a new one.

sequenceDiagram
    participant O as OSD/OS
    participant J as Jellyfin server
    participant Y as You, signed in on a phone
    O->>J: POST /QuickConnect/Initiate
    J-->>O: a code and a secret
    Note over O: shows the code
    Y->>J: Quick Connect: enter the code, authorize
    loop every 2 seconds, for up to 2 minutes
        O->>J: GET /QuickConnect/Connect?secret=…
    end
    J-->>O: Authenticated
    O->>J: POST /Users/AuthenticateWithQuickConnect
    J-->>O: an access token and the user
    O->>O: save jellyfin_auth.json and server_url, open the libraries

OSD/OS then shows up in the server's list of devices as OSD/OS, named after the machine's host name. Each time you open the module it checks its token with the server, while the libraries are already on the screen; a token the server no longer accepts (the device was removed in the dashboard, say) signs OSD/OS out and brings back the sign-in screen, and back from there leaves Jellyfin. A token that is still good leaves you where you are, in a library you have opened meanwhile too.

What the sign-in screens can say:

Message	What it means
Please enter a server URL	The Server URL field is empty
CONNECTION FAILED: …	Nothing answered at that address: a typing slip, a missing `http://` or port, or the server is off or on another network. CONNECTION FAILED: HOST REQUIRES AUTHENTICATION is the server refusing the code request (HTTP 401): Quick Connect is off, so turn it on in its dashboard. Any other refusal ends `SERVER REPLIED:` and the server's reason
INVALID RESPONSE FROM SERVER	Something answered, but not with a Quick Connect code (another program on that port?)
CODE EXPIRED	Two minutes passed. Go back and start again
POLL FAILED: …	The connection dropped while waiting, or the server no longer knows the code (it ends `SERVER REPLIED: NOT FOUND`). Go back and start again
Approved…, and nothing after it	The code was approved, but turning it into a sign-in failed; this screen doesn't say why. Go back and start again

Sign in without a keyboard

Put the server's address in config.json (in the data folder: ~/.local/share/OSD-OS/ on Linux and the image, ~/Library/Application Support/OSD-OS/ on a Mac), with OSD/OS stopped:

{
    "modules": {
        "com.osdos.jellyfin": {
            "enabled": true,
            "server_url": "http://192.168.1.20:8096"
        }
    }
}

Merge it into the modules part of the file you have; the rest stays as it is. The Connect to Server screen then opens with the address filled in, and select (Enter, or a gamepad's bottom face button) starts Quick Connect. On the image, sudo systemctl stop osdos before editing and sudo systemctl start osdos after; check the file with python3 -m json.tool ~/.local/share/OSD-OS/config.json, since a file that isn't valid JSON is read as empty.

The home screen

The title bar reads JELLYFIN | <SERVER> (<USER>). The list holds:

Row	Shown when	What it opens
Continue Watching	You have something part-watched	Up to 20 part-watched films and episodes
Next Up	A series has a next episode for you	Up to 20 next episodes, one per series, as Jellyfin works them out
Each library	It is a Movies, Shows, Home Videos or Collections library, and ON in Settings → TV / Movie → Jellyfin → Libraries	The library (below)

Music, books and photo libraries, and libraries of mixed content, are left out. Back leaves Jellyfin.

Browsing

In every list, an episode reads SHOW S1E2: TITLE and anything else TITLE (YEAR). Selecting a series opens its page, a collection its contents, a folder the folder, anything else its own page. LOADING… while the server answers, NO ITEMS FOUND for an empty list.

A library's list, and a Home Videos folder's, is kept for 10 minutes once it has come, for the server and user it came from, so going back to it from an item's page shows it at once, without asking the server again. After a video it is asked for again, since what was watched has changed. A list you leave before it has come is dropped, never shown in the screen you went to.

Library	How it is listed
Movies	Every film, A to Z by the server's sort name, with the letter panel
Shows	Every series, A to Z, with the letter panel
Home Videos	Its folders and videos one level at a time, as they are on disk, A to Z with the letter panel. Photo albums, photos and audio are left out
Collections	Every collection, A to Z, with the letter panel

A collection (Jellyfin's box set) opens on what kinds of thing it holds: MOVIES, SERIES, EPISODES, COLLECTIONS (a collection can hold others), each listed oldest first by release date. A collection of one kind skips that step and opens its list straight away.

Browsing by letter

In the A-to-Z lists a column of letters stands to the right of the list:

► moves to the letters (the hint bar shows [►]:BROWSE);
▲ ▼ jump from letter to letter, the list following to the first title under each;
select, ◄ or back return to the list.

Titles are filed under the first letter of the server's sort name for them, which already leaves out "The" and "A" the way your server is set to; anything that doesn't start with a letter goes under #.

Series and seasons

A series' page has PLAY ► (RSUM ► when the server reports a resume point for the series), the overview, and its Seasons. A season's page has PLAY ► (RSUM ► when one of its episodes is part-watched) and its Episodes. ▲ ▼ move between the button and the list.

PLAY on	Opens the page of
A series	The episode Jellyfin's Next Up gives for it (the one to resume, or the next unwatched); for a series never started, the first episode of its first season (season 1, not specials)
A season	Its part-watched episode; failing that, its first unwatched one; failing that, its first

An item's page

A film's, episode's or video's page shows PLAY ► (RSUM ► when it has a resume point), the name, the year and running time (S1E2: TITLE for an episode), the overview (scrolling when long), then under Playback Settings:

Row	What it does
Audio	◄ ► choose the audio track, when the file has more than one
Subtitles	◄ ► choose a subtitle track, or Off (shown when the file has subtitles)

▲ ▼ move between the rows; select on PLAY plays; ► on PLAY puts the video on a playlist (below), the hint bar showing [►]:PLAYLIST while the Playlists module is on.

The tracks start as your server would choose them. OSD/OS reads your user's preferences from the server (preferred audio language, preferred subtitle language and subtitle mode) and picks the way Jellyfin's own apps do: the subtitle mode Default shows the file's forced or default subtitles; Smart shows those, or your language's when the audio isn't in it; Always shows your language's; OnlyForced shows forced ones only; None shows none. After that, the languages of the tracks on the last page you left or played from (changed or not) come first on the next item, down to the same one among several in a language (a commentary track, say), until OSD/OS restarts.

While the stream is prepared, the loading screen covers the page, with the item's resume point and length as the server gives them; back cancels, and the server isn't told the video started.

Playing

Direct Play and transcoding

Settings → TV / Movie → Jellyfin → Video Quality decides how the server sends a video:

Video Quality	What happens
Direct Play (the default)	OSD/OS offers the server to play anything, and when the server agrees the file is streamed as it is (`/Videos/{id}/stream?static=true`) and mpv decodes it. Text subtitles (SRT, ASS, WebVTT…) are fetched as files and handed to mpv, so they never need a transcode; picture subtitles (PGS, DVB, DVD) are picked from the file. When the server says a file can't be played directly, it sends the transcode it offers instead
480p (NTSC CRT)	A transcode, at most 480 lines and 4 Mbps
576p (PAL CRT)	A transcode, at most 576 lines and 4.5 Mbps
720p	A transcode, at most 720 lines and 6 Mbps
1080p	A transcode, at most 1080 lines and 10 Mbps

A transcode is an HLS stream of H.264 video with AAC or MP3 audio, carrying the audio track you chose, with the subtitle you chose burned into the picture. A CRT shows 480 or 576 lines anyway, so the CRT tiers save the network and the Pi's work without losing anything on screen.

If Direct Play fails (mpv can't open or play the file), OSD/OS reports the failure, asks the server for a transcode, and goes on by itself from where it was. Back while it waits for the transcode returns to the page, and so does a transcode the server fails to give.

Resume, Continue Watching and Next Up

Resume points are the server's: what you watch here shows up in Continue Watching in every Jellyfin app, and the reverse. While a video plays OSD/OS reports where it is every 10 seconds, and once more when it stops (a video stopped before it showed a picture keeps the resume point it had). With Resume Playback on Ask (the default), a video with a resume point asks Resume playback? Resume from 0:30 / Start from the beginning; on Always it carries on without asking.

Autoplay Next Episode

With Autoplay Next Episode on, an episode that plays to its end is followed by the next one of the series, from its beginning: the next episode of the season, or the first of the next season after the last one. It carries on the audio and subtitle languages you had, choosing the closest track by language, then title, codec and channels. When there is no next episode, or the video wasn't an episode, the player returns to the page. Back from the player returns to the page of the episode that was playing. Back while the next episode is being prepared returns to the page too, and so does a next episode the server fails to give.

Tracks during playback

▲ or ▼ during a video opens the deck's menu: the position bar, AUDIO, SUBTITLE, CROP and STOP (Playback and mpv).

Direct Play: AUDIO and SUBTITLE step through the file's tracks, as with any file.
A transcode carries one audio track and burns one subtitle in, so the deck's AUDIO and SUBTITLE buttons ask the server for a new transcode with the next track instead (subtitles step through to Off and round again; audio has no Off). The video stops, the new stream starts where it was, and the menu's track lines at the top left (AUDIO:, SUBTITLE:) name the track in use. Back while the new stream is prepared returns to the page.

Intro Skip and Credit Skip

Intro Skip and Credit Skip use the media segments your server marks in an episode: an intro and the credits. The server has to mark them: the settings' help line names the Jellyfin Intro Skipper plugin. OSD/OS offers the two settings only when the server answers at its media segments address (/MediaSegments); an episode without segments plays as usual whatever they say. When either isn't Off, the episode's segments are fetched as it starts.

Setting	What happens when an intro or credits segment starts
Off (the default)	Nothing
Auto	It is skipped: the video jumps to the end of the segment, once per episode
Button	The deck's menu opens with SKIP under the cursor: select skips, or let it play. The menu hides after 5 seconds as usual; ▲ or ▼ brings it back, SKIP and all, while the segment lasts

With Transparent Background

With Settings → TV / Movie → Transparent Background on, back during a video returns to Jellyfin's menus while the picture plays on behind them. OSD/OS reports the video stopped to the server, as it does, so a transcode may end soon after, when the server closes it. The Jellyfin player has no menu of its own and no row on the main menu: choose the video again to play it full screen, from its resume point.

Putting a video on a playlist

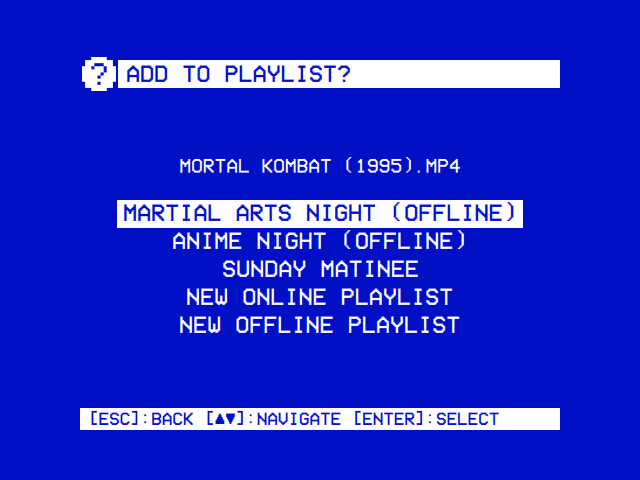

With the Playlists module on, ► on PLAY asks Add to playlist?: your playlists (an offline one marked (Offline)), then New Online Playlist and New Offline Playlist (named on the on-screen keyboard). It says what became of the video in the same window: Added to … (and It downloads in the background, once for an offline list), or Already on …. An episode goes on as SHOW - EPISODE. Series and seasons can't go on as a whole; open them and add their episodes, or use the Playlists module's Add Videos, which browses Jellyfin's Continue Watching, Next Up and libraries down to the episodes.

On an online playlist a Jellyfin video streams from the server as it is (the original file, never a transcode, whatever Video Quality says). On an offline one it is downloaded once as the original file, if the server lets your user download (a user without that right shows Not Allowed). A playlist doesn't report what you watch to the server, so it leaves resume points and watched marks as they were.

Settings

Settings → TV / Movie → Jellyfin. Everything but Enabled and Scaling shows only once you have signed in; Intro Skip and Credit Skip only when the server answers for media segments.

Setting	Values	Default	What it does	Config key
Enabled	ON, OFF	OFF	Shows Jellyfin on the main menu	`modules.com.osdos.jellyfin.enabled`
Libraries	each library, ON or OFF	all ON	Which libraries the home screen lists	`modules.com.osdos.jellyfin.libraries`
Video Quality	Direct Play, 480p (NTSC CRT), 576p (PAL CRT), 720p, 1080p	Direct Play	Direct Play, or a transcode capped at that size	`modules.com.osdos.jellyfin.video_quality`
Resume Playback	Ask, Always	Ask	Whether a video with a resume point asks, or carries on	`modules.com.osdos.jellyfin.resume_playback`
Autoplay Next Episode	ON, OFF	OFF	Plays the series' next episode when one ends	`modules.com.osdos.jellyfin.autoplay_next_episode`
Intro Skip	Off, Auto, Button	Off	What happens at an intro segment	`modules.com.osdos.jellyfin.intro_skip`
Credit Skip	Off, Auto, Button	Off	What happens at a credits segment	`modules.com.osdos.jellyfin.outro_skip`
Scaling	Default, Letterbox, 14:9, Pan & Scan, Anamorphic	Default	How a 16:9 picture fills the 4:3 screen in Jellyfin; Default follows Settings → TV / Movie → Scaling	`modules.com.osdos.jellyfin.video_scaling`
Sign out	(an action)		Signs out: revokes the token on the server and forgets it here

How the values are saved

Key	Saved as
`enabled`, `autoplay_next_episode`	`true` or `false`
`libraries`	an object of `"<library id>": true` or `false`; a library left out counts as ON
`video_quality`	`"auto"` (Direct Play), `"480p"`, `"576p"`, `"720p"` or `"1080p"`
`resume_playback`	`"ask"` or `"always"`
`intro_skip`, `outro_skip`	`"Off"`, `"Auto"` or `"Button"`
`video_scaling`	`"Default"`, `"Letterbox"`, `"14:9"`, `"Pan & Scan"` or `"Anamorphic"`
`server_url`	the server address signed in to (no setting row; it fills the sign-in screen's field)

A whole modules entry, as the app writes it (the library id is an example of its shape):

{
    "modules": {
        "com.osdos.jellyfin": {
            "enabled": true,
            "server_url": "http://192.168.1.20:8096",
            "libraries": {
                "f137a2dd21bbc1b99aa5c0f6bf02a805": false
            },
            "video_quality": "480p",
            "resume_playback": "ask",
            "autoplay_next_episode": true,
            "intro_skip": "Button",
            "outro_skip": "Auto",
            "video_scaling": "Default"
        }
    }
}

See Configuration Files for the whole file.

How the sign-in is stored

jellyfin_auth.json in the data folder, readable by your user only (mode 600) and written whole:

Field	What it is
`serverUrl`	The server's address
`accessToken`	The token Quick Connect gave this device
`userId`, `userName`	The user OSD/OS plays as
`serverName`	The server's name, for the title bar
`deviceId`	This device's id towards the server, made on first use

OSD/OS sends the token in the Authorization header (MediaBrowser Client="OSD/OS", Device="<host name>", DeviceId="…", Version="…", Token="…"), and hands it to mpv as an Authorization header for a stream. Only on a Playlists list does it ride in the stream's address instead (api_key), so that in a list mixing sources it goes to this server and nowhere else. Sign out tells the server to end the session (/Sessions/Logout), deletes the file and makes a new device id, so the next sign-in is a new device. Your password is never asked for and never stored.

OSD/OS's own requests to the server accept a certificate the server made itself, one issued for another name, or one from an authority the system doesn't know, for that server's address only.

Troubleshooting

Problem	What to do
No way to type the address	Plug in or pair a keyboard (Settings → Bluetooth), or put the address in config.json
CONNECTION FAILED: …	Check the address has `http://` or `https://` and the port. From the device, `curl http://192.168.1.20:8096/System/Info/Public` (with your address) should answer with the server's name
CONNECTION FAILED: HOST REQUIRES AUTHENTICATION	Quick Connect is off: turn it on in the Jellyfin dashboard
CODE EXPIRED	Approve within 2 minutes; go back and start again for a new code
Back on the sign-in screen by itself	The server stopped accepting the token (the device was removed in the dashboard, or signed out from there). Sign in again
The home screen stays on LOADING...	The server didn't answer (the log has `LOAD LIBRARIES FAILED`), or there is nothing to list: no Movies, Shows, Home Videos or Collections library is ON in Settings → TV / Movie → Jellyfin → Libraries, and nothing to continue
A library is missing	Settings → TV / Movie → Jellyfin → Libraries. Only Movies, Shows, Home Videos and Collections libraries are listed
No Continue Watching or Next Up	They show only when they have something
No Intro Skip or Credit Skip rows	The server has no media segments (the setting's help line names the Intro Skipper plugin), or you aren't signed in
A video stutters	Choose a CRT tier in Video Quality: the server then sends at most 480 or 576 lines. A file mpv can't play falls back to a transcode by itself
Changing subtitles restarts the video	It is a transcode: the subtitle is burned into the picture, so another one needs a new stream. Direct Play switches without a restart
Offline playlist says Not Allowed	Your Jellyfin user isn't allowed to download media; an administrator can allow it in the dashboard, then Retry Downloads on the playlist's page

The app's log has the details: journalctl -u osdos -b | grep -i jellyfin with the service (lines start [JellyfinBackend] or [Jellyfin], and the screens' own [Jellyfin Player], [Jellyfin Library], [Jellyfin Items] and the like; a refused Direct Play is logged with the server's reasons). mpv's own log is /tmp/osdos-mpv.log (in the system's temp folder on a Mac). See Troubleshooting.
