Using OSD OS

Using OSD/OS

A tour of OSD/OS, screen by screen, as you meet them: the boot screen, the main menu, the tree every module is browsed with, searching, info screens and options, playing a video and the menus over it, the logo in the corner, and quitting. Every screen is drawn like a VCR's on-screen display, in the color scheme's two colors, and works with the arrows, select and back. Controls lists which key, button or remote button does each; the pictures are the app itself at 640×480.

The basics

Everything is done with a handful of actions:

Action	Keyboard	Gamepad	What it does
The arrows	▲ ▼ ◄ ►	D-pad, left stick	▲ ▼ move through a list. ◄ ► change a setting's value (one shown between ◄ and ►), ► opens a row that ends in ►, and in a tree they go up a level or open one
Select	Enter	A	Opens, plays, chooses
Back	Esc, Backspace or Right Shift	B or Back	One step back. On the main menu it opens Settings
► on an entry	►	D-pad right	A video's options, or its info screen
Play/pause	Space	Start	Pauses a video; stops one playing behind the menus
The mouse	Left click, right click, the wheel		Over a menu the selection follows the pointer; a left click selects, a right click goes back, the wheel moves up and down

The bar at the foot of every screen (the hint bar) says which keys do what there, as [ESC]:BACK [▲▼]:NAVIGATE [ENTER]:SELECT, and switches to the gamepad's buttons once you press one. A ▲ above a list or a ▼ below it means there are more lines that way. A line too long for the screen scrolls through while the cursor is on it.

How you move between the screens:

flowchart TD
    boot["Boot screen (the OSD/OS image)"] --> startup{"Play at Startup or<br/>Start on Module set?"}
    startup -- no --> menu["Main menu"]
    startup -- yes --> module
    menu -- back --> settings["Settings"]
    settings -- back --> menu
    menu -- select --> module["A module: its tree or its lists"]
    module -- "back, at the top" --> menu
    module -- "select on a video" --> video["The video, full screen"]
    video -- "back (most modules)" --> module
    video -- "back (Local Files, YouTube, Playlists)" --> vmenu["The video's own menu"]
    vmenu -- back --> video
    vmenu -- Browse --> module
    vmenu -- "Close Video" --> menu

Loading

With Transparent Background on, the video goes on playing behind wherever back leads, and the main menu's first row takes it back to full screen. Without it, Browse leaves the video stopped, and the main menu's first row starts it again where it was.

The boot screen

On the OSD/OS image, OSD/OS is on screen before the rest of the system has started, and the boot screen shows the rest coming up. It is a VCR playing a tape: PLAY ▶ in the corner, and the OSD/OS cassette, whose reels turn and whose tape winds from the left reel onto the right one as the bar under it fills. Under the bar, LOADING and how far it has got, then a line per service, in the order they start:

Line	Means
[ OK ] WI-FI	Started (NetworkManager, which runs Ethernet too)
[ .. ] BLUETOOTH	Starting now; the line is inverted, like a selected menu line
[ ] LOCAL NETWORK	Waiting its turn (avahi, which makes the Pi osdos.local on the network)
[FAIL] …	It failed to start
[ -- ] …	Skipped, as its conditions weren't met

SSH has a line when the image was built with SSH on, and the last line, ONLINE, waits until the network is really up, or 20 seconds without one. The screen closes by itself once every line has settled, or after a minute, whatever keys are pressed: no key does anything while it is up but Ctrl+Q, which powers the Pi off. Then the main menu opens, or the module Settings → Start on Module names, or the favourite set to play at startup.

On an app install (Raspberry Pi OS, macOS, SteamOS) there is no boot screen: OSD/OS opens on the main menu.

After Settings → Display Output switched to another output, the first thing on the new one, over the boot screen, is Keep this display output?, with the time left. Keep keeps it; Switch Back, or 30 seconds without an answer, goes back to the old output, restarting again. Back does nothing there: on a screen that shows nothing, a key pressed at random must not keep it. Display Output has the rest.

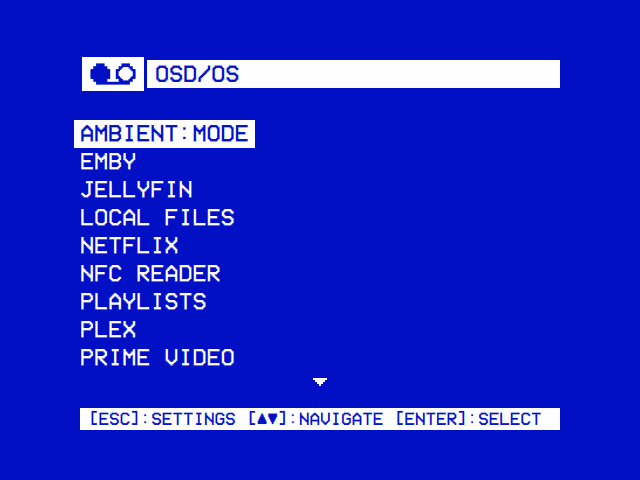

The main menu

The main menu lists the modules, like the inputs on a deck: Local Files, Plex, YouTube and the rest. Select opens one; back opens Settings.

• Which modules. Only the modules that are turned on, in the order of their folders' names (modules/ambient_mode, arcade, emby, …). Out of the box, Local Files and Playlists are on. Turn others on in Settings, with the Enabled row on each module's page: the video modules' and Weather's are under Modules on the TV / Movie page, Arcade and High Scores share the Arcade page, and Scripts is under Modules on the first screen. The picture above has most of them on. With none on, the menu says No modules enabled and Please enable one in settings.
• Rows a module adds. A module can put rows of its own on the menu, after the modules: a script you marked in Scripts has one, which runs it.
• The video playing behind. With Transparent Background, a video left playing behind the menus leads the list as ► <its title>, with the cursor on it.
• ▲ ▼ go round from the last row to the first. The menu remembers the row you left it on.

Modules describes each module, and its own page how to set it up.

The tree

Local Files, YouTube, Netflix, Prime Video, Arcade and High Scores are all browsed the same way, as a horizontal tree, and so are the playlists' Add Videos and the pickers for folders and files in Settings. (Plex, Jellyfin and Emby have list screens of their own, and Weather, Ambient:Mode, NFC Reader and Scripts screens of their own: see their pages.)

Recently Watched	Folders
The tree opens on what you played last, then Favorites, Search and your folders. The entry under the cursor branches out to its contents in full; the other folders' branches are faint.	The open folders run along the line through the middle. The folder under the cursor branches out once more: Action › Rambo Movies › its films.

How it is drawn. The folders you have opened run from left to right along a line through the middle of the screen, the spine. Each folder's entries are stacked above and below the one the spine runs through, which is the one that leads on. In the folder you are in, every folder branches off to the right, on a dotted line, to its first few entries, and the folder under the cursor shows more of its own and branches once more from each folder in it: you see two levels ahead before opening anything. Only the branches of the folder under the cursor are drawn in full, the rest faint, so the folders side by side don't run together. Local Files and the folder picker show a folder's every entry in its branch, not just its first few. Folders opened further back slide off to the left, the spine running on from the edge of the screen. The title bar names the folder you are in. A folder still being read shows loading…; the folder under the cursor, if it is empty, (empty), and any other empty folder no branch at all. The branches grow once the cursor stops moving.

Moving.

Key	What it does
▲ ▼	Move through the folder you are in, round from the last entry to the first
► or select on a folder	Open it
◄	Back up to the folder before (at the top, nothing)
Back	Back up to the folder before; at the top, leave the module for the main menu
Select on a video	Play it
► on a video	Its options, or in Netflix, Prime Video and YouTube its info screen

The hint bar follows the entry under the cursor: on a folder [ESC]:BACK [▲▼◄►]:NAVIGATE [ENTER]:OPEN, on a file [ESC]:BACK [▲▼◄]:NAVIGATE [►]:OPTIONS [ENTER]:PLAY (► is taken by the options there). Each folder remembers the entry you left it on, and coming back from a video reopens the tree exactly where it was.

What is at the top. Every module's tree but High Scores' starts with the same three entries, then the module's own:

• Recently Watched: what you played last, newest first (in Arcade, Recently Played).
• Favorites: what you marked from its options.
• Search: select opens the on-screen keyboard.

In Local Files, the drives plugged in follow, each as USB: <its label> (the OSD/OS image mounts USB drives by itself; on a desktop or a Mac, those the system mounts), coming and going as you plug them in and pull them out, then the media folder's own folders and files. With nothing in the media folder and no drive, Local Files says No items found instead. In YouTube, Subscriptions, Channels, Playlists and Watch Later follow; in Netflix and Prime Video, Movies and Series by genre, and the service's own home page; in Arcade, All Games, Players, Years and Makers. High Scores has Recently Played and All Games alone, with Not Readable when a file can't be read (High Scores). Each module's page has its tree.

Favorites	Search results
What you marked from its options, in the module's own Favorites.	Names that match anywhere under the media folder.

Searching

Select on Search brings up an on-screen keyboard, for typing with a remote the way a deck's menu spells a title: the letters A to Z, the digits, -, ', . and & in a grid, and SPACE, DEL and OK on the last row. What you have typed is in the box above, with a blinking block where the next letter goes.

Key	What it does
The arrows	Move the box, round from one edge to the other
Select	Types what is in the box, or presses SPACE, DEL or OK
Backspace	Deletes the last letter (here it isn't back)
Back (Esc, or a gamepad's back)	Cancels
A real keyboard's keys	Type straight in; the box jumps to OK, so Enter then searches

A search takes up to 40 characters, and OK with nothing typed does nothing. The results open as a folder of their own in the tree, Search: <what you typed>. In Local Files a search finds names anywhere under the media folder and on the drives plugged in; each module's page says what its search covers. The same keyboard names a new playlist.

Info screens

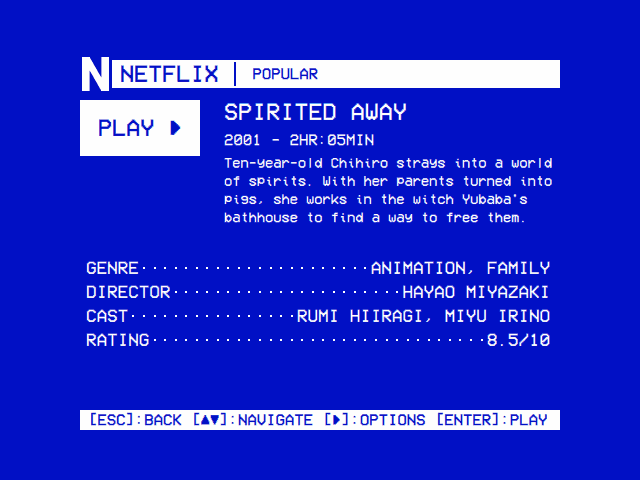

A film's info screen	A video's info screen
Story, genre, director, cast and rating, from TMDB. Select plays the title; ► offers its options.	Channel, date, length, views and description.

In Netflix, Prime Video and YouTube, a title has an info screen, the way a deck's INFO key puts up what is on the tape: a PLAY ► box, the title, a line of facts, the story (which scrolls through when it is longer than its room) and the details as menu lines. It is the tree's last layer.

Key	What it does
Select	Plays the title
▲ ▼	Close it and move to the entry before or after in the tree
►	The title's options
◄, back, play/pause, I, or a remote's Info key	Close it

When it comes up is Settings → TV / Movie → Info Screen:

Setting	Values	Default	What it does	Config key
Info Screen	Off, Key, 1 sec, 2 sec, 3 sec, 5 sec	3 sec	Key: with ► on a title (or play/pause, I, or a remote's Info key). 1–5 sec: also by itself, once the cursor has rested on a title that long (once per resting place, not again after you closed it there). Off: no info screens; ► on a title gives its options straight away	app.info_screen (off, key, 1, 2, 3, 5)

Options

Options	Add to Playlist
► on any video: Add to Favorites (or Remove), Play at Startup, and Add to Playlist.	From a module itself: a video's options (►), or ► on PLAY in Jellyfin and Emby.

► on a video in a tree (or on its info screen) opens Options, with the video's name under the title. ▲ ▼ choose, select does it, back closes.

Option	What it does
Add to Favorites / Remove from Favorites	Puts it in the module's Favorites, or takes it out
Play at Startup / Don't Play at Startup	Makes it the favourite OSD/OS plays as it starts, or stops that (below)
Add to Playlist	Puts it on one of the Playlists module's playlists. Offered while that module is on, for videos from Local Files, YouTube, Jellyfin and Emby
Save to Watch Later / Remove from Watch Later	YouTube only: its Watch Later list

Folders have no options (► opens them), and neither has Search (select opens it).

Add to Playlist lists every playlist (an offline one marked (Offline)), then New Online Playlist and New Offline Playlist, which you name on the on-screen keyboard. Then it says what became of the video: Added to the playlist (on an offline one, "It downloads in the background, once"), Already on it, or Can't go on a playlist. Select or back closes it.

Favorites and Recently Watched are each module's own lists, kept in lists.json in the data folder (Configuration files).

Play at startup

One favourite can play by itself as OSD/OS starts: straight after the boot screen on the image, at once elsewhere, without a resume question. Choosing Play at Startup on a video also adds it to Favorites, and taking it out of Favorites stops it playing at startup. Back from it goes to its module's tree (in Favorites), and from there to the main menu. Settings has the rest:

Setting	Values	Default	What it does	Config key
Play at Startup	None, or the favourite's name	None	The favourite played at startup. It is chosen in its module (► on it, Play at Startup); here it can only be turned off	app.startup_favorite ({ "module", "path", "name" }, or "")
Startup From	Resume, Beginning	Resume	Where it begins: where it was stopped, or from the start. Shown while there is a favourite to play	app.startup_from
Start on Module	None, or a module that is on	None	Opens that module, instead of the main menu, as OSD/OS starts. The favourite to play at startup goes first	app.startup_module (a module id, such as com.osdos.youtube)

Playing a video

Resume

A video you stopped partway asks Resume playback?: Resume from 1:12:34 (where you stopped) or Start from the beginning. ▲ ▼ choose, select plays, back goes back to the tree. In Local Files:

• a playlist file (.m3u) resumes at the video it was on: Resume video 3 at 12:40;
• with Shuffle Playback on Ask, a playlist asks Start playback?: Play in order or Shuffle;
• the place is saved when you stop after the first 5 seconds, and forgotten once you have watched 95% of it (or, for a playlist, played it to the end).

Local Files, YouTube, Plex, Jellyfin, Emby and NFC Reader each have a Resume Playback setting (in Local Files: Ask, Always, Never), which their pages describe. A video played at startup, or taken back from behind the menus, never asks.

The tape loading

While a video starts, a tape loads: live VHS noise in the color scheme's colors, the tracking band jittering across the top and now and then rolling down over everything, and a dubbing deck's display in the corners. TAPE A PLAY counts where the video starts from; TAPE B LOADING blinks over the video's length once it is known (until then, the seconds it has taken); SLP▶ names the source (the module). It goes the moment the picture comes.

Setting	Values	Default	What it does	Config key
Loading Effect	On, Off	On	Off: the deck's display alone, on the plain background, without the noise and the bands	app.loading_effect
Loading Screen Colors	Theme, Default	Theme	Default: white on blue, whatever the theme	app.loading_colors

The theme's effects and the menu music never touch a video: they rest while one plays, loads, or has its menu open.

The deck's menu

During a video, ▲ or ▼ opens the deck's menu, drawn by mpv over the picture: the audio track, the subtitle track and the Scaling in force at the top left (AUDIO:, SUBTITLE:, CROP:), and at the bottom the time played and the length over the position bar, and a row of buttons:

Button	What it does
SKIP	Skips an intro or the credits, when Jellyfin or Emby marks one (it comes first, and the cursor lands on it)
AUDIO	The next audio track
SUBTITLE	The next subtitle track (only when there are subtitles)
CROP	The next Scaling: Letterbox, 14:9, Pan & Scan, Anamorphic (not on a Pi 3 with 1080p Playback on, where it can't crop)
< and >	The previous and next video of a playlist
STOP	Ends the video

In the menu, ▲ goes to the position bar and ▼ to the buttons (where it opens). On the bar, ◄ ► jump 10 seconds back and forward; on the buttons, they move between them, and select presses one. Back closes the menu, and it closes by itself after 5 seconds without a key.

With the menu closed, ◄ ► jump 5 seconds (mpv's own keys), select and play/pause pause, and back does what the next section says. A keyboard's or remote's media keys work too: Controls has them all.

Back during a video

What back does depends on the module, and on Transparent Background:

	Transparent Background off (the default)	Transparent Background on
Local Files, YouTube, Playlists	The video stops, where it is, and its menu opens on OSD/OS's own background. Back from the menu starts it again from there	Its menu opens over the picture, which plays on
The other modules	The video stops, its place saved, and you are back where you chose it	You are back where you chose it, the video playing on behind the menus

The video's own menu

Local Files, YouTube and Playlists give a video a menu of its own: first the module's settings that matter while it plays, then what you can do with it, then Close Video.

Module	Its lines
Local Files	Auto Show Subtitles, Subtitle Language, Loop Playback, Scaling; Add to Favorites, Play at Startup, Browse Local Files, Close Video
YouTube	Playback Resolution, Video Codec, Max Frame Rate, Scaling, Audio Language, Subtitles, Subtitle Language, Playback Speed; Add to Favorites, Play at Startup, Save to Watch Later, Browse YouTube, Close Video
Playlists	Subtitles, Loop Playback, Scaling; Browse Playlists, Close Video

• ◄ ► change a setting. It is saved at once, as the module's own setting (it stays for the next video too), and applied to this one: some at once (Loop Playback, Scaling, Playback Speed), the rest as you go back to the video, which reloads where it is.
• Select on an action does it. Browse returns to the module's menus. Close Video ends the video and goes to the main menu.
• Back returns to the video, full screen. Play/pause still pauses the video under the menu. The hint bar reads [ESC]:VIDEO.

With Transparent Background, the video plays on under the menu, as much of it showing as the setting says (40% solid in the picture). Without it, nothing plays under the menu: the video stopped for it, and starts again where it was, with the settings as they are now, as the menu closes. Close Video then leaves without a video anywhere. Browse leaves it stopped where it was, and the main menu leads with a row for it, ► <title>, as for a video behind the menus: select starts it again there, without asking. The row stays until mpv plays another video.

A service's own player

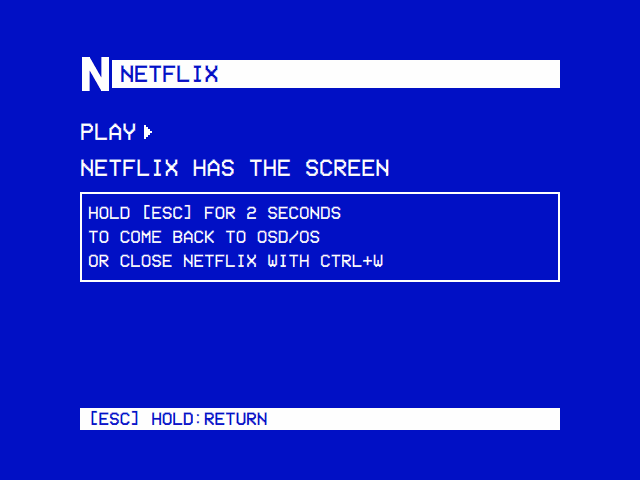

Netflix and Prime Video play in the service's own web player, in Chromium, which has the screen until it closes. To come back, hold back for two seconds, or close the browser with Ctrl+W. The first time in a run, this screen stays up a moment before the browser opens, long enough to read it. Netflix and Prime Video has the rest.

Transparent Background

The video's menu	Back to the menus	Main menu
With Transparent Background, back during a Local Files or YouTube video opens its menu over the picture, which plays on, here at 40% solid. ◄ ► change its module's settings for it, at once or as you go back to it. Close Video goes to the main menu; back, to the video.	Browse in that menu, or back from any other module's video, returns to the module's menus, the video playing on behind them. Choose it again to watch it full screen from where it is.	The main menu leads with the video, the cursor on it: select takes it back to full screen where it is. Play/pause stops it ([SPACE]:STOP), and playing anything else replaces it.

Normally, back from a video stops it. With Settings → TV / Movie → Transparent Background, OSD/OS plays videos inside its own window, so back returns to the menus while the video goes on playing behind them, the way a deck's menu lies over the tape.

• The slider. The setting is a slider, drawn as the deck's tape bar, from TRANSPARENT to SOLID: how solid the menus' background is over the video, in steps of 10%. ◄ ► move it, and save at once, so over a video playing behind you see each step. At SOLID none of the picture shows, but the video plays on, sound and all. Select turns the setting off and back on at the bar's place; ◄ ► turn it on too. Off, back stops the video, as it always did.
• Taking it back. The main menu's first row is the video behind, ► <its title>, with the cursor on it: select brings it back full screen, from where it is. Choosing the same video again in its module does the same. YouTube, Local Files and Playlists videos come back this way; another module's video only comes back by choosing it again.
• Stopping it. Play/pause on the main menu stops it ([SPACE]:STOP in the hint bar). It also ends when its playlist has played out, when you play anything else, when something else takes the screen (a script that takes over the screen, an Arcade game in MAME, Netflix or Prime Video's browser) and when you turn the setting off.
• With OSD Background on Window, only the window lies over the video, which shows whole around it.
• The theme's effects and menu music rest while a video plays behind the menus, as they do while it plays full screen, and the screen saver doesn't come.

Setting	Values	Default	What it does	Config key
Transparent Background	Off, or TRANSPARENT (0) to SOLID (100) in steps of 10	Off (turned on, the bar starts at 40)	Back from a video returns to the menus with the video playing behind them, this solid	app.transparent_background ("Off" or 0–100)

It needs libmpv, which OSD/OS opens as it runs: libmpv2 on Raspberry Pi OS (on the image, and installed by install.sh), part of Homebrew's mpv on a Mac. Where it is missing, as in the AppImage, the row isn't in Settings. On a Pi 4 or 5 and on desktop Linux the GPU draws the picture; on a Mac, mpv's software renderer does. Playback and mpv explains how it works.

The channel logo

Channel Logo	Under the menus
OSD/OS's logo in a corner of the picture while a video plays, the way a channel's sits in a broadcast. Settings → TV / Movie → Channel Logo picks the corner, all four, or none.	It is in the picture itself, so with Transparent Background the menus lie over it.

Logo Image	Picking the picture
Settings → TV / Movie → Logo Image puts a picture of your own there instead, as tall as OSD/OS's logo.	Picked on the same file browser: select on a picture, or OSD/OS Logo at the top to go back to it.

mpv draws the logo into the picture, 7% of its height tall and 10% of the picture in from its corner (a letterboxed picture's bars stay clear of it). Both settings apply from the next video.

Setting	Values	Default	What it does	Config key
Channel Logo	Off, Top Left, Top Right, Bottom Left, Bottom Right, All Corners	Top Right	Where the logo sits while a video plays	app.video_logo (off, tl, tr, bl, br, all)
Logo Image	OSD/OS (OSD/OS Logo on the picker), or a picture (PNG, JPEG, SVG, GIF, BMP, WebP)	OSD/OS	The logo's picture, picked on the file picker; a PNG with a clear background works best. Shown while Channel Logo isn't Off	app.video_logo_image (a path; unset for OSD/OS's)

The screen saver

To spare a CRT's phosphor, a screen saver puts OSD/OS's logo bouncing across a black screen, the way a DVD player's did: in the menus after that many seconds without a key, and during a video after it has been paused that long. The first key only wakes it; the next one acts. Moving the mouse wakes it too, unless Mouse Pointer is Off. It never comes while a video plays (behind the menus too), while a script runs, or over the boot screen.

Setting	Values	Default	What it does	Config key
Screen Saver	OFF, 30, 60, 120	OFF	Seconds without a key in the menus, or paused in a video, before it comes	app.screensaver_timeout

The hint bar and the help line

• The hint bar, the solid bar at the foot of every screen, says which keys do what there, as a deck's menu ends with "SELECT WITH (▲▼) AND (OK)". It shows the keyboard's keys ([ESC], [ENTER], [SPACE]) until you press a gamepad button, then that gamepad's ([B], [A], [START], or a PlayStation pad's [O], [X], as its button labels in Settings → Controls name them), and back again with the next key (Controls).
• The help line is the box under a menu (Settings, a module's settings, Controls, Wi-Fi, Bluetooth, a video's menu, About) with a line about the selected row. A line too long for the box scrolls through it like a ticker, pausing each time its start comes round.

Both can go once the keys are second nature; the keys work as they always do.

Setting	Values	Default	What it does	Config key
Hint Bar	On, Off	On	Off: no key hints at the foot of any screen; the menus, the file browser and the dialogs take their room, and a help line moves down into it	app.hint_bar
Help Line	On, Off	On	Off: no box with a line about the selected row, and a row more in the menu above it (About keeps its own, as those lines are the page)	app.help_line

The mouse pointer

A mouse, or a keyboard's touchpad, shows OSD/OS's own pointer, drawn in its pixels and colors, while it moves, and hides it again after a few seconds still. The menus take the mouse as they take the keys: over a menu or the Arcade screen's list the selection follows the pointer, a left click is Select / OK, a right click Back and the wheel ▲ ▼, on the OSD/OS image and on a desktop alike (an air-mouse remote's OK is a left click). In a file tree the wheel moves the cursor, a row a notch, and a click opens what it is on; the on-screen keyboard still goes by the keys. A mouse button made one of the actions in Settings → Controls → All Keyboards & Remotes does that instead (Controls).

Setting	Values	Default	What it does	Config key
Mouse Pointer	Off, 2 sec, 5 sec, 10 sec, 30 sec, Always	5 sec	How long the pointer stays after the mouse stops. Off: never shown. Always: it stays	app.mouse_pointer (off, 2, 5, 10, 30, always)

Settings

Back on the main menu opens Settings, laid out like a camcorder's menu: a line per setting, its value at the end between the arrows that change it (COLOR SCHEME······◄ VIDEO 1 ►), and a ► at the end of a line that leads somewhere (TV / MOVIE······►). A release's version is in the title bar, and the IP address at its right.

• ▲ ▼ move, skipping the headings, round from the bottom to the top. ◄ ► change the value, saved at once. Select, or ►, opens a line that ends in ► (TV / Movie, Arcade, a module's settings, Wi-Fi, Bluetooth, Update, a file or folder picker), and select turns a slider on or off. Back from a page returns to the line it was opened from.
• TV / Movie opens the videos' page: Scaling, Transparent Background, Video Levels, Loading Effect, Loading Screen Colors, Channel Logo and Info Screen, then under Modules a line per video module (and Weather), for its settings, its Enabled row among them.
• Arcade opens the Arcade module's settings, with the High Scores module's after them under its own heading.
• General Settings: the look first, Theme, then its parts (Color Scheme, Skin, the effects, Transition, Menu Music), then OSD Background and Window Frame. Then startup (Start on Module, Play at Startup, Boot Screen Colors) and the screen (Hint Bar, Help Line, Screen Saver, Mouse Pointer).
• Modules: a line for each module on neither page, Scripts, for its settings.
• Application: Display Output (on the image), Audio Output (where plain ALSA plays), Controls, Wi-Fi and Bluetooth (on Linux), Update, About (this device's System Information first) and Quit.

A module's settings	Picking a folder
Local Files: its folder, looping, shuffle, resume, subtitles, and its own Scaling.	Folders are picked on the same tree Local Files is browsed with, from home, the drives and the root down: USE THIS FOLDER picks the one open, Default Folder the module's own.

Settings describes every row; Controls, Display Output, Audio Output and Installation the screens behind Application.

Quit, Restart, Power Off, Exit to Terminal

Quit is the last line of Settings. It asks Really quit?, and what it offers depends on how OSD/OS was started:

Started	Choices
By hand (osdos), on a Mac, as an AppImage	Yes quits OSD/OS; No stays
With the system: the OSD/OS image, or install.sh's autostart service	Power Off, Restart, Exit to Terminal, Cancel

With the system:

• Power Off quits OSD/OS and switches the Pi off. To switch it on again, unplug its power and plug it back in (a Pi 5 also has a power button).
• Restart reboots the Pi. It is offered only where the service's stop helper knows how; an install from before it was added needs install.sh run once more (Installation).
• Exit to Terminal drops to a text login on the Pi's screen, and leaves the service in place for the next boot. On an image built without a password, it logs the user pi in by itself. From there, as a user who can use sudo, sudo systemctl start osdos brings OSD/OS back and sudo reboot starts the Pi afresh; as any user, osdos runs OSD/OS by hand (where Quit then asks Yes or No, and returns to the shell).
• Cancel, or back, stays.

Ctrl+Q (⌘Q on a Mac) quits at once from most screens, without asking: with the system, that switches the Pi off, as Power Off does.

About and the license

About	The license
This device's System Information, then what OSD/OS is, who makes it, what it is made of and under which license, each line's detail in the help line.	Behind the LICENSE line: the notice, then the GNU GPL's text, a page at a time.

Settings → About opens on the OSD/OS wordmark and SMART TV FOR CRT, then System Information, this device's name on its line, and a line each for what OSD/OS is made of, who makes it and under which license; the help line under them gives each line's detail, and stays even with Help Line off.

Line	Says
System Information	This device's name. Select opens its page: the name, which tells it apart from others on the network, what the device is and each network connection's IP and MAC addresses; on the OSD/OS image, select on the name renames the device (Settings → About → System Information)
Build	The commit this build was made from, and the day (the version is in the title bar)
Developer	mehmet raif tasdemir (darkBLACK), who develops OSD/OS
Based On	240-MP, by Anthony Caccese and its contributors, which OSD/OS is a modified version of
License	GNU GPL v3. Select opens the license
Website	osdos.tv: what OSD/OS is, the latest release and OSD/OS Setup, which writes a card's first settings
Source	Where the source, the releases and the issues are
Written With	Claude Code, which OSD/OS's changes were written with
Artwork	ChatGPT, which the logos and the boot screen's cassette were made with
Fonts	VCR OSD Mono and GNU Unifont
Built With	Qt, SDL2 and mpv, with their licenses, and what else the image carries
Image OS	Raspberry Pi OS Lite on Debian 13, and the trademark notices
Data	TMDB, Open-Meteo and Wikidata, with the notices their terms ask for
Arcade	A heading over the arcade's lines
MAME	The emulator the games play in, GPL v2 or later. Select opens the license
RetroArch	What plays FinalBurn Neo's games, with RetroAchievements and online play, GPL v3. Select opens the license
FinalBurn Neo	The emulator RetroArch plays those games with: free to use and share, never to sell. Select opens its license, as it came with the core
openhi2txt	What reads MAME's high score files, GPL v3. Select opens the license
hi2txt	How each game keeps its high score table, GPL v2. Select opens the license
RapidXML	The XML reader openhi2txt is built with, Boost or MIT. Select opens the licenses
minizip, zlib	What opens hi2txt's definitions and FinalBurn Neo's download, zlib License. Select opens the license
LZMA SDK	What unpacks the RetroArch for Windows the FinalBurn Neo page downloads, public domain. Select opens its note
RetroAchievements	Leaderboards and hardcore play, with your own account, and the games' pictures and the achievements' badges
Online Play	libretro's lobby and relay servers
progetto-SNAPS	The Snapshots and Titles packs and catver.ini, by AntoPISA, in the games folder or downloaded
ArcadeDB	Arcade Database by motoschifo, whose scraper service gives progetto-SNAPS' pictures game by game

Select on License shows the notice the GNU GPL asks an interactive program to show (whose copyright it is, that it comes with no warranty, that you may pass it on under the license), then the license's full text, from the LICENSE file every build carries. ▲ ▼ turn a page at a time; back returns to the lines. Select on an arcade line with a license shows that one the same way, under its name. Credits has the same on the web.

See also

• Controls: every key, button and remote button, remapping, Bluetooth
• Settings: every row of Settings
• Modules: what each module shows, and its own page
• Playback and mpv: how videos play, Scaling, subtitles and resume
• Themes, Skins and Effects: changing the look
• Features: everything at a glance
• The screen tour: every screen, module by module
