Accessories

How one accessory shows up on every screen: its name, room, icon, what its states are called, and where it appears. These don’t change Home Assistant’s own names or icons (only the room is Home Assistant’s own), so voice assistants and other dashboards are untouched.

There are two ways in, to the same settings:

• On a screen: open the accessory’s detail sheet and tap the gear beside the close button. Tap it again (a check mark) when you are done. The gear is there for administrators only, and not on a camera sheet or a sheet of several accessories.
• In HK Settings: Library → Accessories, then its type or its room (or search).

Everything saves as you change it and reaches every screen; a generated screen redraws within about ten seconds. Each setting and its default: Accessories.

Name and room

• Name: the name on its tiles and sheet, short and room-relative like the Home app’s: “Lamp”, not “Living Room Lamp”. Empty: the entity’s name with its room’s name dropped.
• Only on this dashboard (on a screen’s sheet): the name is this screen’s alone.
• Room: Home Assistant’s own area for the entity. Choosing the device’s area goes back to following the device.

On Doors & Windows each tile shows its room above its name; on Security and Climate the room goes in front of a name you give it (“Hallway Thermostat”).

Show as

For switches, lights and input booleans: Light, Switch, Outlet or Fan. It sets the tile, the glyph, and which chip counts it: a lamp on a smart plug shown as a Light is counted by the Lights chip; a coffee maker shown as an Outlet isn’t.

Tile size

Automatic, Regular or Tall: the height of its tile on a generated screen’s rooms, room pages and category pages. Automatic is what its kind is drawn as — a pill for a light, a tall tile for a lock, a thermostat, a garage door or a vacuum. Tall makes any accessory a tall tile (a lamp you reach for most), Regular makes a lock or a thermostat a pill. The tiles around it move to make room. A favorite keeps the favorites’ one height.

Arrange

Opened from a tile on a generated screen. Move Left and Move Right move the tile one place among the tiles it sits with, under a small copy of them laid out as the screen shows them, with this one picked out. Left and right go in reading order, so moving right from the end of a row puts it at the start of the next. A line underneath says what it moves among:

• On Home: the tiles in its room’s section.
• On a room page: its group there (the lights, the speakers and TVs…).
• In Favorites: the favorites on this screen only.

Home and room pages share the room’s Tile Order, on every screen: the first move saves the room’s current order as its own, and its Tile Order (in Rooms) then says Custom. Each tap saves; the screen shows the new order when the sheet closes. Arrange isn’t shown when there’s nothing to move it past, or on pages like Lights that follow each room’s order.

What it says

For switches and input booleans: what its states are called, When on and When off, on its tiles and as a favorite. For example “Blocked” and “Allowed” for a switch that blocks a game console. Whether it looks lit still follows its state.

Icon

A glyph for its tiles and sheet. It first offers the ones that suit what it is: Apple’s Home glyphs for that kind of accessory (a ceiling fan, a desk fan and an air purifier for a fan; curtains, a Roman shade and a skylight for a shade). A door or window sensor’s glyph comes as an open and a shut pair.

Search all icons finds any glyph by name, then any of Home Assistant’s Material Design icons by name or keyword (“burger” finds the hamburger). A Material icon with an Apple glyph of the same name is drawn as the Apple one.

Spinning

For a fan, or something drawn as one. Whether its tile’s glyph turns while it is on. A fan’s glyph spins by default, but a chosen icon isn’t always one that reads as a fan — a ceiling fan does, a purifier doesn’t. Automatic keeps its kind (a fan spins, anything else doesn’t), Spin makes it turn, Still keeps it still. It only turns while the fan is on, and never with the sky’s Animations off (Live Sky); a favorite’s glyph keeps the favorites’ still, one-height look. It is set in the accessory’s settings (the gear on its sheet), not with the fan’s own controls.

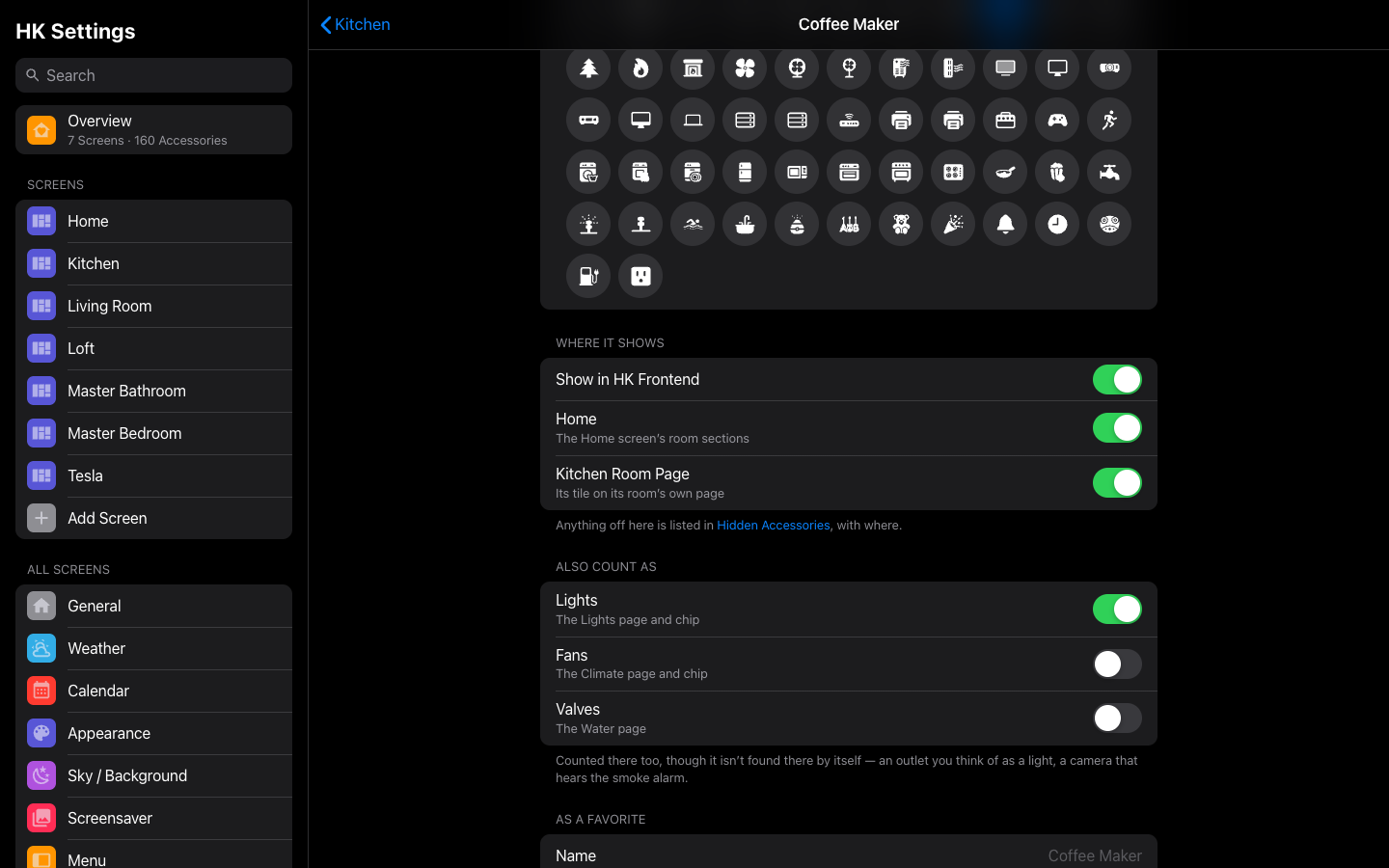

Where it shows

• Show in HK Frontend: off, it is hidden everywhere: every generated screen, page and chip. It stays in Home Assistant and its automations.
• Then a switch for each place it shows, to hide it from just that one: Home (the Home screen’s room sections), Room Page (its tile on its own room’s page), and the pages and chips of its kinds — Climate for a thermostat (the Climate page and chip), Lights, Security for a lock, Water for a leak sensor, and so on. Only the places it can be in are listed. Off in one place, it still shows everywhere else: off Home, it keeps its room page and the category pages, as in the Home app.
• Favorite on this dashboard (on a generated screen’s sheet): adds it to, or removes it from, this screen’s Favorites.

These are the same settings as its row in Hidden Accessories, which lists anything turned off here, and where.

Also Count As

A switch for each kind it isn’t found in by itself but could be counted in: a switch as Lights, Fans or Valves, a camera that hears the smoke alarm as Smoke & CO, a temperature sensor as Temperature (a reading, only for what reports one). On, it is counted there too — by that kind’s chip, its page and its status row — on every screen. Turning it off is how it leaves a kind it was only added to. Shown only when there is a kind it could join. Its type’s page in Accessories lists it in its room, marked Added.

A group helper (“Motion - Kitchen”) is never counted by itself, since what is in it would count twice, but it can be added: its Also Count As offers the kinds it could join, and so does Add… on the type’s page.

As a favorite

Shown for something that is a favorite on any screen:

• Name, Room and glyph as a favorite, on the Favorites row of every screen where it is one. Room is for something with no area of its own, such as a helper.
• Together with (lights, switches and input booleans): up to eight more it controls as one favorite. “Main + Table Lights” turns both on and off, is lit while either is, and shows their brightness.

Color

One color for the accessory, everywhere it appears: its tile on its room’s page, on Home and on category pages like Lights, its favorite, its chip, and — for a scene, script or button — its button in the Scenes row. A tile or favorite shows it as the Home app does: the glyph in that color while off, a circle of it behind a white glyph while on. A scene’s button shows the glyph in that color, and the circle when you tap it (or while a script runs). Auto keeps the color of its kind (lights yellow, fans blue …); a scene’s is plain white.

As a chip

For an accessory shown as a chip: Show only when it is (a state), Shows (its state or one of its attributes) and Label (words to show instead).

Reset to Automatic

Clears every setting of the accessory and this screen’s name for it. The room, other screens’ names and favorites stay.

A YAML dashboard’s tiles keep the names and glyphs written in its YAML; its detail sheets use these settings.

Types

HK Settings → Library → Accessories starts with your accessories by type:

• Types: Lights, Switches & Outlets, Fans, Thermostats, Humidifiers, Water Heaters, Blinds & Shades, Garage Doors, Locks, Security Systems, Speakers, TVs & Receivers, Vacuums, Valves, Timers, Cameras and Circuits & Meters.
• Sensors: Doors, Windows, Smoke & CO, Leak Sensors, Motion, Occupancy, Temperature and Humidity.

Only the types your home has are listed, each with how many. Then come Rooms, and Hidden & Added: Hidden Accessories and Added Accessories.

A type’s page lists its accessories room by room. Tap one for its settings. For a type a chip or a page counts (Lights, Locks, Doors, Temperature…), the list is what that chip and page count, the same on every screen — what used to be a page of its own, What Counts (what each one finds); its old links open the type’s page:

• Hidden beside one: it is hidden from this type’s page and chip. Tap it to change where it shows.
• Added beside one: counted though it isn’t found by itself, with its Also Count As.
• Added → Add…: count something more as this type — an outlet with a lamp, a group helper. It joins its room above, marked Added.
• Hidden → Hidden Everywhere: how many of this type are on no screen at all. It opens Hidden Accessories.
• Hidden → Show All on (the page) Again… (Show All on Climate Again… for Thermostats): opens what is hidden from that page, where Show All Again… shows everything it finds again. What was added stays.
• Order → Tile Order: Locks, Garage Doors and Vacuums (below).
• Chips: the status chips that count this type (Lights for lights, Doors & Windows for doors, windows and garage doors…), each with where it shows (“Always on 6 · When Active on 1”). Tap one for that chip’s page under All Screens → Status Chips, which sets it for every screen at once (Status Chips settings). Smoke & CO says it leads every screen’s row when an alarm goes off.

Accessories → Lights: what the Lights page and chip count, room by room.

Add… (and Hide Accessories…) use the picker every page shares: search by name, entity ID or room, the choices under their rooms, tick several at once (HK Settings).

A few types point elsewhere for their settings: Security Systems to General’s Alarm Panel (which alarm the Security page and chip follow), Cameras to Cameras Settings (Cameras), and Circuits & Meters — the Energy page’s circuits, plugs and meters, listed by section — to Energy Devices and Energy Page.

A room’s page in Accessories is the other way round: its accessories grouped by type.

Tile Order for Locks, Garage Doors and Vacuums

Pages that mix rooms list things A to Z. Two pages can have an order of your own, under Order → Tile Order on the type’s page in HK Settings → Library → Accessories (it was called Page Order):

• Vacuums: the order of the vacuums on the Vacuums page.
• Locks and Garage Doors: the order of the locks and garage doors on the Security page — one order, from either type (automatic: the locks A to Z, then the garage doors), so you can list them the way you think of them: Front Door, Garage Door, Back Door.

Added Accessories

HK Settings → Library → Accessories → Added Accessories (it was called Also Shown). Tiles for things HK Frontend doesn’t show by itself: a script, a scene, a sensor. Each one gets a tile in its room on Home and on its room’s page, or in a section called More at the end of Home when it has no room. Add… offers only what isn’t an accessory already; remove one to take its tile away. It stays in Home Assistant. Hidden Accessories is the other way.

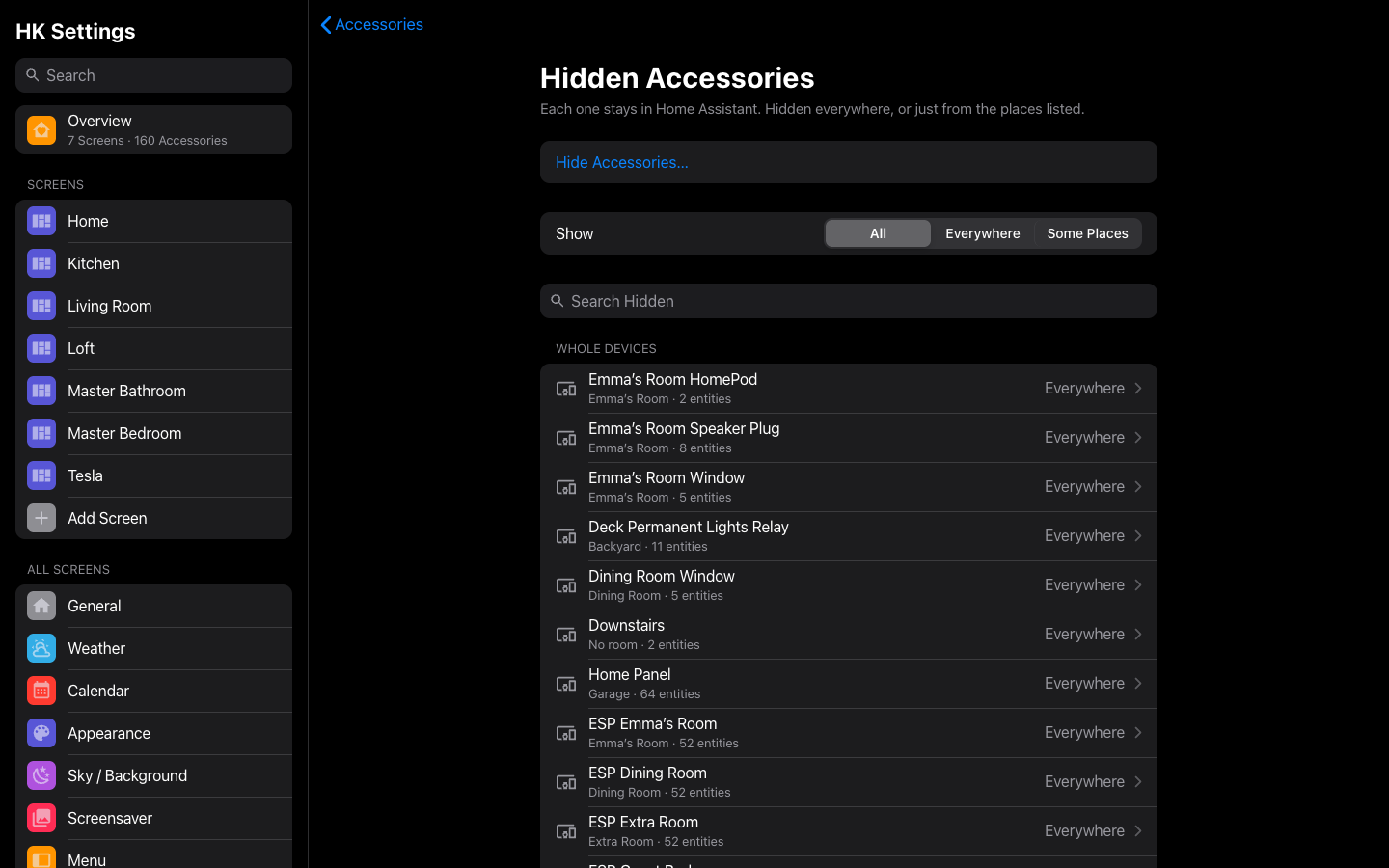

Hidden Accessories

HK Settings → Library → Accessories → Hidden Accessories. One list of everything kept off your screens, and where. Each one stays in Home Assistant, and in its automations.

• Accessories: each hidden accessory, with its room and entity ID, and on the right where it is hidden: Everywhere, or the places, such as Climate or Home, Lights. Tap one to change where it is hidden, or to Show Everywhere Again.
• Whole Devices: a device hidden with all its accessories, one row each.
• Whole Rooms: a hidden room. It opens the room’s settings, where a room is hidden and shown again (Show on Screens, in Rooms).
• By Page: each page or chip with something hidden from it, and how many. Its page lists them, and Show All Again… shows everything that page finds again. What was added with Also Count As stays.
• No Longer in Home Assistant: hidden once, then removed from Home Assistant. Clear These forgets them.
• Just Now, at the top: what you just changed, until you leave the page.

Show narrows the list to Everywhere or Some Places, and Search Hidden finds one by name, entity ID, room or place.

To hide something:

1. Select Hide Accessories….
2. Tick one or several (search finds them by name, entity ID or room), or switch to Whole Devices and tick devices. Select Next.

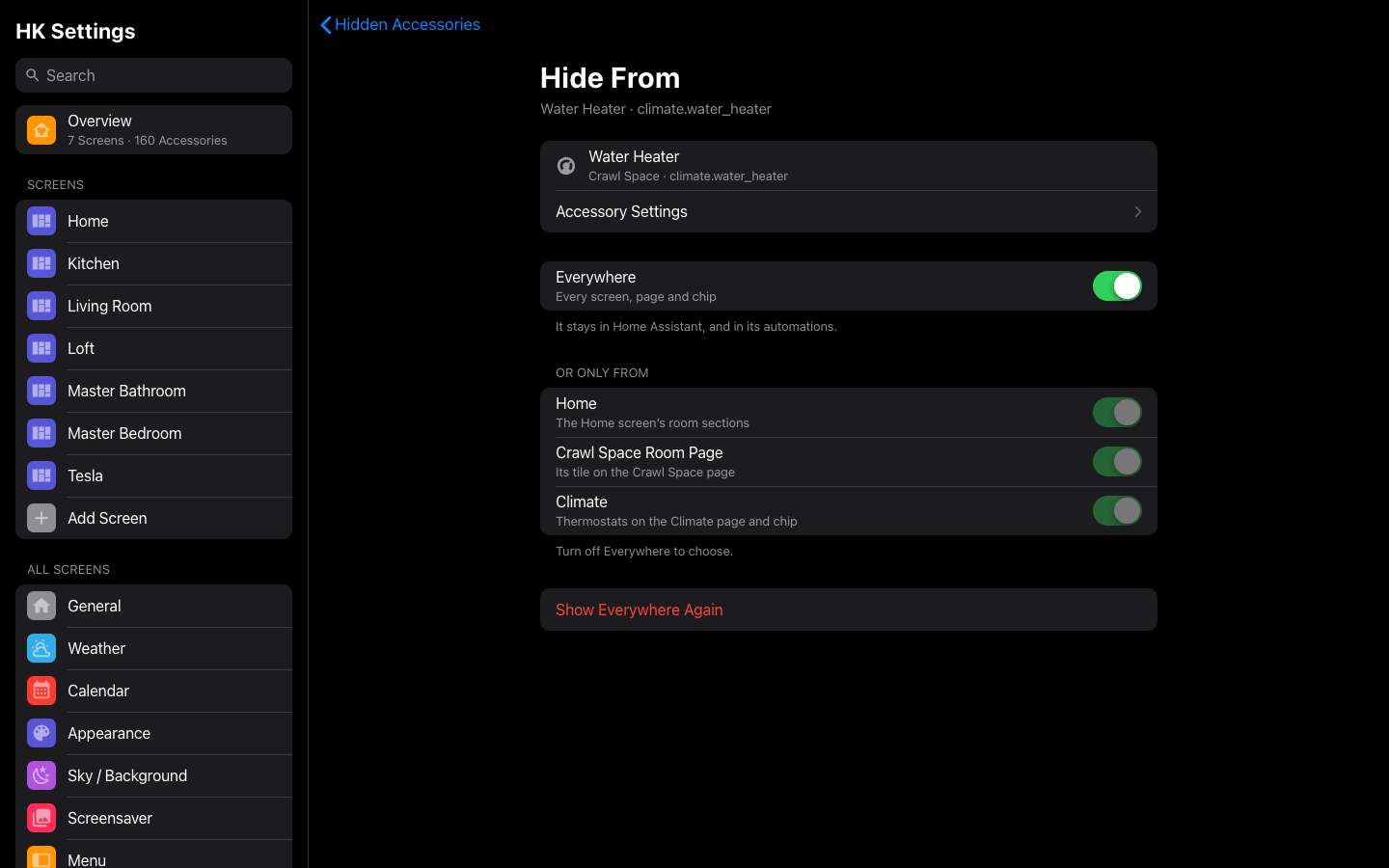

3. In Hide From, leave Everywhere on, or turn it off and choose under Or Only From. With several picked, a place only some of them have says so: applies to 2 of 3. A whole device is always hidden everywhere.
4. Select Hide.

A row’s Hide From is the same page; each switch saves as you change it.

The same switches are on the accessory itself, under Where it shows.

Place	Hides it from
Everywhere	Every generated screen, page and chip
Home	The Home screen’s room sections
Room Page	Its tile on its own room’s page
Climate	Thermostats on the Climate page and chip
Lights	The Lights page and chip
Security	Locks on the Security page and chip
Water	Leak sensors on the Water page and chip
Doors, Windows	The Doors & Windows page and chip
Garage	The Security page and the Doors & Windows chip
Blinds	The Blinds chip and the Climate page
Fans	The Climate page and chip
Valves	The Water page
Smoke & CO	The Smoke & CO chip
Timers, Vacuums	Their pages and chips
Speakers	The Speakers chip
Temperature, Humidity	The Climate page’s ranges
Motion, Occupancy	The rooms with motion, or with someone in them, on status rows

Only the places an accessory can be in are offered. A water heater that shows up as a thermostat, for example, can be hidden from Climate alone: it leaves the Climate page and chip and keeps its tile in its room. A kind it was only added to with Also Count As isn’t a place to hide it from; turn Also Count As off instead.

Accessories settings

Library → Accessories. How each accessory shows up on every screen: its name, room, icon and where it appears. Home Assistant’s own names and icons are untouched.

Setting	Default	What it does
Search Accessories	—	Find an accessory by name, entity ID or room; each result shows its entity ID beside its room. It also finds the sensors a chip could count, so their pages (with Also Count As) can be opened.
Types	—	Each type your home has, with how many: its accessories room by room, what its page and chip count, and what is hidden from it or added to it. See Types.
Sensors	—	Doors, Windows, Smoke & CO, Leak Sensors, Motion, Occupancy, Temperature and Humidity: what the chips and status rows count.
Rooms	—	Every room with accessories, then Timers and No Room.
Hidden & Added → Hidden Accessories	None	Every hidden accessory and where it is hidden: everywhere, or just from some places (Home, its room’s page, the Climate page…). See Hidden Accessories.
Hidden & Added → Added Accessories	None	Tiles for things a generated screen wouldn’t show by itself: scripts, scenes, sensors. Each appears in its room, or in a section called More at the end of Home if it has no room. See Added Accessories.
Tapping an Accessory → HK Detail Sheets	On	Tapping an accessory’s name opens a Home app–style detail sheet (a slider, the thermostat, the player, a graph), on every screen. Off: Home Assistant’s own more-info dialog. Either way, locks, the alarm, garage doors and thermostats never change from a single tap. A card keeps Home Assistant’s dialog with detail: false in its YAML.

A type’s page:

Setting	Default	What it does
Its accessories, by room	—	Each one in its room. Hidden: hidden from this type’s page and chip. Added: counted though it isn’t found by itself. Tap one for its settings.
Added → Add…	—	Types a chip or page counts. Count something more as this type (an outlet with a lamp, a group helper), with its Also Count As.
Chips	—	Types a chip counts. Each chip that counts it, with where it shows; opens that chip’s page in All Screens → Status Chips (Always or When Active, for every screen).
Hidden → Hidden Everywhere	—	Shown when some are hidden everywhere. How many; opens Hidden Accessories.
Hidden → Show All on (the page) Again…	—	Shown when some are hidden from its page. Opens what is hidden from it, with Show All Again….
Order → Tile Order	Automatic	Locks, Garage Doors and Vacuums. The order of the Security or Vacuums page’s tiles, on every screen. See Tile Order.

A room’s page lists its accessories grouped by type, with Room Settings to open that room’s own settings in Rooms: its scenes, tile order, whether it shows and what it’s part of.

An accessory’s page holds the same settings as the gear on its detail sheet (below):

Setting	Default	What it does
Name	The entity’s name, less its room’s	The name on its tiles and sheet on every screen (“Lamp”, not “Living Room Lamp”).
Only on this dashboard	Off	On a dashboard’s sheet only. The name above is this dashboard’s alone. Turning it off shows the house-wide name again.
Room	Its area	Home Assistant’s own area for the entity: the one setting here that changes Home Assistant. Choosing the device’s area goes back to following the device.
Show as	Automatic	Switches, lights and input booleans. Light, Switch, Outlet or Fan: the tile it gets, its glyph, and which chip counts it (a lamp on an outlet counts as a light; a coffee maker doesn’t).
Tile size	Automatic	Regular or Tall: its tile’s height on generated screens, over what its kind is drawn as. Favorites keep their one height.
What it says → When on · When off	On · Off	Switches and input booleans. What its states are called on its tiles and as a favorite (“Blocked” and “Allowed” for a switch that blocks a game). Whether it is lit still follows its state.
Icon	Auto	A glyph offered by what it is, or any glyph or Material Design icon found with Search all icons. A door or window sensor’s glyph comes as an open and shut pair.
Spinning	Automatic	Shown for a fan, or something drawn as one. Spin or Still: whether its tile’s glyph turns while it is on. Automatic is its kind (a fan spins, anything else doesn’t).
Where it shows → Show in HK Frontend	On	Off: hidden everywhere — every generated screen, page and chip. The same as hiding it Everywhere in Hidden Accessories.
Where it shows → each place	On	One switch per place it can be in: Home, Room Page (its tile on its own room’s page) and the pages and chips of its kinds (Climate, Lights, Security…). Off: hidden from just that place. See Where it shows.
Also Count As	Off	Shown when there is a kind it could join. One switch per kind it isn’t found in by itself (a switch as Lights, Fans or Valves; a camera’s alarm as Smoke & CO; a temperature sensor as Temperature). On: counted there too, on every screen.
Favorite on this dashboard	Off	On a generated screen’s sheet only. Adds it to, or takes it off, this screen’s Favorites.
As a favorite → Name · Room · glyph · Together with	Its own	Shown for a favorite. Its name, the room line above it and its glyph on the Favorites row of every screen where it is a favorite. Room is for something with no area of its own (a helper). Together with (lights, switches and input booleans): up to 8 more it controls as one favorite (“Main + Table Lights”).
Color	Auto	White, Yellow, Orange, Red, Pink, Purple, Blue, Teal, Mint or Green: its color everywhere it appears — its tiles on every page, its favorite, its chip and its button in the Scenes row. Auto: its kind’s color (a scene’s: white).
Show only when it is	Any state	Shown for an accessory chip. The chip appears only in this state.
Shows	Its state	Shown for an accessory chip. One of its attributes instead of its state.
Label	What it shows	Shown for an accessory chip. Words to show instead.
Reset to Automatic	—	Asks first. Clears every setting above and this dashboard’s name. The room, other dashboards’ names and favorites stay.

A YAML screen’s tiles keep their own YAML names and glyphs; its detail sheets use these.
