Music

Whole-home music through Music Assistant. Choose one or more rooms on a screen, tap a playlist, and it plays there, grouped and in step. Music can be moved to other rooms, added to more rooms, or stopped everywhere.

The Music page on a wall tablet: what plays and where on the left, Browse on the right.

What you need

• The Music Assistant integration, with its players in Home Assistant.
• Each speaker in an area. The area names its pill on the screens (“Kitchen,” not “Kitchen HomePod”), and the area’s floor groups the pills. Rename an area and every screen follows.
• Optional: sync groups made in Music Assistant, for rooms that should always play together (say, the whole downstairs).

Set it up

1. Add the feature: HK Frontend → Add feature → Music. It asks nothing.
2. Select the gear on the new Music item:
   • Speakers (rooms): the Music Assistant players, one per room. Leave sync groups out here; they are presets (next step).
   • House playlist volume: the volume every room is set to when a playlist starts (default 35%).
   • Then Each tablet’s room: one dropdown per person who signs in. A wall tablet signs in as its own user, so this is how a tablet knows the room it hangs in. Its Music page starts on that room.
3. Optional: select Add music preset at the top of HK Frontend’s page for each sync group. Give it a name, pick the Music Assistant sync group player, and tick the rooms it plays in. Home Assistant cannot read a sync group’s rooms from Music Assistant, so you pick them here.
4. Select Add music playlist for each pill you want under Your Playlists on the Music page:
   • Name and Icon (default mdi:playlist-music).
   • Playlists: one or more playlists from your Music Assistant library. They play as one shuffled queue.
   • Chooser (optional): playlists with the same chooser name become one pill that asks which, for example a “Decades” pill for six decade playlists.
   • Order: lower comes first.

Every change reaches open screens right away, with no reload.

What you see

On generated screens (see Screens), once Music has at least one speaker:

• Music: one page for playing and browsing. (Play Music and Browse Music, two pages before 1.7, are this one page now.)

  • Left: what is playing. At the top, while something plays, Playing on names the rooms (as many as fit, then “and 2 more”), with Change. Under it, when more than one thing is playing in the house, Playing in the House lists each one; the one this page controls is lit, and Switch on another hands the page to it. Rooms playing the same song on their own (an iPhone AirPlaying to several HomePods at once) are one card, “Kitchen, Living Room and 7 more”; the page’s buttons still act on the one room Playing on names. A long list scrolls within itself, so the player under it always stays on screen. Then the artwork, the song, progress, and the controls: Speakers (the HomePod), previous, play or pause, next, Queue, the volume and Up Next.

  • Speakers (or Change) turns what is playing over to the speakers panel, the same one the screensaver has. What’s ticked is where it plays: the ticks start on the rooms playing, and a tap ticks or unticks a room (Everywhere and your other presets tick theirs). Then either:

    • pick something in Browse: it plays on the ticked rooms, and rooms you didn’t tick keep what they play, so ticking only the Guest Room starts new music there while the rest of the house plays on; or
    • Update: what is playing moves to exactly the ticked rooms (rooms join, rooms stop, or it moves altogether).

    Reset puts the ticks back on where it plays, and Stop stops it. The line above the buttons says what each will do, including a room that has to stop something else first. The exact rooms of a preset play through its sync group. Volume has a slider for each room, and Queue shows what is up next in Music Assistant (tap one to jump to it).

  • With nothing playing, Speakers picks where the next music plays: your room to start with (the signed-in user’s Home Room, below, or the room their music last played in); tick rooms, then pick a playlist, an album or a song and it starts there. If other rooms are playing something else, it asks whether to stop them.

  • Right: Browse. Search at the top. Under it Your Playlists (the playlist pills; a Chooser pill like Decades opens its choices in place), then your Discover rows, then the Library categories.

  • Where the next pick plays: “Plays on …” beside the search box, pinned at the top on every level (search results and albums too). It starts on the rooms playing now. Tap it and the Speakers panel drops down under it (Speakers and Volume, as tall as the screen allows; on a phone, the Speakers sheet): tick rooms (or a preset), then pick a playlist, album or song and it starts there, or Update to move what is playing. What is playing keeps playing on the rooms you didn’t tick; the line under the search says where. While it differs from what is playing the button is white (“Next plays on Kitchen + Office”); its ✕ puts it back. It, Change and Speakers are all the same panel and the same ticks.

  • On a wide desk screen the speakers have a column of their own on the right, always up, with Speakers and Volume tabs, and it does Plays on’s job: there is no Plays on button, and the search box has the row. Queue (under the artwork) turns the left side over to the queue alone.

  • On a phone the page is Browse. What is playing is the mini player at the foot: the screen’s now-playing bar, which comes onto the Music page on a phone even when it isn’t on every page. There it has no Browse, and its Speakers button opens the page’s own Speakers. On a screen without the bar, or with it swiped away, a Now Playing row at the top of the page takes its place. Tap it for Now Playing, a sheet with everything the tablet shows on the left; tap or drag its handle down to go back. Tapping the bar on any other page does the same: it opens the Music page with Now Playing up, and closing it leaves you on Browse. While you search, “Plays on” folds to the HomePod and the number of rooms, so the search box has the row; it opens out again when the search is empty.

  • Its address is playmusic, as Play Music’s was, so a menu place, a page pill or a link to it still opens it. The old Browse Music address (music-browse) opens the same page with the search box ready, so existing links and buttons still work; it is never in the menu or a screen’s Pages list (Music is, once).

• The Speakers status chip, and the optional Now Playing bar docked along the bottom of a screen (below).

On a phone the Music page is Browse; what is playing is the bar at the foot, and a tap on it opens Now Playing.

Plays on: what's ticked is where the next pick plays, and Update moves what is playing there. The line above the buttons says what each will do.

On a wide desk screen the Speakers column is always up, so there is no Plays on button.

Settings

Setting	Default	What it does
Speakers	None	The rooms music plays in: Music Assistant players, one per room. Each is named by its area and grouped by floor; within a floor, in the order you drag them. A preset’s sync group can’t also be a room.
Home Rooms	None	For each Home Assistant user, the room they start in when they play music. A wall tablet signs in as its own user, so this is where each tablet hangs.
House Volume	35%	The volume every room is set to when a playlist starts.
Presets & Playlists → Presets	None	A Music Assistant sync group and the rooms it plays in (Name, Sync Group, Rooms). Choosing exactly those rooms on a screen plays through the group, in step.
Presets & Playlists → Playlists	None	The pills under Your Playlists on the Music page, in order (Name, Icon, Chooser, and the library playlists it Plays, as one queue). Pills with the same Chooser become one pill that asks which.
Keep Playlists Ready	Off	Refreshes Music Assistant’s copy of your playlists’ songs in the background, so they open and start at once: the playlists your pills play, plus the ones played in the last week (not Music Assistant’s own). Every 2½ hours, one playlist at a time, never while someone is using Music, and later when the streaming service is refusing requests. Under the switch: when it last ran and how many are ready.
Browse → Categories	All shown	Music Assistant’s categories under Library on the Music page’s Browse side: Artists, Albums, Songs, Playlists, Radio, Podcasts, Audiobooks. Untick the ones nobody opens.
Browse → Discover Rows	Recently played, Favorite playlists, Most played, Recently added, Favorite radio	The rows under the categories, in order. None: no Discover section. A row with nothing in it yet isn’t shown.
Advanced → Browse Page	music-browse	The page a speaker’s sheet opens with Browse, on screens written in YAML (a path on the same dashboard). Generated screens always use their own Music page. Empty: no Browse button.

A Browse card (hk-library-card) whose YAML sets its own hide: or discover: keeps them.

The Discover rows you can pick: Recently played, Recently played albums, Recently played playlists, Recently played artists, Recently played podcasts, Favorite playlists, Favorite songs, Favorite albums, Favorite artists, Favorite radio, Favorite podcasts, Most played, Most played songs, Most played playlists, Most played artists, Recently added, Recently added playlists, Recently added songs, Newest albums, Albums at random.

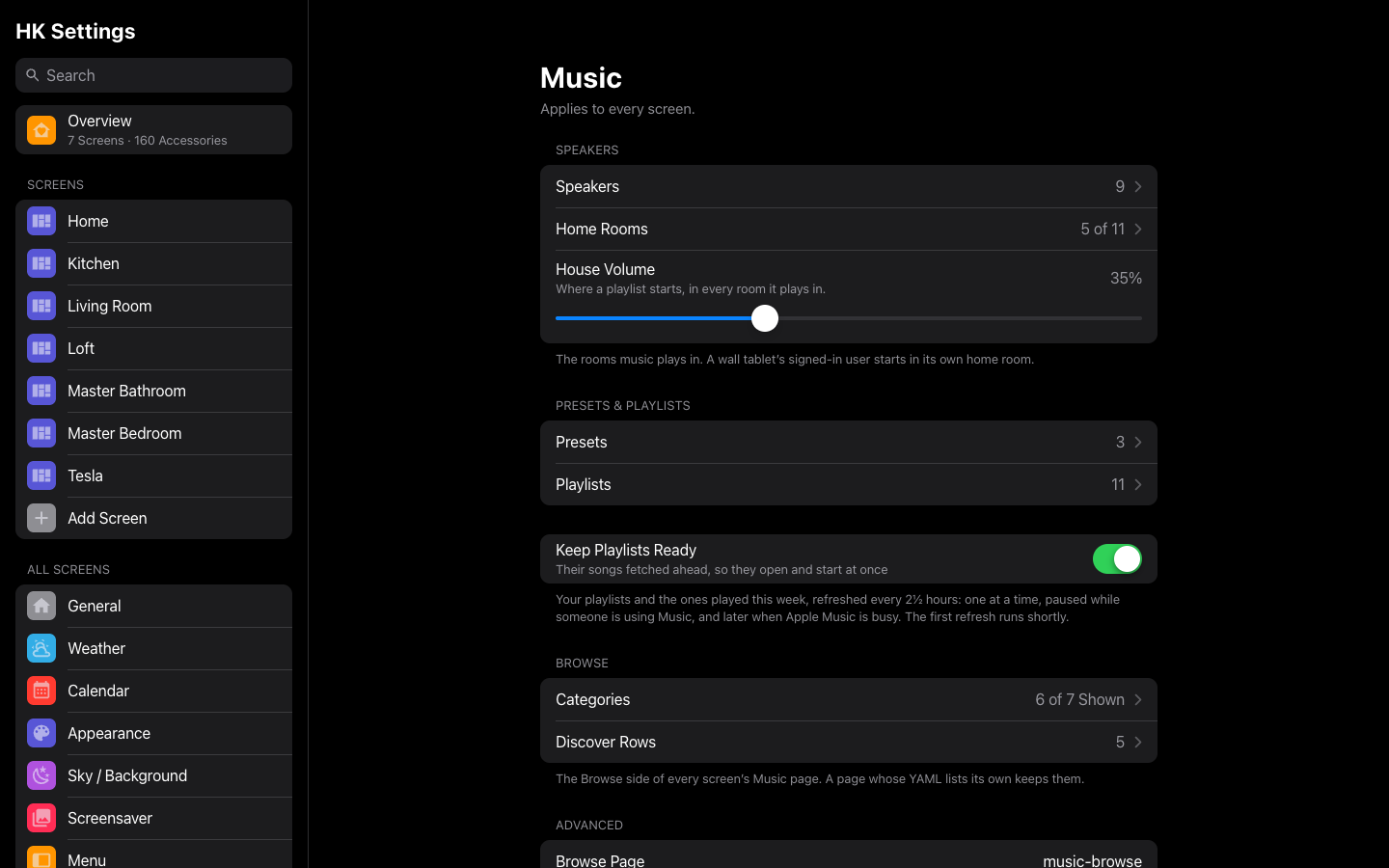

HK Settings → Features → Music holds these; the gear on the Music item under Settings → Devices & services → HK Frontend has the first three, and Add music preset and Add music playlist at the top of that page add the others. Deleting a preset leaves the group in Music Assistant; deleting a playlist pill leaves the playlists in your library.

The Now Playing bar

A generated screen can dock a bar along the bottom of the screen: what is playing on its room, and the quick timers that are running. It runs the screen’s whole width, square and opaque, with a hairline on top; a docked menu and a tab bar rail end above it, and a tab bar along the bottom rides over it. The page gets room below so its last row scrolls clear of it.

Home on a wall tablet: the Timer Bar’s row over the docked Now Playing bar.

Three switches under the screen’s Behavior (Screens) shape it:

Setting	Default	What it does
Now Playing Bar	Off	The player: artwork, the song, progress, play and skip, the volume, and Speakers and Browse. Needs Music.
Timer Bar	Off	Running quick timers in a slim row on the bar’s plate, over the player when music plays, soonest to finish first: a ring round each glyph for the time left, and Restart, +1 min and Finish. A tablet shows up to four across; a phone shows one at a time, swiped, with dots for how many. With no music, the bar is the timers alone. Needs HK Frontend’s quick timers, not Music. A screen that had the Now Playing Bar before 1.7 has it on.
On Every Page	Off	Shown with either of the above. The bar on every page of the screen, not Home alone. It stays in place as you change pages, without sliding away and back. The Music page on a tablet is its own player, so the bar leaves it out there.

The player.

• Speakers (the HomePod) and Browse sit either side of play and skip, as on the screensaver. Speakers opens the screensaver’s panel above the button: Speakers to tick the rooms it plays on and Update, or Stop, Volume for each room, and the Queue. It closes itself once a request has gone through. On a phone it opens as a sheet from the bottom. Browse opens the Music page with the search box ready. In a narrow window (860 px wide or less) the bar leaves Browse out.
• A tap on the song or the artwork opens the player: the Music page, whose left side is the player on a tablet; on a phone the Music page opens with Now Playing up, and closing it leaves you on Browse.
• It comes and goes by itself. It rises when music starts on the room the screen is showing, and stays for 20 seconds after it stops. Pausing music the screen is following keeps it there.

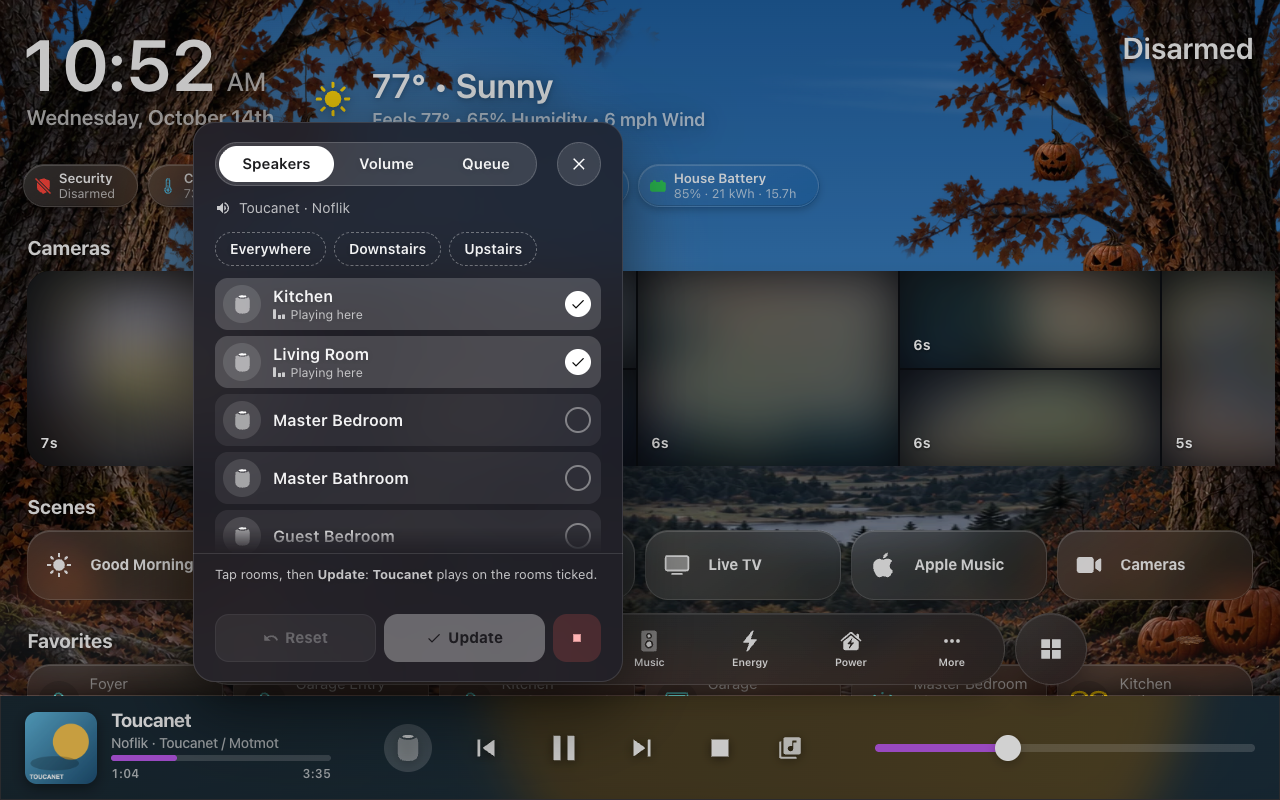

The bar’s Speakers panel: tick rooms, then Update or Stop.

Putting it away. The bar has no close button: swipe it down. Only a swipe that starts on the bar (not on its sliders) and goes down far enough, or a quick flick, counts; a short one springs back, and scrolling the page never touches it. On an iPhone the strip along the very bottom (the home indicator) is left to iOS, whose own swipes start there. Put away, it leaves a small speaker button in the bottom-right corner (above a tab bar along the bottom; when the tab bar folds to its small button, the speaker sits in the same row at the other end): tap it to bring the bar back. It also comes back by itself when the music stops and starts again, moves to other speakers, or a quick timer starts or finishes (on a wall tablet, also when its screensaver comes on). The dashboard keeps working under it.

On a phone the bar is slimmer: smaller artwork, the progress a plain line under the song, and no extra band above the home indicator. On the phone’s Music page the bar is the page’s mini player, even on a screen without On Every Page: it has no Browse, and its Speakers opens the page’s own panel.

Quick timers need HK Frontend’s optional timer helpers; see Your First Screen.

Actions

The Music page uses these actions, and your automations and scripts can too. Every one answers: call it with a response variable and read ok: true (with leader, the player now leading the group) or ok: false with a message written for a person. Called without a response variable, a failure raises an error with that same message, so an automation never fails silently.

A request for rooms that another request is still working on waits its turn. When a newer request replaces it, it answers superseded: true and does nothing. hk_frontend.music_stop cancels whatever is still running for its rooms.

hk_frontend.music_play

Plays one of your playlist pills on a set of rooms: each room is set to the house volume, shuffle is turned on, and the rooms are grouped. If the rooms are exactly a preset’s rooms, it plays through the preset’s sync group.

Field	Required	Description
rooms	yes	Room players: the speakers chosen under Speakers (not a preset’s group).
playlist	yes	The playlist’s id (below).

action: hk_frontend.music_play
data:
  rooms:
    - media_player.kitchen
    - media_player.living_room
  playlist: 01JC3Z7Q4M8V2R6N0D5K9T1XWB
response_variable: result

Finding a playlist’s id. Each playlist pill is an item of HK Frontend’s entry. On HK Frontend’s integration page, open the entry’s ⋮ menu → Download diagnostics; under features → Music → subentries the file lists every preset and playlist, each with its subentry_id and title. That subentry_id is the playlist’s id.

A playlist whose library playlist has since been removed is refused rather than played (Music Assistant would otherwise play a search result).

hk_frontend.music_transfer

Moves what is playing to a set of rooms, or adds rooms to it, keeping the queue and the position in the track. Rooms left out of rooms stop: with rooms the source alone, the rest of its group lets go and the source plays on (refused only when the source already plays alone).

Field	Required	Description
rooms	yes	Where the music should be.
source	yes	The player the music is on now: a room or a preset’s sync group.

action: hk_frontend.music_transfer
data:
  source: media_player.kitchen
  rooms:
    - media_player.kitchen
    - media_player.patio

hk_frontend.music_stop

Stops and ungroups rooms. With no rooms, it stops the whole house, including every preset’s sync group.

Field	Required	Description
rooms	no	The rooms to stop. Leave it out for the whole house.

action: hk_frontend.music_stop
data: {}

hk_frontend.music_transport

Play/pause, skip, stop or change the volume on one player.

Field	Required	Description
player	yes	A room, or a preset’s sync group.
command	yes	play_pause, next, previous, stop, volume_up, volume_down or volume_set.
level	for volume_set	0 to 1.

action: hk_frontend.music_transport
data:
  player: media_player.living_room
  command: volume_set
  level: 0.3

hk_frontend.music_play_media

Plays one item from the Music Assistant library on a player, the way Browse on the Music page does. It does not group rooms or set the house volume. It answers once the item is actually playing.

Field	Required	Description
player	yes	A room, or a preset’s sync group.
media_content_id	yes	A library URI, for example library://album/42.
media_content_type	yes	The media type, for example album, playlist, track or radio.

action: hk_frontend.music_play_media
data:
  player: media_player.office
  media_content_id: library://playlist/12
  media_content_type: playlist

Notes

• Failures people should know about (a group that would not form, a playlist that did not start or is no longer in the library, a move that did not arrive, a Stop All that left something playing) also appear as a notification in Home Assistant, so a screen that did not make the request still hears about it.

• A streaming playlist can take a while to open the first time. Music Assistant does not keep a streaming playlist’s songs in its library; it asks the service each time and keeps the answer for a few hours (3 for Apple Music), so the first open waits on the service, and longer when the service is rate-limiting Music Assistant. The playlist’s cover and name appear at once with Loading songs… under them, and the songs fill in when they arrive. Opening it again within those hours is instant. Starting one waits the same way before the music begins; Keep Playlists Ready (Settings) keeps your playlists fetched ahead so neither waits.

• Presets are not checked against Music Assistant. If you change a sync group’s rooms in Music Assistant, edit the preset too.

• Every request is logged in one line: who, what, where and how long. To see them all, turn on debug logging:

  logger:
    logs:
      custom_components.hk_frontend.features.music: debug

---
