Git LFS

Git LFS (Large File Storage) is an add-on for git that keeps big files, like images, videos or design files, out of the repository's history. Git stores only a small pointer file (a few lines of text with the file's id and size), and the real content lives on the LFS server. When you check out a branch, LFS downloads the content and puts the real file in its place.

Nibtree works with LFS through the git-lfs tool, the same one you use in a terminal. Install it from git-lfs.com (or with Homebrew: brew install git-lfs).

See which files use LFS

Files stored in LFS have a small LFS tag:

• in the Changes sidebar, next to the file name;
• in the Files panel, next to the file name. See Files Panel.

Nibtree reads the list of LFS files once each time a repository's status refreshes, and only for repositories on screen, so it stays quick.

Diffs of LFS files

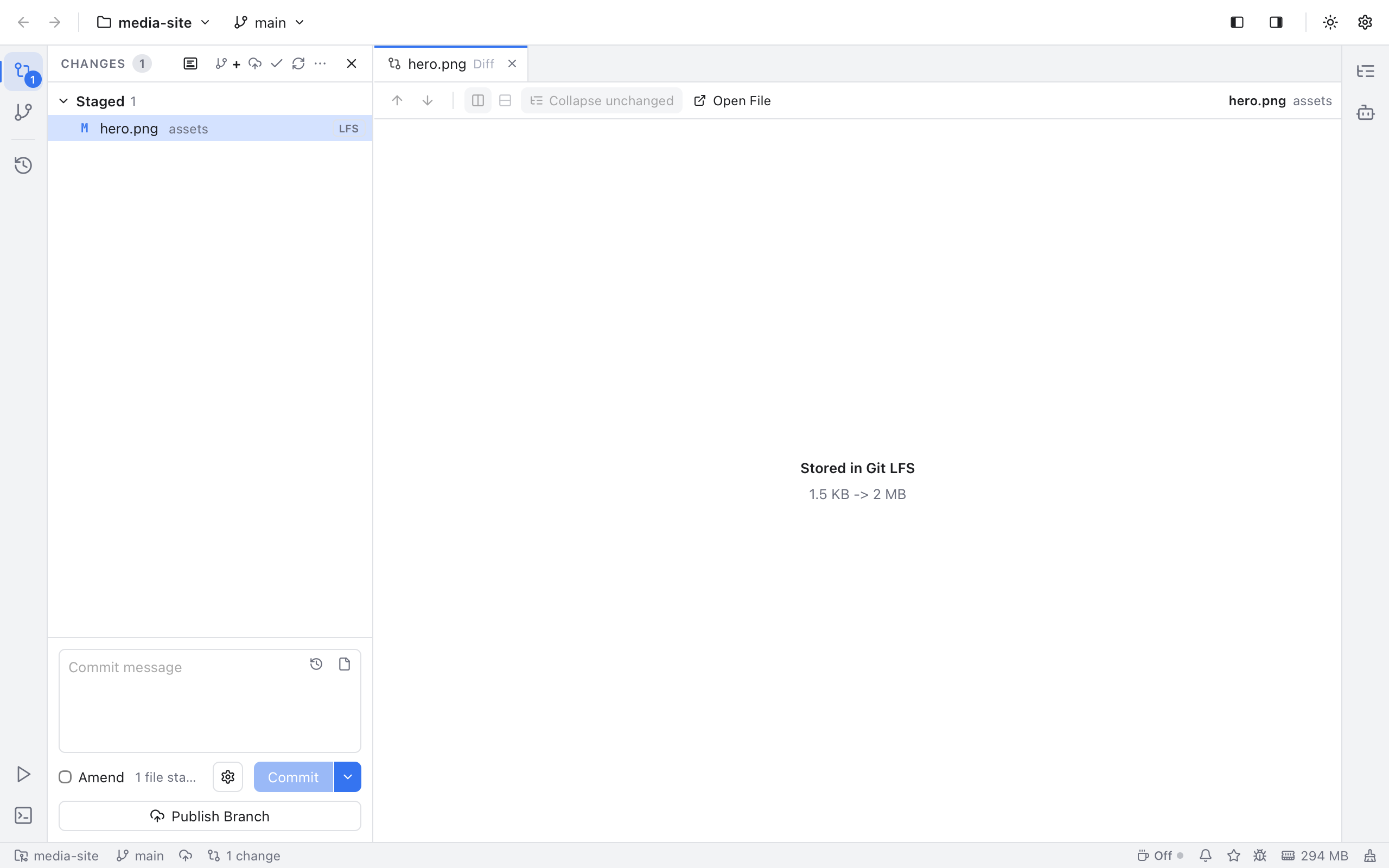

Comparing two pointer files line by line would tell you nothing, so the diff of an LFS file shows Stored in Git LFS and the sizes instead:

• 1.5 KB -> 2 MB when the file changed;
• Added: 2 MB for a new file, Deleted: 1.5 KB for a removed one;
• Size: 10 B, same content when only something else changed, for example the file mode.

See Diffs for diffs in general.

When git-lfs is not installed

If a repository uses LFS but git-lfs is missing, its large files are only pointer files on your disk. Nibtree tells you once, with a Git LFS Is Not Installed notice. Choose Get Git LFS to open the download page, or Not Now. It does not ask again.

The LFS commands below also check first. Without git-lfs, they show the same title with Get Git LFS and Cancel instead of running.

The LFS menus

You find the LFS commands in two places, both for one repository:

• Git > LFS in the menu bar, for the active repository;
• the repository's ... menu in the Changes sidebar, under LFS.

Item	What it does
Track Pattern...	Stores files that match a pattern in LFS from now on, for example *.psd.
Untrack Pattern...	Stops storing a pattern in LFS.
Pull LFS Objects	Downloads the LFS content of the current checkout and puts the real files in place.
Fetch LFS Objects	Downloads the content without changing your files.
Prune LFS Objects...	Deletes local copies of old LFS content that is already on the server.
Install Hooks	Sets up LFS for this repository only.

In the repository menu, Pull, Fetch and Prune are disabled when the repository does not use LFS, and Untrack when there is no pattern to remove.

Track a pattern

1. Choose Git > LFS > Track Pattern....
2. In Track with Git LFS, type a pattern in Pattern (added to .gitattributes), like *.psd or assets/videos/**.
3. Click Track.

The pattern is added to the .gitattributes file at the root of the repository (the file where git keeps rules per path). Commit .gitattributes so everyone uses LFS for those files. Files you add from now on that match go to LFS. Files already committed stay as they are.

Untrack a pattern

Choose Git > LFS > Untrack Pattern... and pick one of the patterns from .gitattributes. New files that match are stored in git again. Commit .gitattributes afterwards.

Pull, fetch and prune

Pull LFS Objects is what you need after a clone without LFS, or after installing git-lfs: it replaces pointer files with the real content. Fetch LFS Objects only downloads, which is useful before going offline. Both show their progress in the status bar.

Prune LFS Objects... frees disk space. It asks first: content that recent commits do not need and that the server already has is deleted from your computer. It is downloaded again when needed.

Install hooks

Git LFS uses git hooks (small scripts git runs on commit, push and checkout) to upload and download content. Install Hooks sets them up for this repository only, which helps when a clone was made before git-lfs was installed.

Example

You want to add design files to storefront without making the history huge.

1. Choose Git > LFS > Track Pattern..., type *.sketch and click Track.
2. Copy homepage.sketch into the repository. In Changes it shows the LFS tag.
3. Commit .gitattributes and homepage.sketch together and push. Git uploads the content to the LFS server.
