Bugfix Issue 1582 Codetracker Readonly Cell Contract

Bug fix — Issue #1582: read-only Code Tracker table emitted a mismatched delete cell

Symptom

The legacy Dashio Code Tracker list returned HTTP 200 for a user holding only codetracker_view, but DataTables failed during initialization. The read-only page had three visible column headers and four cells in every tracker row, so the browser raised TypeError: Cannot read properties of undefined (reading 'mData'). The configured page-size control was not rendered.

The management path still rendered, so the failure was limited to the read-only column contract.

Entry point: http://localhost:8082/lib/codetrackers/codeTrackerView.php?tproject_id=2.

Environment and fixtures

• TestLink 2.0.1 with PHP 8.3.35 and MariaDB on the local CI instance.
• Project 2: I1582:Issue 1582 Project.
• Trackers: 1 (Stash Tracker), 2 (GitHub TestLink), and 3 (Linked Stash).
• Project link: (testproject_id=2, codetracker_id=3).
• ct_viewonly_1582: global role 3, project role 3, only Code Tracker view right 52.
• admin: Code Tracker management and view rights.
• Temporary ct_guest_1582: guest role 5 with no Code Tracker rights for the authorization regression.

Reproduction before the fix

1. Create the project, tracker, project-link, and read-only-user fixtures above.
2. Log in as ct_viewonly_1582.
3. Open the entry point with a cache-bypassing reload.
4. Inspect the table structure, DataTables controls, browser console, network response, and Event Viewer.

Measured pre-fix result:

• The document response was HTTP 200.
• The table had 3 headers: Code Tracker, Type, and Environment.
• Every populated row had 4 cells because the delete cell was emitted even when the delete header was hidden.
• DataTables did not initialize; the page-size control was absent.
• Chrome reported one uncaught TypeError for mData plus the associated jQuery warning.
• The Event Viewer had no new Error/Warning rows; this was a client-side column-contract failure rather than a PHP failure.

The pre-fix state is documented in the Screenshots section below.

Root cause chain

1. lib/codetrackers/codeTrackerView.php:23-25 loads tracker rows, including link_count, and sets $gui->canManage from codetracker_management.
2. gui/templates/dashio/codetrackers/codeTrackerView.tpl:40-45 conditionally renders the delete header only when $gui->canManage is non-empty.
3. Before the fix, parent revision a548c855d^ rendered the corresponding body block at gui/templates/dashio/codetrackers/codeTrackerView.tpl:75-82 with an unconditional <td>. Its inner condition only controlled the delete icon, not the cell.
4. That same parent block also contained an extra closing </td>.
5. The browser/DataTables therefore received four body cells for three headers. DataTables attempted to resolve the missing fourth column definition and raised the mData TypeError.

The defect was latent in the Dashio template introduced by commit 4fe583e2d094ebe692dac13fd4c384c2322036fa; it became visible when a view-only user was exercised against a populated list. The analogous malformed patterns found in the Issue Tracker and Requirement Management templates were not changed in this narrowly scoped fix and are tracked separately by #1584 and #1585.

Fix approach

The fix changes only gui/templates/dashio/codetrackers/codeTrackerView.tpl:

• Wrap the entire delete <td> in the existing $gui->canManage != "" check.
• Keep the existing $item_def.link_count == 0 check inside that cell, so managers still cannot delete linked trackers.
• Remove the stray closing </td>.
• Leave the controller, rights checks, delete controller, database, labels, and JavaScript unchanged.

This makes the header and every row use the same permission-dependent column count. It also preserves the existing server-side authorization and link-count protections; the template change is presentational and does not grant a viewer any management capability.

Alternatives considered and rejected

• Always render an empty delete cell for viewers: this would make the row count match only if the header were also unconditional, exposing a misleading management column and changing legacy permissions.
• Hide the extra cell with CSS: DataTables would still receive the malformed DOM contract, and the failure could recur during sorting, searching, or pagination.
• Change DataTables aoColumns to ignore the mismatch: this hides the source error and risks silently changing the table's column mapping.
• Remove only the extra closing tag: the unconditional body cell would still remain, so the read-only table would still have four cells and three headers.
• Refactor sibling Issue Tracker and Requirement Management templates in this commit: those are separate contracts and would broaden the regression scope.

Verification

• php -l lib/codetrackers/codeTrackerView.php passed.
• php -l on the regenerated Smarty PHP passed.
• git diff --check passed.
• Read-only populated list: HTTP 200, 3 headers, row cell counts [3,3,3], DataTables initialized, length option 20, no Create or management controls, and no console messages.
• Manager populated list: HTTP 200, 4 headers, row cell counts [4,4,4], Create visible, six management links, and two delete icons; the linked tracker retained no delete icon.
• Empty list: HTTP 200, zero rows, no DataTables length control, Create visible, and no console messages; the tracker rows and project link were restored.
• Unauthorized user: the protected URL resolved to the guest dashboard and did not render the Code Tracker screen. The expected INFO security audit was recorded.
• Final cache-bypassing read-only reload: HTTP 200, 3 headers, [3,3,3] cells, DataTables initialized, length option 20, no management controls, and no console messages.
• Event Viewer after the complete matrix: max id 8, errors=0, warnings=0; all new records were expected INFO audit events.
• Regression suite tmp/TLU_Test_Cases.md: 7/7 PASS for issue #1582.

Screenshots

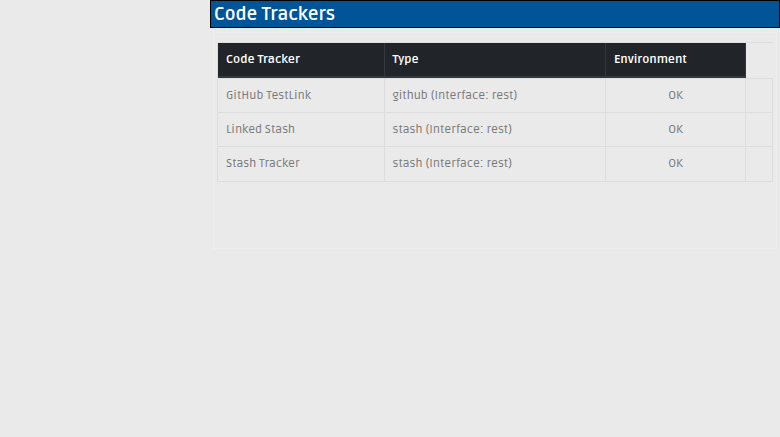

Pre-fix read-only table: three headers with four body cells, no DataTables page control, and the mData failure:

Post-fix read-only table: three headers with three body cells, a working DataTables page control, and no management controls:

Files changed

• gui/templates/dashio/codetrackers/codeTrackerView.tpl — align the permission-gated delete header and body cell.
• tmp/TLU_Test_Cases.md — regression suite and measured results.
• docs/Bugfix-Issue-1582-Codetracker-Readonly-Cell-Contract.md — this mirror.
• docs/screenshots/issue-1582-before.png — pre-fix evidence.
• docs/screenshots/issue-1582-after.png — post-fix evidence.
• CHANGELOG — issue #1582 summary.
• tmp/wiki-repo/Bugfix-Issue-1582-Codetracker-Readonly-Cell-Contract.md — GitHub Wiki page with screenshots.

Result

Issue #1582 is fixed by aligning the read-only table's body cells with its permission-gated header. Viewers now receive a working three-column DataTable, managers retain the four-column management view and linked-tracker delete gate, unauthorized access remains denied, and the Event Viewer remains free of new Error/Warning entries. The production and regression commits were pushed on fix/issue-1582 as a548c855d and c6859564b; the documentation phase is tracked by the same branch and issue.
