Feature Issue 986 projectsView DataTables Grid

Feature — Issue #986: DataTables grid (sort / search / pagination / column filtering) in projectsView.html

Status: implemented, verified, pushed Issue: #986 — Implement DataTables sort/search/pagination/column-filtering in projectsView (gap vs legacy) Branch: task/issue-986 · Commit: 143d8588d Test suite: tmp/TLU_Test_Cases.md → Task — Issue #986 (25/25 PASS)

1. The gap

gui/templates/projectsView.html was the only "list" screen in the modernization that had been left as a hand-rolled <table>. The legacy 1.9.20 screen got its grid from two shared Smarty includes, and neither capability survived the port:

Legacy source	Capability	Modern state before this change
dashio/project/projectView.tpl:37 — inc_head.tpl enableTableSorting="yes"	DataTables + sortable columns	no DataTables asset loaded at all (dtScripts: [])
projectView.tpl:50-51 — DataTables.inc.tpl + DataTablesColumnFiltering.inc.tpl with DataTablesLengthMenu=$ll (input_dimensions.conf → pagination_length=20)	length menu, record counter, pagination, per-column filters	all rows dumped at once, no counter, no pager
projectView.tpl:87-89 — {#SMART_SEARCH#} / {#NOT_SORTABLE#} per <th>	marks which columns get a filter box / are sortable	no per-column UI at all
projectView.tpl:100-105 — <table id="item_view">	the table DataTables binds to	<table class="table" id="projectsTable">, no DataTables
lib/project/projectView.php:99 — doAction search/list + no_records_found feedback	server-side name search with a "no records" message	one #searchInput whose keyup handler hid rows by whole-row substring match

Measured before the change (browser, evaluate_script):

{"hasDataTables": false, "dtScripts": [],
 "headerCells": ["ID","Project Name","Prefix","Issue Tracker","Code Tracker","Status","Actions"],
 "rowCount": 8, "sortingIcons": false, "hasPagination": false, "hasInfo": false,
 "hasLengthMenu": false, "hasColumnFilterRow": false}

The root cause is structural: renderProjects() wrote raw <tr> markup straight into #projectsBody, which is incompatible with the DataTables row cache, so the grid had to be re-plumbed around the data: API.

2. What was implemented

No BFF change was needed — api/projects/index.php:listProjects() already returns the whole list in one payload (ORDER BY nh.name) with name, prefix, description, isActive, isPublic, issueTracker, codeTracker and reqMgrSystem, exactly like legacy, whose DataTables also filtered the already-rendered full list client-side. The change is front-end only.

2.1 Assets and grid CSS

• gui/templates/projectsView.html:9 — dataTables.bootstrap.min.css 1.13.7
• gui/templates/projectsView.html:301-302 — jquery.dataTables.min.js + dataTables.bootstrap.min.js 1.13.7
• gui/templates/projectsView.html:98-124 — Dashio grid styling: dark (#22242a) header, teal paginate buttons, zero-margin wrapper rows

Same CDN and version as the already-modernized gui/templates/plans/planView.html:9,163-164, so no new external dependency is introduced.

2.2 Data-driven rows + grid options

projectRow(p) (:335-374) returns a cell array; renderProjects() (:376-435) feeds it to the DataTable:

projectsTbl = $('#projectsTable').DataTable({
  data: rows,
  orderCellsTop: true,
  stateSave: true,
  pageLength: 20,
  lengthMenu: [10, 20, 50],
  dom: 'lrtip',
  language: dtLanguage(),
  columnDefs: [
    { targets: 0, className: 'text-center', orderable: false },
    { targets: 6, orderable: false }
  ]
});

• pageLength: 20 mirrors input_dimensions.conf → pagination_length=20.
• dom: 'lrtip' is the legacy dom string: no f, because the modern screen already has its own search box (see §2.4) and two search inputs would be confusing.
• columnDefs marks ID and Actions orderable: false, the DT 1.13 equivalent of the legacy {#NOT_SORTABLE#} cells.

2.3 Per-column filtering (DataTablesColumnFiltering.inc.tpl port)

• :110-116 — the filterable headers carry data-col-filter="1" (Project Name, Prefix, Issue Tracker, Code Tracker, Status) — exactly the legacy {#SMART_SEARCH#} set.
• buildColumnFilters() (:437-464) is called before init, so the two-row header is stable for the instance lifetime. It clone(false)s the header row (with false → no sort handlers, the legacy trick from DataTablesColumnFiltering.inc.tpl:34), strips the sort classes from the clone, and injects one <input type="text" placeholder="{proj.colFilterPlaceholder}"> per flagged column; unflagged columns get an empty <th>.
• The input handler calls projectsTbl.column(idx).search(value, false, true).draw() — the use_regexp = false / use_smartsearch = true branch of the legacy include.
• restoreColumnFilterState() (:466-474) repopulates the boxes from state.loaded(), the legacy DataTablesColumnFiltering.inc.tpl:40-46 restore.

2.4 Global search

:709-724 replaces the old row-hiding keyup handler with a 200 ms-debounced bridge to projectsTbl.search(query).draw(). The modern search box therefore becomes the DataTables global search — a superset of the legacy server-side "search on name" doAction at lib/project/projectView.php:99.

2.5 Lifecycle

Every loadProjects() destroys any live instance before re-initializing, keyed on the DataTables registry ($.fn.DataTable.isDataTable) rather than on the projectsTbl variable — the same reasoning documented for planView.html:272-278 (Refs #1116): a live instance can exist while the variable is null after an aborted init. An empty list destroys the grid, hides the table and shows the existing empty state.

2.6 i18n

New keys in all 10 bundles (en, de, es, fr, it, ja, pt, ro, ru, zh):

Key	en
proj.colFilterPlaceholder	Filter column
dt.aria.sortAscending	activate to sort column ascending
dt.aria.sortDescending	activate to sort column descending
dt.aria.sortNone	(empty)

The paging strings reuse the existing rtf.dt* keys (dtInfo, dtInfoEmpty, dtInfoFiltered, dtLengthMenu, dtZeroRecords, dtFirst, dtLast, dtNext, dtPrev) — they were already present in every bundle, so no duplication was introduced.

3. Gotchas found while implementing

1. lengthMenu: [10,20,50,-1] renders the literal label -1. DataTables does not translate the "all rows" entry in array form. The -1 option was dropped; legacy only ever passed a single length anyway.
2. columnDefs: [{targets:'_all', header: 1}] breaks the titles. At init the cloned filter row does not exist yet, so DataTables resolves the column titles against an empty row. The correct DT 1.13 equivalent of legacy's orderCellsTop: true is: build the filter row before init and leave the default header: 0, which keeps the label row as title/sort row.
3. nodes_hierarchy is not optional when seeding projects. api/projects/index.php:projectSelect() joins nodes_hierarchy nh ON nh.id = tp.id; a fixture inserted only in testprojects makes the endpoint answer 200 {"data":[]} — an empty list that looks like a bug. tmp/issue-986-fixtures.sql seeds both tables.
4. jQuery('#searchInput').trigger('keyup') does not reach a native addEventListener handler (jQuery 3 only walks its own handler cache when the event has no native method). The global search therefore has to be exercised with a real key press — an initial jQuery-triggered "clear" test produced a false FAIL. The column-filter inputs use jQuery.on() and are unaffected.
5. The cloned filter row survives draw(). DataTables only rebuilds the header cells it owns, so the 5 inputs and their handlers stay alive across pagination, sorting and filtering (verified: 5 → 5 inputs, same DOM node).

4. Verification

Full suite in tmp/TLU_Test_Cases.md → Task — Issue #986: 25/25 PASS.

Highlights (14-project fixture, so the pager is really exercised):

Check	Measured
grid present	isDataTable:true, 2 thead rows, 5 filter inputs, Showing 1 to 14 of 14 entries
length menu 10	Showing 1 to 10 of 14 entries, 10 rows
page 2	Showing 11 to 14 of 14 entries → Lambda, Mu, Nu, Xi
sort name desc/asc	Zeta, Xi, Theta… / Alpha, Beta, Delta…
prefix filter AL	["ALPHA"]
real typing BE in prefix box	["BETA","LAMBDA"]
status filter inactive	["Inactive","Inactive","Inactive"]
smart search alpha kappa	["Kappa Alpha Regression"] (terms AND-ed)
global search mu	["Mu Mobile Coverage"]
toggle active	Active → Inactive, isDataTable:true, 5 filter inputs preserved
delete	14 → 13, row gone, grid still a DataTable
create via modal	14 → 15, new row present
empty list	table hidden, empty state visible, no grid leak
console	no error / warn
Event Viewer	select count(*),max(id) from events → 5 5, unchanged

Screenshots: tmp/shots/issue-986-before.png (plain table) and tmp/shots/issue-986-after.png (length menu, teal filter row, counter, pager).

5. Out of scope

• The Notes/description column (legacy projectView.tpl:88,113-115) and the API-id tooltip on the name icon are tracked separately in #987.
• The requirement-feature quick toggle is #988; the API-key display in the edit modal is #990.
• Legacy's fixedHeader: true is a FixedHeader-extension option in DT 1.13 and is intentionally not ported; the shared include used it only for the sticky header, which the Dashio position styles do not need here.

6. Screenshots

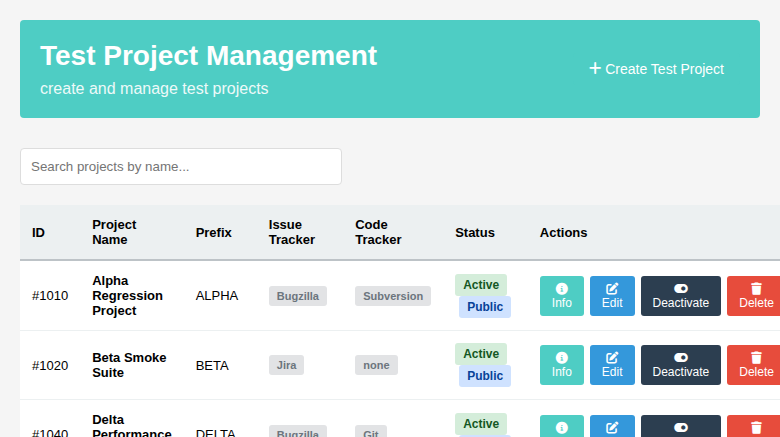

Before — plain <table>, 8 rows dumped at once, no grid chrome, no filter row, no pager (the state measured in the INVESTIGATION comment):

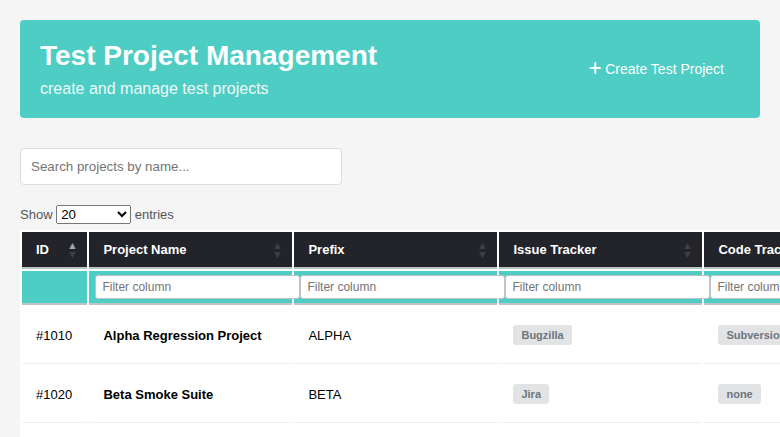

After — the legacy grid is back: length menu (top left), dark label row + teal per-column filter row, record counter and paginate buttons:
