Modernize ASIDE Navigation Frame asideMenu

ASIDE Navigation Frame (asideMenu) — Modernized Screen

Modernization of the left navigation frame (lib/general/asideMenu.php + gui/templates/dashio/asideFrame.tpl + aside.tpl) — GitHub issue #1548.

With the titlebar (#1547) and every ASIDE menu item already modernized, the aside frame was the final legacy lib/**.php frame controller left in the running frameset (the iframe#asidebar every TestLink page renders between the title bar and the main work area). It is replaced by a standalone Dashio page (gui/templates/aside/aside.html) backed by a plain-PHP REST BFF (api/aside/index.php). The legacy controller remains as a session-guarded readfile shim so deep links to the old URL still render the modern menu (an anonymous request keeps the legacy redirect to the login screen).

Path: rendered automatically as iframe#asidebar by index.php URL: gui/templates/aside/aside.html?locale=..&tproject_id=..&tplan_id=.. BFF API: api/aside/index.php (action init, GET) Auth: session (401 anonymous) + same-origin CSRF guard, mirroring every other api/* BFF.

1. What the screen does

The aside menu is TestLink's app-wide navigation rail. It lives in its own frame so it survives navigation in the main frame, and every link targets the mainframe. Exactly like the legacy aside.tpl, the modern screen renders (in order): Dashboard (single entry), Search, System, Projects, Test Strategy (unconditional), Requirements Design, Test Case Design, Test Plan, Test Case Execution, Reports, Plugins, Documentation (single entry).

Feature	Legacy behavior	Modern implementation
Section visibility	getMenuVisibility($gui) gates per project/plan context + grants	rebuilt server-side in the BFF through the same initUserEnv() call chain (a showMenu assoc array)
Per-item rights	$menuGrants->xxx == "yes" / $gui->access->xxx == 'yes'	identical gates (getGrantSetWithExit + getAccess via initUserEnv)
Item hrefs	$gui->uri->* placeholders pre-contexted by initActions	same $gui->uri object serialized into the JSON tree
Reports sub-menu	built in asideMenu.php from cfg/reports.cfg.php (`enabled=all	req
Plugins	EVENT_LEFTMENU_TOP/BOTTOM + EVENT_RIGHTMENU_TOP/BOTTOM merged into one Plugins section with plugin_management	event_signal() loop ported; merged into the same "Plugins" section
hasKeywords	keyword assignment item only when the project has keywords	testproject::hasKeywords server-side
Active link highlight	parent main.tpl runs syncAsideActiveLink() on every main-frame load marking li.active	keep the exact selector contract (ul.sidebar-menu ul.sub li a[target="mainframe"]) so the script keeps working unchanged
Last-clicked entry	tl-sub-selected + localStorage('tlAsideSelected') (issue #617)	replicated in the modern screen
Rail (icon rail)	tlSetRail()/tlIsRailed() globals on the aside frame; cookie menuRailCookieName(); frameset narrows the iframe	window.tlSetRail/tlIsRailed stay callable cross-frame (titlebar/legacy common-scripts.js), cookie read server-side by menuRailIsOn() for the frameset iframe class; client applies body.rail from the cookie before the BFF round-trip (no flash)
Accordion	jquery.dcjqaccordion.2.7.js on #nav-accordion, autoClose + saveState	same plugin/options
Long labels	ellipsis + --menu-label-shift hover slide	.menu-label span + native title attribute (same dashio CSS)
Reports list scroll	#sidebar scrolls when the list overflows (issue #612)	thin scrollbar CSS kept, scroll-to-top on open (issue #617)

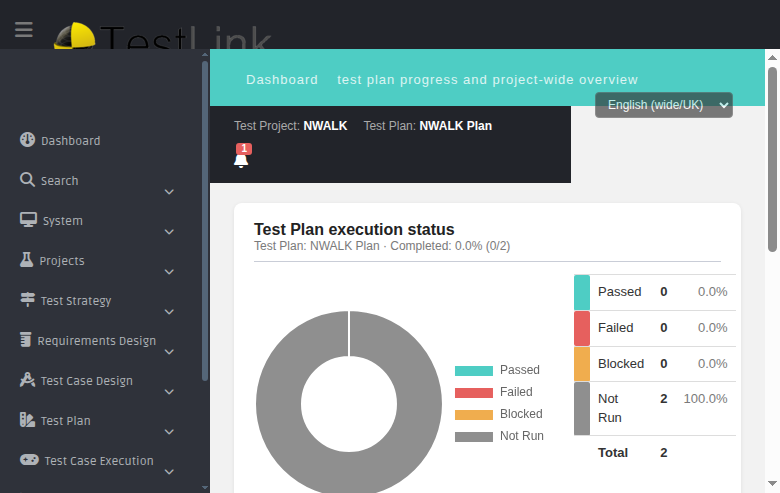

Icon rail (railed) state:

2. REST API Reference

POST/unknown-authorization paths respond 405/401; action != init responds 400.

GET /api/aside/?action=init[&tproject_id=..][&tplan_id=..]

Commits the requested project/plan to the session (initProject, same contract as api/navbar), then runs initUserEnv() and serializes the full menu tree. All labels are localized server-side with lang_get() — the same strings.txt sources the legacy Smarty $labels object used — so every one of the app's server locales is honored out of the box.

{
  "status": "ok",
  "tproject_id": 32,
  "tplan_id": 33,
  "railed": false,
  "rail_cookie": "TESTLINK1920_menuRail",
  "sections": [
    {
      "key": "system",
      "label": "System",
      "icon": "fa fa-desktop",
      "items": [
        { "id": "events",
          "label": "Event viewer",
          "href": "/gui/templates/eventviewer/eventviewer.html?tproject_id=32&tplan_id=33" },
        { "label": "User Profile", "href": "...userInfo.html?...", "icon": "fa fa-user-circle" }
      ]
    }
  ]
}

Item fields: id (legacy anchor id, kept for parity), label (localized), href (modern screen, pre-contexted), icon (FontAwesome class, shown as the legacy inline <i>). Single-entry sections (dashboard, documentation) are flagged with "single": true and the client renders them as top-level <li> (with the mt class for Dashboard).

3. Construction & parity notes

• BFF session user: initUserEnv() derives grants/sections from the $_SESSION['currentUser'] tlUser object, not from a fresh lookup — the BFF seeds it after auth exactly like api/reports, api/userinfo, api/reportsprint.
• showMenu is an array: legacy Splickdown/Smarty consumed $gui in the template; the BFF normalizes array/object shapes via a small $get helper (the initial object-only implementation silently rendered only the two unconditional sections — fixed during dev).
• initUserEnv self-corrects tproject_id=0 to the user's first accessible project, so a system-wide (no project) menu never persists — same behavior as the legacy frame (verified: a no-param call returns the same 12-section tree).
• Frameset contracts preserved (do not rename these without updating main.tpl): #sidebar, ul.sidebar-menu#nav-accordion, li.sub-menu, ul.sub, a[target="mainframe"], li.active, window.tlSetRail/tlIsRailed, li a.tl-sub-selected.
• Shim: lib/general/asideMenu.php calls doSessionStart(); an authenticated request streams the modern HTML (readfile), an anonymous one falls through to the legacy controller which redirects to the login screen. The current index.php asideframe param points straight at the modern page with the session locale + committed project/plan forwarded.

4. i18n Keys

Menu labels come server-localized (19 server locales) — no client bundle work needed for the items. The two client-chrome strings are in all 10 bundles:

Key	en
aside.loading	"Loading navigation menu…"
aside.retry	"Retry"

5. Security

• Auth: 401 JSON when the PHP session has no valid userID; anonymous aside.html renders a localized error + Retry instead of the menu.
• CSRF: bffSameOriginGuard() (GET short-circuits; state is read-only).
• XSS: every server-derived label is inserted with textContent; only plugin-supplied item HTML (item.html) is written as markup — the same trust level the legacy template afforded plugin strings.
• Session muddle: initProject($_GET+$_POST, 'aside') commits the requested context before the menu build, so a deep link into the frame alone resolves the right project/plan.

6. Testing

Suite 1548 in tmp/TLU_Test_Cases.md. Verified live in the browser (admin, project NWALK id=32 / plan 33):

• 12 sections / 109 mainframe links rendered by the frameset; accordion autoClose + dcjq arrows (FontAwesome-drawn, no nav-expand.png 404); open section scrolls into view.
• Event viewer leaf → main-frame navigation, li.active (from syncAsideActiveLink) + tl-sub-selected + localStorage.tlAsideSelected.
• Rail toggle: tlSetRail(true)/(false) — body.rail + iframe class + TESTLINK1920_menuRail cookie; rail survives a full reload; clicking any section header while railed un-rails (parity).
• Shim: authed lib/general/asideMenu.php serves the modern screen; anonymous hits redirect to login.php; anonymous aside.html shows the 401 error state with Retry.
• Base href parity: relative aside.tpl hrefs (projectsView.html, projects/severityConfig.html, documentation/documentation.html) resolve against the app root via <base href="/"> — clicking Documentation opens the modern docs screen in the mainframe.
• Event Viewer clean after the final pass (three E_WARNING rows from dev-cycle BFF closure bugs have since been fixed). Console clean.
