Modernize cfieldsEdit
Refs #1812 (enhancement) · suite Issue #1812 = 39/39 PASS
The TODO section of docs/MODERNIZATION-STATUS.md is empty — every ASIDE entry already maps to a
modern .html screen plus a BFF. The largest remaining legacy gap inside an already-modern area was
the standalone custom-field definition editor: lib/cfields/cfieldsEdit.php +
gui/templates/dashio/cfields/cfieldsEdit.tpl. The modern manager
(cfieldsView.html, Refs #957/#950/#955/#956) and assign (cfieldsAssignView.html, Refs #953)
screens only ported the manager half — create/edit/delete of the definitions themselves
(do_create/do_update/do_delete → cfield_mgr::create()/update()/delete()) existed nowhere
in 2.0.1.
Everything the legacy editor did, 1:1:
| Legacy feature | Modern screen |
|---|---|
| Name (short code), uniqueness hint, 25-char cap | Name field with maxlength + hint |
| Label, 50-char cap | Label field + hint |
| Available on node-type combo, filtered per type | Node-type select filtered by configure_cf_attr() parity |
| Type combo with the Possible-Values gate | Type select + Possible-Values textarea shown only for value-bearing types (cfg_possible_values_display() parity) |
| Enable on area + enable-implies-show propagation | Enable-on select + per-area Display on combos (initShowOnExec()/configureCfAttr() parity) |
is_used() Type / Available-on lock
|
Read-only Type/Available-on + warning banner + 🔒 lock badge |
do_create + Add and assign flow |
Add / Add and assign buttons (assign = create + link, disabled without an addressed project) |
do_update |
Save (stays on the form, toast + re-render) |
do_delete behind warning_delete_cf
|
Delete → Bootstrap confirm modal naming the CF |
| name-uniqueness probe | server-side, 409 name_exists
|
api/cfieldsedit/index.php — GET ?action=init&do_action=create|edit&cfield_id=N[&tproject_id=P],
POST ?action=create|update|delete, session auth + bffSameOriginGuard + bffEnforceSession,
cfield_management on the addressed test project. Stable machine codes mapped to i18n keys:
400 empty_name|empty_label|name_too_long|label_too_long|possible_values_too_long|unknown_type| unknown_node_type|area_not_allowed_for_node_type|type_locked|node_type_locked|no_tproject_selected| missing_cfield_id|missing_action|unknown_do_action · 401 · 403 no_right|no_right_on_project ·
404 cfield_not_found|tproject_not_found · 405 method_not_allowed · 409 name_exists ·
create/update/delete failure codes stay visible on the re-rendered form.
Legacy semantics preserved: a bare or missing do_action starts a clean create form even when
cfield_id is present (legacy $query['do_action'] default); edit mode requires
do_action=edit&cfield_id=N. Used fields refuse a Type or node-type change (type_locked /
node_type_locked); a requirement-spec-node field refuses the execution area
(area_not_allowed_for_node_type).
Legacy lib/cfields/cfieldsEdit.php is a session-guarded shim: 302 to the modern screen for a
browser GET (anon → login.php?note=expired), 405 with an explanatory body for anything that
looks like a write (the legacy do_delete was a GET form).
- The legacy editor authorized on the global
cfield_managementright via the session; the BFF re-verifiescfield_managementon the addressed project. - The addressed-project check runs before the project is resolved
(
cfpaRequireManage()convention): a caller with only the global right cannot tell a foreign/unreachable project (403no_right_on_project) from a non-existent id, and a denial never leaks the project name. Admin keeps the honest 404 for a genuinely missing id. - Writes are POST-only behind the same-origin CSRF proof (legacy wrote on GET);
PUT/DELETEreturn 405 (method whitelist, code review M4). - Every request-derived
(string)/intvalcast is guarded bycfeScalar()/cfeInt()(code review m1): a crafted{"name":["x"],...}body raises no PHP 8Array to stringE_WARNING and an array"id"neverintval()'s to1(wrong-target write). - The name-uniqueness probe stays server-side (legacy
name_is_unique), never trusted to the client.
$actions->cfieldsEdit in lib/functions/common.php (common.php:1954) + Edit/Create buttons on
cfieldsView.html via EDITOR_URL. i18n cfed.* (68 keys) + footers.cfieldsEdit in all 10
bundles (de en es fr it ja pt ro ru zh); key-set gate bash ai/verify_i18n_coverage.sh PASS
(6959 keys / 0 missing per bundle).
- API contract re-run on fresh fixtures (
php tmp/fixtures_1812.php: projects CFE Main/CFE Other; cfields CFE1812A string, CFE1812USE checkbox→used/locked, CFE1812REQ req-spec): 401 anon, 403 role-3norightsuser, 404 unknown cfield, 405 bad verb+action, 409 duplicate name, 400type_locked(used) +area_not_allowed_for_node_type(req-spec on execution), 200 create/delete. - Shim branches: authed GET → 302 modern, POST → 405, anon → 302 login.
- Browser (chrome-devtools): create → toast → redirect to
cfieldsViewwith the new row; edit persists to DB; used-field lock banner + read-only combos; delete confirm modal → row gone;rolocale switch renders header, dynamic form and footer in Romanian — no raw keys; 0 console errors. - Event Viewer: no new ERROR/WARNING rows (only AUDIT
log_level=16; the serializedtlMetaStringHelperinevents.descriptionis the standard logger format on read). - Suite
Issue #1812— 39/39 PASS intmp/TLU_Test_Cases.md(rows 1-34 original, 35-39 code review follow-up: method whitelist, array payloads, uniform 403/no-name-leak on the project scope, single show-on combo, per-code{max}errors); gateTLU_REQUIRE_SUITE="Issue #1812" bash ai/verify_test_suites.sh→ 7 PASS / 0 FAIL, 42 → 43 suites, none lost.
-

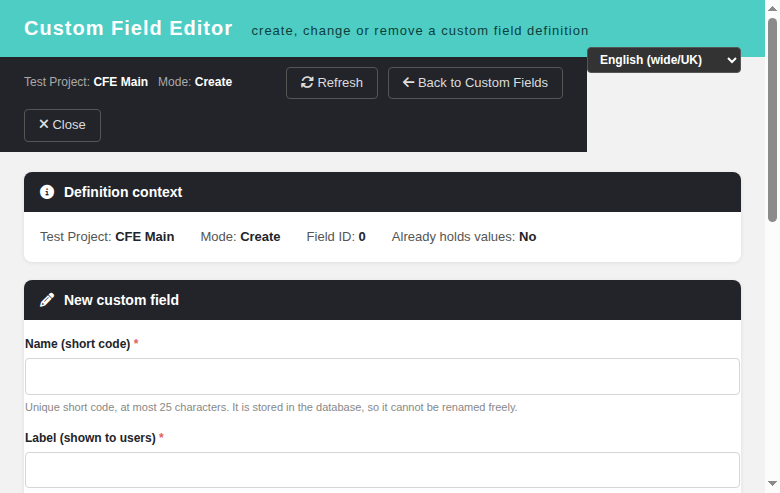

screenshots/issue-1812-cfieldsedit-01-create.png— create mode, clean form. -
screenshots/issue-1812-cfieldsedit-02-edit-used-locked.png— used field, Type/Available-on locked with warning banner. -
screenshots/issue-1812-cfieldsedit-03-delete-confirm.png— delete confirmation modal.
b52126cab (BFF) → 7e5173eb9 (screen + i18n ×10 + shim + wiring + screenshots) →
006c72e1a (suite 1812) → 67479fb62 (CHANGELOG) → a2620abfa (ledger) →
374d4775b (docs mirror) → 9f53b2240 (code review M1/M2/m1/m2/m3/m4, EOS).
