Execution Notes Picker (execNotesPicker) — Modernized

Overview

The Execution Notes Picker is the ASIDE-reachable entry point of the execution-notes workflow. It lists the executions of the current test plan — highlighting which of them actually carry notes — and deep-links the read-only viewer (Execution-Notes-readonly-execNotesReadonly-Modernized.md) on the chosen row.

It exists because the #1807 viewer without an exec_id could only render a dead-end card: with no picker, there was no way to reach that screen from the menu at all.

Deep link: gui/templates/execute/execNotesPicker.html[?tplan_id=N] (no tplan_id → the session's selected plan is used)

Refs: #1809 (screen), #1807 (viewer it feeds), #1551 (editable popup it does not touch)

Architecture (2.0.1)

• Modern UI: gui/templates/execute/execNotesPicker.html — standalone Dashio page, no Smarty, DataTables-free plain table (row count is small and both filters are client-side).
• BFF API: api/execnotespicker/index.php
  • GET ?action=init[&tplan_id=N] → plan/project context + total_executions / with_notes counters + rights (can_read, can_edit).
  • GET ?action=executions[&tplan_id=N][&with_notes=0|1] → execution rows (id, status_char, execution_ts, test case + #PREFIX-N, suite_path, build_name, platform_name, has_notes, notes_preview, viewer_url), capped at 500 rows with a truncated flag.
• Canonical action: $actions->execNotesPicker in lib/functions/common.php.
• ASIDE: leaf in section 9. Test Case Execution (api/aside/index.php), label title_execution_notes ("Execution notes" / "Note de execuție").
• i18n: 34 enp.* keys + footers.execNotesPicker + enro.pickExecution (viewer hand-off button) in all ten bundles gui/templates/i18n/{en,ro,de,fr,es,it,pt,ru,ja,zh}.json.

Behavior / Features

• Context strip — test project, test plan, total executions, executions with notes; the plan name is also appended to document.title.
• "Only executions with notes" filter, on by default (the picker's whole point), and a free-text filter matching test case name / external id, suite path, build, platform, status label and execution id, with a live shown / total counter and a distinct noMatch empty state.
• Table — #id, test case + #PREFIX-N chip, suite path, build (+ platform), status badge (Passed / Failed / Blocked / Not Run / Unknown, never a raw machine char), executed-on timestamp, escaped notes preview (No notes when the execution carries none) and an Open button that deep-links execNotesReadonly.html?exec_id=N.
• Toolbar — locale switcher (TLi18n), Refresh (spinner → repaint, one init + one executions round trip), Execution Navigator (carries ?tplan_id=&tproject_id= from the loaded context — without them the navigator 400s), Close (window.opener → history.back() → /index.php, because a menu-opened tab cannot close itself).
• State cards (keyed off the BFF code, never off an English message): session expired / not authenticated (401), test plan not found (404), no test plan selected (400 no_testplan), bad request (400), server error (500).

Permissions / Edge Cases

• Right enforced on the plan's own test project: exec_ro_access OR exec_edit_notes OR testplan_execute — byte-for-byte the grant of api/execnotesreadonly (#1807) and api/execnotes (#1551), so the picker, the viewer and the editable popup can never disagree.
• Oracle rule (#1697 / #1792): an unknown test plan and a plan the caller may not read answer the byte-identical 404 plan_not_found body, so the endpoint is not a test-plan existence oracle; every refusal is logged as AUDIT, never WARNING.
• No plan in the URL and none in the session → 400 no_testplan (the screen shows a "select a test plan" card, not an access-denied one — nothing was denied yet).
• Non-safe verbs are refused with 405 method_not_allowed + Allow: GET, HEAD before the shared origin guard; anonymous callers get 401 not_authenticated.
• Non-scalar parameters (tplan_id[]=, action[]=) are refused with 400 before any cast, so no E_WARNING can reach the Event Viewer.
• ASIDE gate: the menu item is only built when the session user holds one of the three grants above — a rightless role never sees a link the endpoint would refuse.
• Viewer hand-off: execNotesReadonly.html without an exec_id now renders a Pick an execution button pointing back at this picker instead of dead-ending.

Screenshots

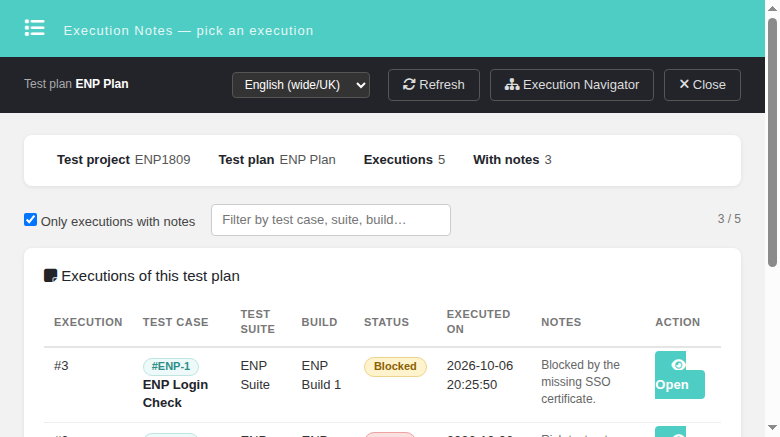

Normal state — notes-only filter on, 3 of 5 executions:

All executions after unchecking the filter:

Text filter on the status column (blocked → 1 row):

No match for the current filters:

Open → the read-only viewer for execution #3:

The viewer without an exec_id hands over to the picker:

Anonymous caller (isolated context) → 401 not_authenticated card:

Role 3 <no rights> → card byte-identical to an unknown plan:

Unknown plan id → 404 plan_not_found card:

Romanian locale (no raw i18n keys, localized title/columns/footer):

Shell: ASIDE entry "Execution notes" + the screen in the main frame:

Test results

• Suite ## Issue #1809 in tmp/TLU_Test_Cases.md — 22/22 PASS (load, both filters, status search, viewer deep link, XSS probe inert, Refresh single round trip, Close fallback, navigator context, Not Run/Unknown labels, unknown plan, session fallback, anonymous 401, role-3 oracle denial + AUDIT row, ASIDE gates for both roles, viewer hand-off, locale=ro, 9 curl contracts, i18n gate, console, Event Viewer, code review). Gate TLU_REQUIRE_SUITE="Issue #1809" bash ai/verify_test_suites.sh → 7 PASS / 0 FAIL (exit 0).
• i18n gate bash ai/verify_i18n_coverage.sh → 9/9 PASS, 6901 keys per bundle, 36 insertions / 0 deletions per bundle.
• Browser console clean on the screen; events table shows 0 new ERROR/WARNING (the role-3 refusal lands as log_level 16 AUDIT).
• Mandatory code review (rule 16) returned 4 required fixes, all applied before the commit: navigator context href, statusLabel n/unknown + .badge-n style, fa-sticky-note-o → fa-sticky-note (dropped in FA6), and the triple round trip collapsed to one executions request whose failure now calls handleFail instead of silently rendering a subset.

Known limitations

• The 500-row cap sets truncated in the BFF answer; the screen's counter shows the capped row count while the context strip shows the real total (surfacing "showing first 500" is a possible follow-up).

Related pages

• Execution-Notes-readonly-execNotesReadonly-Modernized.md — the viewer this screen feeds (#1807).
• Modernize-Execution-Notes-execNotes.md — the editable notes popup (#1551).
