Bugfix — Issue #1680: onRoleChange threw TypeError: Cannot read properties of undefined (reading 'row') on the 2nd change of the same row

Issue: #1680 — usersAssignPlan.html: onRoleChange throws TypeError on the 2nd change of the same row — stale Save button + stale cell cache Branch: fix/issue-1680 Affected screen: Assign Test Plan Roles (gui/templates/usermanagement/usersAssignPlan.html), function onRoleChange() Related: #939 (introduced the cell re-sync), #1664 (where it was hit), #1707 (added the global ext.search predicate that adds draw transitions around the same <tbody>) Regression suite: tmp/TLU_Test_Cases.md → Suite "Regression — Issue #1680" (11/11 PASS) Commits: 1b653171e (fix), 9eac412e2 (CHANGELOG) DataTables: 1.13.7 (https://cdn.datatables.net/1.13.7/js/jquery.dataTables.min.js, usersAssignPlan.html:189)

1. Symptom

In Assign Test Plan Roles the per-user Plan Role Override <select> re-syncs its DataTables cell cache on every change, so a paging/search/sort re-draw of an off-page row cannot resurrect the previous option (the fix added by #939). That re-sync threw

Uncaught TypeError: Cannot read properties of undefined (reading 'row')
    at  (jquery.dataTables.min.js:4:66727)          <-- cell().data()
    at  (jquery.dataTables.min.js:4:53720)          <-- API methodExt wrapper
    at onRoleChange (usersAssignPlan.html:1334)     <-- assignDt.cell(tr, 4).data(...)
    at onchange (VM172 usersAssignPlan.html:1:1)

on the second change of the same row's select. Because the exception escaped the handler, everything scheduled after the failing line never ran:

  1. $('#saveBtn').prop('disabled', !isDirty()) — the Save button kept its previous state: it stays enabled although isDirty() is false (change back to the original value), and it stays disabled when it should be enabled.
  2. The DataTables cell cache was never re-synced, so a later paging/search/sort re-draw resurrected the previous option as the selected one (the "my change vanished" report).

Role assignment still saved correctly — the users model is the source of truth and the Save payload is built from it — which is exactly what makes this the class of silent-misread defect the triage expects to be fixed rather than filed.

Not a server-side defect: the events table gained no Error/Warning row for the whole session, and the BFF answered GET /api/roles/index.php/meta/tplan-roles with 200 status: ok. Client-side only.

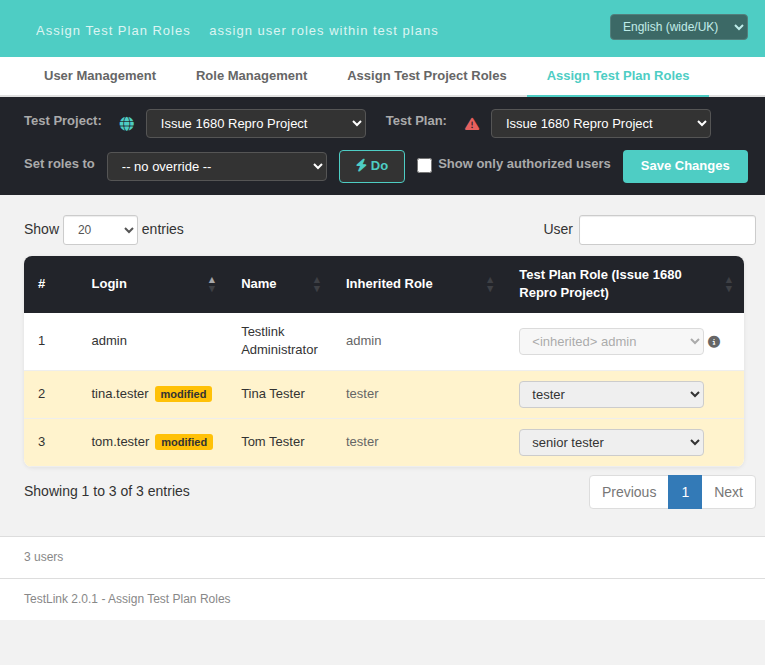

After the fix: two rows changed (1681 twice, 1682 once) - both carry the Modified badge and Save is enabled, no console error

2. Reproduction

Fixtures (fresh DB — testplans/testprojects are empty at the start of a run; see tmp/fixtures_1680.sql):

  • test project #1680: a testprojects row and a nodes_hierarchy row (1680,'Issue 1680 Repro Project',0,1,1680). ⚠ The project NAME lives in nodes_hierarchy, not in testprojects (lib/functions/testproject.class.php:551 selects NHTPROJ.name). Without the nodes_hierarchy row the project combo comes back empty and the screen shows the assign.rolesForPlansDisabled notice instead of the grid.
  • test plan #1680 (testproject_id=1680, active=1, is_public=1).
  • users #1681 tina.tester (global role 7, explicit plan role 5 = guest) and #1682 tom.tester (global role 7, explicit plan role 4 = test designer), both with a user_testplan_roles row.

Steps

  1. http://localhost:8082/index.php → log in admin / admin.
  2. Open http://localhost:8082/gui/templates/usermanagement/usersAssignPlan.html?tproject_id=1680&tplan_id=1680. The grid renders 3 rows (data-uid = 1 admin, 1681, 1682).
  3. Change the Plan Role Override select of row 1681 (tina.tester) to 6. → row highlighted, Modified badge, Save enabled. ✔
  4. Change the very same row's select again (e.g. back to 5, or on to 7).
  5. Open the console: Uncaught TypeError: Cannot read properties of undefined (reading 'row').
  6. Observe: #saveBtn.disabled no longer agrees with isDirty().
  7. Optional: type a search term in the grid search box (forces a DataTables re-draw) — the select of the changed row snaps back to the value it had before step 4.

3. Root cause

3.1 The failing frame, de-minified

jquery.dataTables.min.js:4:66727 is the cell().data() setter:

_api_register('cell().data()', function ( data, redraw, display ) {
    var context = this.context, first = this[0];
    return data === undefined ?
        ( context.length && first.length ? _fnGetCellData(context[0], first[0].row, first[0].column) : undefined )
      : ( _fnSetCellData(context[0], first[0].row, first[0].column, data),
          _fnSetCellData ? ... : null,
          this );
});

The throw is first[0].row with first === [] — i.e. this[0] is undefined. The exception is not raised inside .data(); assignDt.cell(tr, 4) returned an EMPTY API instance and the empty-API dereference is what surfaces as this TypeError.

Proven deterministically in the live page:

assignDt.cell($('<tr data-x="1">'), 4).data('zz')
// → THROW: Cannot read properties of undefined (reading 'row')   ← byte-identical message
//   (api.length === 0, identical minified frame)

3.2 Where the row resolution actually fails

cell(row, col) (jquery.dataTables.js:9096-9110) resolves the row through this.rows( rowSelector, internalOpts ), i.e. __row_selector() (jquery.dataTables.js:8084). Its exact fast path is guarded by sel.nodeName:

// Selector - node
if ( sel.nodeName ) {                                     // ← DOM NODE ONLY
    var rowIdx = sel._DT_RowIndex;
    ...
    return aoData[ rowIdx ] && aoData[ rowIdx ].nTr === sel ? [ rowIdx ] : [];
}

A jQuery object has no nodeName, so assignDt.cell(tr, 4) never reaches it. It falls into the generic catch-all:

var nodes = _removeEmpty( _pluck_order( settings.aoData, rows, 'nTr' ) );
return $(nodes).filter( sel ).map( function () { return this._DT_RowIndex; } ).toArray();

which resolves the row by strict node identity (jQuery winnow → indexOf.call(qualifier, elem)) against aoData[ aiDisplayMaster[i] ].nTr, after _removeEmpty() has silently dropped every row whose nTr is still null (a row that has never been drawn). Any mismatch — a re-created <tr>, a row the current draw cycle has not produced yet — yields [] → empty API → the TypeError of §3.1.

Measured in the live page for the healthy case, which shows the catch-all is what the call site is really using today:

nodes = aiDisplayMaster.map(i => aoData[i] && aoData[i].nTr).filter(Boolean)  // length 3
$(nodes).filter($tr).length     → 1     // identity match through the jQuery catch-all
$(nodes).filter(tr ).length     → 1     // identity match through the node path

So the jQuery form is a coincidentally working path, not the API contract the call site intends: it depends on the row's <tr> being the very node DataTables cached, and it degrades to an empty selection instead of resolving the row DataTables itself is holding.

3.3 Blast radius

$ git grep -n '\.cell(' -- gui/templates
gui/templates/usermanagement/usersAssignPlan.html:1334:    assignDt.cell(tr, 4).data(buildSelectHtml(u), false);

One call site in the repository — the fix is entirely local. api/**, the DB schema and all ten i18n bundles are untouched.

4. The fix

gui/templates/usermanagement/usersAssignPlan.html — onRoleChange():

  1. Pass the DOM node, not the jQuery wrapper — assignDt.cell(tr[0], 4). This takes DataTables' documented, exact path (sel.nodeName → aoData[sel._DT_RowIndex].nTr === sel), so the row is resolved by the row index DataTables stamped on the node itself instead of by a fragile identity scan. Added a tr.length guard so an empty wrapper can never reach the API.
  2. Never let a best-effort cell refresh abort the save-state update. Only the refresh is wrapped in try/catch. The users model stays the source of truth for the Save payload, so a cache refresh that cannot be applied must never abort $('#saveBtn') — a stale Save button is the worse of the two possible failure modes, and the model keeps Save correct either way.

No user-facing string was touched → no i18n key added (nothing to validate in the bundles). No BFF change.

Alternatives considered and rejected

  • renderUsersTable(keep) instead of the targeted .data() — a full grid rebuild + DataTables re-init on every select change: destroys the user's page/search focus and the stateSave view and re-runs createdRow for every row. Heavy, and a behaviour regression.
  • assignDt.row(tr).data(...) / .row(tr[0]).index() — same class of fix as (1) but an extra API round trip for no gain.
  • Numeric index assignDt.cell(assignDt.row(tr[0]).index(), 4) — resolves too, but adds a second lookup that can itself fail and is harder to read than the node form.

5. Verification — the 9-case matrix, 11/11 PASS

# Case Expected Observed Result
1 first change on a non-admin row highlight + Modified badge + Save enabled dirty=true, saveDisabled=false, badge present PASS
2 second change of the same row (the reported case) no console error, Save state correct saveDisabled === !isDirty(), 0 console messages PASS
3 change back to the original value Save disabled, badge + class gone saveDisabled=true, dirty=false, no badge, no changed PASS
4 change on a second row Save enabled, both rows tracked saveDisabled=false, badge on 1682 only PASS
5 sort re-draw (order([[4,'desc']]) then [[1,'asc']]) chosen options survive 1681:4 before/after both sorts PASS
5b search re-draw (search('tina') then clear) chosen option survives 1681:4 during search and after clearing PASS
6 bulk "Do" rebuilds the grid, then a per-row change grid rebuilt, per-row change still updates Save bulkVals=[1:0,1681:7,1682:7], saveDisabled=false PASS
7 admin row (locked select) never dirty, Save stays disabled select.disabled=true, dirty=false, saveDisabled=true PASS
8 pagination disabled (paginationCfg.enabled=false) no DataTable, handler still works, no exception assignDt === null, saveDisabled=false, badge present PASS
9 Event Viewer / events no new Error/Warning rows only the 2 audit_login_succeeded rows (log_level=16) PASS
10 Save round trip user_testplan_roles.role_id persisted, Save re-disabled 1681 → 6 in the DB; saveDisabled=true, dirty=false PASS
11 syntax gate inline <script> parses new Function(<inline script>) → clean PASS

Browser console after the whole matrix: no messages at all (list_console_messages types=[error,warn] → <no console messages found>) — the pre-fix TypeError is gone.

6. Files changed

File Purpose
gui/templates/usermanagement/usersAssignPlan.html onRoleChange() — the cell re-sync now takes the DOM node, a tr.length guard, and a try/catch that cannot abort the Save-state update
CHANGELOG one-line 2.0.1 KEY BUGFIX entry (AGENTS.md rule 22)
tmp/TLU_Test_Cases.md the 11-case regression suite
tmp/fixtures_1680.sql reproduction fixture (project + nodes_hierarchy row + plan + 2 users + plan roles)
docs/Bugfix-Issue-1680-usersAssignPlan-onRoleChange-TypeError.md this page
