Requirements Coverage Modernized

Requirements Coverage Report — Modernized Screen

Modernization of Requirements Coverage (lib/results/requirementsCoverage.php) — GitHub issue #691.

The legacy Smarty screen is replaced by a standalone Dashio page (gui/templates/results/resultsRequirements.html) backed by a plain-PHP REST BFF (api/reports/index.php). The ASIDE Reports → Requirements Coverage entry now points to the new HTML screen.

Path: Reports → Requirements Coverage URL: gui/templates/results/resultsRequirements.html?tproject_id=<id>&tplan_id=<id> BFF API: api/reports/index.php?action=metrics_results_reqs Right: testplan_metrics enforced server-side (same as legacy)

---

Table of Contents

1. What the screen does
2. REST API Reference
3. Legacy parity notes
4. i18n Keys
5. Security
6. Testing

1. What the screen does

Feature	Legacy behavior	Modern implementation
Context toolbar	test project label, platform/build filter, Apply button	same: project label, platform select, build select, Apply button
Evaluation Summary	badge row with eval status counts (Passed, Failed, Blocked, Not Run, Not Run (nfc), etc.)	same badges with translated labels and counts
Requirements table	DataTable with 13 columns: Req Spec, Title, Ver, Coverage, Evaluation, Type, Status, Passed, Failed, Blocked, Not Run, Progress, Linked TCs	identical columns, same data
Linked TC expand	clicking "N TCs" expands a sub-table with linked test cases and their status	same expand/collapse behavior
Platform/Build filter	filter by specific platform/build or [Any]	same filter with [Any] default
Per-column list filters (Evaluation / Type / Status)	ExtTable filter => ListSimpleMatch/list dropdowns with eval/type/status label options (resultsReqs.php:157-162)	DataTable footer <select> filters under Evaluation (col 4), Type (col 5), Status (col 6), default option "All" + full translated label lists; combine freely with each other and with the global search (Refs #1234)
Empty/warning states	user_feedback block with localized no_matching_reqs (requirements exist but none produce a row — resultsReqs.php:66-69) or no_srs_defined (no requirement spec / no req-coverage in the plan — resultsReqs.php:71-74)	when total_reqs == 0 the BFF returns a warning key (no_matching_reqs / no_srs_defined) and the screen renders it in a red #warnBox with an info icon, translated via TLi18n keys reqcov.noMatchingReqs / reqcov.noSrsDefined (Refs #1233)

2. REST API Reference

Single action endpoint: GET /api/reports/index.php?action=metrics_results_reqs

Query Parameters

Param	Required	Description
tproject_id	yes	Test project ID
tplan_id	yes	Test plan ID
platform_id	no	Platform ID (0 = all)
build_id	no	Build ID (0 = all)

Response (200 OK)

{
  "status": "ok",
  "msg": "ok",
  "data": {
    "tproject_name": "...",
    "tplan_name": "...",
    "elapsed_seconds": 0.02,
    "platform_set": {"1": "Platform Name"},
    "build_set": {"1": "Build Name"},
    "eval_status_set": {
      "passed": {"label": "Passed", "count": 3, "long_label": "Passed Reqs"},
      "not_run": {"label": "Not Run", "count": 2, "long_label": "Not Run Reqs"},
      "not_run_nfc": {"label": "Not Run (nfc)", "count": 1, "long_label": "Not Run (nfc) Reqs"}
    },
    "expected_coverage_enabled": true,
    "eval_filter_options": ["Not Run", "Passed", "Failed", "Blocked", "Partially passed", "Not covered", "Partially Passed (nfc)", "Not Run (nfc)", "Passed (nfc)", "Failed (nfc)", "Blocked (nfc)"],
    "type_filter_options": ["Informational", "Feature", "Use Case", "User Interface", "Non functional", "Constraint", "System Function"],
    "status_filter_options": ["Draft", "Review", "Rework", "Finish", "Implemented", "Valid", "Not testable", "Obsolete"],
    "warning": "no_srs_defined | no_matching_reqs | \"\"",
    "rows": [
      {
        "req_spec_path": "Req Spec 1",
        "req_doc_id": "REQ-001",
        "title": "Requirement Title",
        "version": 1,
        "type": "Functional",
        "status": "Valid",
        "eval": "n",
        "eval_label": "Not Run",
        "eval_css": "not_run",
        "expected_coverage": 2,
        "current_coverage": 1,
        "status_passed": 0,
        "status_failed": 0,
        "status_blocked": 0,
        "status_not_run": 1,
        "progress": 0,
        "linked_tccount": 2,
        "linked_tcversions": [
          {"tcversion_id": 101, "tc_external_id": 1, "name": "TC Login", "exec_status": "n"}
        ]
      }
    ]
  }
}

Error Responses

Status	Body	Condition
401	{"status":"error","message":"Not authenticated"}	No session
403	{"status":"error","message":"No permission"}	Missing testplan_metrics right
400	{"status":"error","message":"..."}	Missing params, invalid plan, etc.

3. Legacy parity notes

• Per-column list filters on Evaluation / Type / Status port the legacy ExtTable filter definitions (resultsReqs.php:157-162) — ListSimpleMatch for Evaluation, list for Type and Status — with the same filter options: eval-status labels, req-type labels and req-status labels. Implemented as DataTable footer <select> elements wired to column.search() (anchored exact match on the translated cell text); filter state resets to "All" on each Apply/reload, mirroring the ExtTable re-render behavior (Refs #1234).
• Evaluation logic is a direct port of evaluate_req() from lib/results/resultsReqs.php
• doNotRunAnalysis() is ported as doNotRunAnalysisBff()
• buildReqSpecMap() logic is inlined in the BFF action
• expected_coverage_enabled respects the $tlCfg->req_cfg->expected_coverage config
• The legacy approve_status_matrix() for full coverage check is ported exactly
• Empty-state warning mirrors lib/results/resultsReqs.php:61-74: when total_reqs == 0 the payload carries warning = no_matching_reqs if the plan context still has requirements (count($reqIds) > 0) but none produced a row (all active coverage TCs excluded), or no_srs_defined when no requirement has a coverage TC in the plan at all. Requirements-disabled projects always return no_srs_defined. The client translates the KEY via TLi18n, so the message follows the locale switcher (Refs #1233).

4. i18n Keys

24 keys under reqcov.* in all 10 locale bundles (en.json, ro.json, de.json, fr.json, es.json, pt.json, ja.json, zh.json, it.json, ru.json).

Keys cover: page title, summary labels, eval status names, badge labels, column headers, search placeholder, apply button, elapsed time label, the per-column filter default option reqcov.all ("All" / "Alle" / "Todos" / "Tous" / "Tutti" / "すべて" / "Toate" / "Все" / "全部", Refs #1234), and the two empty-state messages reqcov.noMatchingReqs ("No matching Requirements available.") / reqcov.noSrsDefined ("No Requirements Specification available for this Test Project.", Refs #1233).

5. Security

• Session-based auth via doSessionLogin()
• Authorization gate: hasRight('testplan_metrics', array('tprojectID' => ..., 'testplanID' => ...))
• No raw SQL; all queries via ORM (requirement_mgr, requirement_spec_mgr)
• XSS-safe output via htmlspecialchars() / DOM text nodes

6. Testing

See Test Suite #46 — 13 test cases covering:

• Aside menu link, BFF API auth/authz, header labels
• Evaluation summary badges, DataTable columns and values
• Linked TCs expand, platform/build dropdowns, Apply filter
• Search, i18n, column alignment, Event Viewer

And the Task — Issue #1234 suite (13 cases, all PASS): per-column Evaluation/Type/Status footer filters — BFF option lists, single & combined filtering, no-match empty state, All-reset, Apply-reset, global-search composition, locale translation of the "All" option, console & Event Viewer cleanliness. Screenshots: docs/screenshots/issue-1234-before.png, docs/screenshots/issue-1234-filter-passed-valid.png.

And the Task — Issue #1233 suite (8 cases, all PASS): empty/warning states — BFF warning key for each scenario (no rows but requirements present → no_matching_reqs; no req-coverage in the plan → no_srs_defined; requirements disabled → no_srs_defined), rendered #warnBox messages, no warnBox when data present, locale switch re-renders the message, Apply re-fetch keeps it, console and Event Viewer clean. Fixtures: tmp/fixtures_1233.php. Screenshots: issue-1233-no-matching-reqs.png, issue-1233-no-srs-defined.png.

---

Empty/warning states (Refs #1233)

When a plan has nothing to report the screen no longer shows a blank page — it renders the same localized user-feedback messages the legacy screen did.

No matching Requirements available. — project has requirements but none produced a row (e.g. all coverage TCs are excluded/obsolete):

No Requirements Specification available for this Test Project. — no requirement has a coverage TC linked in the plan, or requirements are disabled:

---

Screenshots (per-column filters, Refs #1234)

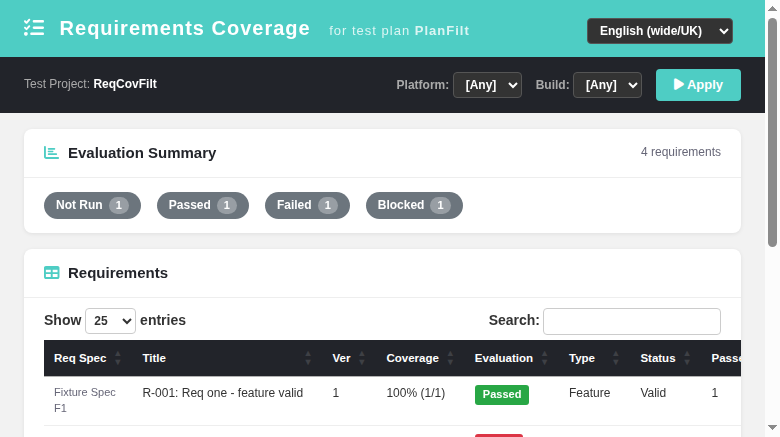

Before — no per-column filters:

After — Evaluation & Status footer filters applied (Passed + Valid → R-001 only):
