Bug fix — Issue #1625: reqMgrSystemView.php?id=<n> returned a blank HTTP 500 on the "Check connection" path

Symptom

The legacy Dashio Req. Management System list (lib/reqmgrsystems/reqMgrSystemView.php) returned HTTP 500 with a 0-byte body whenever an id parameter was present, and wrote 4 PHP 8 E_WARNING rows into the events table (the Event Viewer source) on every such request (5 when the id does not exist — one extra array offset on null).

Route Pre-fix
reqMgrSystemView.php?id=<existing row> ("check connection" wrench) 500, 0 bytes, 4 event rows
reqMgrSystemView.php?id=999 (id that does not exist) 500, 0 bytes, 5 event rows (4 + the :619 one)
reqMgrSystemView.php (no id) 200, but still 2 event rows per load

Entry point: http://localhost:8082/lib/reqmgrsystems/reqMgrSystemView.php?id=1 (the wrench icon of the first column in gui/templates/dashio/reqmgrsystems/reqMgrSystemView.tpl:47-49 links exactly there).

before: blank HTTP 500

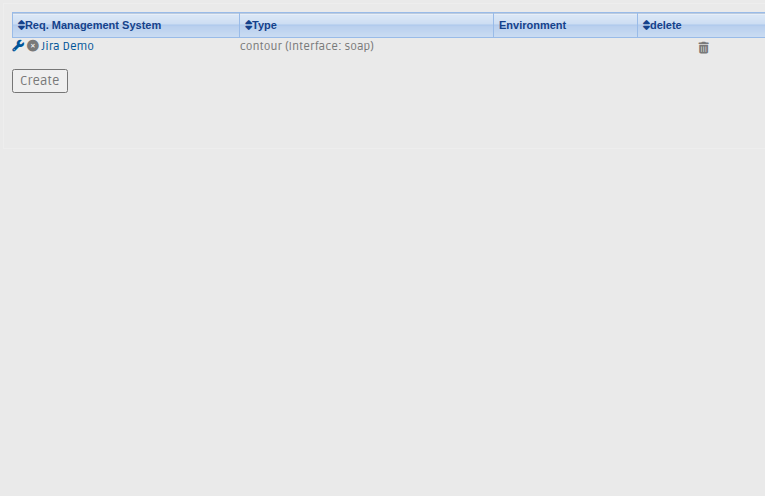

after: the row is listed with the KO badge

Environment and fixtures

  • TestLink 2.0.1, PHP 8.3 built-in server, MariaDB testlink on the local CI instance (127.0.0.1:3306, throwaway container credentials), login admin/admin.

  • Pre-fix baseline commit 6d110083a; fix commit b4c325c33.

  • Minimal reproduction:

    INSERT INTO reqmgrsystems (name,type,cfg) VALUES ('Jira Demo',1,'{}');

    type=1 is the only entry of tlReqMgrSystem::$systems (lib/functions/tlReqMgrSystem.class.php:32-33: 1 => contour/soap), i.e. 100 % of the rows the shipped UI can create are affected.

  • Gotcha when scripting the login in 2.0.1: authentication goes through the BFF POST /api/auth/login, which requires same-origin proof. Without -H "Origin: http://localhost:8082" -H "Referer: .../login.php" the call answers {"status":"error","message":"Forbidden: missing or mismatched same-origin proof (CSRF protection)"} and every later request returns 200 with a login-redirect body — which silently invalidates HTTP-only measurements.

Measured evidence (before)

HTTP:

?id=1                  http=500 bytes=0
?id=999                http=500 bytes=0
?id=1&tproject_id=1    http=500 bytes=0

PHP level, isolated harness (config.inc.php + common.php + doDBConnect, then the same two methods the controller calls):

getAll OK rows=1
checkConnection(1)   THROWS Error: Class "contoursoapInterface" not found
checkConnection(999) THROWS Error: Class name must be a valid object or a string

Event Viewer (events table), all log_level=2, activity=PHP. 4 rows for a real row; the 5th below appears only for ?id=999:

description source
include_once(contoursoapInterface.class.php): Failed to open stream: No such file or directory lib/functions/common.php:122
include_once(): Failed opening 'contoursoapInterface.class.php' for inclusion (include_path=…) lib/functions/common.php:122
the same pair again (the autoloader is entered once from getAll(), once from new) lib/functions/common.php:122
Trying to access array offset on null (only for ?id=999) lib/functions/tlReqMgrSystem.class.php:619

Browser: the document loads with no body at all (the page is blank inside the frame).

Root cause

tlReqMgrSystem derives the class name of a requirement-management integration from the row's type, and checkConnection() instantiated that name without ever checking that it can be loaded. The chain has two independent endings, both fatal.

Hop 1 — getImplementationForType() composes a name that can never resolve (lib/functions/tlReqMgrSystem.class.php:111-115)

$spec = $this->systems[$system];              // :112
return $spec['type'] . $spec['api'] . 'Interface';   // :114

For the one shipped type this returns contoursoapInterface. The directory on the include_path (lib/reqmgrsystemintegration/, added in cfg/const.inc.php:43-47) contains only the abstract base reqMgrSystemInterface.class.php — the concrete contoursoapInterface was never in this repository: git log --all -- '*contour*' returns no commit at all. So the name is right and the file is absent, permanently.

Hop 2 — checkConnection() instantiated it anyway (:616-622, pre-fix :616-621)

$xx = $this->getByID($systemID);        // :618  -> NULL when the id does not exist
$class2create = $xx['implementation'];   // :619  E_WARNING "array offset on null"
$system = new $class2create(...);        // :620  uncaught Error -> HTTP 500
  • ?id=<real row> → Error: Class "contoursoapInterface" not found
  • ?id=999 → getByID() is NULL → Error: Class name must be a valid object or a string

Both are Error, not Exception, so the try { … } catch (Exception $e) in the sibling getInterfaceObject() (:588-608) never applies. PHP 8 aborts the request before a single byte is flushed (reqMgrSystemView.php:33-35 never reached), which is precisely why the symptom is a bare 500 with an empty body.

Hop 3 — the same screen also probes the class on every listing load (:528-537)

$impl = $this->getImplementationForType($item['type']);
if( method_exists($impl,'checkEnv') ) { … }

method_exists() on an unknown class name fires the autoloader, whose include_once() (lib/functions/common.php:122) fails and logs two events per row per page load — the Event Viewer noise tracked in #1593, for this screen.

Why the 500 is empty. The Error is raised while the page is still being built, so nothing has been written yet, and with display_errors=Off (the default for both FPM and the built-in server) PHP adds nothing either — hence a 0-byte body rather than a stack trace. On the PHP 5.x that TestLink 1.9.20 targeted the same line was an uncatchable E_ERROR with a message when display_errors was on, which is why this was never a blank page back then. The defect itself is pre-existing since 1.9.6, and ?id=<n> was reachable only by hand-clicking the wrench icon.

The two twins of this code were already hardened for the very same defect and this one was not:

Class Guard Issue
tlIssueTracker::checkConnection() returns false before the new #1617
tlIssueTracker::getAll() is_null($impl) || !@class_exists($impl) || !is_callable([$impl,'checkEnv']) #1617
tlCodeTracker::getAll() same shape #1597
tlReqMgrSystem none #1625

The fix

Minimal, and a deliberate port of the shape already proven twice. Diff: 2 files, +59 / −3.

  1. tlReqMgrSystem::checkConnection() — two early return false guards before the new:
    if( is_null($xx) || !isset($xx['implementation']) ) { return false; }
$class2create = $xx['implementation'];
if( !is_string($class2create) || !@class_exists($class2create) ) { return false; }
    false is the right verdict because the whole chain already understands it: reqMgrSystemView.php:36 maps it to 'ko' and reqMgrSystemView.tpl:52-53 draws the existing localized reqmgrsystem_check_ko badge.
  2. reqMgrSystemView.php:28-37 — the probe is stamped only on a row that exists ($args->id > 0 && isset($gui->items[$args->id])). $gui->items is keyed by row id, so without this the ?id=999 path would have degraded from a 500 into a phantom empty grid row (the same family as #1618 on the issue-tracker side).
  3. tlReqMgrSystem::getAll() :528-551 — the identical is_null || !@class_exists || !is_callable guard used by both twins, so a bad row degrades to env_check_ok = false instead of taking the listing down, and the two include_once events per row per load disappear (the #1593 noise for this screen).

@class_exists() is @-silenced on purpose: the autoloader include_once()s <class>.class.php (lib/functions/common.php:122) and an un-silenced guard would trade a fatal for two warnings per row. is_callable() rather than method_exists() because only a public static checkEnv can satisfy $impl::checkEnv() — a private or non-static declaration would raise an Error and re-introduce the very fatal the guard prevents.

No new i18n key and no bundle edit was needed: every message reuses a string that already exists, so gui/templates/i18n/*.json was left untouched.

Alternatives considered and rejected

  • Write a contoursoapInterface. Impossible as a restoration: the file has never existed in this repository. A SOAP stub could only ever return a fake verdict, which is worse than an honest "not connected".
  • Drop contour from $systems / getTypes() (option (c) in the issue body): rejected — it changes the persisted type table that existing rows and the modernized screen's dropdown depend on, to neutralise a diagnostic defect. The read-side guards fully neutralise the reported fatal.
  • Catch Throwable in the controller. Rejected: it hides the defect instead of degrading the single row, and would still emit the 5 events.
  • Guard on $types as well as $systems. Not needed here and deliberately avoided (the #1617 code-review catch): getTypes() populates $this->types for enabled systems only, so an extra guard would reject legitimate disabled types.

Result (after)

Route Pre-fix Post-fix
?id=<existing row> 500, 0 B, 5 event rows 200, 10994 B, KO badge, 0 event rows
?id=999 500, 0 B, 5 event rows 200, 10887 B, no phantom row, 0 event rows
no id 200, 2 event rows 200, 0 event rows
reqMgrSystemEdit.php?doAction=checkConnection&id=<n> 500, 0 B 200
?id=abc / id=0 / id=-1 200 200, probe not run

Full regression matrix in tmp/TLU_Test_Cases.md ("Suite 1625"), re-runnable via bash tmp/verify_1625.sh (31 asserting HTTP/Event-Viewer/DB checks). The harness asserts and exits non-zero on failure — proved discriminating, not self-reporting: against the pre-fix baseline (git checkout 6d110083a -- <the two files>) it reports 16 PASS / 11 FAIL, exit 1; against the fix 31 PASS / 0 FAIL, exit 0.

Coverage also includes the regression guards: the two hardened twins (lib/issuetrackers/issueTrackerView.php, lib/codetrackers/codeTrackerView.php — the #1617/#1597 siblings) still answer 200 with zero new warnings, and the modernized 2.0.1 BFF api/reqmgrsystems/index.php still returns the row ({"status":"ok","items":[{… "typeDescr":"contour (Interface: soap)" …}],"total":1}). Browser-verified for both ?id=1 and ?id=999: the grid renders (header + Jira Demo + Create), and the browser console reports <no console messages found>.

The second copy of the same probe (found by code review, also fixed here)

lib/reqmgrsystems/reqMgrSystemCommands.class.php::checkConnection() — the "Check connection" action dispatched from the edit screen — contained the identical duplicated instantiation, unguarded, and was therefore a second, independent 500:

$ curl ... "reqMgrSystemEdit.php?doAction=checkConnection&id=1"     ->  http=500 bytes=0   (pre-fix)
$ curl ... "reqMgrSystemEdit.php?doAction=checkConnection&id=999"   ->  http=500 bytes=0   (pre-fix)
$ curl ... "reqMgrSystemEdit.php?doAction=checkConnection&id=1"     ->  http=200           (post-fix)

checkConnection is whitelisted in reqMgrSystemCommands.class.php:38 and dispatched by reqMgrSystemEdit.php:22-26, so the route is live and reachable by plain URL. Rather than guarding a second copy, the duplicate is deleted: the method now delegates to the one hardened implementation, $this->mgr->checkConnection($argsObj->id), keeping its original 'ok' : 'ko' mapping. This is the same decision the issue-tracker twin took in #1617.

Unrelated defects found while testing / reviewing — filed, not fixed

Both reproduce with valid data and neither is a regression from this diff:

  • #1626 — a reqmgrsystems row whose type is not a key of $systems still logs 6 E_WARNING rows per load: Undefined array key at tlReqMgrSystem.class.php:522 and :523 ($this->types[$item['type']]) and :113/:114 ($this->systems[$system]). The page is 200 and usable, so it is noise only; both twins already have the isset($this->types[…]) ? … : '' hardening.
  • #1627 — lib/reqmgrsystems/reqMgrSystemEdit.php without (or with a non-whitelisted) doAction is a hard 500: $op stays null and renderGui() dereferences $opObj->template. Reachable by plain URL.
  • #1628 — the doAction=checkConnection route that #1625 unblocked writes E_WARNING Undefined array key "checkConnection" (3 per pass): reqMgrSystemCommands.class.php:72 reads $obj->l18n[$caller] for a key init_labels() was never given it; the issue-tracker twin carries the missing 'checkConnection' => 'btn_check_connection' entry (lib/issuetrackers/issueTrackerCommands.class.php:70-71). Revealed by this fix (the 500 used to mask it), not caused by it.
  • #1629 — tlReqMgrSystem::getInterfaceObject() is the third unguarded new in the class, and its catch (Exception $e) cannot catch a PHP 8 Error; it is called from lib/requirements/reqSpecCommands.class.php:44 for every project with reqmgr_integration_enabled. Filed as an UNVERIFIED code-path reading — the fresh CI database has no project linked to a ReqMgrSystem, so the 500 was not reproduced here.

Files changed

File Purpose
lib/functions/tlReqMgrSystem.class.php guards in checkConnection() and in the getAll() checkEnv block
lib/reqmgrsystems/reqMgrSystemView.php probe only on a row that exists (no phantom row)
lib/reqmgrsystems/reqMgrSystemCommands.class.php the edit screen's second copy of the probe now delegates instead of duplicating the unguarded new
tmp/verify_1625.sh regression harness, 31 asserting checks (force-added: tmp/ is gitignored)
tmp/TLU_Test_Cases.md "Suite 1625" test cases and results
docs/screenshots/issue-1625-reqMgrSystemView-id1-before.png before: blank HTTP 500 page
docs/screenshots/issue-1625-reqMgrSystemView-id1-after.png after: grid rendered, row carries the KO badge
