Task 974 — "Used on Test Project" block in the modern Code Tracker edit modal

Issue: #974 Status: IMPLEMENTED & VERIFIED (2026-09-25) — branch task/issue-974 Screen: gui/templates/codetracker/codetrackerView.html BFF: api/codetracker/index.php

The gap

In TestLink 1.9.20 the code-tracker edit page carried an fa-info-circle anchor next to the Name label. Clicking it revealed which test projects the tracker is linked to — or the note "Code Tracker Not Used (Linked)" when it is linked to none. Loading the page also deleted orphaned link rows left behind by a deleted test project.

Step Legacy code What it does
1 lib/codetrackers/codeTrackerEdit.php:150-157 $dummy = $commandMgr->codeTrackerMgr->getLinks($argsObj->id, ['getDeadLinks' => true]); then unlink($id, $key) for each — "just to fix erroneous test project delete"
2 lib/codetrackers/codeTrackerEdit.php:158-159 $gui->testProjectSet = $commandMgr->codeTrackerMgr->getLinks($argsObj->id); — map testproject_id => testproject_name
3 lib/functions/tlCodeTracker.class.php:471-500 getLinks() = testproject_codetracker LEFT OUTER JOIN nodes_hierarchy; with getDeadLinks it keeps only rows whose project node is NULL
4 gui/templates/dashio/codetrackers/codeTrackerEdit.tpl:163-165 <a href="javascript:displayUsedBy('usedByEnvelope')"><i class="fas fa-info-circle" title="{$labels.show_hide_linked_to_project}"></i></a>
5 codeTrackerEdit.tpl:174-180 hidden #usedByOuter row wrapping #usedByEnvelope
6 codeTrackerEdit.tpl:73-116 displayUsedBy() toggles the row; renders <b>Used on Test Project</b> + one `
7 lib/codetrackers/codeTrackerEdit.php:180-184 the whole edit controller is gated on codetracker_management
8 locale/en_US/strings.txt:3679,3866,3867 Used on Test Project, Show/Hide (Linked to Project), Code Tracker Not Used (Linked)

The 2.0.1 rewrite dropped steps 1–6: the modern edit modal showed only Name / Type / config / Active / Save. The BFF called getLinks($id) but kept only count($links) and dropped the names (link_count is what the delete gating needs, #971) — so the data stopped at the API boundary and the used-by block had nothing to render.

The sibling screens already had this exact feature: api/issuetracker/index.php:266-291

  • gui/templates/issuetracker/issuetrackerView.html:83-88,346-364 (issue #964) and reqMgrSystemView.html (rms.usedOnTestProject). The code-tracker screen was the last one without it.

Implementation

BFF — api/codetracker/index.php

  • New helper attachLinks($mgr, $id, &$item, $purgeDead) (lines 118-156) — a faithful port of initializeGui():
    • $purgeDead → getLinks($id, ['getDeadLinks' => true]) + unlink($id, $tpid) for each orphan, so the used-by list never contains a NULL name and link_count is never inflated;
    • then links[] = testproject_name for each remaining row, and link_count = count(links).
  • GET /{id} calls attachLinks(..., $canManage) — this is the request the edit modal makes, i.e. exactly where legacy ran the purge. The purge is a write, and legacy reserved the edit page for codetracker_management holders (codeTrackerEdit.php:180-184), so it is limited to managers: a view-only caller (right 52) can no longer cause a DB write through a read route.
  • Dead rows are filtered out of the returned list for everybody (a dead row LEFT JOINs to a NULL name). A manager never sees one because the purge just removed it, but a viewer would otherwise be shown a phantom project and an inflated link_count — which could disagree with the grid's delete gating (#971).
  • POST (create), PUT (update) and DELETE call attachLinks(..., false) so a write response is never misleading (a tracker that has links reports them; the deleted one reports its pre-delete state, which is what the legacy delete form showed to explain a refusal).
  • trackerToJSON() always emits a links key. The list route keeps only link_count (from getAll('add_link_count')): the grid needs no names and resolving them per row would be an N+1 query. Documented in the code.
  • Values are returned raw — escaping stays in the screen (JSON API, issue #1581).

Screen — gui/templates/codetracker/codetrackerView.html

  • #btnUsedBy (fa-info-circle, data-i18n-title="ct.showHideLinkedToProject") next to the Name input + hidden #usedByOuter / #usedByEnvelope, mirroring codeTrackerEdit.tpl:163-180.
  • toggleUsedBy() — port of displayUsedBy(): collapses/expands, renders the bold header plus one escaped name per line, or the italics "not used (linked)" note. Guarded by if (!canManage) return; because legacy gated the whole edit page on codetracker_management.
  • usedByProjects[] is filled from r.item.links in editTracker() and reset to [] in showCreateModal() (legacy only built $gui->testProjectSet when id > 0). Both open paths collapse the block, so the envelope never shows a stale list.
  • Every project name goes through the existing esc() helper — a project named <img src=x onerror=…> renders as inert text.

i18n

3 new keys in all 10 locale bundles (en, de, es, fr, it, ja, pt, ro, ru, zh), inserted alphabetically inside the existing ct.* group (+3 lines per file, no reformat):

Key en source
ct.usedOnTestproject Used on Test Project strings.txt:3679
ct.notUsedLinked Code Tracker Not Used (Linked) strings.txt:3867
ct.showHideLinkedToProject Show/Hide (Linked to Project) strings.txt:3866

Screenshots

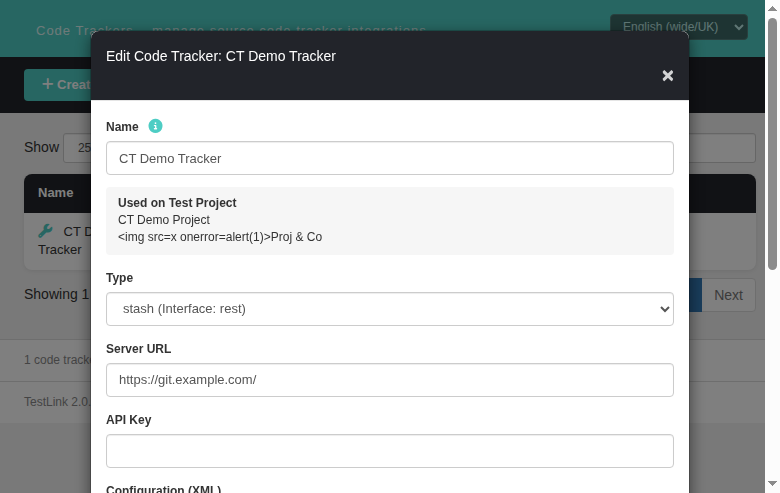

edit modal with the used-by block open

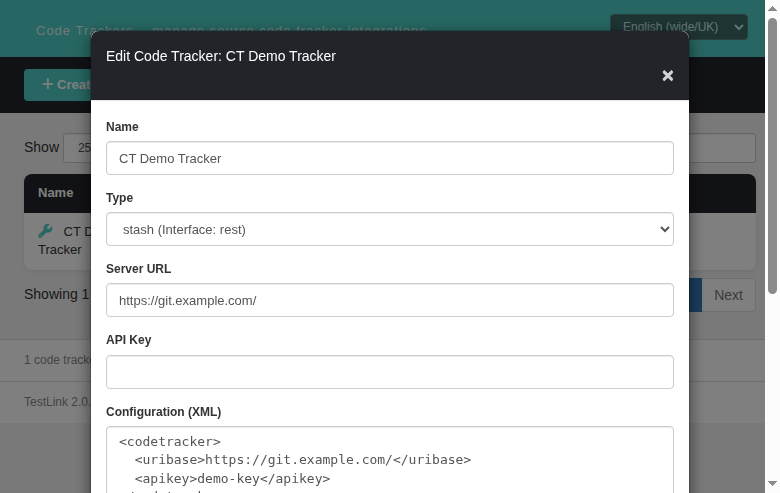

before: edit modal without any used-by block

Verification

Test suite: tmp/TLU_Test_Cases.md → 974.1–974.15, 15/15 PASS (tooltip, linked state, toggle on/off/on, unlinked state, create-modal state, Romanian locale, XSS in a project name, BFF links, dead-link purge, grid + write-route regression, syntax gates, Event Viewer). events gained 1 row (a normal log_level=16 activity from the audited edit-session) and 0 rows with log_level IN (1,2).

Side finding (not fixed here)

Seeding a codetrackers row whose type is not in tlCodeTracker::$systems makes GET /api/codetracker/index.php return HTTP 500 with an empty body, blanking the whole grid: getImplementationForType() (lib/functions/tlCodeTracker.class.php:115-126) reads $this->systems[$codeTrackerType] with no isset guard and returns the literal class name "Interface", so $impl::checkEnv() fatals. One corrupt row kills the screen for every user. Legacy could not hit it (its type domain only offers valid types) and it is outside this issue — filed as a separate bug issue.
