Modernize Launch Test Case Print ltcp

Modernize-Launch-Test-Case-Print-ltcp (#1623)

The public Launch Test Case Print share-link gateway — the link an external system hands a colleague so they can print one specific test case version without a TestLink login — is modernized.

Issue: Refs #1623 Legacy: ltcp.php (repo root) — it resolved the share link inline and 302-redirected into lib/testcases/tcPrint.php, which was still a full legacy renderer (renderHTMLHeader() + renderTestCaseForPrinting()). Modern: gui/templates/testcases/tcLaunchPrint.html + BFF api/tcprintlaunch/index.php

What was modernized

ltcp.php is a public share-link gateway: an external system (ticket, mail, chat) hands a colleague a link that prints one specific test case version, and the recipient does not have a TestLink login:

ltcp.php?apikey=<32-char user API key>&testcase=<PREFIX>-<NUMBER>-<VERSION>

The legacy controller did all of this inline and then redirected into the last legacy-rendered page the gateway could reach. It also reported every failure by echo-ing a raw, untranslated marker straight into the browser body (LTCP-01 … LTCP-05, plus a completely empty body for a missing version).

It is now a Dashio resolver screen that hands over to the already-modern print screen gui/templates/testcases/tcPrint.html:

• Resolved test case card — external id (L16-1), test case name, test suite, version, test project with its prefix, an auth-mode chip (API key or Session) and the resolved print-screen URL.
• Version pills — every version of the test case, the current one marked active; clicking another re-resolves it, so a recipient can move from v1 to v2 without editing the link.

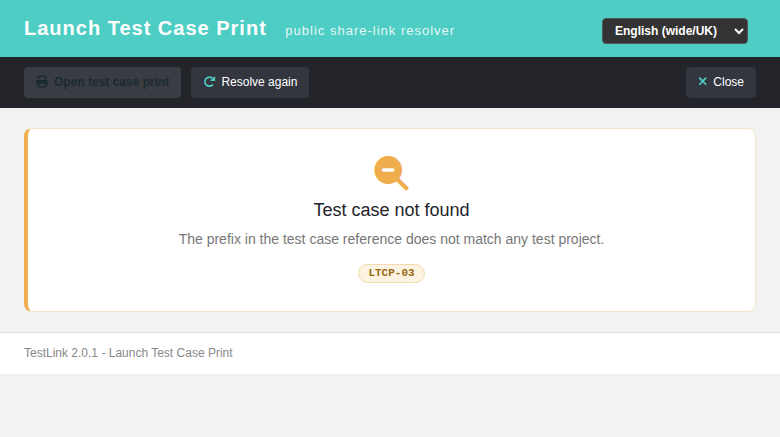

• State cards — Access denied (bad key / no mgt_view_tc / not logged in), Test case not found (unknown prefix / unknown test case / unknown version) and a generic Error. Each keeps the legacy LTCP-0x marker visible in a legacy-tag chip, so every old outcome stays recognizable while the text itself is now localized in all 10 shipped locales.
• Tools — Open test case print (disabled until a link resolves), Resolve again, Close; TLi18n locale switcher.

ltcp.php is kept as a public 302 shim forwarding the whole query string to the modern screen — the same pattern as the lnl.php publicLink shim (#1541) — so every existing share link keeps working unchanged.

Legacy parity table

legacy	condition	modern
LTCP-01	apikey length != 32	400 bad_apikey
LTCP-01	32-char key matching no user	403 bad_apikey
LTCP-02	testcase is not PREFIX-NUM-VERSION	400 bad_external_id
LTCP-02	testcase parameter missing	400 missing_testcase
LTCP-03	prefix is not a known test project	404 unknown_prefix
LTCP-04	no mgt_view_tc on the owning project	403 no_rights
LTCP-05	external id does not resolve	404 testcase_not_found
(empty die())	version not in the test case id set	404 version_not_found
302	all checks pass	200 + resolved ids + print_url

The prefix is resolved against the whole testprojects map before any lookup (same SQL-injection mitigation as the legacy controller) and the version must be one of the test case's own tcversion_ids.

BFF (api/tcprintlaunch/index.php)

• GET ?action=resolve[&apikey=K][&testcase=P-N-V]

  Authorization — a 32-char apikey authorizes as its owner (remote access, tlUser::getByAPIKey()), and the remote-access session is established with setUpEnvForRemoteAccess() so the session-based print BFF (api/testcasesprint) accepts the follow-up tcPrint.html navigation. The legacy clearSession => true is deliberately not reproduced: the identity of an existing session is switched to the link owner instead of logging an unrelated user out. With no apikey, an authenticated session user is accepted (a convenience superset of the legacy apikey-only contract).

  Payload — auth_mode, print_url and a testcase{} object with testcase_id, tcversion_id, external_id, version, name, suite, tproject_id, tproject_name, prefix and available_versions[].

• Contract — 200 resolved · 400 bad parameters / unknown action · 401 no apikey and no session · 403 bad key / no rights · 404 unknown prefix / test case / version · 405 non-GET. GET only, so the read-only endpoint needs no CSRF proof; session-based same-origin is inherited from the apikey path of the shared BFF conventions.

Security notes

• tlUser::getByAPIKey() returns null on no-match, and the legacy code did count($user) on it — a PHP 8 count(null) TypeError, i.e. a 500 for any well-formed-but-unknown key. The BFF guards it (same guard as api/publiclink and api/executionprint).
• The prefix is looked up in a pre-loaded map, never interpolated into SQL.
• setUpEnvForRemoteAccess() is only ever reached after the key resolved to exactly one user, so a bogus key cannot mutate a session.
• The 32-char user key and the 64-char test-plan object key are not interchangeable here: only a user key is accepted, as in legacy. (The 64-char object-key public share links are served by the publicLink / report gateways.)

Notes / gotchas found while porting

• The apikey column is users.script_key (32 chars) — there is no users.apikey column in this schema.
• testprojects has no name column and there is no testcases table: names live in nodes_hierarchy, and a test case version links to its node by node id. Reading testprojects.name is a 1054 Unknown column error.

Testing

Suite 1623 in tmp/TLU_Test_Cases.md: 36 API assertions + 10 browser cases, all PASS — every legacy branch above, the 400/401/403/404/405 contract, the rights path, the shim 302 with the query string preserved, i18n coverage (28 keys × 10 bundles plus every key the screen references), php -l, a clean Event Viewer (audit rows only), and in the browser the resolved card, the print hand-over, the version pill, all three state cards, the RO locale with zero raw keys and the critical anonymous share-link path (a recipient with no TestLink login resolves and prints).

One real bug was found and fixed during the run: non-2xx BFF responses never reached the state-card handler (jQuery routes them to .fail()), so every error card lost its localized message and its LTCP-0x marker.
