opencode-task edited this page Sep 19, 2026 · 3 revisions

Create Requirements from Issues (Mantis XML) — Modernized Screen

Modernization of Create Requirements from Issues XML (Mantis) import screen (lib/requirements/reqCreateFromIssueMantisXML.php + Dashio reqCreateFromIssueMantisXML.tpl) — GitHub issue #1503.

This was the last standalone legacy import screen in lib/requirements/: it uploads a Mantis bug-tracker XML export and creates one requirement per <issue> under the target requirement spec. It is the REQ sibling of the test-case importer from #1502 and it closes the documented gap #1349 (the "Create From Issues (XML)" button of the legacy reqSpecView Requirement Operations fieldset had no equivalent on the modern reqSpecView.html). The Smarty screen is replaced by a standalone Dashio page (gui/templates/requirements/reqFromIssues.html) backed by a plain-PHP REST BFF (api/reqfromissues/index.php, session-based auth).

Entry: the modern Requirement Specification Viewer toolbar gains the Create Requirements from Issues button (shown when the user holds mgt_modify_req on the owning project, e.g. the admin) URL: gui/templates/requirements/reqFromIssues.html?req_spec_id=<id>&tproject_id=<id> BFF API: api/reqfromissues/index.php (GET ?action=init, POST ?action=import) Right: mgt_view_req AND mgt_modify_req on the OWNING project (403 otherwise)

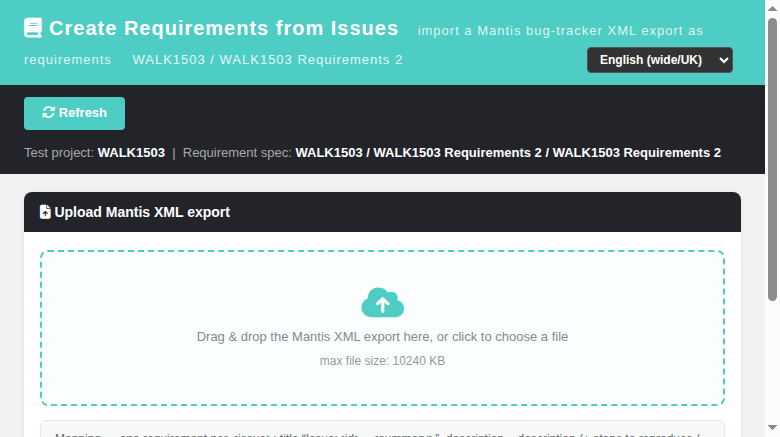

Create Requirements from Issues - clean state with spec context

Create Requirements from Issues - import result (Created + FROZEN skip)

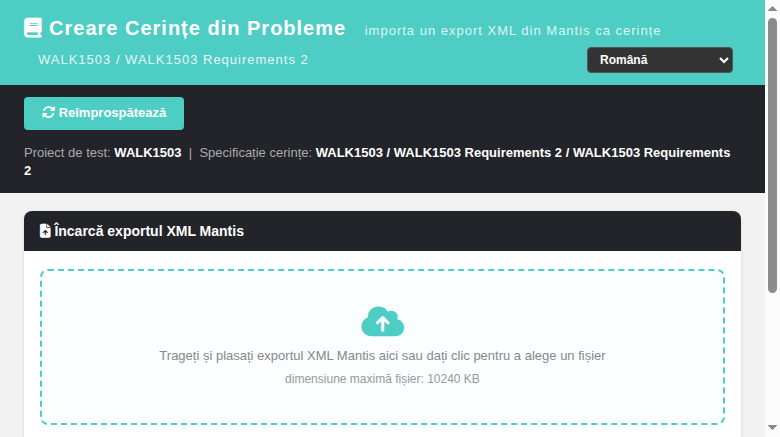

Create Requirements from Issues - Romanian locale

Requirement Spec Viewer - new Create Requirements from Issues toolbar button

Table of Contents

  1. What the screen does
  2. REST API Reference
  3. Legacy parity notes
  4. i18n Keys
  5. Security
  6. Testing

1. What the screen does

Feature Legacy behavior Modern implementation
Entry point "Create From Issues (XML)" button in the legacy reqSpecView Requirement Operations fieldset (reqSpecViewButtons.inc.tpl), reqCreateFromIssueMantisXML.php?req_spec_id=) toolbar button on modern reqSpecView.html (testable link reqFromIssues.html?req_spec_id=&tproject_id=), shown on r.rights.manage
Source format Mantis bug-tracker XML export, root <mantis>, one <issue> per bug, fields id / summary / description / steps_to_reproduce / additional_information identical; validated (LIBXML_NONET, well-formedness, root tag check → 422)
Requirements created one per issue via requirement_mgr::createFromMap() identical server-side build (reused the exact legacy class, no reimplementation)
Doc ID Mantis Task ID:<id> (legacy reqCreateFromIssueMantisXML.php docid template) identical
Title Issue:<id> - <summary> (issue_issue label) identical, labels localized via the client locale hint
Description issue_description label + description, plus issue_steps_to_reproduce / issue_additional_information when present, joined with <p> identical
Attributes status/type empty, node_order = document order, expected_coverage = 1 identical
Duplicate handling inside createFromMap(): same-spec docid hit → skip + "is FROZEN"; cross-branch hit → "Already exists on other branch"; over-length → skip "length exceeded" identical (both branches live in the legacy class)
Upload cap import_file_max_size_bytes config identical (413 over limit; 400 on missing file / PHP error code 1)
Result feedback server-side result-map table after submit live result table (doc ID / requirement / result), issues-found count, green "Created" vs amber "Skipped" rows, feedback bar, toast
Target the given req_spec_id validated to belong to the project (each created requirement gets the spec's project as owner)

2. REST API Reference

All routes require an authenticated session (401 when anonymous). locale parameters accept en, ro, … both 2-char and 5-char codes (the TLi18n switcher uses the 2-char form); project rights are always checked against the requested tproject_id.

Method & path Purpose Failure modes
GET ?action=init&tproject_id=N&req_spec_id=N[&locale=xx] context: tproject name, spec path (get_path), import_file_max_size_bytes → KB hint, field_size req_title / req_docid, grant map, localized issue_* labels 400 invalid/missing params, 404 unknown project or spec, 401 anon, 500 guarded
POST ?action=import&tproject_id=N&req_spec_id=N[&locale=xx], multipart field uploadedFile parse <mantis> export, createFromMap() each issue under the spec, return per-row result map 400 no file, 403 no right, 405 non-POST, 413 over size cap, 422 invalid XML/root, 500 guarded DB error

The BFF restores the previous session locale after an import (exception path included) and answers 405 for non-GET init and 400 for a missing upload even when the token-type check is skipped — all states verified with curl.

3. Legacy parity notes

  • The import itself is not reimplemented: the BFF calls the legacy requirement_mgr::createFromMap() exactly like reqCreateFromIssueMantisXML.php did, so document order, duplicate/FROZEN/cross-branch semantics and the length-exceeded skips are byte-for-byte the legacy behavior.
  • Labels are generated server-side through init_labels() and localized via the same 5-char session-locale mechanism ($_SESSION['locale']) the legacy used, with the client hint translated into the session locale for the request (verified German: Wurde übersprungen - Anforderung…).
  • The result map reuses the legacy createFromMap() return format (req_doc_id, req_status/id_status, message), reshaped into a row-per-issue UI table; a row whose message does not start with "Created"/"Updated" is rendered as an amber (warning) row.
  • Two pre-existing legacy bugs were found while exercising the import and were fixed in the shared class (both benefit every import path — BFF reqfromissues, BFF reqimport, legacy reqImport CSV/DocBook/XML):
    • #1505 requirement_mgr.class.php:1624 emitted E_WARNING Trying to access array offset on null into the Event Viewer on every docid hit that owns NO req_versions row; now guarded (is_array + is_open == 1), so a version-less hit falls through to the clean "is FROZEN" skip.
    • #1504 the over-length skips read misspelled keys req_title_lenght_exceeded / req_docid_lenght_exceeded (typos) → "not localized" events + raw keys in the UI; renamed to req_title_length_exceeded / req_docid_length_exceeded and the missing req_docid_length_exceeded translation was added to the 16 strings.txt bundles that lacked it (ro_RO is the short partial bundle — falls back to English like the legacy).

4. i18n Keys

All labels/messages use the client-side TLi18n module; keys reqfi.title, reqfi.headerSub, reqfi.ctxProject, reqfi.ctxSpec, reqfi.uploadTitle, reqfi.dropHint, reqfi.sizeHint, reqfi.mappingTitle, reqfi.mappingBody, reqfi.importBtn, reqfi.resultTitle, reqfi.issuesCount, reqfi.emptyResult, reqfi.colDocId, reqfi.colReq, reqfi.colResult, reqfi.errNoPermission, reqfi.errLoad, reqfi.noFile, reqfi.importing, reqfi.importFail, reqfi.importOk, reqfi.reqRows, reqfi.fileSelected, reqfi.spec, footers.reqFromIssues are defined in ALL locale bundles (gui/templates/i18n/*.json: de, en, es, fr, it, ja, pt, ro, ru, zh).

5. Security

  • Session-based auth (401) + bffSameOriginGuard() CSRF check on POST; init is GET-only (405 otherwise).
  • Right check mgt_view_req AND mgt_modify_req on the OWNING project before any write (403; an anonymous request 401, a user with only view rights 403, verified with a script-created guest).
  • The spec is resolved via getRequirementsSpecByID and validated to belong to the project; ids are numeric-cast; the upload is spread over is_uploaded_file() + import_file_max_size_bytes.
  • XML parsed with simplexml_load_string + LIBXML_NONET and libxml internal errors — no network fetches, no entity expansion leaks, 422 on malformed input.
  • Result messages are written with text() (no XSS); the client-side pre-check floors oversized files at the 413 branch (server-configured upload_max_filesize may cap earlier → clean 400 "error code 1").

6. Testing

Suite #71 in tmp/TLU_Test_Cases.md: 22/22 PASS — pristine import (docid Mantis Task ID:<id>, title Issue:<id> - <summary>, description structure with the <p> joiners, node order, created versions), FROZEN re-import skip (same spec), cross-branch "Already exists on other branch", anonymous 401, no-modify-right 403 (localized banner), unknown spec 404, missing file 400, malformed XML 422, wrong root 422, empty <mantis> 200 with 0 issues, upload over the client pre-check 413, POST/GET method enforcement 405, locale=de German server messages, EN↔RO UI switch, entry button on reqSpecView.html, Event Viewer clean (0 ERROR/WARNING rows). Fixture: tmp/fixtures_walk.php creates the WALK1503 test project (id 25) with specs 31 / 36 / 38; rerun after every DB reset/CI re-import.

7. Regression re-record (Refs #1503, #1528)

Screen + BFF + i18n were fully built for #1503, but the MODERNIZATION-STATUS ledger row, Summary extras mention and CHANGELOG line were destroyed by the #1487 guts (8ef9694d3) and never restored — only the BFF/HTML/i18n files came back via 4bcf10e07 (#1507). This run re-recorded the screen in the ledger + CHANGELOG and re-verified it end-to-end.

Two real regressions from the gut were found + fixed:

  • #1504 re-regression — requirement_mgr::createFromMap() still called lang_get() with the typos req_title_lenght_exceeded/req_docid_lenght_exceeded; every import fired two log_level=32 "not localized" Event Viewer WARNING rows. Restored the corrected spellings in the class label init + both over-length branches and re-added the translated keys to the 16 bundles the guts dropped. Over-length import now returns the clean localized skip Req title length exceeded/ with zero new events.
  • #1505 re-regression — unguarded $last_version['is_open'] deref (E_WARNING on a version-less docid hit) re-guarded with is_array().

Re-recorded run - loaded screen with spec context

Re-recorded run - 2-issue import result table (Created rows)

Verified browser flows: pristine 2-issue import (docid Mantis Task ID:<id>, title Issue:<id> - <summary>, description with Steps to reproduce + Additional information via <p>, expected_coverage=1), FROZEN re-import skip, cross-branch Already exists on other branch, 401 anon, 400 missing file, 422 malformed/wrong-root, 404 unknown spec, 400 invalid params, 405 POST-on-init, 403 CSRF + grant map, EN↔RO + de locale, toolbar button on reqSpecView.html shown on r.rights.manage. Event Viewer clean after the fix (AUDIT only); console clean. Regression suite #1528 20/20 PASS in tmp/TLU_Test_Cases.md; fixture tmp/fixtures_1503.php (project 6 WALK1503, spec 7 RS-WALK, 9 RS-OTHER).

Verification appendix — gap #1349 entry-point (2026-09-19)

The originating gap issue #1349 ("Create Req from Issue XML action in reqSpecView") is closed by the toolbar entry point of this screen: the modern Requirement Specification Viewer shows Create Requirements from Issues (#createFromIssuesLink, reqSpecView.html:93) only when the BFF spec_view payload carries rights.manage (mgt_modify_req on the owning project), and wires it (reqSpecView.html:472-473) to reqFromIssues.html?req_spec_id=&tproject_id=.

Re-verified end-to-end on a freshly imported DB (admin/admin, fixture tmp/fixtures_1503.php): button rendered on spec 2 (RS-WALK), import screen loaded with project/spec context, pristine 2-issue import created requirements with exact legacy mapping (docid Mantis Task ID:<id>, title Issue:<id> - <summary>, description with steps-to-reproduce + additional-information via <p>, expected_coverage=1), same-spec re-import skipped as FROZEN (amber rows), Event Viewer clean (0 >= 32), console clean. Suite 1349 6/6 PASS in tmp/TLU_Test_Cases.md.

Viewer toolbar with Create Requirements from Issues

Create Requirements from Issues screen with context

Re-import result — FROZEN duplicate skip
