Task 972 — Restore Code Tracker per-tracker connection checks

Issue: #972 Status: IMPLEMENTED & VERIFIED (2026-09-25) — branch task/issue-972

The gap

The legacy Code Trackers list exposed a manager-only wrench for each stored tracker. Selecting it ran the tracker's interface against its stored configuration and displayed a teal heartbeat or red skull-crossbones result. The modern Dashio list rendered neither the wrench nor a status result, even though the BFF already exposed the connection action.

Legacy sources:

  • lib/codetrackers/codeTrackerView.php:23-24 builds the manager context.
  • gui/templates/dashio/codetrackers/codeTrackerView.tpl:51-61 gates the connection affordance and renders the heartbeat/skull result.
  • tlCodeTracker::getImplementationForType() supplies the stored interface.

Implementation

BFF

api/codetracker/index.php:110-116 now reads and validates the stored tracker type before constructing an interface. The action dispatcher at api/codetracker/index.php:338-368 restricts /{id}/{action} to the known GitHub actions, returns structured 404/400 responses for unknown IDs, unknown actions, and unsupported stored types, and keeps the existing manager rights gate. The stored-connection probe is POST-only so the shared BFF same-origin CSRF guard cannot be bypassed by a cross-site safe request. api/codetracker/index.php:404-414 invokes isConnected() for test_connection and converts unexpected Throwable failures into HTTP 502 JSON instead of allowing a fatal response.

Screen

gui/templates/codetracker/codetrackerView.html:221-301 adds a manager-only wrench and a per-row status holder. checkConnection(id) shows a spinner, suppresses duplicate requests while one is pending, preserves the pending/result state across DataTable rebuilds, and renders localized heartbeat/skull icons for success, configured failure, and transport failure. Names and displayed tracker metadata are escaped before insertion. The view-only path remains free of the Actions column and connection affordances.

Compatibility and localization

lib/functions/tlCodeTracker.class.php:557-561 now supplies an empty type description for an unsupported stored type instead of indexing an undefined array entry. This prevents the list endpoint from generating Event Viewer warnings when malformed legacy data is encountered.

The existing connection result keys are reused. The new ct.checkConnection and ct.connCheckFailed keys were added at line 405/408 in all ten locale bundles: de, en, es, fr, it, ja, pt, ro, ru, and zh.

Verification

The numbered suite in tmp/TLU_Test_Cases.md, Task — Issue #972, passed 9/9:

  1. Manager list and no automatic probe.
  2. Reachable tracker renders heartbeat.
  3. Unreachable tracker renders skull-crossbones.
  4. Duplicate activation is suppressed.
  5. POST-only method/CSRF enforcement, unknown ID/action/type, and transport-error paths return structured errors.
  6. View-only user has no manage affordances and receives HTTP 403.
  7. All locale bundles and PHP/JavaScript/diff gates pass.
  8. Repeated malformed-type probing adds no new Error/Warning event.
  9. A successful edit invalidates a stale connection result.

Measured static checks:

  • php -l api/codetracker/index.php — passed.
  • php -l lib/functions/tlCodeTracker.class.php — passed.
  • python3 -m json.tool for all ten touched locale bundles — passed.
  • Inline JavaScript syntax check — passed.
  • git diff --check — passed.
  • Browser console after the final normal page load — no errors or warnings.

The first malformed-type probe before the compatibility fallback created four historical E_WARNING rows in events at tlCodeTracker.class.php:559-560. After the fallback, the warning count was 4 before and 4 after the repeated probe, so the new Event Viewer delta was zero. The intentional reachable and unreachable fixtures (IDs 1 and 2) remain; the temporary invalid-type row and view-only user/role were removed.

Screenshots

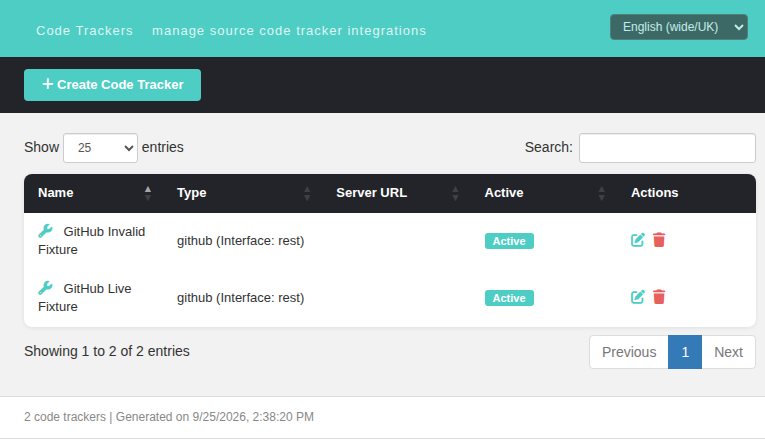

Manager list with connection affordances:

Manager Code Tracker list

Reachable and unreachable connection results:

Heartbeat and skull connection results

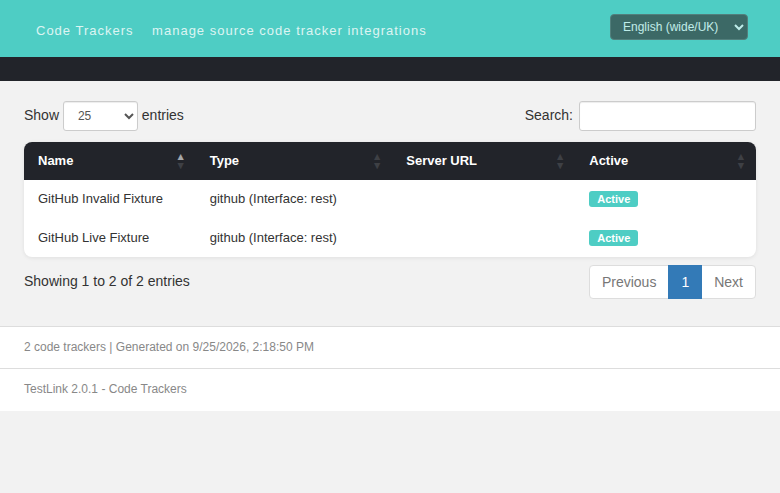

View-only list without management controls:

View-only Code Tracker list

Test data and resume

Environment: http://localhost:8082, MariaDB testlink at 127.0.0.1:3306, manager credentials admin/admin. The final branch is task/issue-972; push it with:

git push origin HEAD:task/issue-972

After the push, close issue #972 only after confirming the final commit and verification checklist. Do not stage .ci_target_issue or config_db.inc.php.
