Requirement Overview (reqOverview)

Modernized screen: Requirement Overview (ASIDE: Requirements Design → Requirement Overview). Refs #566.

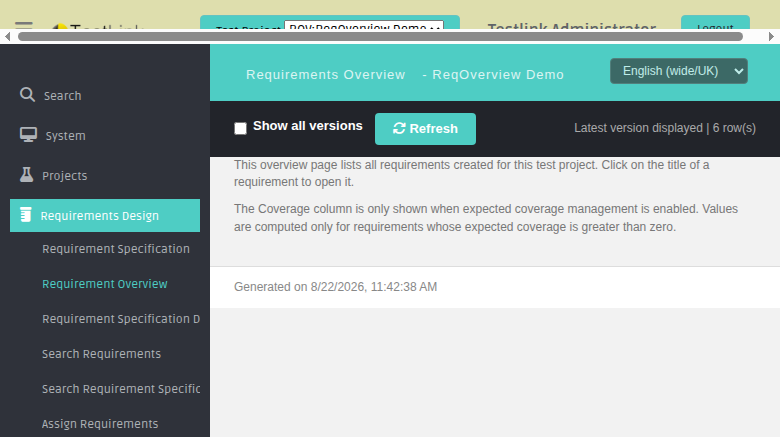

Requirements Overview

Grouping by Requirement Specification (Refs #1034)

The legacy controller grouped the ExtJS grid by the req-spec path and shipped a grid toolbar; the modernized screen originally dropped both. They are now back:

Legacy (1.9.20) Modern (2.0.1)
reqOverview.php:282 $matrix->setGroupByColumnName($labels['req_spec_short']) DataTables RowGroup plugin (dataTables.rowGroup.min.js), rowGroup.dataSrc = 'spec_path' — one collapsible group header per req-spec path, including nested paths (System Requirements/Nested Requirements)
exttable.class.php:591 groupTextTpl: '{text} ({[values.rs.length]} {[values.rs.length > 1 ? "Items" : "Item"]})' group header text {{text}} ({n} Item[s]) with the singular/plural split preserved (Performance Requirements (1 Item))
exttable.class.php:104 toolbarExpandCollapseGroupsButton toolbar Expand/Collapse Groups — collapses/expands every group at once; clicking a single group header toggles only that group (chevron rotates)
exttable.class.php:109 toolbarShowAllColumnsButton + exttable.class.php:55 hideGroupedColumn = true toolbar Show all Columns — the grouped Requirement Specification column is hidden by default and revealed on demand; the button label flips to the inverse action
exttable.class.php:119 toolbarRefreshButton toolbar Refresh — re-fetches the BFF payload, groups rebuilt
exttable.class.php:286-288 default sort (coverage desc, else status desc) order: [[spec asc], [coverage desc]] so groups keep the legacy alphabetical order and rows keep the legacy sort inside each group

The group header is clickable and the toolbar reports its action in an info line (Groups collapsed / Groups expanded). Search, paging and the requirement popup links behave exactly as before, now inside groups.

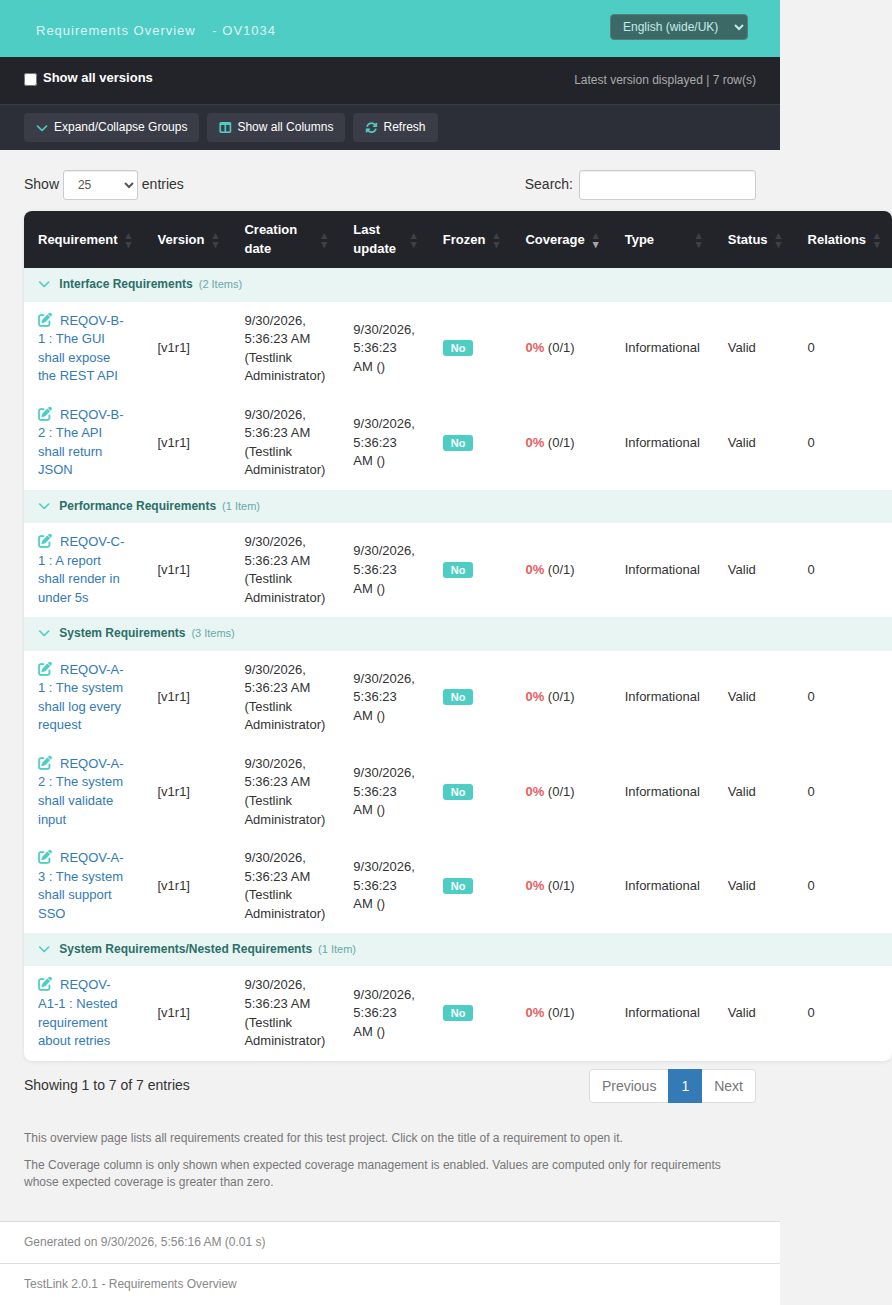

Grouped by Requirement Specification

All groups collapsed + Show all Columns

What it does

Lists every requirement of the active test project in a DataTables grid — same data the legacy ExtJS table showed (lib/requirements/reqOverview.php), rebuilt as a standalone Dashio page backed by a JSON BFF:

Column Notes
Requirement Specification req-spec path of the requirement
Requirement docID : title link + edit pen, opens reqView.php popup
Version [vN rM] version/revision tag
Creation date timestamp + author
Last update timestamp + modifier, or "Never"
Frozen Yes/No badge (blue = frozen, teal = open)
Coverage only when expected coverage management is enabled; pct% (covered/expected), red under 100 %, "n/a" for requirements without expected coverage
Type / Status localized labels from project config
Relations count per requirement, only when relations are enabled

Custom fields linked to requirements at design time are appended as extra columns automatically.

Toolbar

  • Show all versions — toggle between latest version only and all versions of each requirement. Legacy parity: the choice is persisted in $_SESSION['all_versions'] and restored on reload; an explicit all_versions=1|0 URL parameter wins.
  • Grid toolbar (dark bar below the top toolbar): Expand/Collapse Groups, Show all Columns and Refresh — the three buttons the legacy ExtJS grid exposed (reqOverview.php:289-294). See Grouping by Requirement Specification.
  • Locale switcher (all 10 bundles).

All versions displayed

Access & permission

  • ASIDE entry switched from lib/requirements/reqOverview.php to gui/templates/requirements/reqOverview.html ($actions->reqOverView in lib/functions/common.php).
  • Right required: mgt_view_req (BFF also accepts req_tcase_link_management, mirroring the shared requirements router). Without it the API answers HTTP 403 and the screen shows "No permission".

i18n

22 new keys (header.reqOverview, common.refresh, ro.*, ro.col.*) added to all locale bundles: en, de, es, fr, it, ja, pt, ro, ru, zh.

Seven further keys were added with the grouping feature (Refs #1034) to all 10 bundles: ro.grid.expandCollapseGroups, ro.grid.showAllColumns, ro.grid.hideGroupedColumn, ro.grid.groupItem, ro.grid.groupItems, ro.grid.groupsExpanded, ro.grid.groupsCollapsed.

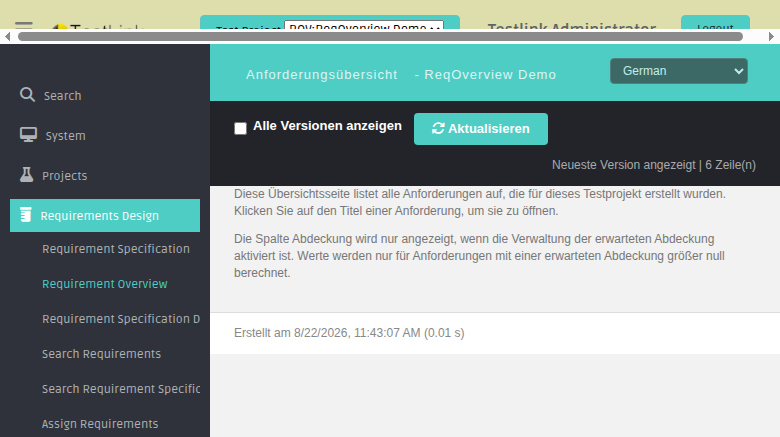

German locale

BFF

GET /api/requirements/index.php/overview?tproject_id=N[&all_versions=1|0]

Returns meta (config flags + label maps + custom fields), items[] (one row per requirement version), total, effective all_versions, elapsed_seconds. Data assembly mirrors the legacy controller: bulk latest-version revision fetch, cached spec paths, coverage counter set, relations counters, bulk custom-field values with date formatting.

Bugs found while testing

  • #569 — api/reqspec create_spec attached specs to tree parent 0, orphaning them (invisible everywhere). Fixed to attach to the test project node.
  • All-versions toggle reset on plain reload instead of using the session — fixed for legacy parity.
  • #1734 — the grid wrapper #tableWrap shipped with an inline display:none and nothing ever removed it, so the requirement grid was never rendered on the screen (only the header, toolbars, notes and footer were visible). Fixed with $('#tableWrap').show() in the success path of renderTable().

Test evidence

Suite 45 in tmp/TLU_Test_Cases.md — 14/14 PASS. Suite 1034 in tmp/TLU_Test_Cases.md — 22/22 PASS (grouping, the three toolbar buttons, single-group toggle, search/ordering interaction, all-versions toggle, ro locale, empty project, invalid project, console, Event Viewer, syntax gate, i18n completeness, diff scope).
