Modernize Import Platforms platformsImport

Modernize-Import-Platforms-platformsImport (#1632)

The legacy Import Platforms page was the last fully legacy standalone screen in the Platforms area. It is now a Dashio HTML/JavaScript screen backed by a session-authenticated PHP BFF.

Why

gui/templates/platforms/platformsView.html opened the import as an inline modal wired to POST /import on api/platforms/index.php, and that route answers counts only. Meanwhile lib/platforms/platformsImport.php — the real standalone page, still reachable by deep link and still a live Smarty render — printed one line per imported/updated platform and one skipped line per <platform> node without a <name>. That per-platform reporting contract was therefore unreachable from the modern UI, and lib/functions/common.php had no $actions->platformsImport (only platformsExport got a link switch in #1583).

Deliverables

• gui/templates/platforms/platformsImport.html — project/test-plan/platform context, import criteria (XML only), documentation link, size hint, locale switcher, Refresh / Back / Cancel actions, per-entry result card, and explicit loading, empty, session-expired, permission and project error states.
• api/platformsimport/index.php — GET ?action=init&tproject_id=N[&tplan_id=M] and POST ?action=import (multipart). Session auth, JSON in/out, project existence check, rights checks, upload limits, XML parsing, create-or-update by name, per-entry results.
• gui/templates/platforms/platformsView.html — the Import button now launches the standalone screen; the inline modal and its doImport() are gone.
• lib/functions/common.php — registers the platformsImport action.
• lib/platforms/platformsImport.php — kept as a session-guarded 302 shim, so every old bookmark and doAction deep link still lands on the new screen.
• All pimp.* labels plus footers.platformsImport exist in all 10 client-side i18n bundles (49 keys referenced by the screen, verified present everywhere).

API

Route	Method	Answers
?action=init	GET	200 project/plan/platform count, import_types, import_limit_bytes, file_formats_doc, grants.platform_management
?action=import	POST	200 {imported, updated, skipped, node_count, imported_total, ok:[{code,name}], ko:[{code,name}]}

Error codes: INVALID_TPROJECT_ID (400), TEST_PROJECT_NOT_FOUND (404), NO_RIGHTS (403), METHOD_NOT_ALLOWED (405), NO_FILE / WRONG_FORMAT (422, with xml_errors[{line,column,message}]), TOO_LARGE and every UPLOAD_ERR_* (413/422), UNKNOWN_ACTION (400), DATABASE_UNAVAILABLE / SERVER_ERROR (500).

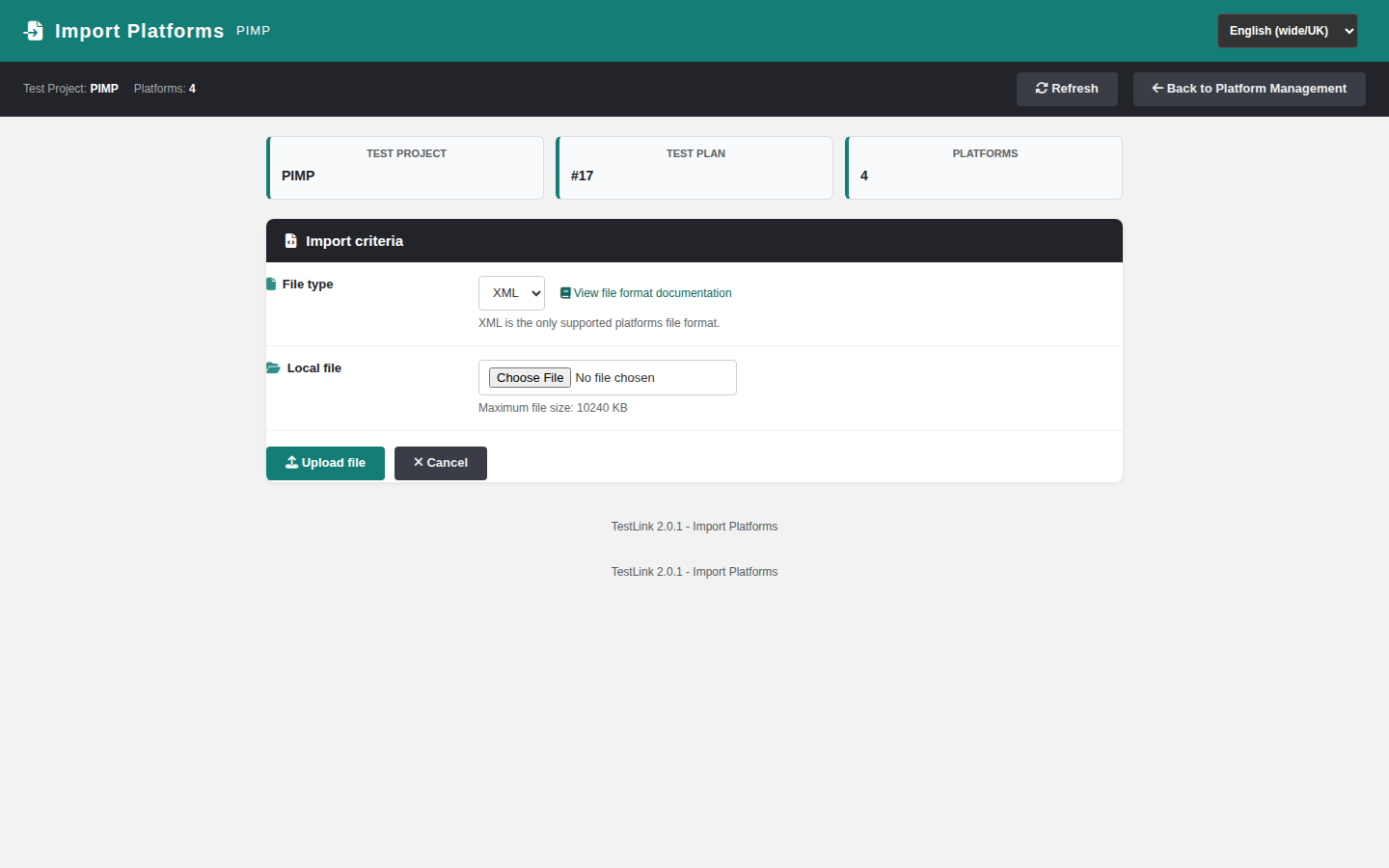

Screenshots

Verification

Scenario	Result
Valid file, 3 entries	1 IMPORTED + 1 UPDATED + 1 BAD_LINE; both rows asserted in the database, including the three flags
Same platform name twice in one file	1 import + 1 update, one row, second node's values win
Not well-formed XML	422 WRONG_FORMAT with libxml line/column; form stays usable
Plain text / zero-byte file	422 WRONG_FORMAT
Valid but empty <platforms/>	200, node_count 0, "no platform entries" empty state
Wrong root (a test-case export)	422 WRONG_FORMAT, nothing written
<platform> without <is_open>	created/updated closed, matching legacy
3 MB file	413, size-limit message
Unknown / missing / non-numeric project	404 / 400 / 400
GET on import, POST on init	405 METHOD_NOT_ALLOWED
Anonymous request	401, session-expired state
Viewer (platform_view only)	init 200 read-only screen, Upload and file picker disabled, import 403
No rights at all	init 403, no project name or platform count in the body
Denied attempts	audit_security_user_right_missing written to the Event Viewer — VIEW for the page gate, IMPORT for the upload gate
Legacy deep link	302 to the standalone screen, testproject_id/testplan_id aliases honoured
Romanian locale	every label, button, hint, chip and the footer translated
No JavaScript errors	console clean in all states

Browser verification used the disposable Test Project PIMP (id 16) and plan PIMP Plan (id 17) created by tmp/fixtures_1632.php. No unexpected JavaScript exceptions or new PHP Error/Warning output were observed.

A platform_view holder reaches the screen in a disabled state. Legacy could not even open the page for them, because checkRights() required platform_management for every request.

Legacy parity notes

• doImport() walked the file with foreach($xml as $platform), i.e. the root's direct children. A whole-project TestLink export (root <TestLink>) therefore produces one nameless child and one "bad line" — the BFF reproduces this exactly, so fixtures must use <platforms> as the root.
• Legacy wrote the upload to TL_TEMP_PATH . session_id() . "-import_platforms.tmp" and never deleted it; the BFF unlinks it in a finally block.
• The rights gate is the one deliberate superset: legacy required platform_management for the page view as well as the upload. The modern split (init needs platform_view, import needs platform_management) keeps the view right as the guard on init rather than dropping it.

Bugs found and fixed while testing

1. Upload button permanently disabled for platform_management holders — load() called busy(false) before assigning canManage, and busy(false) re-enables Upload only when the grant is already known.
2. Documentation link 404 — the BFF returned the raw PARTIAL_URL_TL_FILE_FORMATS_DOCUMENT (docs/tl-file-formats.pdf), which the browser resolves against the current screen directory. Legacy prefixed it with $basehref; the BFF now returns it root-relative, like api/platformsexport.
3. Repeated platform name lost data — the in-memory name map was seeded with id => 0 after create(), so the next node with that name called update(0, …) (a no-op) while still reporting "updated". The real id from create() is now stored, and create()'s failure status is honoured instead of counting a platform that was never written as imported.
4. 405 leaked an untranslated server string — now error_code METHOD_NOT_ALLOWED with its own i18n key.

Code review findings (also fixed)

The mandatory subagent code review of this change set found no blockers and six should-fix items, all of which are now fixed and covered by 9 new regression cases (Suite 1632: 83/83):

5. A wrong file could be imported — only well-formedness was checked, so a test-case export (<testlink><testcase><name>TC-1 Login</name>) created one platform per test case and reported them as imported. The BFF now requires the <platforms> root and <platform> children (what both the legacy exporter and api/platformsexport emit) and answers 422 WRONG_FORMAT otherwise; a non-<platform> child is a BAD_LINE.
6. A failed write was reported as UPDATED — tlPlatform::update() returns tl::OK or E_DBERROR and the value was dropped. It is now checked, like the create() branch.
7. A missing <is_open> silently re-opened closed platforms — the modern default was 1 (open) while legacy read intval($platform->is_open) (0, closed). The legacy default is restored.
8. A denied page view was audited as activity=IMPORT — now VIEW (as in api/issuetracker).
9. UPLOAD_ERROR was untranslated — now mapped to pimp.errUpload, and the generic r.message fall-through is escaped before it is injected.
10. The footer rendered twice and showState() had a dead i18n-key branch; both cleaned up. A POST body over post_max_size also now answers 413 TOO_LARGE.

Separately filed: #1634 — the class autoloader wraps include_once in catch (Exception), but since PHP 7 a failed include raises E_WARNING, so the catch can never run and every missing class adds two Error/Warning rows to the Event Viewer. It was fixed independently on the branch by #1593 (stream_resolve_include_path() guard), so #1634 is closed as its duplicate.

Test suite

Suite 1632 — Import Platforms standalone screen and BFF was added to tmp/TLU_Test_Cases.md: 83/83 PASS in tmp/verify_1632.sh (verified discriminating: 67 PASS / 7 FAIL against the pre-fix code, 76 PASS / 7 FAIL against the pre-review BFF), plus 12 browser-only checks.

Files

• api/platformsimport/index.php — import BFF (init + import)
• gui/templates/platforms/platformsImport.html — standalone Dashio screen
• gui/templates/platforms/platformsView.html — live launcher wiring
• lib/platforms/platformsImport.php — session-guarded 302 shim
• lib/functions/common.php — action registration
• gui/templates/i18n/*.json — localized pimp.* keys (10 bundles)
• docs/screenshots/issue-1632-platformsimport-*.png — browser evidence

Refs #1632.
