Modernize Direct Links Gateway ltxDirectLink

Direct Links Gateway (ltx.php) — Modernized

Issue #1677 · screen gui/templates/links/ltxDirectLink.html · BFF api/ltx/index.php

The repo-root gateway ltx.php was the last root-level controller still rendering a full Smarty frameset in TestLink 2.0.1. It is now a Dashio resolver screen backed by a REST BFF, with ltx.php kept as a session-guarded 302 shim so every existing deep link keeps working.

What the legacy screen did

A two-step frameset, not a single page:

Step	Entry	What it did
1 — outer frame	ltx.php?item=…	init_args() + checkTestPlan(), then main.tpl = navBar + asideMenu + an iframe pointing back at ltx.php&load=1
2 — inner frame	ltx.php?item=…&load=1	launch_inner_exec() / launch_inner_xta2m() re-resolved the context, then frmInner.tpl (exec navigator + lib/execute/execSetResults.php) or workframe.tpl (single frame)

Three Smarty templates, two resolvable link shapes:

• item=exec + build_id + (feature_id or tplan_id+tcversion_id) + platform_id (+ anchor)
• item=xta2m + user_id + tplan_id (+ build_id) — "eXecution Tasks Assigned TO Me"

Failures were reported with raw untranslated echo / die() markers LTX-01 … LTX-10.

Its already-modernized siblings — linkto.php (#1532/#1542), lnl.php (#1541), ltcp.php (#1623) — made this the last one standing.

The modern screen

gui/templates/links/ltxDirectLink.html — a resolved-context card (test project, test plan, build, platform, test case external id PREFIX-tc_external_id, suite, version) with clickable chips to switch build, platform, or any version linked to the plan without editing the link, a primary Open Execution and a secondary Open Navigator, and explicit access-denied / not-found / error cards that each keep the LTX-0x marker visible.

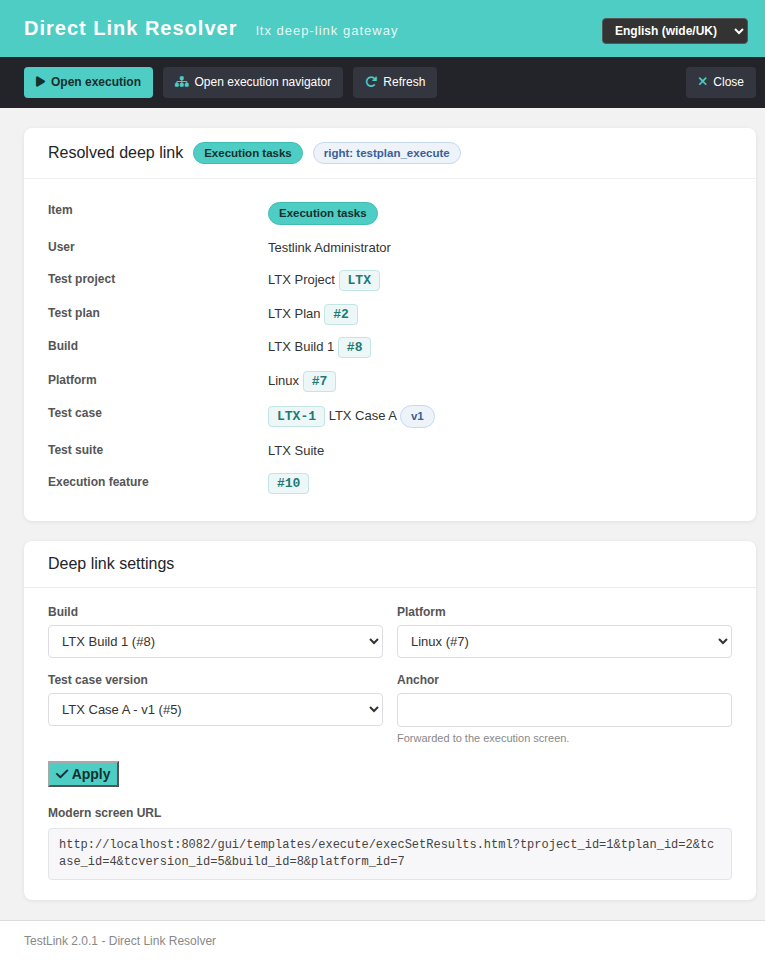

Resolved context for an execution deep link:

Clicking a version chip and Apply re-issues the link with that version's feature_id:

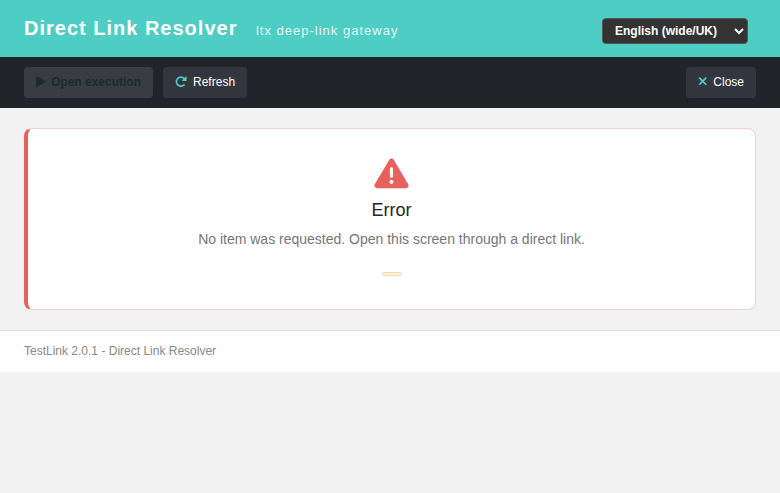

Every failure state is a real screen state, not a browser alert:

State	Card
no testplan_execute right
unknown plan / version / build / platform / feature
unresolvable / unexpected failure
full UI in Romanian (TLi18n)

BFF contract

GET api/ltx/index.php?action=init&item=exec
    &build_id=N[&feature_id=M | &tplan_id=P&tcversion_id=V][&platform_id=R][&anchor=step_3]
GET api/ltx/index.php?action=init&item=xta2m&user_id=U&tplan_id=P[&build_id=N]

Session auth + bffSameOriginGuard + bffEnforceSession; the testplan_execute right is checked on the owning project. GET only (405 otherwise). 7 stable machine codes, and every answer also returns the legacy_code marker so each old outcome stays recognizable.

Code	HTTP	Legacy marker	Meaning
unauthenticated	401	—	no session (anon)
no_rights	403	—	no testplan_execute on the owning project
not_your_tasks	403	LTX-03	user_id ≠ session user
build_id_not_set	400	LTX-04	legacy init_args gate
security_check_ko	400	LTX-01	any item other than exec/xta2m
missing_user_id	400	LTX-01	xta2m without user_id
testplan_not_set	400	LTX-06	xta2m without tplan_id
plan_not_found	404	LTX-02	die("ltx - tplan info does not exist")
unknown_build / tcversion_not_found / unknown_platform / version_not_in_plan	404	LTX-09	the legacy die() class
unknown_feature	404	LTX-10	null feature_id recordset
method_not_allowed	405	—	non-GET
server_error	500	—	DB connection failed, guarded JSON

The legacy table also listed LTX-05 (item_not_set) and LTX-08 (platform_id_not_set), but no legacy branch ever reached them — item was validated by the init_args switch that answers LTX-01, and a missing platform_id is optional. They are not emulated. 19 distinct machine codes are emitted in total.

Links now hand over to the already-modern execSetResults.html, execNavigator.html and assignedTcOverview.html instead of the still-legacy lib/execute/*.php renderers.

The shim

ltx.php is a pure 302: session guard first, then Location: …/gui/templates/links/ltxDirectLink.html?<query>, then exit().

• The whole query string is forwarded unchanged — including the legacy &load=1 inner-frame URL.
• CR/LF are stripped from the forwarded query string (header injection).
• testlinkInitPage($db, true) runs before the redirect, so an anonymous deep link still bounces to login.php?note=expired&destination=…, exactly as in 1.9.20. This gateway is not public, unlike lnl.php / ltcp.php.

Security fixes

Each was a real hole in 1.9.20, found by porting the branch:

1. &load=1 auth bypass — the inner frame re-resolved the context without the outer checkTestPlan(), so a no-rights user holding a load=1 deep link reached execution. Now a single code path with the rights check always applied.
2. xta2m "assigned to ME" — the user_id != session user rejection lived only in the outer frame, so the inner frame served another user's assigned tasks. Now 403 not_your_tasks.
3. Cross-plan access — neither the feature_id path nor the explicit tcversion_id path proved the version belonged to the addressed plan. Now 404 version_not_in_plan.
4. NULL dereference — an unknown feature_id / tcversion_id read parent_id off a null recordset (PHP 8 fatal). Now typed failures.
5. Unsafe anchor — interpolated unfiltered into the iframe src. Now whitelisted.
6. Non-numeric params — build_id=1abc passed the legacy if ($b_id) test because 1abc is truthy in PHP. Now intval-gated.

Bugs found while testing

• #1678 (fixed, fc0777408) — testplan::get_parenttestsuites() recursed on a NULL parent_id, producing AND NH.id = → MariaDB 1064 and a log_level=1 DATABASE Event Viewer row on every hit from any screen on the get_testsuites() reporting path. Guarded with intval() + a <= 0 short-circuit; the 2.0.1 nodes_hierarchy refactor made parent_id nullable, which makes the shape far easier to reach than in 1.9.20.
• #1679 (filed here, fixed repo-wide by a concurrent run) — bffSameOriginGuard() short-circuited on X-Requested-With before reading Origin/Referer. Not CORS-exploitable (no BFF emits Access-Control-Allow-Origin), but the guard is shared by 100+ endpoints, so the fix could not be bundled into a screen commit. api/_guard.php now validates Origin/Referer first and demotes the XRW hint to a fallback, with default-port normalization and rejection of an unparseable Origin.

i18n

ltx.* (53 keys) + footers.ltxDirectLink in all 10 bundles (en, ro, de, es, fr, it, pt, ru, ja, zh), validated with python3 -m json.tool. No hardcoded strings.

Code review

The mandatory subagent review found 1 MAJOR, 14 MINOR, 14 NIT and no security hole — it could not find a path around the version_not_in_plan proof, and rated the .fail() handling better than execDashboard.html's. Everything actionable is fixed; the interesting ones:

• MAJOR — the platform selector was a silent no-op. applySettings() always re-emitted a feature_id, and the BFF's feature_id branch then overwrote platform_id from the testplan_tcversions row. Choosing a platform and clicking Apply snapped the context back to the feature row's platform. An explicit platform_id now always wins, and the feature platform is only used as a default.
• MINOR — "No platform" could never take effect. The BFF re-derived the platform from the plan link whenever platform_id <= 0, and the screen's "No platform" <option> has value="", so the choice was indistinguishable from "the link named no platform". Both sides now use presence (isset($_GET['platform_id']) / URLSearchParams.has()) instead of truthiness — including in currentParams(), the BFF request builder, which had the same bug and was only caught by exercising the screen in the browser.
• MINOR — an ambiguous testplan_tcversions row. A version linked under several platforms has one row per platform and the old query had no ORDER BY, so both the reported feature id and the platform fallback came from an arbitrary row. Now ordered, and the requested platform is a preference (a version linked under platform A is still valid on platform B — that must not 404).
• MINOR — the DB was connected before the auth gate. common.php echoes the raw dbms_msg on a failed connect, so a down database produced an HTTP 200 carrying an untranslated host/database name. The connect moved inside the try and behind the guard.
• MINOR — the xta2m branch forwarded build_id unvalidated while the docs claimed membership was proven for all three link shapes. It is now proven against the owning project.
• MINOR — N+1 query and duplicate options. One extra SELECT per linked version (2001 queries on a 2000-TC plan) and one <option> per platform link, so a multi-platform version rendered duplicate option values. Replaced by a single LEFT JOIN + GROUP BY.
• MINOR — the header comment claimed two branches that do not exist (LTX-05, LTX-08) and the docs listed "7 stable machine codes" where 19 are emitted. Both regenerated from the source.
• MINOR — 2 unreachable i18n keys (ltx.errPlatformNotSet, ltx.errUnauthenticated) removed from all 10 bundles and from the screen's error map.

Tests

tmp/suite_1677.py — 96 executable cases, 96/96 PASS (exit 0): F fixture · A auth · E exec resolution · X xta2m · S security · O options · C contract/legacy markers · H shim · I i18n/wiring · V Event Viewer · R code-review regressions (18 cases, one per review fix, so none of them can silently regress). Plus a browser pass in EN and RO with a clean console.

Event Viewer after the whole run: 0 ERROR/WARNING rows, 0 DATABASE rows, 0 rows mentioning ltx.

Fixture: tmp/fixtures_1677.sql (project 1, plan 2 + alternate plan 12, build 8, platforms 7/9, test case 4 with versions 5/6, feature links 10/11, no-rights user ltxnorights). Node types are the 2.0.1 ones — testproject=1 testsuite=2 testcase=3 testcase_version=4 testplan=5 — the 1.9.20 values in the first draft are what surfaced #1678.
