Requirement Management Systems Modernized

Requirement Management Systems — Modernized Screen

Modernization of the Requirement Management Systems screen (the legacy lib/reqmgrsystems/reqMgrSystemView.php list + reqMgrSystemEdit.php create/ edit modal, plus the lib/ajax/getreqmgrsystemcfgtemplate.php config-template helper) — GitHub issue #980.

The legacy admin-only list is replaced by a standalone Dashio page (gui/templates/reqmgrsystems/reqMgrSystemView.html) backed by a plain-PHP REST BFF (api/reqmgrsystems/index.php, session-based auth, JSON I/O). The ASIDE "System — Req. Management Systems" menu entry (label Req. Management System Management) now points at the new screen.

Screen: gui/templates/reqmgrsystems/reqMgrSystemView.html BFF API: api/reqmgrsystems/index.php (GET /, GET /meta/types, GET /meta/cfg_template?type=<n>, GET /{id}, POST /, PUT /{id}, POST /{id}/check_connection, DELETE /{id}) Rights: reqmgrsystem_management (manage) and reqmgrsystem_view (view). Both rights sit on the same role(s) via $r2cSame — the BFF reports canManage so the screen can hide the create/edit/delete buttons.

Screenshots: docs/screenshots/ReqMgrSystemView-list.png, ReqMgrSystemView-create-modal.png, ReqMgrSystemView-edit-modal.png.

---

Table of Contents

1. What the screen does
2. REST API Reference
3. Legacy parity notes
4. i18n Keys
5. Security
6. Testing

1. What the screen does

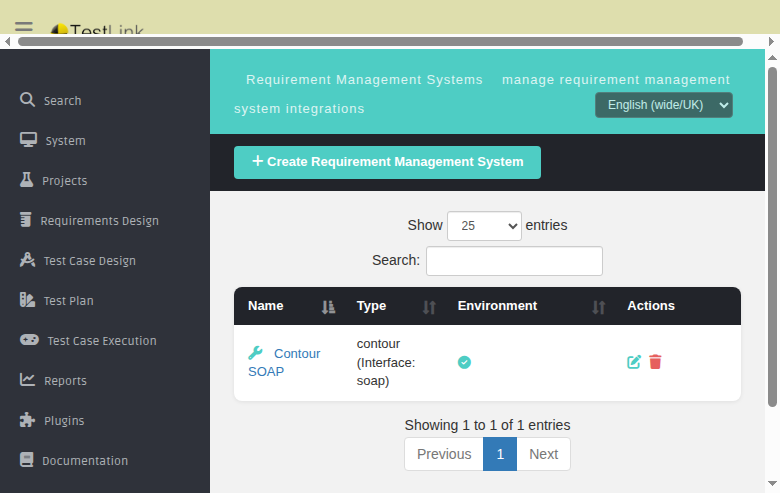

• List card ("Requirement Management Systems"): a DataTable of every reqmgrsystems row showing Name, Type (contour (Interface: soap)), Environment (green check when contoursoapInterface.checkEnv() passes — green stat icon otherwise), and Actions.
• Row actions:
  • name link / wrench icon → live connection probe (contoursoapInterface.isConnected()); when the interface class is not shipped/implemented a clean "Interface contoursoapInterface not implemented" failure is shown (the legacy controller fatal-errors here).
  • edit icon → prefilled Edit Requirement Management System modal.
  • delete icon → confirm() then delete; when the system is linked to a test project the trash is disabled with "Cannot delete - still linked to test projects" (legacy getLinks() gating).

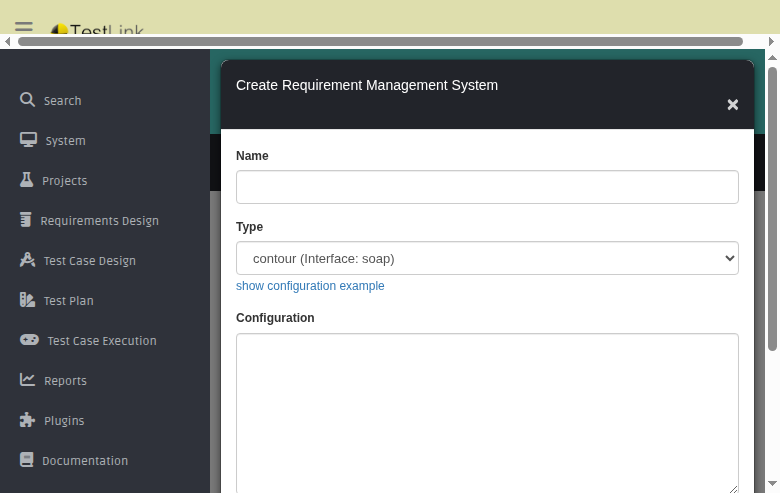

• Create / Edit modal: Name (required, leading/trailing whitespace trimmed), Type dropdown, Configuration textarea (stored as-is, "Configuration is type-specific and stored as-is"), and a show configuration example link that AJAX-fetches the interface's config template (getCfgTemplate()). In edit mode an optional Used on test project(s) box lists every linked test project.
• Footer: 1 requirement management systems | Generated on <client locale DateTime> and TestLink 2.0.1 - Requirement Management Systems.
• i18n: locale switcher (list from api/userinfo/locales), labels from rms.* keys in all 10 bundles.

2. REST API Reference

All routes require a valid session cookie; mutating calls (POST/PUT/ DELETE) must also send X-Requested-With: XMLHttpRequest (same-origin guard).

Method & path	Rights	Description
GET /	view	List all systems, link_count, env probe (env_check_ok); returns canManage
GET /meta/types	view	Registered system types ({code,type,api,enabled,label})
GET /meta/cfg_template?type=<n>	view	Config template example; available:false + message when the interface class file is missing
GET /{id}	view	Single system (incl. cfg) + testprojects[] of link targets; dead links purged first (legacy edit-path parity)
POST /	manage	Create; 400 empty name, 409 duplicate name
PUT /{id}	manage	Update; 400 empty name, 409 duplicate name (blocked when name belongs to another id)
POST /{id}/check_connection	view	isConnected() probe; graceful "interface not implemented" when the class is absent
DELETE /{id}	manage	Delete; 409 when linked to a test project (message lists project names/ids)

3. Legacy parity notes

• The legacy view passes checkEnv => true to getAll(); method_exists() autoloads the missing interface and floods the Event Viewer with E_WARNING include_once(...contoursoapInterface.class.php) rows. The BFF runs the env probe itself behind @class_exists() so a missing implementation costs zero event rows while a present one still runs checkEnv() (Event Viewer stays clean — see Testing).
• checkConnection() instantiates contoursoapInterface (new $class(...)), which fatals on the legacy screen when the class file is not deployed; the BFF returns a JSON error instead.
• Dead-link cleanup on GET /{id} mirrors the legacy initializeGui() behavior (stale testproject_reqmgrsystem rows are unlinked before the link list is read).
• The modals accept the same fields as reqMgrSystemEdit.php; the "Check connection" checkbox from the legacy edit form is not carried over — the connection probe lives on the list row (wrench icon / name link), matching the legacy view behavior.

3a. Deviations from legacy

• Event history icon not ported. The legacy edit modal exposes a "Show event history" icon (right mgt_view_events) linking to the Event Viewer. The modernized edit modal does not render it — event history for requirement management systems remains fully available from the modernized Event Viewer screen (eventviewer/eventviewer.html), which is the ASIDE item right above this entry.
• cfg withheld from view-only users. The legacy edit page (and thus the stored XML configuration, which can contain WSDL/credentials) was gated by reqmgrsystem_management. The BFF returns cfg only on manage-gated routes and in the manage-scoped parts of the single-item response — a user holding only reqmgrsystem_view cannot read stored configurations.

4. i18n Keys

New keys in ALL 10 locale bundles (gui/templates/i18n/{en,de,es,fr,it,ja,pt,ro,ru,zh}.json):

rms.header, rms.headerSub, rms.createSystem, rms.editSystem, rms.name, rms.nameHelp, rms.type, rms.cfg, rms.cfgHelp, rms.cfgExample, rms.showCfgExample, rms.env, rms.usedOnTestProject, rms.systemCount, rms.connOk, rms.connKo, rms.connNotImplemented, rms.validation.required, rms.msg.confirmDelete, rms.msg.errorSave, rms.msg.errorDelete, rms.msg.cannotDeleteLinked, footers.reqMgrSystemView. Reused existing common.* keys for buttons and table chrome.

5. Security

• Same-origin guard (_guard.php bffSameOriginGuard()) on every route; mutating verbs additionally required to carry X-Requested-With.
• View rights = reqmgrsystem_view or reqmgrsystem_management; manage rights = reqmgrsystem_management (verified against legacy $rights['reqmgrsystem_management']/'reqmgrsystem_view' — ids 33/34, admin-only role 8).
• All ids cast with intval(), names quoted via db->prepare_string() in the legacy model; SQL is the legacy model's own parameterless statements.

6. Testing

Exercised via browser (create/edit/delete/locale/validation/duplicate/delete gating/connection probe) and direct BFF curl probes (401 unauth, 400, 403, 404, 409, all verbs). Regression suite appended to tmp/TLU_Test_Cases.md (issue #980). Event Viewer check after the whole session confirmed zero new Error/Warning rows from the modernized screen (the autoload include_once warnings seen during development were eliminated by the @class_exists() guard and do not recur).
