Modernize Attachment Delete popup attachmentDelete

Modernize-Attachment-Delete-popup-attachmentDelete (#1638)

The standalone Attachment Delete popup — lib/attachments/attachmentdelete.php (+ gui/templates/dashio/attachments/attachmentdelete.tpl) — is modernized as a standalone Dashio screen backed by a REST BFF. It deletes a single file attachment from the node it hangs on, and is opened from the Attachments Upload/Download popup (and from every legacy attachment list) via deleteAttachment_onClick().

Background

docs/MODERNIZATION-STATUS.md listed Attachments as partially modernized: Attachments Upload/Download was done in #1525, but its Delete action still pointed at the legacy page. That page was not a dialog at all — it deleted the attachment while rendering it: a plain GET .../attachmentdelete.php?id=N unlinked the file, deleted the row and wrote the audit event before the browser ever saw any UI. Any link, bookmark or crawler hit destroyed data, and the "do you really want to delete?" question only ever existed as a browser confirm on the previous page. The modern screen turns the destructive action into an explicit, session-guarded POST.

Deliverables

• Screen: gui/templates/attachments/attachmentDelete.html — Dashio popup: teal header ("Attachment Delete") with a close button, a context card (object label + owner label + attachment file name / type / size / added date), a Download link to the stored file, the red "this action is irreversible" warning, a Refresh button, the TLi18n locale switcher and the Cancel / Delete button pair. Dedicated state boxes for deleted (success), not found, not allowed, nothing selected, attachments disabled, CSRF blocked and session expired.
• BFF: api/attachmentsdelete/index.php — GET ?action=init&id=N[&table=T][&fk_id=M] returns the attachment detail plus the owner label; POST ?action=delete {id, table, fk_id} deletes the row, unlinks the file and writes audit_attachment_deleted (type attachments, activity DELETE). Session auth via bffEnforceSession, POST-only for the destructive action, bffSameOriginGuard CSRF protection, the cfg->attachments_enabled gate, positive-integer id validation, owner proof from the attach_tableName / attach_fk_id pair (falling back to the legacy $_SESSION['s_lastAttachmentInfos'] allow-list) → 401 anon / 403 disabled-or-not-allowed / 400 bad id / 404 unknown / 405 wrong verb.
• Link switch: deleteAttachment_onClick() in gui/javascript/testlink_library.js now opens gui/templates/attachments/attachmentDelete.html?id=&table=&fk_id= (the legacy caller signature already passes the owning table and fk id, they were simply dropped before). The legacy jsCallDeleteFile() / dlfile delete-on-GET path is no longer reachable from the UI — the four legacy attachment lists (inc_attachments.tpl / attachments.inc.tpl, Dashio + tl-classic) all call the modern function.
• Shim: lib/attachments/attachmentdelete.php is kept as a non-mutating session-guarded 302 redirect onto the modern screen (anon → login) — a legacy deep link now opens the confirmation screen instead of silently deleting the file.
• Legacy templates: the owner context is now forwarded by every attachment list — gui/templates/dashio/include/inc_attachments.tpl, gui/templates/tl-classic/inc_attachments.tpl and the per-screen attachments.inc.tpl wrappers pass attach_tableName / attach_fk_id (for requirement versions req_versions + version_id), so the BFF can prove that the attachment really belongs to the object the user is looking at.
• i18n: adel.* (29 keys) + footers.attachmentDelete in all 10 bundles (en/ro/de/es/fr/it/ja/pt/ru/zh), validated with python3 -m json.tool.

Verification

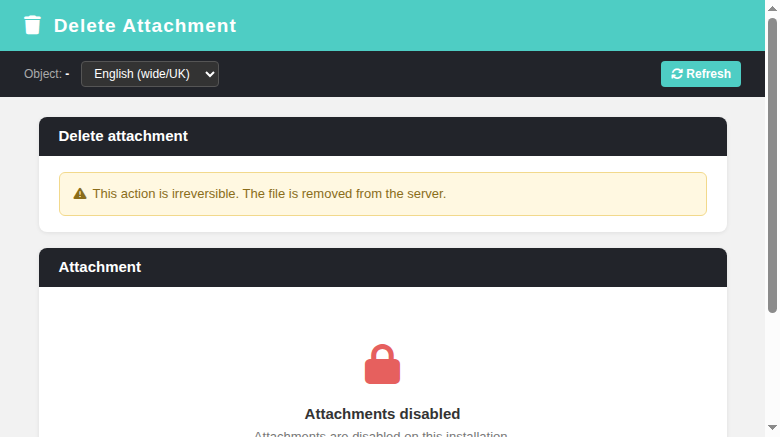

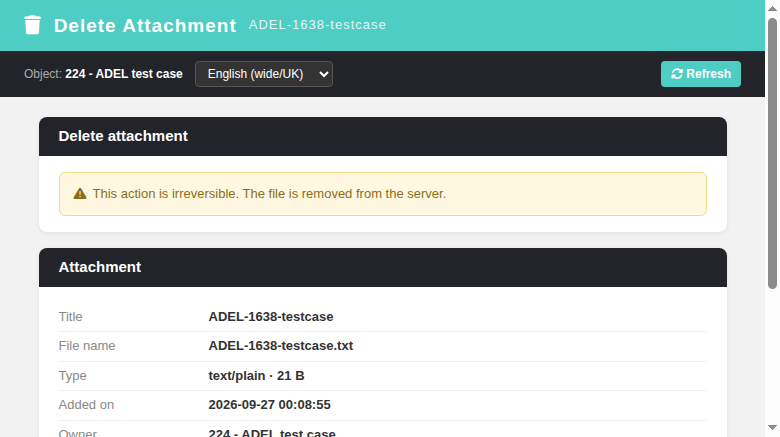

• Browser (admin session): open from the Attachments popup of a test case → context card + file detail render; Delete → POST → success state "The attachment was deleted."; ?id=999999 → not-found state; a Romanian session renders every label in Romanian; a user without the right gets the not-allowed state; no id → "nothing selected"; cfg->attachments_enabled = 0 → disabled state; expired session → redirect to login.php?note=expired; the Attachments Upload/Download list itself is unchanged.
• BFF curl contract: 401 anonymous GET and POST, 405 GET on the delete action, 400 missing/zero/negative id, 404 unknown id, 403 CSRF (POST without X-Requested-With), 403 wrong owner, 200 init, 200 delete.
• Legacy shim: anonymous → login redirect; authenticated → 302 to the modern screen; no row and no file are removed (the destructive GET is gone).
• Event Viewer clean after the run (only audit/login rows, no Error/Warning); console clean; php -l clean.
• Harness tmp/verify_1638.sh (108 assertions, all green) also asserts statically: the delete action is POST-only, the BFF fails closed with NOT_AUTHENTICATED before any query, bffEnforceSession is present, the legacy shim contains no deleteAttachment / attachmentRepository call, the library forwards &table= and &fk_id=, all four legacy templates forward the owner context, both reqViewVersions.tpl variants pass attach_tableName="req_versions", both session lists append instead of clobbering, attach_id is escaped in all four link templates, the attachments->attachmentDelete action is registered, all 29 adel.* keys are identical in the 10 bundles and every key the screen uses is defined, and no new log_level IN (1,2) rows appeared in the Event Viewer.

Bugs found and fixed

1. #1639 — the BFF had no session-auth check. A crafted anonymous POST /api/attachmentsdelete/?action=delete&id=N deleted an attachment. Fixed with bffEnforceSession (401 NOT_AUTHENTICATED) before any query.
2. #1640 — the owner context was lost. attachments.inc.tpl built the link without attach_tableName / attach_fk_id, and the per-version loops in lib/functions/testcase.class.php and lib/requirements/reqView.php overwrote $_SESSION['s_lastAttachmentInfos'] on every iteration, so the session allow-list only ever described the last row. Fixed in the templates (reqViewVersions.tpl now passes attach_tableName="req_versions" + the version id) and by appending (getAttachmentInfosFrom(..., true, 1)) instead of clobbering.
3. Flat-vs-list result mismatch — getAttachmentInfo() returns a single flat row, the code dereferenced $info[0], so every delete was refused with "not allowed".
4. Slim-schema crash — the owner-label enrichment assumed columns (tc_external, builds name) that a reduced TestLink database does not have; the column probe now degrades gracefully.
5. Untranslated button — the Delete button read the raw key adel.deleteBtn (no such key existed).
6. Wrong object type — node type 4 is a test version, but was labelled "Build".
7. Spurious 500 — when the file was already missing on disk the row was deleted correctly but the unlink failure was treated as a hard error; a missing file is now tolerated (the row is the source of truth).

Fixes landed in e5c402ad7, 9dcf71d9c, c6bb0d8f9 and the mandatory code review commit 665128bf2.

Open follow-up

#1647 — object-level authorization. The delete is protected by authentication, CSRF, the feature gate and the owner-context proof, but the BFF does not yet check mgt_modify_key on the owning test project. A logged-in user who guesses a valid (id, table, fk_id) triple can still delete an attachment from a project they have no rights on. Filed with repro steps and a suggested fix; it is deliberately tracked separately from this screen.

Test cases

Suite 1638 (Screen — Attachment Delete popup) in tmp/TLU_Test_Cases.md — 108/108 PASS, plus 10 browser cases executed manually (list, delete, not found, Romanian, not allowed, no id, disabled, session expired, legacy shim, upload list regression).

Screenshots:

Fixture: tmp/fixtures_1638.php (a test project with a test case, a requirement spec, a test plan and an execution, each with an uploaded attachment; ids are dynamic and never hardcoded).

Files

• api/attachmentsdelete/index.php — delete BFF (init + delete)
• gui/templates/attachments/attachmentDelete.html — standalone Dashio popup
• lib/attachments/attachmentdelete.php — session-guarded, non-mutating 302 shim
• gui/javascript/testlink_library.js — deleteAttachment_onClick()
• gui/templates/dashio/include/inc_attachments.tpl, gui/templates/tl-classic/inc_attachments.tpl — owner-context wrappers
• gui/templates/dashio/include/attachments.inc.tpl, gui/templates/tl-classic/attachments.inc.tpl — per-screen owner context
• gui/templates/dashio/requirements/reqViewVersions.tpl, gui/templates/tl-classic/requirements/reqViewVersions.tpl — req_versions owner context
• lib/functions/testcase.class.php, lib/requirements/reqView.php — session allow-list is appended, not clobbered
• gui/templates/i18n/*.json — localized adel.* keys (10 bundles)
• docs/screenshots/issue-1638-attachmentDelete-*.png — browser evidence

Refs #1638.

Issue #1647: object-level authorization on attachment delete (SECURITY FIX)

2026-10-01

A rights-less authenticated user could delete any attachment of any object by POSTing to api/attachmentsdelete/index.php?action=delete or api/attachments/index.php?action=delete. The endpoints proved ownership ((table,fk_id) match + session allow-list) but never asked authorization on the owning object ($currentUser was never used for a rights decision).

Fix: shared gate api/_attachauth.php derives the owning test project from the stored row for every supported fk_table (nodes_hierarchy, testprojects, testplans, builds, executions, execution_tcsteps, req_specs/requirement_specs, requirements, req_versions, keywords, cfields/custom_fields, tcversions) and requires the caller to hold a visibility right on it via tlUser::hasRight(). The check runs after the ownership proof and uses row values (never caller-supplied). NO_RIGHT → 403; the UI maps that to the existing "Not allowed" state. Admins unaffected; the private-project rule (#1763) is enforced; the ?action=init metadata oracle is also closed. ?action=list/upload/download remain ungated (the download path is the public share-link route #1541); they were measured during the run and are tracked in #1768.

Code review outcome (mandatory review): two blockers found and fixed — (1) the "no derivable project" fallback was fail-open: hasRight($db,$right,0) skips the private-project guard (tlUser.class.php:886), so a globally privileged account (built-in roles 4/6/7/9) could still delete attachments of a private project it has no role on — now an owner whose project cannot be derived is denied, except the two project-less owners (node type 13 platform / 14 user); (2) req_versions resolved through latest_req_version, a GROUP BY max() view that only knows the newest version of each requirement, so attachments of older versions (the reqView version selector can attach to those) fell into that same fail-open path — now resolved through the nodes_hierarchy parent walk. Also closed: the rights gate now runs before the ownership proof so ATTACHMENT_NOT_ALLOWED vs NO_RIGHT can no longer enumerate which object owns a guessed attachment id; the untranslated English message was dropped from the api/attachments 403 so reqSpecView/reqView fall back to their localized key; the unused attAuthHasColumn() was deleted.

Verification: 10/10 PASS (rights-less account denied on both endpoints and both owner kinds, admin unchanged, globally privileged user kept on public project and denied on private). Event Viewer: no Error/Warning.

Refs #1647.
