Test Plan Create Edit Modernized

Test Plan Create/Edit — Modernized (TestLink 2.0.1, Refs #1882)

Legacy controller lib/plan/planEdit.php (558 lines) and the Smarty templates gui/templates/dashio/plan/planEdit.tpl + plan/planEditJS.inc.tpl + plan/inc_controls_planEdit.tpl.

Why this screen

It was the last full legacy Smarty renderer in the Test Plan area: every deep link (lib/plan/planEdit.php?do_action=create|edit) still rendered the 1.9.20 screen, while planView.html had only an inline Create/Edit modal. That modal can never reach feature parity with the standalone screen, and three open gaps tracked exactly that:

• #1117 — no copy-from-an-existing-plan, no API key display, no attachments in the modal.
• #1118 — the full legacy copy option set (items2copy, copy_assigned_to, tcversion_type) had no UI at all.
• #1119 — the plan's api_key (remote API / public links) was not visible anywhere in 2.0.1.

Modern stack

Layer	File
Screen	gui/templates/plans/planEdit.html (Dashio standalone HTML/JS/CSS)
BFF	api/planedit/index.php (GET ?action=init, POST ?action=save)
Attachments	api/attachments/index.php (table=testplans, generic)
Legacy	lib/plan/planEdit.php → redirect-only shim (558 → 85 lines)
Wiring	$actions->planEdit in lib/functions/common.php (registered outside the tplan_id guard)
Entry points	api/plans viewActions() links + "Create Test Plan (full screen)" button and per-row editor links in planView.html
i18n	67 pe.* / pv.createFull / pv.editFull / footers.planEdit keys in all 10 bundles

Parity

• Rights — mgt_testplan_create on the addressed test project for every route (create, edit, save, attachments), exactly like legacy init_args() → checkGUISecurityClearance(array('mgt_testplan_create'),'and').
• Name rules — trimmed, required, unique per project; on update the plan's own current name stays valid (nameCanBeUsed logic).
• Copy from an existing plan — the full legacy option set: test cases + version type (current/all), priorities, milestones, user roles, builds, platform links, attachments, copy_assigned_to (tester assignments, gated on "copy builds"), all mapping to testplan::copy_as() items2copy.
• Legacy gating — copy_tcases gates the version/priority radios and forces platform links checked+disabled; copy_builds gates the tester assignments row; source-plan change shows/hides the whole copy block.
• Private plan — creator gets his effective plan role when he has no explicit one (legacy planEdit.php:93-101/151-158).
• API key — read-only display with a Copy button (legacy planEdit.tpl:123-130).
• Attachments — upload / download / delete through api/attachments (uploadedFile[], X-Requested-With: XMLHttpRequest), same owner gate.
• Audit — audit_testplan_created / audit_testplan_saved events, plus the "Show event history" deep link (gated on mgt_view_events).
• Refresh / Back to Test Plans / Close, locale switcher, footer.

BFF contract

Route	Meaning
GET ?action=init&itemID=&tproject_id=	project + plan payload (edit mode adds api_key, attachment rows, copy-source list)
POST ?action=save (form)	create (copy_from_tplan_id + copy options) or update (itemID)

Error codes: 400 invalid/missing ids or PROJECT_MISMATCH, 401 anonymous/expired (UNAUTHENTICATED), 403 no right / CSRF, 404 PLAN_NOT_FOUND, 405 unknown action, 409 DUPLICATE_NAME.

State handling

Every terminal condition is a machine-code state card, and the form is never shown on an error:

Code	Meaning
NO_RIGHT	no mgt_testplan_create on the project (verified with a tester-role user)
PLAN_NOT_FOUND	plan deleted, or itemID not addressable
PROJECT_MISMATCH	plan exists but belongs to another test project
session expiry	bounce to login.php?note=expired with a localized banner

Screenshots

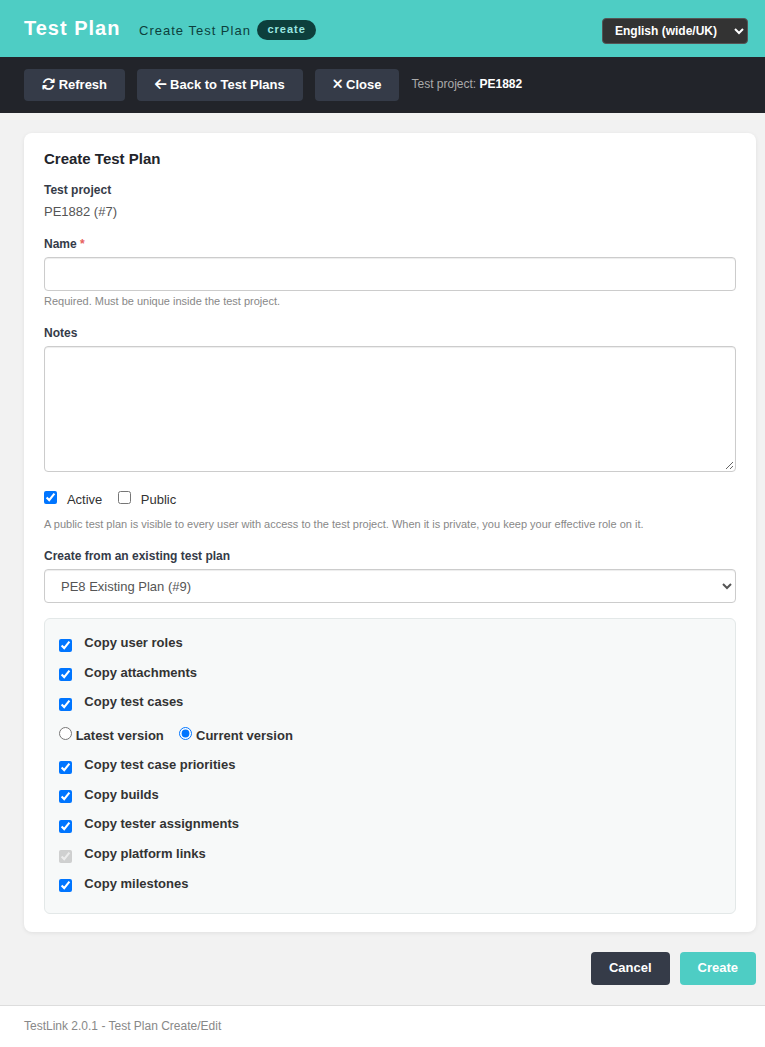

Create mode with the copy-from block expanded:

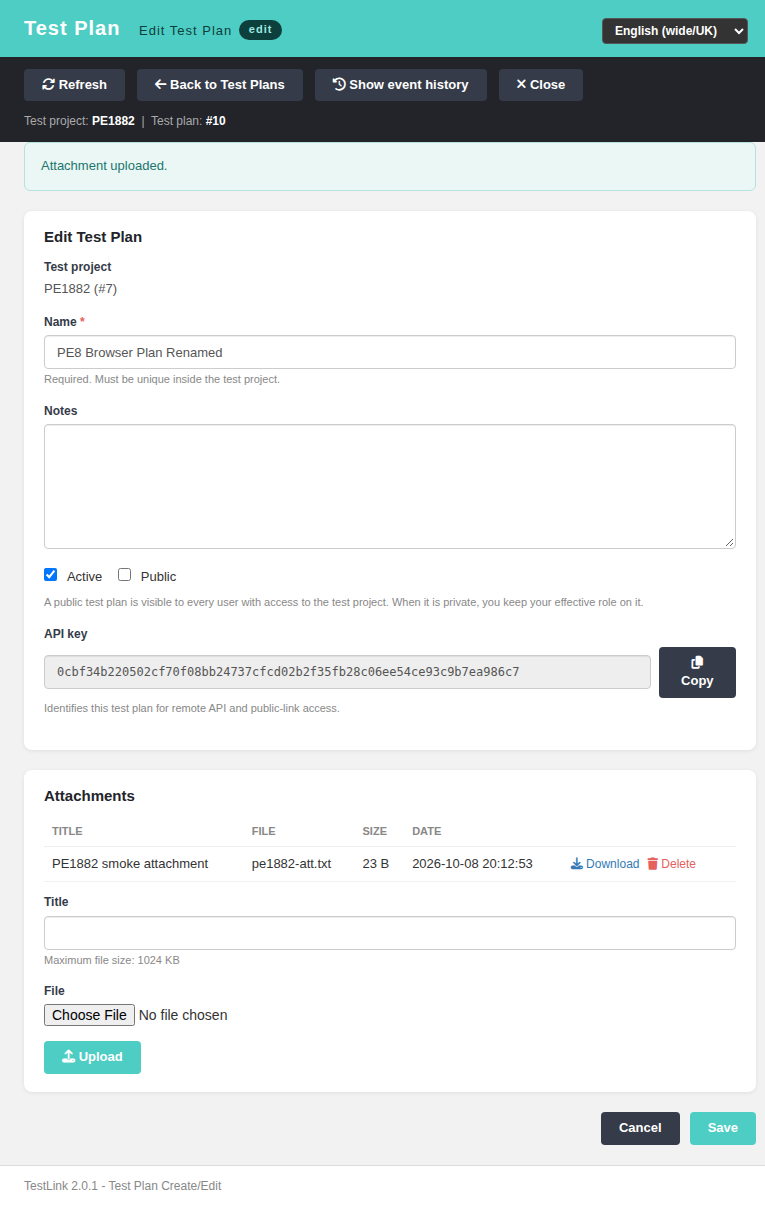

Edit mode — API key, attachments table, event history:

Insufficient rights (role without mgt_testplan_create):

planView.html entry points — toolbar button + per-row editor link:

Defects found and fixed while testing (commit 6009ade75)

• Upload fatal — the screen posted the file as uploadedFile (a plain string) while api/attachments counts $_FILES['uploadedFile']['name'] as an array: PHP 8 TypeError → empty 500. Fixed to the canonical uploadedFile[] field name (as attachmentUpload.html uses).
• Copy-gating parity — copy_platforms_links started enabled; legacy inc_controls_planEdit.tpl:114 starts it checked and disabled while "copy test cases" is on. The rule was only applied on the change handler.
• Event history matched nothing — the link passed objectType=testplan, but events.object_type stores testplans (plural, like builds for buildEdit), so the filter returned 0 of the 3 real audit rows.

Deliberate behavior

do_delete stays where 2.0.1 already put it — the delete confirm modal on planView.html + DELETE api/plans — so a legacy do_action=do_delete bookmark lands on the plan's edit page instead of performing an unchecked write through the removed renderer. The shim refuses non-GET/HEAD with 405 so it can never smuggle a write past the BFF's checks.

Test results

41 / 41 PASS, suite in tmp/TLU_Test_Cases.md (Issue #1882). Covered: BFF contract (401/400/403/404/405/409/create/update/copy), anonymous bounce, create + copy round trip, rename + duplicate-rename, all legacy copy gating, attachments upload/download/delete with content verification, all three state cards (403 with a real no-right user, 404, project mismatch), Romanian locale switch, event history deep link + DB audit rows, both planView entry points, the legacy shim (create/edit redirects, anonymous destination, 405 guard), link-switch greps, the i18n coverage gate (7098 keys × 10 bundles) and a clean Event Viewer (no new Error/Warning entries after the fixes).

Commits

Commit	Content
6596b2d98	BFF api/planedit/index.php
bb6e0974a	the screen gui/templates/plans/planEdit.html
fc61d1a7a	link switch (common.php, api/plans), planView entries, i18n ×10, legacy shim
6009ade75	three bugs found in browser testing
80f099785	test suite (Issue #1882, 41 cases)
