Documentation Hub
The Documentation Hub provides access to TestLink user manuals, guides, and references as PDF documents. It replaces the legacy tools/viewer.php PDF viewer with a modern Dashio-styled page backed by a plain-PHP REST BFF.
Path: ASIDE menu → Documentation
URL: gui/templates/documentation/documentation.html
BFF API: api/documentation/index.php — GET ?action=list (default)
Rights: Any logged-in user (same as legacy viewer — no rights check)
Tracking issue: #764
SCREEN-COMPARE: row 64 ✅ (Refs #1281) — gap closed: good_test_case (docs/bibliographical_references/GoodTest.pdf) and youtrack_readme (docs/youtrack-readme.pdf) were dropped from the BFF vs the legacy tools/viewer.php allowlist (8 entries); both restored with new doc_good_test_case / doc_youtrack_readme lang keys in all 19 locale/*/strings.txt. Legacy viewer kept for backward compatibility.
The Documentation Hub consolidates access to all TestLink documentation in one screen:
| Section | Content |
|---|---|
| PDF Manuals & Guides | 8 PDF documents with View and Download buttons |
| Online Resources | GitHub Wiki link |

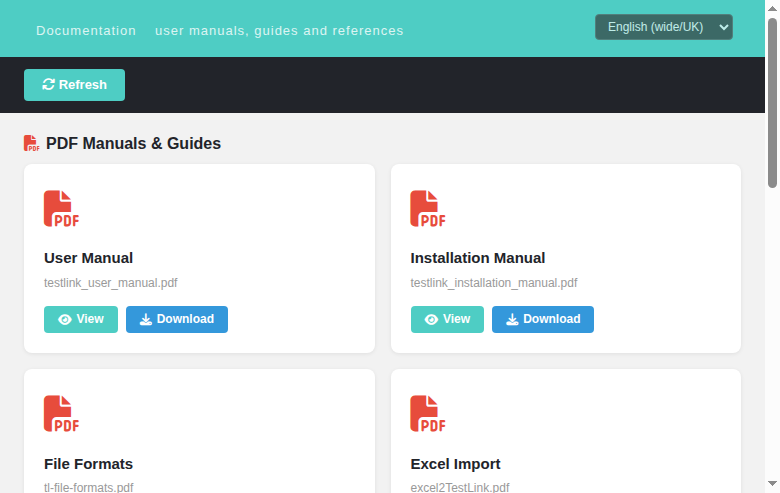

The screen follows the same Dashio visual patterns as other modernized screens: teal header, dark toolbar, card grid layout, Bootstrap modal for PDF viewing.
| Element | Description |
|---|---|
| Header | Teal banner with "Documentation" title, subtitle, locale switcher |
| Toolbar | Refresh button, generation timestamp |
| PDF section | Card grid with 8 document cards (title, filename, View/Download buttons) |
| Wiki section | Card grid with GitHub Wiki link card |
| Footer | Generation timestamp |

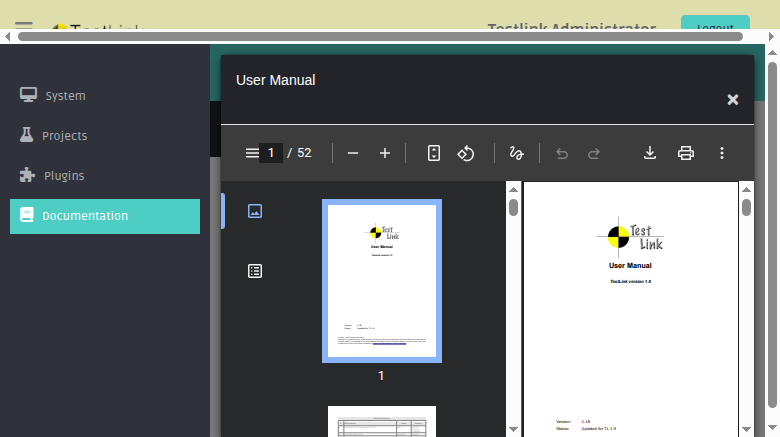

The View button opens each PDF in a Bootstrap modal with an embedded viewer:
SCREEN-COMPARE #1281 — all 8 documents render (incl. restored Good Test Case + YouTrack Readme):
| Key | Title | File |
|---|---|---|
| testlink_user_manual | User Manual | testlink_user_manual.pdf |
| testlink_installation_manual | Installation Manual | testlink_installation_manual.pdf |
| tl_file_formats | File Formats | tl-file-formats.pdf |
| excel2testlink | Excel Import | excel2TestLink.pdf |
| fckeditor_config | FCKEditor Configuration | Configuration_of_FCKEditor_and_CKFinder.pdf |
| tl_bts_howto | Bug Tracking How-To | tl-bts-howto.pdf |
| good_test_case | Good Test Case | docs/bibliographical_references/GoodTest.pdf |
| youtrack_readme | YouTrack Readme | youtrack-readme.pdf |
Additionally, the GitHub Wiki is linked as an online resource.
The two documents above were restored by 5236bfe7d (BFF $docs) and 7892bb3f4
(i18n, 19 bundles) but issue #1275 was never closed. A full re-verification pass
(13 test cases) confirmed the feature and found one regression the restoring
commit had introduced.
| Check | Result |
|---|---|
BFF returns 8 docs in the legacy tools/viewer.php:11-18 order, both restored keys present, all exists:true
|
PASS |
GoodTest.pdf → 200 application/pdf 205312b
|
PASS |
youtrack-readme.pdf → 200 application/pdf 541169b
|
PASS |
| Screen renders 8 cards; #7 Good Test Case, #8 YouTrack Readme, each with View + Download | PASS |
View modal really paints the PDF (embed 743×307 px, type=application/pdf) |
PASS |
i18n keys present in 19/19 bundles; titles translate (de_DE Guter Testfall, ro_RO Caz de testare bun, zh_CN 好的测试用例) |
PASS |
Legacy viewer.php?file=good_test_case → 200, ?file=youtrack_readme → 200, ?file=bogus_key → 404 (allowlist still enforced) |
PASS |
Console: no errors/warnings; GET /api/documentation/index.php 200
|
PASS |
Event Viewer: only log_level 16 (AUDIT); zero ERROR/WARNING |
PASS |
| BFF without a session cookie → 401 (adding 2 docs did not weaken the guard) | PASS |
That commit appended the two new keys from a stale copy of the bundles. A
set-difference sweep of every bundle against 7892bb3f4^ showed 8 pre-existing
keys had been deleted in the process:
-
locale/cs_CZ/strings.txt— 7 keys (executed_me_and_also,remove_plat_msgbox_title,remove_plat_msgbox_msg,img_title_remove_platform,report_test_automation,error_self_signup_disabled,simplexml_load_file_wrapper_error) plus the// ----- END -----marker. -
locale/ro_RO/strings.txt— 1 key (href_print_req).
Impact per lib/functions/lang_api.php: each missing key silently falls back to
English and fires a LOCALIZATION warning into the Event Viewer.
Both blocks were re-inserted verbatim from 7892bb3f4^. Re-running the sweep now
reports 0 keys lost across all 19 bundles, php -l is clean on both repaired
files, and lang_get() resolves them at runtime:
cs_CZ | remove_plat_msgbox_title=Remove Platform
ro_RO | href_print_req=Document specificație cerințe
gui/templates/documentation/documentation.html — the local esc() helper only
escaped & < > (via $('<div>').text().html()), yet doc titles are interpolated
into data-pdf / data-title attribute values. It now escapes " and '
as well (same helper as plans/planAddTCView.html:165). Not exploitable before —
titles come from translator-controlled strings.txt and pdfUrl is hardcoded —
but it removes the attribute-breakout path entirely.
locale/fr_FR/strings.txt:4089 contains a PHP parse error (unescaped
apostrophes in a single-quoted string), so the entire French locale fails to load.
Introduced by 5cd596219 (Refs #1587), unrelated to #1275. Tracked as #1839.
| Action | Behavior |
|---|---|
| View | Opens a Bootstrap modal with an embedded PDF viewer (<embed> tag) |
| Download | Direct download link to the PDF file via <a> with download attribute |
| Open Wiki | Opens GitHub Wiki in a new browser tab |
| Refresh | Reloads document list from BFF API |
| Locale switcher | Changes UI language via TLi18n module |
| Step | Description |
|---|---|
| 1 | Screen loads, calls TLi18n.load() to initialize i18n |
| 2 |
$.getJSON('/api/documentation/index.php') fetches document list |
| 3 | BFF API checks session, builds document list with titles from lang_get()
|
| 4 | BFF verifies each PDF file exists on disk |
| 5 | JSON response rendered as card grid by renderDocs()
|
| 6 | View button click opens Bootstrap modal with PDF embed |
| Legacy behavior | Modernized behavior |
|---|---|
tools/viewer.php?file=xxx served PDF directly |
Dashboard card view with View/Download |
| Individual ASIDE links per document | Single Documentation link → hub page |
| No UI (just PDF embed) | Dashio-styled card grid with icons |
| No download button | Explicit Download button per document |
| No wiki link | GitHub Wiki card included |
| No i18n | Full TLi18n support (10 locales) |
| No refresh | Refresh button reloads from BFF |
| File | Purpose |
|---|---|
gui/templates/documentation/documentation.html |
Dashio HTML screen |
api/documentation/index.php |
BFF API (document list) |
gui/templates/i18n/en.json (+ 9 other locales) |
i18n keys (doc.* namespace) |
gui/templates/dashio/aside.tpl |
ASIDE link switched to new HTML page |
tools/viewer.php |
Legacy viewer (kept for backward compatibility) |
