Issue 419 — Execution Navigator EXDS(,N) JS Syntax Error Fix

Issue #419

Test Case Execution → Execute Tests: the left-hand navigator rendered an empty tree — no suites, no cases, nothing executable. DevTools console showed Uncaught SyntaxError: Unexpected token ',' followed by Uncaught ReferenceError: treeCfg is not defined.

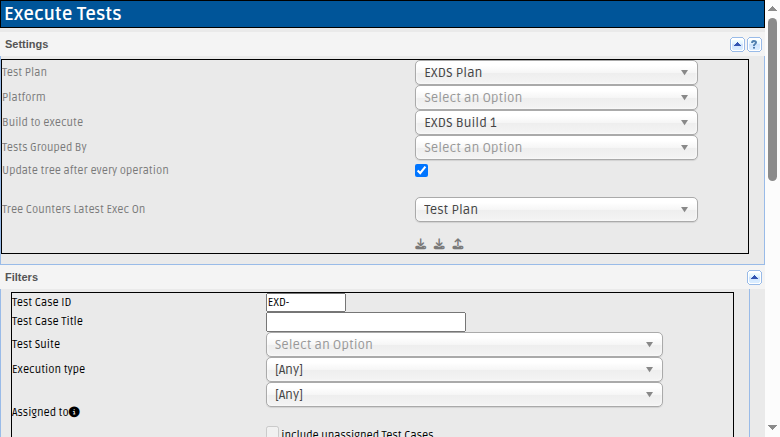

Execution navigator with the tree rendering correctly after the fix

Root Cause

gui/templates/dashio/execute/execNavigator.tpl:57 emits the dashboard bootstrap call:

EXDS({$gui->tproject_id},{$control->args->setting_testplan});

but initializeGui() in lib/execute/execNavigator.php never assigned $gui->tproject_id. Smarty renders an unset property as an empty string, so the browser received:

EXDS(,18);

That is a JavaScript syntax error, and because the call sits in the same inline <script> block that defines treeCfg and registers the Ext.onReady() handler which builds the Ext JS tree, parsing of the entire block aborted. Result: #tree_div was created but never populated.

EXDS(tproject_id, tplan_id) grew its first parameter in gui/javascript/testlink_library.js (EXDS(tproject_id,tplan_id) navigates to lib/execute/execDashboard.php?tproject_id=...&tplan_id=...) while the PHP side was never updated to supply it — a signature drift in the same family as the historical ETS()/ET() drift.

The Fix (HOW)

The minimal PHP-side fix assigns the missing GUI property from the filter control before rendering:

// lib/execute/execNavigator.php — initializeGui()
// Needed by the template to emit EXDS(tproject_id,tplan_id).
// Without it the call is rendered as EXDS(,NN) => JS syntax error that
// aborts the whole inline script, leaving the execution tree unbuilt.
$gui->tproject_id = intval($control->args->testproject_id);

Why this method:

  • The template already expects $gui->tproject_id; supplying it keeps the Smarty/JS contract intact without touching the theme.
  • Alternatives rejected: making EXDS() tolerate empty args (would silently navigate to the wrong dashboard), or moving the bootstrap call into a separate script block (masks the real defect, more churn).

Landed on the default branch in commit 857555dad ("Fix test execution and reporting flow", 2026-08-17).

Verification (2026-08-23)

Fixtures recreated fresh (tmp/fixtures_419.php): project EXDS Demo Project (prefix EXD), suites EXDS Top Suite / EXDS Child Suite, cases EXD-1..3 linked to plan EXDS Plan, build EXDS Build 1.

Check Result
Inline script emits EXDS(6,18); (no empty arg) PASS
Console free of SyntaxError / treeCfg is not defined; typeof treeCfg === 'object' PASS
#tree_div populated (1941 chars of tree markup) PASS
Full flow index.php → aside Execute Tests renders navigator + dashboard frames PASS
Expanded tree lists root, both suites and all 3 cases PASS
Clicking case fires ST(9,10) and loads execSetResults.php form in workframe PASS
Event Viewer: no new Error/Warning attributable to the navigator bootstrap PASS

Full suite: tmp/TLU_Test_Cases.md, Suite 59 (7/7 PASS).

Related findings (filed separately)

  • #613 — chosen.jquery.js loaded before jQuery in frmInner.tpl/workbench.tpl (console ReferenceError on every workarea load).
  • #614 — E_WARNING trio when rendering an execution form (round_enabled undefined in execSetResults.tpl:141 + two null-access warnings).
