Script Edit Popup Modernized

Execution Script Edit Popup — Modernized Screen

Modernization of the Test Scripts lightbox popup (lib/testcases/scriptAdd.php, lib/testcases/scriptDelete.php, the 1.9.20 dashio popup templates scriptAdd.tpl / scriptDelete.tpl), the small window that links/unlinks a code-tracker source file to a test case version right from the Test Case content frame — GitHub issue #1574.

It is the popup twin of the full-screen Test Scripts view (#1543): both read/write the shared legacy table testcase_script_links with the composite key project_key && repository_name && code_path, both speak the GitHub contents API through the BFF, and both produce the legacy audit events audit_testcasescript_added / audit_testcasescript_deleted.

URL: gui/templates/testcases/scriptEdit.html?user_action=create|edit|delete&tcversion_id=<id>&tproject_id=<id>&tplan_id=<id>[&script_id=<key>][&locale=<locale>] BFF API: api/scriptedit/index.php (GET init|meta|files, POST save|delete) Rights: authenticated session required (401 anonymous); mgt_modify_tc on the owning project (403 otherwise) Entry points: legacy open_script_add_window() and deleteScript in gui/javascript/testlink_library.js (now re-routed to the modern popup); legacy scriptAdd.php / scriptDelete.php kept as session-guarded sign-in shims that 302 to the modern popup with the ids preserved.

---

Screenshots

1. What the screen does

Feature	Legacy behavior	Modern implementation
Entry point	fc=scriptAdd action in the legacy TC content frame (frameset popup window, opened only when code_tracker_enabled)	open_script_add_window()/deleteScript in testlink_library.js open scriptEdit.html; user_action=delete auto-opens the delete confirmation
Popup layout	1.9.20 dashio frameset lightbox (header + form, Close X)	standalone Dashio popup: teal header, meta card (Test case / Version / Test project / Test plan / Code tracker), "Add script link" card, "Linked scripts" list, locale switcher, footer
Context	session- and request-bound; popup title showed only the tc external id	BFF resolves the tc version through the nodes tree: external id, version, project + plan names, linked code tracker (name/type/owner/repo/branch)
Script path	free text, Stash-only validation	free text + repository file-tree browser (GitHub contents API; Stash fallback via getRepoContentForHTMLSelect) + click-a-file fills the path
Branch / commit	Stash-only	live GitHub branch list + optional commit picker (metadata endpoint); legacy session keys testscript_projectKey / testscript_repositoryName still honoured
Validation	error_code_does_not_exist_on_cts on CTS	GitHub contents check, same user-facing message (400)
Save	write_testcase_script() — insert, duplicate returns true	BFF POST save mirrors it: duplicate (same triple) is dedupe-first, still status:ok; audit audit_testcasescript_added
Unlink	scriptDelete.php?script_id=project&&repo&&path confirm popup	row trash icon → Bootstrap confirm modal ("Unlink this script from the test case version?") → delete; audit audit_testcasescript_deleted; deep link user_action=delete&script_id= auto-opens the modal
View link	buildViewCodeURL (Stash)	GitHub fallback viewBase/owner/repo/blob/branch/code_path on every row
i18n	hardcoded strings / Smarty	sced.* keys (34) in all 10 bundles + footers.scriptEdit; header locale switcher re-renders the whole popup (&locale=ro full translation)

2. REST API Reference

All routes need a session (401 anonymous) and pass the bffSameOriginGuard (POST: X-Requested-With: XMLHttpRequest or same-origin Referer). Missing action → 405.

Method & path	Purpose	Failure modes
GET ?action=init&tcversion_id=&tproject_id=&user_action=	everything the popup needs in one call: context (tproject/plan/tcversion names + external id + version), can_modify (from mgt_modify_tc), linked code_tracker, metadata (projects/repos/branches/commits for the branch) and the current scripts list	400 missing tcversion; 404 unknown tcversion; 403 mgt_modify_tc right required; tracker-less project → code_tracker:null + tracker_message (screen shows the "no tracker" banner)
GET ?action=meta&tcversion_id=&tproject_id=	repo branches + commits for a branch (githubrest mapped to {sha,full,message,author,date})	400 missing id; 502 Github unreachable
GET ?action=files&tcversion_id=&tproject_id=&branch=&path=	directory listing for the file browser (GitHub contents API; Stash fallback)	400 missing id; 502 fetch failure (renders an in-tree error row)
POST ?action=save {tproject_id,tcversion_id,project_key,repository_name,code_path,branch_name,commit_id}	create script link; duplicate triple is a no-op that returns ok; audit audit_testcasescript_added	400 missing fields, 403 no mgt_modify_tc, 400 Script Link '<path>' does not exist on CTS!
POST ?action=delete {tproject_id,tcversion_id,script_id}	delete by legacy composite id project&&repo&&code_path; audit audit_testcasescript_deleted	400 malformed id, 403 no mgt_modify_tc; unknown link is an idempotent delete (200 ok, legacy scriptDelete parity)

GET init 200 payload (abridged):

{ "status":"ok",
  "context": { "tproject_id":1,"tplan_id":2,"tcversion_id":5,"user_action":"edit",
               "tprojectName":"ScriptEdit Demo","tplanName":"Plan","tcversionName":"SED1574 Scripted TC",
               "tc_external_id":"1","version":"1" },
  "can_modify":"yes",
  "code_tracker": { "name":"ScriptEdit-GH-170909","verboseType":"github (Interface: rest)",
                    "repository":"sebiboga/testlink-upgraded","owner":"sebiboga","repo":"testlink-upgraded","branch":"sebiboga" },
  "metadata": { "project_key":"sebiboga","repository_name":"testlink-upgraded",
                "branches":{ "sebiboga":"sebiboga","task/issue-884": "task/issue-884" }, "commits":[] },
  "scripts": [ { "script_id":"sebiboga&&testlink-upgraded&&README.md","project_key":"sebiboga",
                 "repository_name":"testlink-upgraded","code_path":"README.md","branch_name":"sebiboga",
                 "commit_id":"","link_label":"README.md",
                 "view_url":"https://github.com/sebiboga/testlink-upgraded/blob/sebiboga/README.md" } ] }

3. Legacy parity notes

• Row identity / delete id is exactly the 1.9.20 composite project_key && repository_name && code_path (the PK columns of testcase_script_links) — script_id=x copied from that table still works, as in legacy scriptDelete.php.
• Save is dedupe-first: legacy write_testcase_script() returns true when the row already exists without inserting again; POST save reproduces that (idempotent link/save, as confirmed in the recorded suite).
• CTS validation keeps the legacy user-facing message error_code_does_not_exist_on_cts (Script Link '<path>' does not exist on CTS!).
• The "Create code on the code tracker" action still sends the user to the tracker's createCodeURL.
• Audit parity: audit_testcasescript_added / audit_testcasescript_deleted land in the events table with the same labels as #1543.
• The legacy scriptAdd.php / scriptDelete.php URLs are preserved as session-guarded shims: anonymous → legacy top.location login redirect; authenticated → 302 to the modern popup with user_action, tcversion_id, tproject_id, script_id preserved.
• The screen requires a valid tcversion_id (else the "Access denied / A test case version is required" state); a missing mgt_modify_tc shows the dedicated "You do not have permission to modify test cases." card.

4. i18n Keys

sced.* (34 keys, all 10 bundles) plus footers.scriptEdit. Romanian is a full translation; the other 8 bundles carry the English value. All bundles pass json.tool.

Key	Value (en)
sced.title / sced.addScript / sced.createOnCts	Test Script / Add script link / Create code on the code tracker
sced.testCase / sced.version / sced.project / sced.plan / sced.codeTracker	Test case / Version / Test project / Test plan / Code tracker
sced.projectKey / sced.repository / sced.branchName / sced.commitId / sced.scriptPath	Project / Repository / Branch / Commit id / Script path (code path)
sced.fileBrowser / sced.selectRepoFirst / sced.selectBranchFirst / sced.loadingBrowser / sced.folderEmpty	Repository browser / not-yet-chosen repo / branch / loading / empty folder
sced.linkedScripts / sced.noScripts / sced.view / sced.delete	Linked scripts / No linked scripts / View / Delete
sced.deleteTitle / sced.deleteMsg / sced.deleteError	Delete script link / Unlink this script from the test case version? / delete error
sced.saved / sced.saveError / sced.loadError / sced.required / sced.noModifyRight	Script linked / save error / load error / validation / mgt_modify_tc message
sced.accessDenied / sced.accessDeniedMsg / sced.noTracker	Access denied / tcversion-required message / no code tracker banner
footers.scriptEdit	TestLink 2.0.1 · Script Edit

5. Security

• Session auth + 401 on anonymous (verified via curl, no cookie).
• bffSameOriginGuard CSRF proof on every POST.
• mgt_modify_tc gate: init returns can_modify; save/delete hard-403 when the right is missing (browser shows the localized "no permission" card).
• Prepared statements via $db->prepare_string() on every user string.
• Output escaping in JS (esc()/escJs()); the GitHub view link is built server-side and rendered as a plain <a>.
• No secrets in the repo: the tracker token lives server-side in the code-tracker cfg and is never sent to the client; the fixture uses a public repo (sebiboga/testlink-upgraded, branch sebiboga) so no token is needed.

6. Testing

Executed in the browser (admin/admin, http://localhost:8082) against the fixture tmp/fixtures_1574.php (tproject 1 ScriptEdit Demo with code_tracker_enabled=1, GitHub tracker on the public repo, tcversion 5 with a pre-seeded README.md link, tcversion 8 empty, restricted user norights):

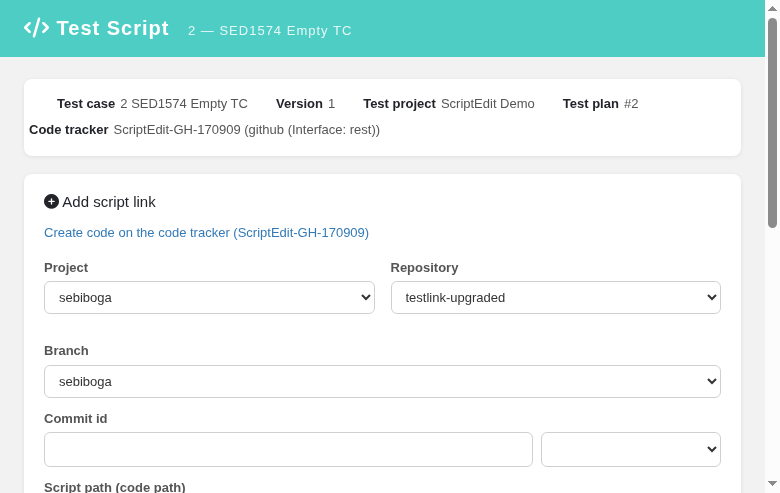

• Init edit context + existing scripts; init create on the empty tcversion returns scripts:[].
• Save LICENSE via the UI → toast "Test Script link added" + DB row; save of an already-linked path is deduped (idempotent); save of a non-existent path → 400 does not exist on CTS!.

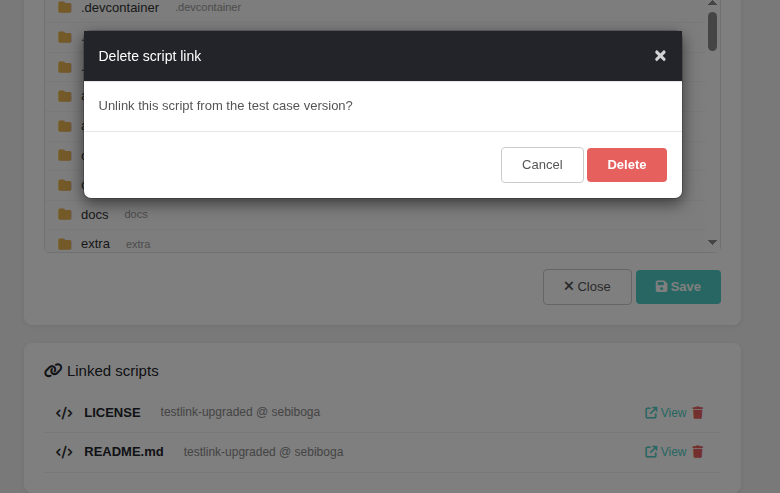

• Row delete → confirm modal → delete → toast + row (and DB row) removed; deep-link user_action=delete&script_id=…&&README.md auto-opens the modal and Cancel keeps the row.
• Repository file browser drills into folders (install/ path crumbs render).

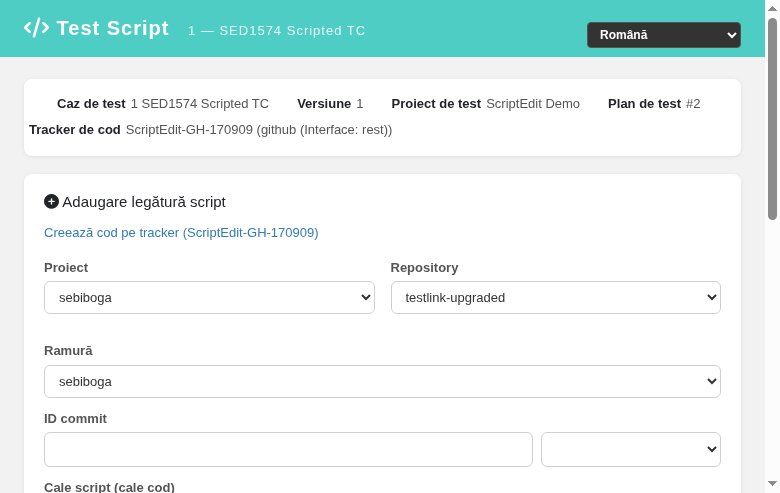

• Locale switcher EN → RO re-renders the whole UI (meta, form, buttons, footer).

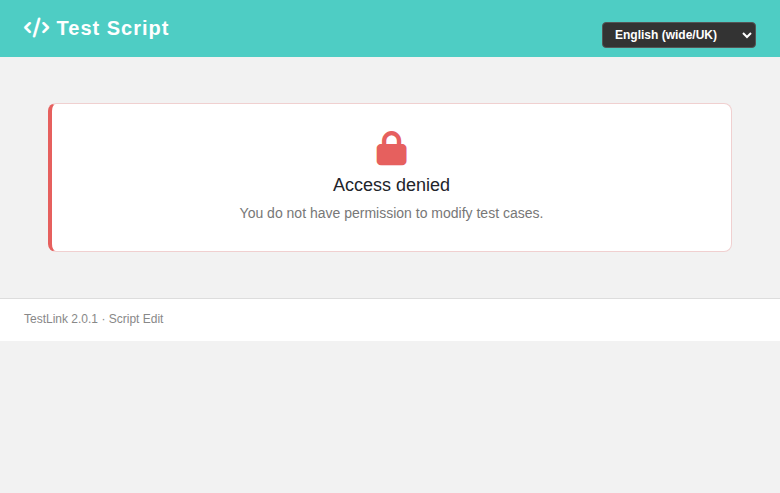

• Rights matrix: anon → 401; norights user → 403 + "Access denied / You do not have permission to modify test cases."; missing action → 405.
• Legacy shims: anon → legacy login redirect; admin → 302 to the modern popup preserving ids.
• Event hygiene: events holds only log_level=16 AUDIT rows (audit_testcasescript_added / audit_testcasescript_deleted); popup console clean; php -l clean on the BFF and both shims.
• All 10 bundles validated (json.tool), screenshots captured for the normal, delete-modal, RO-locale and 403 states.

See tmp/TLU_Test_Cases.md → Suite 1574 (15/15 PASS) for the recorded run.
