Test Data Sets

Test Data Management — versioned a Test Data Sets registry (Refs #1927, parent #1069)

Net-new for 2.0.1: TestLink 1.9.20 treats test data as an afterthought — no data-set entity exists anywhere in the schema (see the #1069 investigation), so there is no legacy twin to port. This module delivers the smallest coherent slice of the parent feature: a project-scoped registry of versioned test data sets, each with a data-type, a PII classification and masking rule, a sample payload, free notes and an optional link to a test case so its usage is traceable.

Documentation mirror of the wiki page; screenshots omitted from this file.

Entry point

• Screen: gui/templates/testdata/testDataSets.html (Dashio standalone HTML/JS/CSS)
• BFF API: api/testdata/index.php
• ASIDE menu: section Test Data (icon fas fa-database), single project-scoped item; shown whenever the user has view_tc or modify_tc.
• URL of the action: $actions->testDataSets (lib/functions/common.php:2310).
• Server label: $TLS_title_test_data_sets in all 19 locale/*/strings.txt.
• No legacy controller/template to retire — the module is net-new.

What the screen does

Area	Behaviour
Metric tiles	Sets, versions, PII/sensitive sets, test cases linked — recomputed from the list on every load
Filters	Data type (reusable / temporary / environment) and classification (public / internal / confidential / pii); explicit no-match empty state
Registry table	DataTable with Name / Type / Class / Linked test case / Version / Updated / Actions

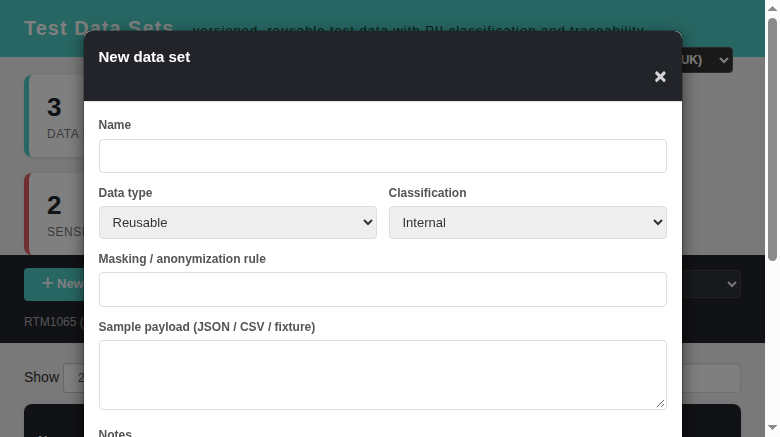

New / Edit	Modal form: name, data type, classification, masking rule, linked test case, sample payload, notes. Editing writes a new version and shows a version chip
Details	Read-only modal; the sample payload is placed with .text() (never HTML)
History	Modal listing all versions of the set, newest first, with payload per version
Delete	Bootstrap confirm ({name} interpolated); deletes the whole set group
Locale	TLi18n locale switcher; every label/placeholder/message is a key
State cards	noProject / noRight / errTitle machine-code states for 400/401/403/404

Data model

One table, created lazily with CREATE TABLE IF NOT EXISTS so a freshly imported database works unchanged; the DDL is also mirrored in install/sql/mysql/testlink_create_tables.sql and the name is whitelisted in lib/functions/object.class.php:

• tc_test_data_sets — one row per version of a set. set_group is the stable identity of the set (a UUID-like token generated on create) shared by all its versions; version increments on every save; data_type, classification, masking_rule, payload, notes and the optional tcase_id are stored per version. List/init return the latest version per set_group.

BFF API — api/testdata/index.php

Session auth + same-origin CSRF guard (bffSameOriginGuard) + bffEnforceSession, JSON in/out. Rights are checked on the addressed test project before it is resolved (the #1697 lesson: no existence oracle):

Route	Rights
GET ?action=init&tproject_id=N → {context, domains, stats, items}	read
GET ?action=list&tproject_id=N → {items}	read
GET ?action=history&tproject_id=N&set_group=G → {name, versions[]}	read
POST ?action=save {set_group?, name, data_type, classification, masking_rule, payload, notes, tcase_id, tproject_id}	write
POST ?action=delete {set_group, tproject_id}	write

• read = mgt_view_tc or mgt_modify_tc on the project
• write = mgt_modify_tc on the project

Machine codes: not_authenticated (401), no_right (403), unknown_action (400), bad_data_type (400), invalid_tcase (400 — a tcase_id not in the project), bad_set_group (400) / tproject_not_found (404); wrong verb → 405; foreign Origin → 403 (CSRF). A tproject_id of 0 falls back to the session project (intended).

save with no set_group creates a new set (version 1, TEST_DATA_CREATE); with an existing set_group it appends the next version (TEST_DATA_VERSION). delete removes the whole group (TEST_DATA_DELETE). All three emit AUDIT Event Viewer rows (log_level 16).

i18n

67 tds.* keys (including the inline tds.footer — this module has no footers.* object) in all 10 client bundles (gui/templates/i18n/*.json), plus $TLS_title_test_data_sets in all 19 server locales (locale/*/strings.txt). ai/verify_i18n_coverage.sh passes (8296 keys).

Verification

Suite Modernize — Issue #1927 in tmp/TLU_Test_Cases.md. Verified in the browser as admin: tiles, filters (incl. empty state), create (linked test case resolves to R6-1 R6 Login Pass), details modal, edit → v2 + version chip, history modal (newest first), delete confirm→delete, toasts; Romanian locale renders translated labels. BFF error paths exercised over curl (401/403/404/400/405, CSRF). The tc_test_data_sets table is empty after delete, and the Event Viewer shows only the intended AUDIT rows (no new Error/Warning).

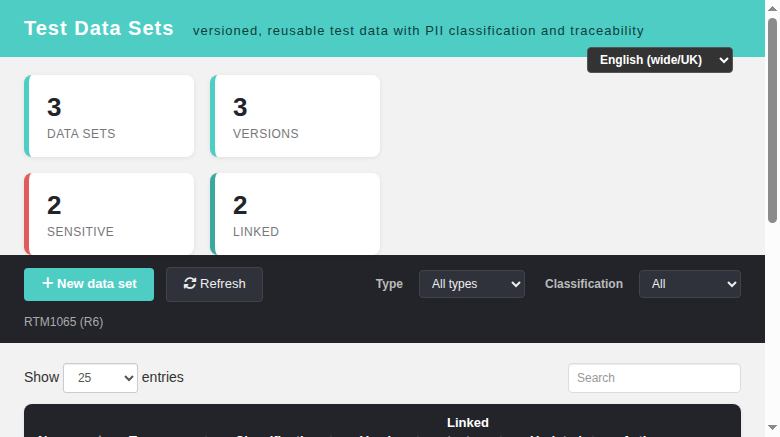

Screenshots
