Test Environments — a project-scoped Test Environment registry (Refs #1928, parent #1070)

Net-new for 2.0.1: TestLink 1.9.20 manages test plans, builds and platforms, but it has no first-class test-environment entity anywhere in the schema. There is therefore no legacy twin to port and no orphan controller to retire. This module delivers the smallest coherent slice of the parent "Test Environment Management" feature: a project-scoped registry of environment definitions — name, type, availability status, base URL, target platform, application version/build, owner and contact, service dependencies and free notes — so a test team can record which environments exist and their state.

Entry point

  • Screen: gui/templates/environments/testEnvironments.html (Dashio standalone HTML/JS/CSS)
  • BFF API: api/environments/index.php
  • ASIDE menu: section Test Environments (icon fas fa-server), single project-scoped item; shown whenever the user can read environments (mgt_view_tc or mgt_modify_tc).
  • URL of the action: $actions->testEnvironments (lib/functions/common.php).
  • Server label: $TLS_title_test_environments in all 19 locale/*/strings.txt.
  • No legacy controller/template to retire — the module is net-new.

What the screen does

Area Behaviour
Metric tiles Total, available, unavailable, unstable and maintenance — recomputed from the list on every load
Filters Type (dev / qa / staging / preprod / prod_like) and status (available / unavailable / unstable / maintenance); explicit no-match empty state
Registry table DataTable with Name / Type / Status / Base URL / Platform / Version / Owner / Updated / Actions
New / Edit Modal form: name, type, status, base URL, platform (browser/device/OS), app version/build, owner, contact, dependencies, notes. New defaults to qa / available; a duplicate name is rejected with duplicate_name (409)
Details Read-only modal showing every field
Delete Bootstrap confirm ({name} interpolated); removes the environment
Locale TLi18n locale switcher; every label/placeholder/message is a key
State cards tenv.noProject / tenv.noRight / tenv.errTitle machine-code states for 400/401/403/404

Data model

One table, created lazily with CREATE TABLE IF NOT EXISTS so a freshly imported database works unchanged; the DDL is also mirrored in install/sql/mysql/testlink_create_tables.sql and the name is whitelisted in lib/functions/object.class.php:

  • tc_test_environments — one row per environment. testproject_id scopes the row to a test project; name, env_type, base_url, platform, app_version, owner, contact, dependencies, notes and status are the definition; created_by, creation_ts and update_ts provide a light audit trail. Indexes: idx_tenv_project (testproject_id) and idx_tenv_status (testproject_id, status).

BFF API — api/environments/index.php

Session auth + same-origin CSRF guard (bffSameOriginGuard), JSON in/out. Rights are checked on the addressed test project before it is resolved (the #1697 lesson: no existence oracle — an unknown project and a forbidden project both fail closed):

Route Rights
GET ?action=init&tproject_id=N → {context, domains, stats, items} read
GET ?action=list&tproject_id=N → {items} read
POST ?action=save {tproject_id, id?, name, env_type, base_url, platform, app_version, owner, contact, dependencies, notes, status} write
POST ?action=delete {tproject_id, id} write
  • read = mgt_view_tc or mgt_modify_tc on the project
  • write = mgt_modify_tc on the project

Machine codes: not_authenticated (401), no_right (403), no_testproject (400), wrong_method (405), unknown_action (400), name_required (400), bad_env_type (400), bad_status (400), duplicate_name (409), env_not_found (404), bad_id (400), insert_failed (500), tproject_not_found (404). A tproject_id of 0 falls back to the session project (intended).

save with no id creates a new environment (TEST_ENV_CREATE); with an existing id it updates it (TEST_ENV_SAVE). delete removes it (TEST_ENV_DELETE). All three emit AUDIT Event Viewer rows (log_level 16).

i18n

61 tenv.* keys plus footers.testEnvironments in all 10 client bundles (gui/templates/i18n/*.json), plus $TLS_title_test_environments in all 19 server locales (locale/*/strings.txt). ai/verify_i18n_coverage.sh passes (8358 keys, 9/9 bundles).

Verification

Suite Modernize — Issue #1928 in tmp/TLU_Test_Cases.md (15/15). Verified in the browser as admin: tiles, type + status filters and the empty state, create, the New-modal defaults (qa / available) plus empty-name and duplicate-name (409) validation, details modal, edit (status maintenance→available, tiles and update_ts updated), delete confirm→delete. The no-project (404) state and the 403 no-right state were exercised with a dedicated right-less user (title Zugriff verweigert, main area hidden, no New button; Access denied in English), and the German locale renders translated labels (Testumgebungen, Neue Umgebung, …). BFF error paths exercised over curl (401/403/404/400/405/409). The console is clean and the Event Viewer shows only the intended AUDIT rows (no new Error/Warning).

Screenshots

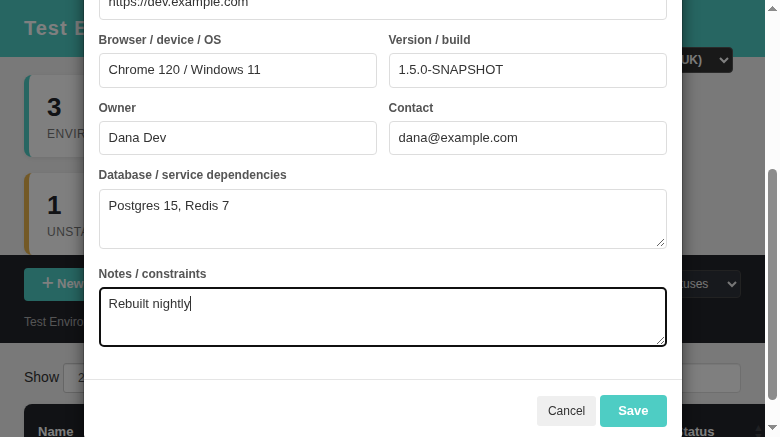

Test Environments — registry with metric tiles, filters and the project chip Test Environments — create modal with QA / Available defaults Test Environments — read-only details modal Test Environments — access-denied state for a user without test-case rights
