Exploratory Sessions

Exploratory Sessions — a project-scoped registry of exploratory charters (Refs #1934, parent #1071)

Net-new for 2.0.1: TestLink 1.9.20 has no first-class exploratory-testing artefact — charters, time boxes and session outcomes exist only as prose in notes or external tools. This module delivers the sessions registry slice of parent issue #1071 ("Exploratory Testing" — charters, sessions, and a session-based coverage report): a project-scoped list where a team records each exploratory session — name, charter, status, tester, timebox, date, environment, purpose, live notes and defect references — with metric tiles, filters and a full CRUD lifecycle. The remaining slices (charter templates, session-based coverage report) stay open under #1071.

Entry point

• Screen: gui/templates/exploratory/exploratorySessions.html (Dashio standalone HTML/JS/CSS)
• BFF API: api/exploratory/index.php
• ASIDE menu: section Exploratory Sessions (icon fas fa-compass), single project-scoped item; shown whenever the user can read test cases (mgt_view_tc or mgt_modify_tc).
• URL of the action: $actions->exploratorySessions (lib/functions/common.php).
• Server label: $TLS_title_exploratory_sessions in all 19 locale/*/strings.txt.
• No legacy controller/template to retire — the module is net-new.

What the screen does

Area	Behaviour

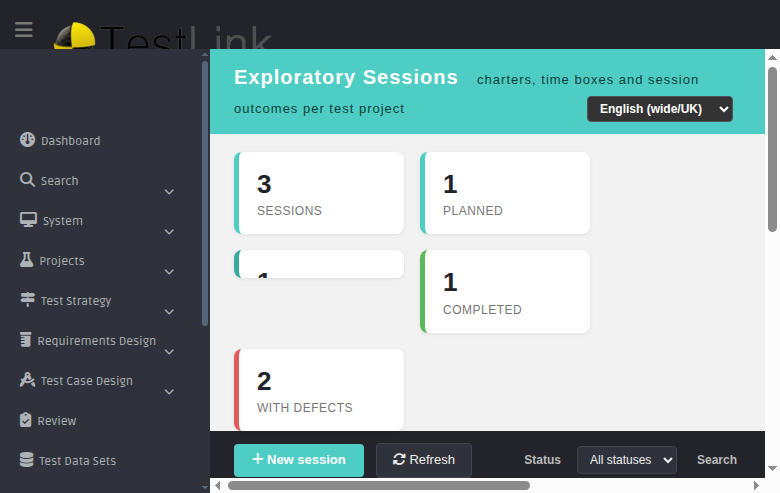

Metric tiles	Total, planned, in progress, completed and with-defects — recomputed from the list on every load
Filters	Status (planned / in_progress / completed / aborted) and free-text search (name, charter, tester, environment); explicit no-match empty state
Registry table	DataTable with Name / Charter / Status / Tester / Timebox / Date / Environment / Updated / Actions
New / Edit	Modal form: name, charter, status, timebox (minutes, min 0), tester, session date, environment, purpose, live notes, defect references (comma-separated). A duplicate name is rejected with duplicate_name (409); empty name, bad date and negative timebox are rejected client- and server-side

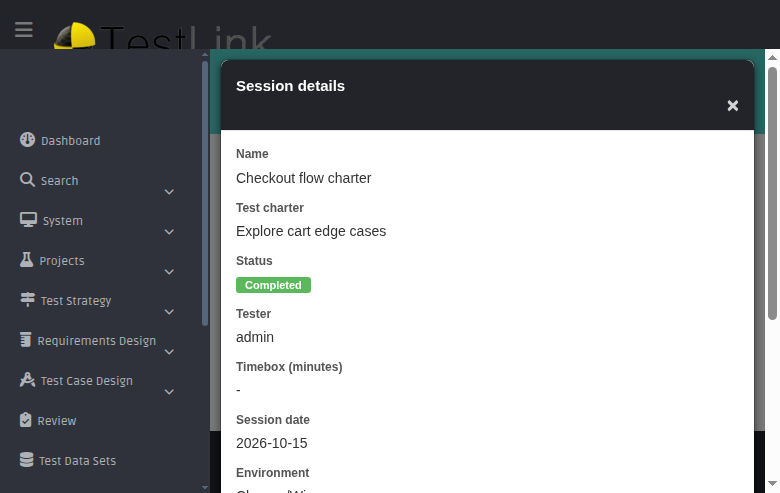

Details	Read-only modal showing every field (defects render - when empty)
Delete	Bootstrap confirm ({name} interpolated); removes the session
Locale	TLi18n locale switcher; every label/placeholder/message is a key
State cards	expl.noProject / expl.noRight / expl.errTitle machine-code states for 400/401/403/404

Status lifecycle: planned → in_progress → completed (or aborted at any point). The tiles double as a lightweight burndown: a healthy project shows sessions flowing to completed and the with-defects tile feeds the defect references recorded per session.

Data model

One table, created lazily with CREATE TABLE IF NOT EXISTS so a freshly imported database works unchanged; the DDL is also mirrored in install/sql/mysql/testlink_create_tables.sql and the name is whitelisted in lib/functions/object.class.php:

• tc_exploratory_sessions — one row per session. testproject_id scopes the row to a test project; name, charter, status, tester, timebox (int minutes), session_date, environment, purpose, notes and defect_refs are the definition; created_by, creation_ts and update_ts provide a light audit trail. Indexes: idx_expl_project (testproject_id, status).

BFF API — api/exploratory/index.php

Session auth + same-origin CSRF guard (bffSameOriginGuard), JSON in/out. Rights are checked on the addressed test project before it is resolved (the #1697 lesson: no existence oracle — an unknown project and a forbidden project both fail closed):

Route	Rights
GET ?action=init&tproject_id=N → {context, stats, items}	read
GET ?action=list&tproject_id=N → {items}	read
POST ?action=save {tproject_id, id?, name, charter, status, timebox, tester, session_date, environment, purpose, notes, defect_refs}	write
POST ?action=delete {tproject_id, id}	write

• read = mgt_view_tc or mgt_modify_tc on the project
• write = mgt_modify_tc on the project

Machine codes: not_authenticated (401), no_right (403), no_testproject (400), wrong_method (405), unknown_action (400), name_required (400), bad_status (400), bad_timebox (400), bad_session_date (400), duplicate_name (409), session_not_found (404), bad_id (400), tproject_not_found (404). A tproject_id of 0 falls back to the session project (intended).

save with no id creates a new session (EXPLORATORY_CREATE); with an existing id it updates it (EXPLORATORY_SAVE). delete removes it (EXPLORATORY_DELETE). All three emit AUDIT Event Viewer rows (log_level 16).

i18n

65 expl.* keys in all 10 client bundles (gui/templates/i18n/*.json), plus $TLS_title_exploratory_sessions in all 19 server locales (locale/*/strings.txt). ai/verify_i18n_coverage.sh passes (8496 keys, 9/9 bundles). The distinct expl.* namespace avoids colliding with any pre-existing key.

Verification

Suite Modernize — Issue #1934 in tmp/TLU_Test_Cases.md (15/15). Verified in the browser as admin: screen load (tiles, filters, footer), New-modal empty-name and duplicate-name (409) validation, create (row + tiles update + EXPLORATORY_CREATE audit), details modal, edit (status in_progress→completed, update_ts bumped, EXPLORATORY_SAVE audit), status/search filters plus the no-match empty state, delete confirm→delete (EXPLORATORY_DELETE audit) and the restored empty state. The 403 no-right state was exercised with a dedicated right-less user (aside item hidden; direct URL shows the "No permission" state card). BFF error paths exercised over curl (401/403/404/400/405/409). The console is clean and the Event Viewer shows only the intended AUDIT rows (no new Error/Warning).

Screenshots
