REST API Reference hub — Modernized (TestLink 2.0.1, Refs #1937, parent #1072)

Net-new in-app REST API reference / endpoint catalogue for TestLink 2.0.1, added as the Documentation ASIDE section's sixth entry (below Documentation, Learn Testing, Accessibility Resources, Accessibility Review and ISTQB Syllabus). TestLink 1.9.20 shipped no API documentation at all, while 2.0.1 exposes a large api/** BFF surface that was previously documented only outside the product — this screen documents it inside the product. Tracking issue #1937, parent feature #1072.

REST API Reference — normal state

Why this screen

  • Parent enhancement #1072 (documented REST API / OpenAPI / webhooks).
  • The ledger's TODO section is empty (every ASIDE entry already maps to a modern .html + BFF), so a genuine net-new Documentation-hub screen was taken instead of a legacy port.
  • Integrators (CI pipelines, scripts, external tools) need one page that states how to authenticate, which HTTP statuses and machine codes are stable, which endpoints exist, and how to publish CI results.

Modern stack

Layer File
Screen gui/templates/documentation/apiReference.html (Dashio standalone HTML/JS/CSS)
BFF api/apireference/index.php (GET|HEAD ?action=init, session auth + same-origin guard + session-inactivity check)
Wiring $actions->apiReference in lib/functions/common.php, consumed by api/aside/index.php section 12 (Documentation)
i18n apiref.* (87 keys) + footers.apiReference in all 10 client bundles; $TLS_title_api_reference in all 19 server locales

Content

  • About this API — intro card plus a live badge counting the API modules discovered on this installation (the catalogue is produced by globbing api/<area>/index.php, so it can never drift from reality).
  • Authentication & request contract — four rules: session cookie (/login.php or POST api/auth → not_authenticated on 401), same-origin on state-changing routes (403 on a foreign Origin/Referer, POST only → 405), session inactivity (session_expired), and the JSON error envelope { status, code, message } — branch on status/code, never on message text.
  • HTTP status & machine codes — the stable error contract shared by every route: 400, 401, 403, 404, 405, 409, 413, 422, 500 with example machine codes.
  • Endpoint catalogue — one card per functional group (session, admin, project, spec, reqs, plans, execute, reports, integrations) with the module count and machine chips for every /api/<area>/; groups with no modules are skipped rather than shown empty.
  • Frequently used endpoints — the 11 routes an integrator needs first (auth, aside, projects, plans, test case edit, set results, results import, CI/CD publish, attachments, reports, report export) with method + path.
  • Automated result publishing (CI/CD) — the cicdpublish endpoint, the accepted formats (junit, json) and the required testplan_execute right.
  • Related in TestLink — deep links (current tproject_id/tplan_id, target=_top) to the Documentation hub, Learn Testing, ISTQB Syllabus, Accessibility Resources and Test Strategy.
  • Toolbar — Refresh and a live filter over endpoints, groups and routes, with a translated empty state.

REST API Reference — anonymous 401 state

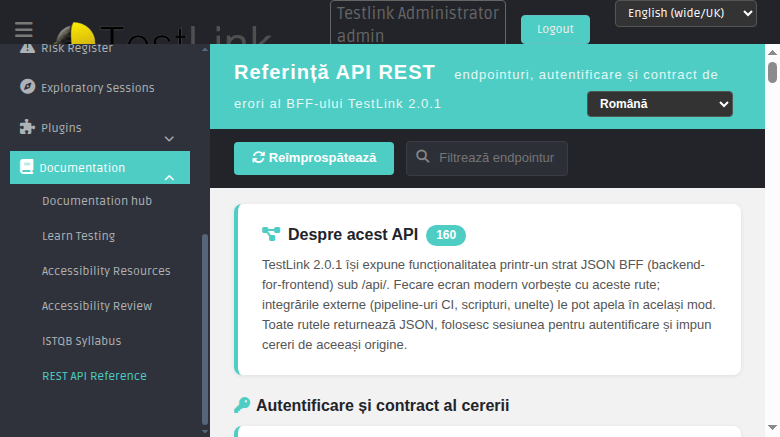

REST API Reference — inside the shell, RO locale

State cards

Machine-code state cards replace raw failures: 401 (session — shows the Log in action → /login.php?note=expired), 403, 400, 405 and 500, each with the translated message and the raw HTTP nnn - code line. The page content is hidden while a state card is shown.

BFF contract

GET|HEAD /api/apireference/index.php?action=init (default) →

{ "status":"ok", "auth":{...}, "ctx":"tproject_id=..&tplan_id=..",
  "totalModules":160, "groups":[...], "featured":[...], "errors":[...],
  "publish":{...}, "related":[...] }

Errors: 400 unknown_action, 401 not_authenticated|session_expired, 403 foreign-origin (state-changing methods only — bffSameOriginGuard() returns early for GET/HEAD/OPTIONS, see api/_guard.php:104), 405 method_not_allowed. Every human label is returned as an i18n key (apiref.*) — no string is hardcoded server-side.

Verification

  • Browser suite Issue #1937 = 26/26 PASS (append-only suite in tmp/TLU_Test_Cases.md; gate TLU_REQUIRE_SUITE="Issue #1937" bash ai/verify_test_suites.sh → 34 PASS / 0 FAIL, 927 → 928 suites, none lost).
  • bash ai/verify_i18n_coverage.sh → 9/9 bundles, 8714 keys, 0 missing.
  • Event Viewer clean (3 rows, all LOGIN INFO, no Error/Warning).
  • Console clean on the screen; one pre-existing shell a11y issue (navBar <label>s without for=) filed as bug #1938.

Discovery

bffSameOriginGuard() skips GET/HEAD/OPTIONS, so a foreign Origin on a read is answered 200, not 403. The first draft of apiref.authOriginDesc implied every foreign-origin request is refused; the wording was corrected in all 10 bundles + the HTML fallback to: "state-changing routes verify Origin/Referer first — a foreign origin is refused with HTTP 403, and only POST is accepted (HTTP 405 otherwise)."
