Test Type Coverage Modernized

Test Type Coverage matrix — Modernized (TestLink 2.0.1, Refs #1945, parent #1052)

Net-new in-app test type coverage matrix for TestLink 2.0.1, third entry of the Test Strategy ASIDE section (right after Test Strategy Documents). TestLink 1.9.20 shipped no test-type tracking entity at all — the Test Strategy area only held the static prose chapter gui/templates/strategy/testTypes.html, so "which test types does this project actually apply, and how far along are they?" was never capturable. This screen is a project-scoped matrix over the 13 canonical test types of the #1052 catalogue (6 functional + 7 non-functional), each with a lifecycle status, an owner and a description. Tracking issue #1945, parent feature #1052.

Why this screen

• Parent enhancement #1052 (test types / test type catalogue). The catalogue itself landed earlier; nothing yet recorded per project which of those types are actually applied.
• The ledger's TODO section is empty (every ASIDE entry already maps to a modern .html + BFF), so a genuine net-new Test Strategy screen was taken instead of a legacy port — this behaviour simply does not exist in 1.9.20.
• Test managers need an answer for audits and strategy reviews: coverage gaps (a type never planned), work in flight and who owns it.

Modern stack

Layer	File
Screen	gui/templates/strategy/testTypeCoverage.html (Dashio standalone HTML/JS/CSS)
BFF	api/testtypecoverage/index.php (GET ?action=init|list, POST ?action=save|delete; session auth + same-origin guard + session-inactivity check)
Wiring	$actions->testTypeCoverage in lib/functions/common.php, consumed by api/aside/index.php section 5 (Test Strategy)
Schema	tc_test_type_coverage — in install/sql/mysql/testlink_create_tables.sql, mirrored by a lazy CREATE TABLE IF NOT EXISTS in the BFF, plus the object.class.php table whitelist
i18n	ttc.* (64 keys, including the 13 ttc.type.* catalogue labels) + footers.testTypeCoverage in all 10 client bundles; $TLS_href_test_strategy_coverage in all 19 server locales

Content

• Project chip — resolved project name and prefix of the addressed tproject_id (deep-linked, session project as fallback).

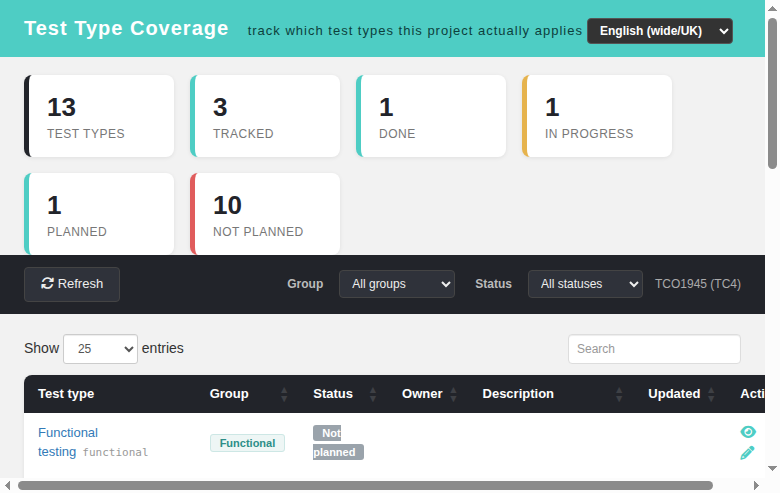

• Metric tiles — total types (13), tracked, done, in progress, planned and not planned; recomputed live after every save/reset.

• Toolbar — Refresh, a group filter (All / Functional / Non-functional), a status filter (All / Not planned / Planned / In progress / Done / Not applicable) and a project info chip.

• Coverage table — one row per catalogue type in catalogue order: type (localized ttc.type.<key> label + machine key chip), group badge, status badge, owner, description tooltip, last update, and the actions View / Edit / Reset (Reset only on stored rows, and only for users with the modify right). DataTables provides search, sort and pagination with a translated empty state.

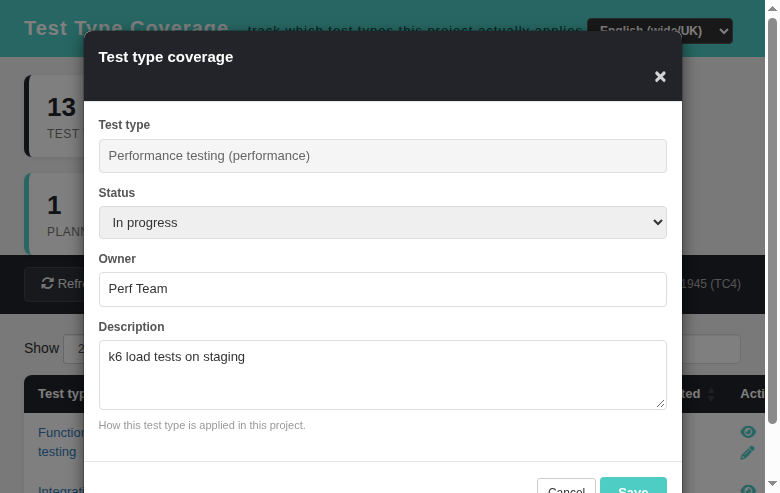

• Edit modal — read-only type field (key in parentheses), status select, owner (128 chars) and description (15 000 chars, byte-capped for the TEXT column), with Save / Cancel and a localized toast on success.

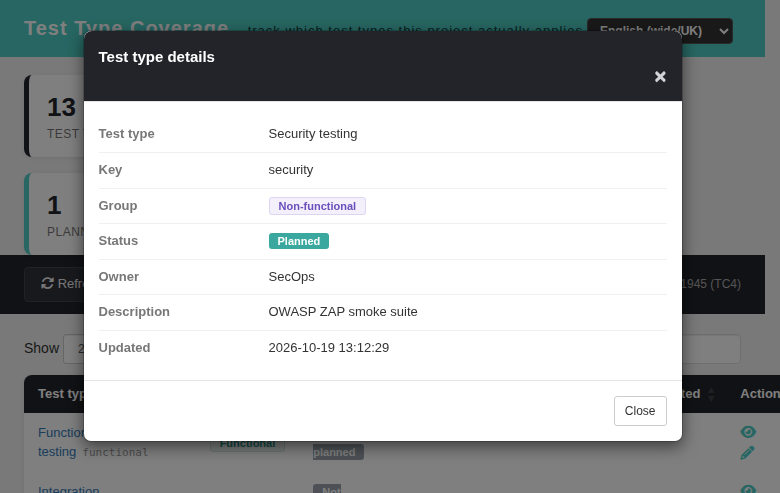

• Details modal — type, key, group, status, owner, description, creation and update timestamps of the stored row (defaults are shown as "not set").

• Reset confirm — Reset "<type>" to its default values?; the reset DELETES the stored row so the row falls back to the catalogue defaults (not_planned, empty owner/description).

State cards

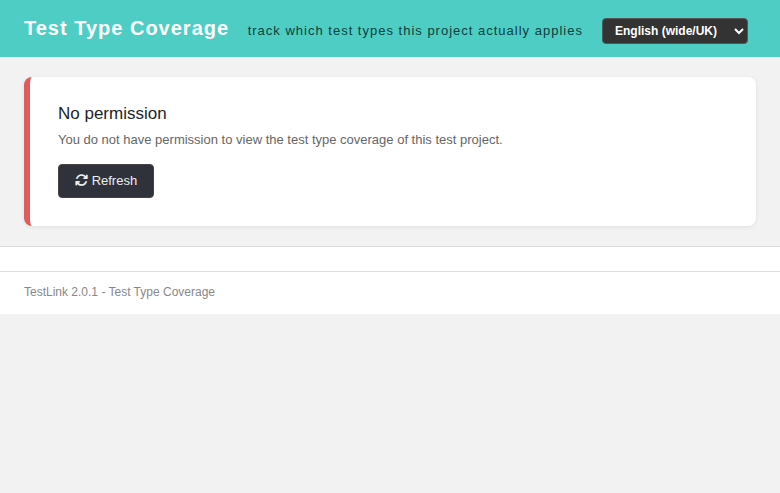

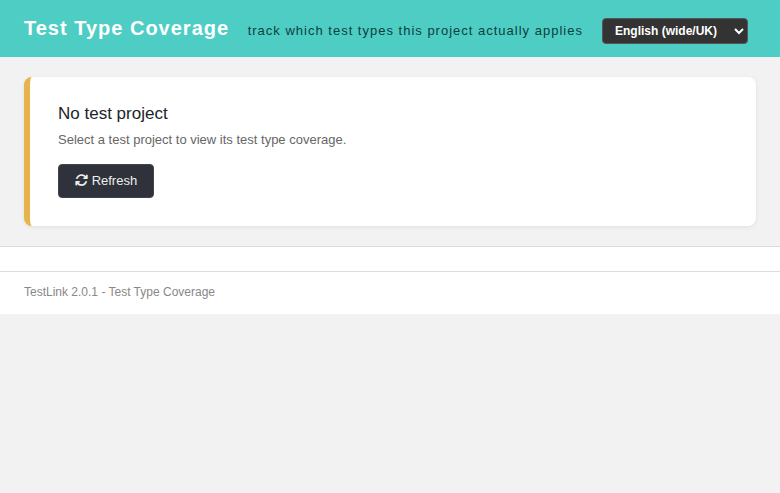

Machine-code state cards replace raw failures: 401 (session — Log in → /login.php?note=expired), 403 (No permission, matrix hidden), 404 (No test project — addressed project does not exist) and a generic load-error card with the raw code. The page content is hidden while a state card is shown.

Rights model

Rights are evaluated on the addressed test project before it is resolved (the #1697 existence-oracle lesson):

• reads require mgt_view_tc OR mgt_modify_tc;
• writes require mgt_modify_tc;
• a read-only user (e.g. role tester) sees all 13 rows with View only — no Edit, no Reset;
• norights (role 3) gets the 403 state card.

BFF contract

GET /api/testtypecoverage/index.php?action=init&tproject_id=N →

{ "status":"ok",
  "context":{"tproject_id":1,"tproject_name":"TCO1945","tproject_prefix":"TC4",
             "can_view":true,"can_modify":true},
  "domains":{"statuses":["not_planned","planned","in_progress","done","not_applicable"],
             "groups":["functional","non_functional"]},
  "stats":{"total":13,"tracked":3,"done":1,"in_progress":1,"planned":1,
           "not_planned":10,"functional":6,"non_functional":7},
  "items":[{"id":0,"type_key":"functional","group":"functional",
            "label":"Functional testing","status":"not_planned",
            "description":"","owner":"","is_stored":0,
            "created_by":0,"creation_ts":"","update_ts":""} ...] }

GET ?action=list returns the same items. POST ?action=save {tproject_id, type_key, status[, description, owner]} is a true upsert by type_key (Created/Saved); POST ?action=delete {tproject_id, type_key} resets a stored row to its defaults.

Errors: 400 no_testproject|unknown_action|bad_status, 401 not_authenticated, 403 no_right (+ the same-origin proof required by bffSameOriginGuard() on state-changing methods), 404 tproject_not_found|type_not_found|not_tracked, 405 wrong_method (Allow: GET, HEAD, POST), 500 server_error. Writes emit TESTTYPE_SAVE / TESTTYPE_RESET AUDIT events for the Event Viewer.

Verification

• Browser suite Issue #1945 = 32/32 PASS (append-only suite in tmp/TLU_Test_Cases.md; gate TLU_REQUIRE_SUITE="Issue #1945" bash ai/verify_test_suites.sh → 34 PASS / 0 FAIL, no suite lost).
• bash ai/verify_i18n_coverage.sh → 9/9 bundles, 8907 keys, 0 missing.
• BFF contract exercised end-to-end with curl (create/update/reset/400/401/403/ 404/405/HEAD/array-parameter), plus browser checks of every button, modal, filter, search, locale, state card and the read-only role path.
• Event Viewer clean (only AUDIT LOGIN/TESTTYPE_SAVE/TESTTYPE_RESET rows, zero ERROR/WARNING); console clean on the screen.

Notes

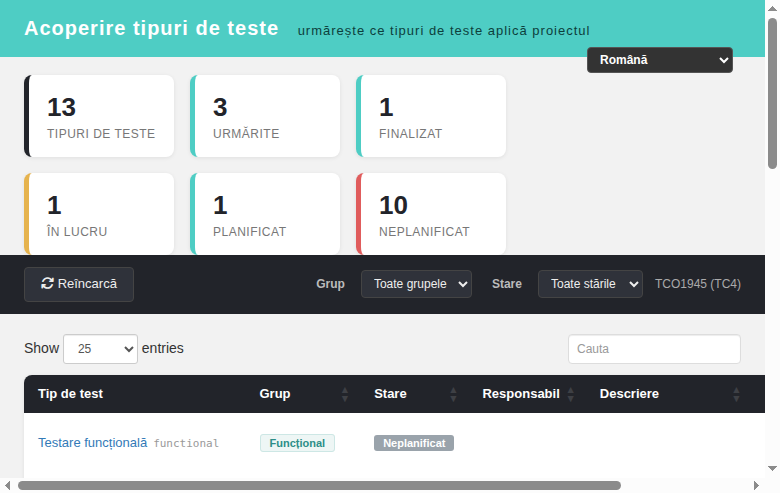

• The catalogue labels travel from the server in English and are mapped client-side to ttc.type.<key> so every locale shows a translated type name; a bundle without the key falls back to the server label.
• The type column links to the details modal; edit/reset handlers receive their argument through a JSON-string-escaped inline handler (jsArg()), not through plain esc() — HTML entity decoding happens before JS parsing.
• Resetting a row is a DELETE, not a status change: the row leaves the table and the tile counters immediately reflect the catalogue defaults.
