Exit Criteria Evaluation

Exit Criteria Evaluation (modernized) — Issue #1953 / feature #1088

Screen: gui/templates/strategy/exitCriteriaEvaluation.html BFF: api/exitcriteriaevaluation/index.php ASIDE: Test Strategy → Exit Criteria Evaluation (new entry, $TLS_href_test_strategy_exit_evaluation, present in all 19 server locales).

Purpose

The Exit Criteria Definitions screen (#1936) captures the criteria of a test project — test level, entry/exit text and one measurable metric with a target value. It is CRUD only: it never says whether those criteria are actually met by the execution of a test plan. This screen is the evaluation half of feature issue #1088 (Implement definition of EXIT CRITERIA) and answers exactly that question, read-only.

Screen features

• Teal Dashio header with subtitle + client-side TLi18n locale switcher (10 locales).
• Toolbar: project selector, test plan selector, build selector, platform selector, Evaluate and Refresh buttons.
• Verdict banner: ready / not_ready / manual / no_data with a body sentence and the counts Met · Not met · Manual · N/A.
• Six KPI tiles: Criteria, Measurable, Met, Not met, Manual, Met %.
• Plan-results strip: Assigned, Executed, Not run, Passed, Failed, Blocked, Progress %, Pass rate %.
• By test level table: one row per test level that actually carries criteria (the canonical levels — unit, integration, system, acceptance, release — plus any other level found in the data, which gets its own row instead of being dropped) with their criteria / met / not met / manual / N/A counts.
• Criteria DataTable: Name (clickable → details modal), Level, Metric, Target, Actual, Status, Actions. Sortable and searchable.

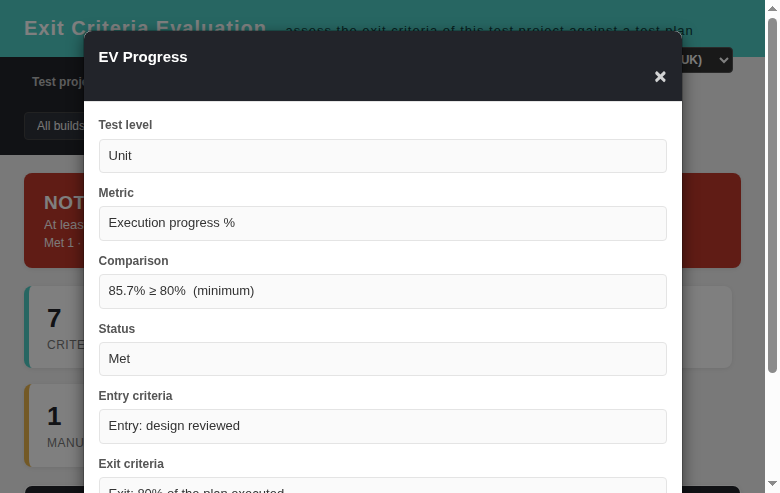

• Details modal: test level, metric, the comparison line (85.7% ≥ 80% (minimum)), the status, the entry criteria and the exit criteria.
• Three convention hints that state the judging rules in words.
• Footer: N exit criteria. + the generated timestamp.
• State cards for 401 / 403 / 404 / 400 / 405.

The model

• Unit of work — a testplan_tcversions assignment row (a test case version assigned to the plan).
• Result of a test case version — its latest execution (MAX(executions.id)) for that (tcversion, platform) inside the selected plan and build.
• Percentage metrics (progress, pass_rate, req_coverage) are minimums — the criterion is met when actual ≥ target.
• Count metrics (failed, blocked) are maximums — met when actual ≤ target.
• metric = none is never judged automatically → Manual review.
• A criterion without a target value is Not evaluated — and it carries no actual value either (an unjudged criterion must never look like a measured one).
• Verdict — no_data when the plan has no assigned test case; manual when nothing could be judged (no criterion is measurable, or every measurable criterion ended up "Not evaluated") — a human has to decide, so the verdict is never "ready"; not_ready when at least one judged criterion is not met; ready otherwise.
• Met % is computed over the criteria that could really be judged (met + not_met), so a criterion that needs a human decision cannot dilute it.
• Scope — the whole plan, optionally restricted to one build and/or one platform.

BFF API — api/exitcriteriaevaluation/index.php

Session auth + same-origin CSRF guard (bffSameOriginGuard) + inactivity timeout (bffEnforceSession). Read only — there is no write verb at all. Rights are checked on the addressed test project before it is resolved (the #1697 lesson: no existence oracle).

Route	Meaning
GET|HEAD ?action=projects	{projects:[{id,name,prefix}]} — the projects the caller may read
GET|HEAD ?action=init&tproject_id=N	{context:{project, plans, builds, platforms}, metrics, levels}
GET|HEAD ?action=evaluate&tplan_id=M[&tproject_id=P][&build_id=B][&platform_id=PL]	{context, verdict, metrics, levels, criteria[]}

• read = mgt_view_tc or mgt_modify_tc on the project.

Machine codes: not_authenticated (401), no_right (403), unknown_action (400), invalid_request (400), invalid_parameter (400 — an array parameter), tplan_not_found (404), tproject_not_found (404), project_mismatch (404 — the plan belongs to another project), method_not_allowed (405, Allow: GET, HEAD).

No plan-existence oracle. When the request does not assert a project, the plan is looked up first and a plan the caller may not see answers with the same opaque 404 tplan_not_found as a plan that does not exist. Only an asserted project the caller may not see answers 403 no_right — the answer therefore never reveals whether a plan id exists.

i18n

91 ecv.* keys plus footers.exitCriteriaEvaluation in all 10 client bundles (gui/templates/i18n/*.json), plus $TLS_href_test_strategy_exit_evaluation in all 19 server locales. ai/verify_i18n_coverage.sh passes (9324 keys, 9/9 bundles). The DataTables pagination, the "entries per page" menu and the search inputs are localized too (dtLanguage() / patchSearch() on the client), and the shared locale switcher got an accessible name through the new common.language key.

Verification

Suite Suite — Issue #1953 in tmp/TLU_Test_Cases.md (15/15 PASS) plus Suite — Issue #1953 (review fixes) (12/12 PASS) plus Suite — Issue #1953 (correction) (7/7 PASS). Verified in the browser as admin: render, verdict, build and platform filters, the criteria search, the details modal, the empty-project state, the 403 (right-less user) and 404 (unknown project / cross-project plan) states; console clean; Event Viewer shows only AUDIT rows, 0 new Error/Warning. BFF error paths exercised over curl (400/401/403/404/405). English and Romanian render fully translated, with no raw ecv.* key on the page. php -l clean on the BFF. Lighthouse: Accessibility 96, Best Practices 100 (the remaining colour-contrast findings are the shared Dashio house palette, identical to the sibling screens).

Suite correction

Two measurements recorded in the earlier suites of this screen did not survive a re-run of the fixture and were corrected in the appended suite Issue #1953 (correction) (7/7 PASS). The screen itself was not changed.

Wrong record	Correct value
Issue #1953 (review fixes) case 1953-R.11: selecting EV Build 2 gives 3 Met / 1 Not met / 75% Met %	EV Build 1 (id 5) gives 3 Met / 1 Not met / 75% Met %; EV Build 2 (id 6) gives 2 Met / 2 Not met / 50% Met % — the case had the two build ids swapped
Issue #1953 (review fixes) case 1953-R.2: the NA-only plan reads 0 Met / 0 Not met / 2 Manual	the two criteria are Not evaluated (na), so the tiles read 0 Met / 0 Not met / 0 Manual / 0% Met % and the counts strip "Met 0 · Not met 0 · Manual 0 · N/A 2" — the verdict is still manual (evaluated = 0)

The authoritative numbers of the fixture (ECV1953 = 55, EV Plan = 58, EV Build 1 = 5, EV Build 2 = 6, EV Platform 1 = 3, ECV1953 NA ONLY = 57, EN Plan = 60) are:

Scope	Tiles	Verdict
all builds	7 Criteria / 6 Measurable / 1 Met / 3 Not met / 1 Manual / 25% Met %	not_ready
EV Build 1	3 Met / 1 Not met / 1 Manual / 75% Met %	not_ready
EV Build 2	2 Met / 2 Not met / 1 Manual / 50% Met %	not_ready
EV Platform 1	4 Met / 0 Not met / 1 Manual / 100% Met %	ready
ECV1953 NA ONLY	2 Criteria / 2 Measurable / 0 Met / 0 Not met / 0 Manual / 0% Met %	manual

Bugs found while testing this screen

1. The build selector, the platform selector and the Evaluate button were dead. The global function was named evaluate(), and an inline onchange / onclick handler resolves a name through document before window — so document.evaluate (the XPath API) shadowed it and the console logged 3 × Uncaught TypeError: Failed to execute 'evaluate' on 'Document': 2 arguments required, but only 0 present. (0 args). The function was renamed to runEvaluation(); the BFF action=evaluate contract is unchanged.
2. An unknown deep link silently fell back to the first accessible project. ?tproject_id=99999 (or a ?tplan_id= of another project) now shows the Not found state card instead of quietly displaying a different project.

Code review round 1 — corrections

3. A criterion without a target value was judged as met. The evaluation loop read the computed actual value before checking that the criterion has a target, so a progress criterion with target_value = NULL ended up with the status "Met" and a number in the Actual column. It is now Not evaluated with an empty actual value.
4. The verdict said "ready" when nothing could be judged. The BFF now also reports evaluated = met + not_met and answers manual when evaluated = 0 or when no criterion is measurable — a human has to decide, so the verdict is never "ready".
5. The "Met %" tile was diluted by criteria that were never judged — the denominator is now evaluated.
6. An unknown metric id crashed the evaluation with an Undefined array key warning (Event Viewer) and was silently judged as met — the metric is now sanitized to none (Manual review).
7. A plan the caller may not see leaked its existence — see "No plan-existence oracle" above.
8. A criterion on an unknown test level was dropped from the "By test level" table, so the level totals did not add up — it now gets its own row.
9. Accessibility: the four toolbar selects, the six modal fields, the per-row action button, the two DataTables search inputs, the main landmark and the shared locale switcher were missing their accessible wiring — all fixed (Lighthouse Accessibility 90 → 96, Agentic Browsing 13 → 63).
10. Dead code: the client-side criteria filter (and its "no match" row) was removed — the tiles are now rendered from the summary computed by the BFF, which is the single source of truth.

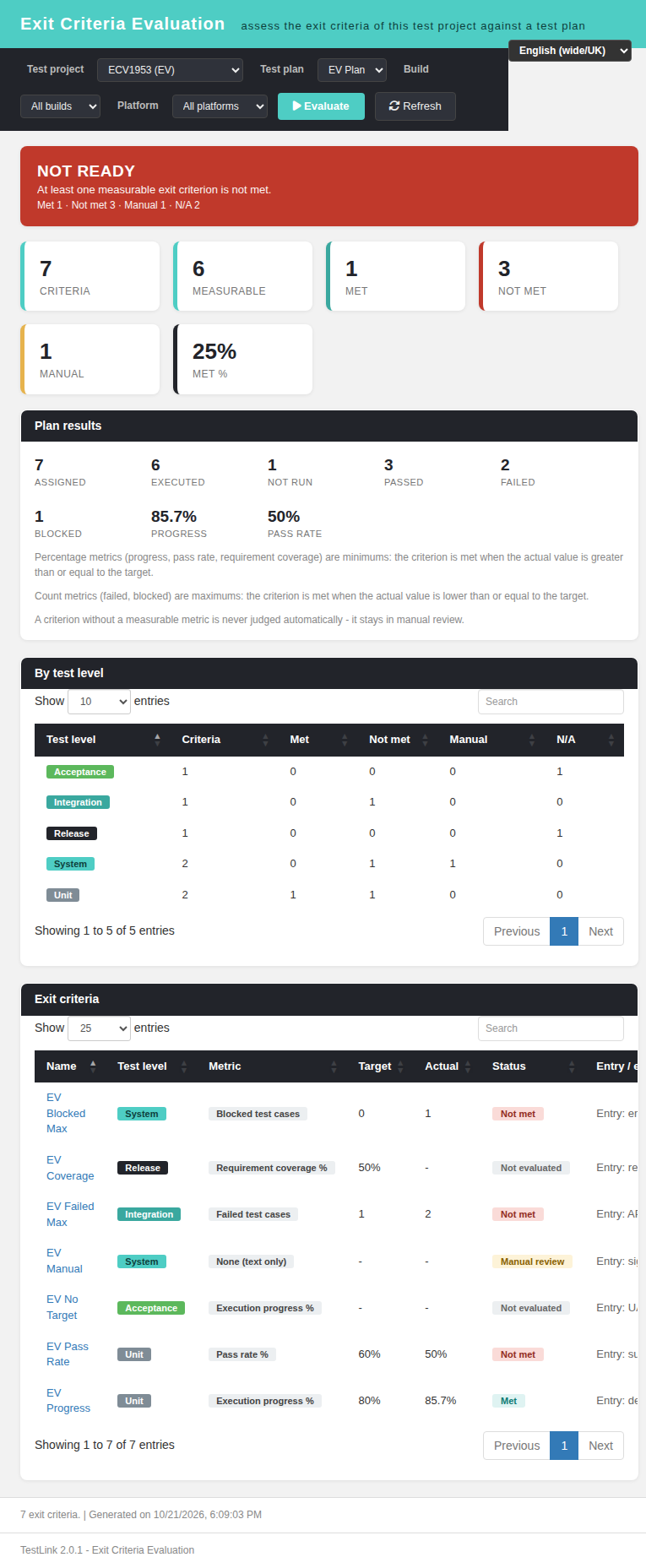

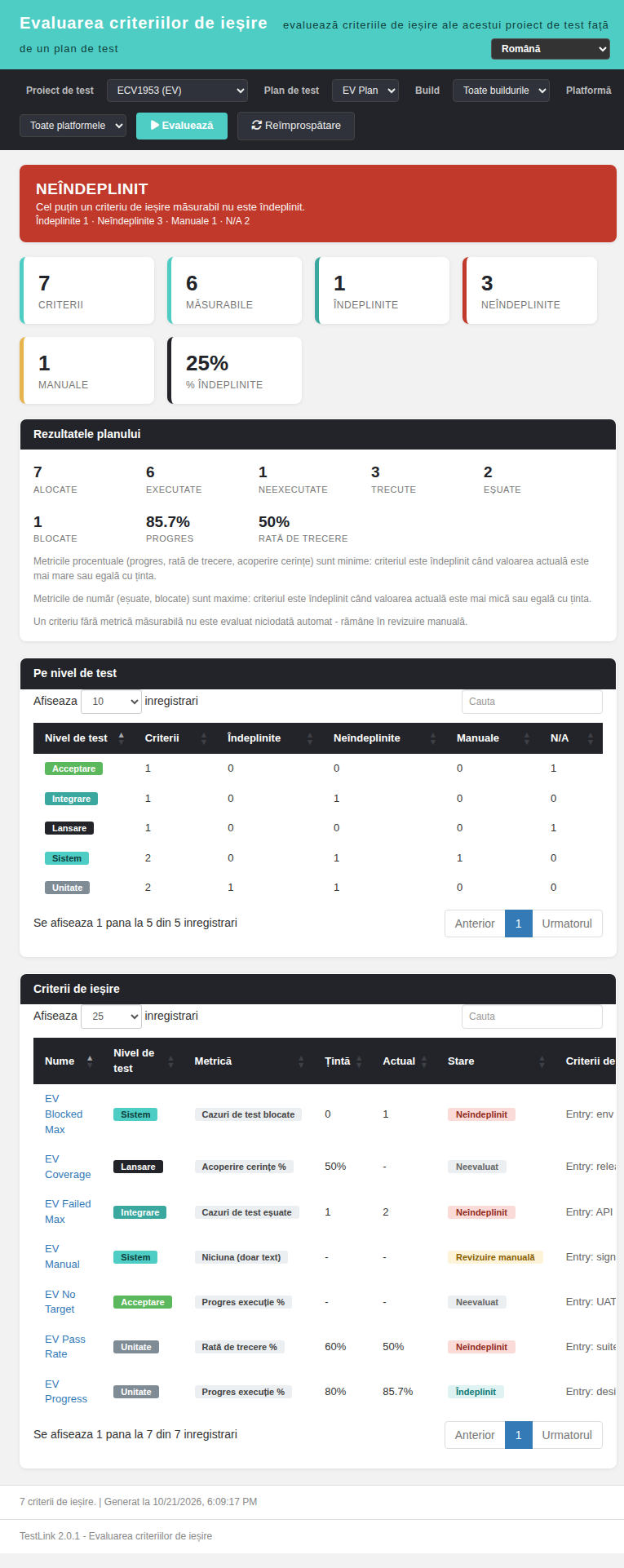

Screenshots
