Baseline Snapshot Creation

Baseline Snapshot Creation (baselineSave) — Modernized

Refs: #1964 (tracking) · closes gap #1189 · parent reports area Screen: gui/templates/results/baselineSave.html BFF: api/baselinesave/index.php

Why this screen exists

TestLink 1.9.20 could save a baseline only as a side effect of a GET to the Results by Test Suite report (lib/results/resultsByTSuite.php, doAction=saveForBaseline). There was no screen, no confirmation, no way to review what was about to be stored, and repeating the request silently created another snapshot. The modern Reports area exposed the read side (baselineL1L2.html, api/reports → metrics_baseline_l1l2) but had no write path at all, so snapshots could only be produced by the legacy controller.

This screen restores the missing capability with an explicit preview and an auditable POST, and it is linked from both reports that need it.

What the screen does

• Plan-scoped preview of the figures that will be frozen: per platform
  • execution window (first / latest execution),
  • number of level-2 suites and test cases,
  • status totals (passed / failed / blocked / not run),
  • whether the platform has executions and can be snapshotted.
• KPI tiles summarising the same figures for the whole plan.
• Save baseline writes one snapshot per executable platform.
• Saved snapshots table lists every existing snapshot (newest first) with its creation time, platform, execution window, detail-row count and total executions.

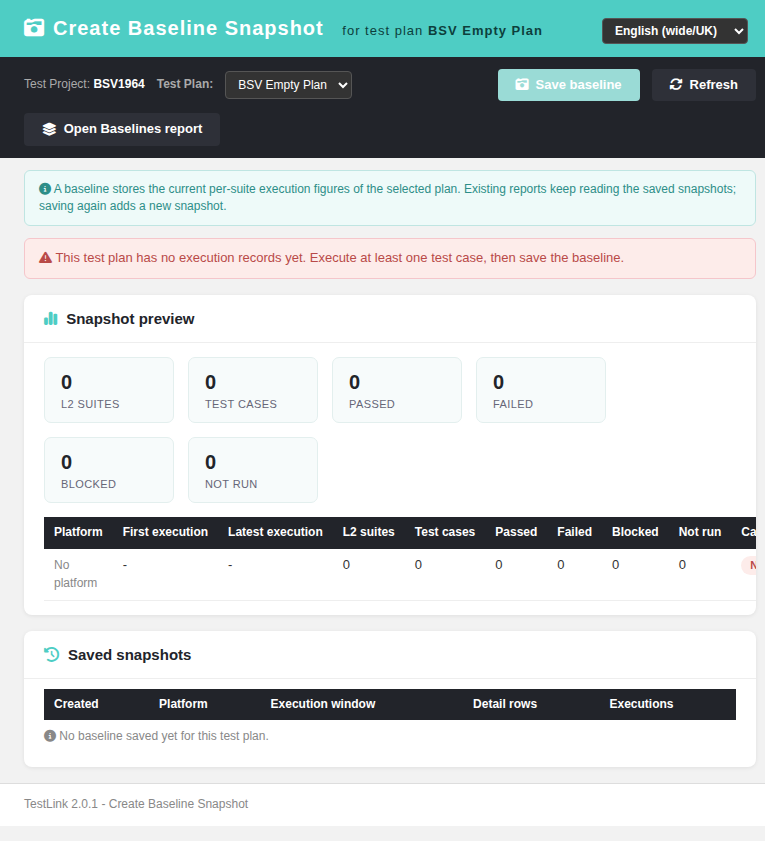

• Explicit empty/error states: no plans, no executions, 401, 403, 404 and a duplicate-save refusal. A no-execution plan keeps the preview visible but disables Save and shows the legacy warning.
• Open Baselines report jumps to baselineL1L2.html for the same plan.
• Client i18n via TLi18n (bsv.* keys) with the shared locale switcher.

Entry points:

• gui/templates/results/baselineL1L2.html — “Create baseline” button.
• gui/templates/results/resultsByTSuite.html — “Create baseline” button.
• $actions->baselineSave in lib/functions/common.php.

BFF contract

File: api/baselinesave/index.php. Session auth, JSON in/out, same-origin guard on writes.

Method	Route	Purpose
GET/HEAD	?action=init&tproject_id=N[&tplan_id=M]	Project/plan context, plan list, per-platform preview, existing snapshots
GET/HEAD	?action=snapshots&tproject_id=N[&tplan_id=M]	Snapshot list only
POST	?action=save&tproject_id=N&tplan_id=M	Create one snapshot per executable platform

Rights: testplan_metrics is required on the addressed project, and the right is checked before the plan is resolved, so a foreign or unknown id does not become an existence oracle. A write additionally requires bffSameOriginGuard (X-Requested-With or Origin/Referer) and bffEnforceSession.

Stable error codes: unknown_action (400), invalid_parameter (400), not_authenticated / session_expired (401), no_right (403), tproject_not_found / tplan_not_found (404), wrong_method (405), no_executions (400), duplicate_snapshot (409).

Data written

• baseline_l1l2_context — one row per (testplan_id, platform_id, creation_ts) with the execution window.
• baseline_l1l2_details — one row per (top_tsuite_id, child_tsuite_id, status) with qty and total_tc, using the legacy status letters n / p / f / b.

The figures come from tlTestPlanMetrics::getStatusTotalsTSuiteDepth2ForRender() (grouped by platform) and getExecTimeSpan(); platforms come from testplan::getPlatforms(). The context and detail inserts of one save run in a single transaction: a unique-key collision is answered as 409 duplicate_snapshot, any other DB failure rolls the whole save back and answers 500 save_failed (never a false "duplicate"). Only after the commit are the AUDIT events written (CREATE, context id, baseline_l1l2_context).

Legacy behavior preserved

• The same level-1/level-2 suite granularity and status letters that the existing baseline reports read.
• One snapshot per platform, with a plan without platforms stored under platform_id = 0.
• Refusal to snapshot a plan with no execution records (legacy message kept in localized form).
• The existing read report is unchanged; saving adds a new snapshot rather than overwriting the previous one.

Verification

• php -l clean on the BFF; ai/verify_i18n_coverage.sh 9/9 bundles pass.
• Suite Issue #1964 (10 cases) in tmp/TLU_Test_Cases.md: render, save + DB rows, no-execution plan, duplicate guard, 401/403/404/405, entry points, i18n, audit/Event Viewer.
• Browser pass in EN and RO, including the no-execution plan.

Screenshots
